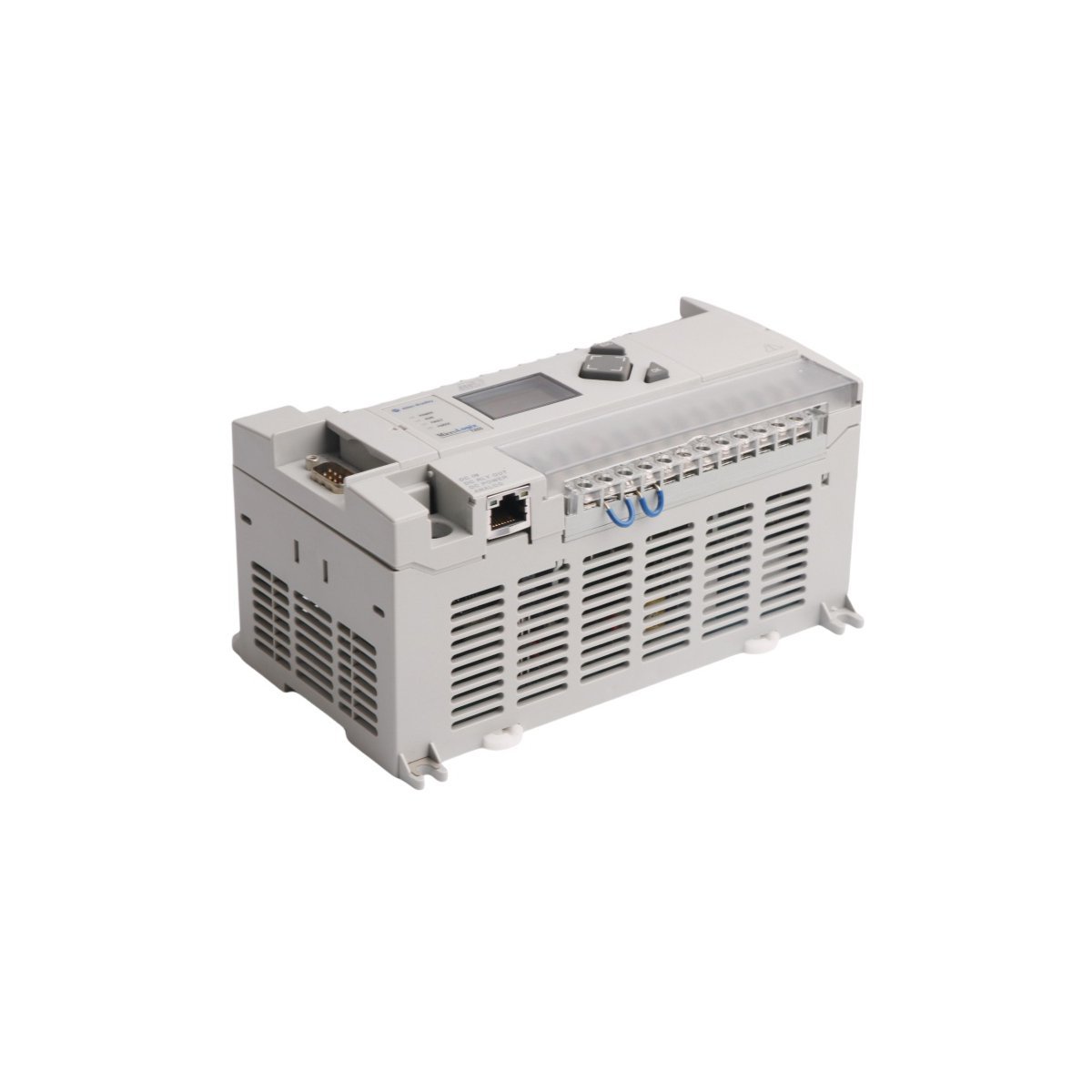

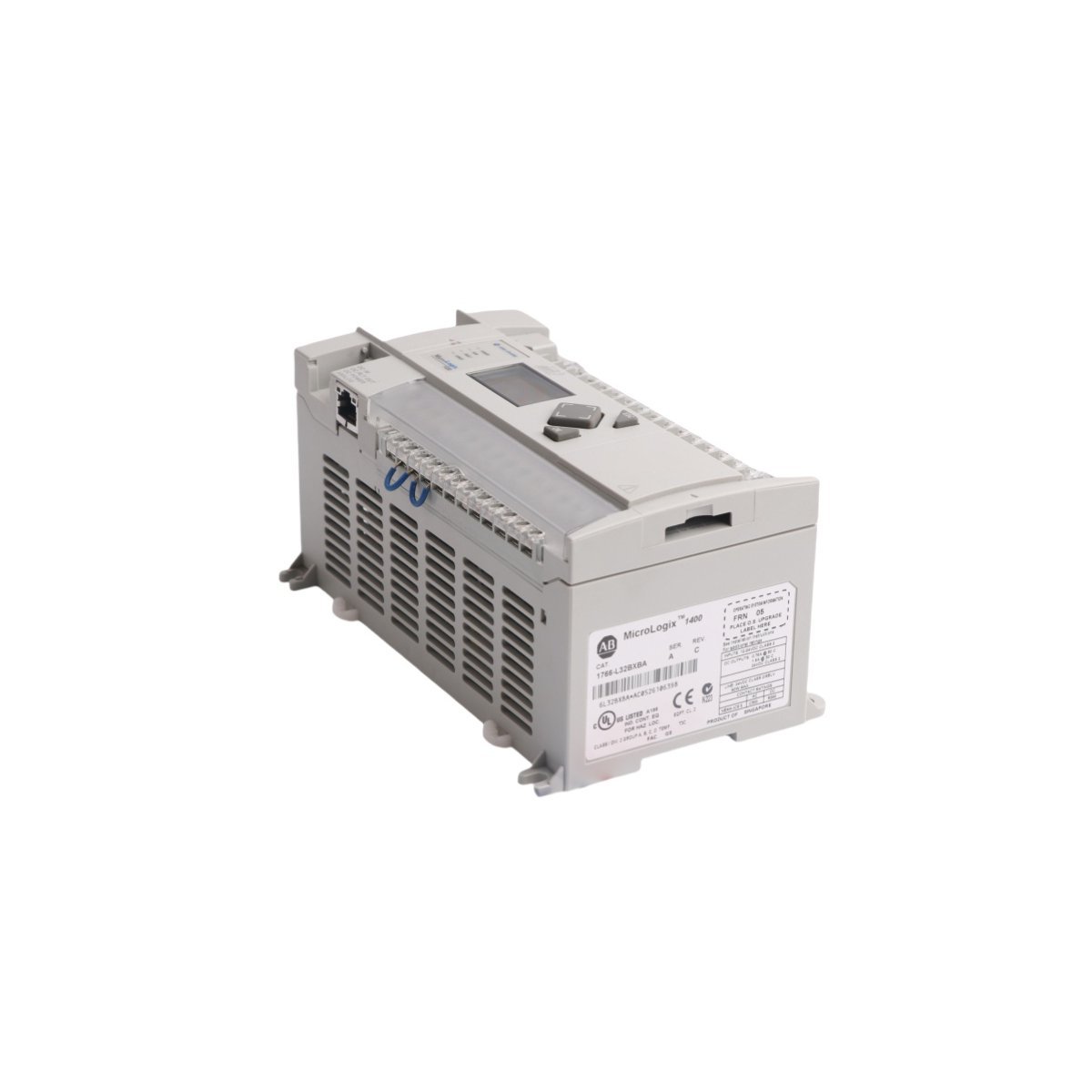

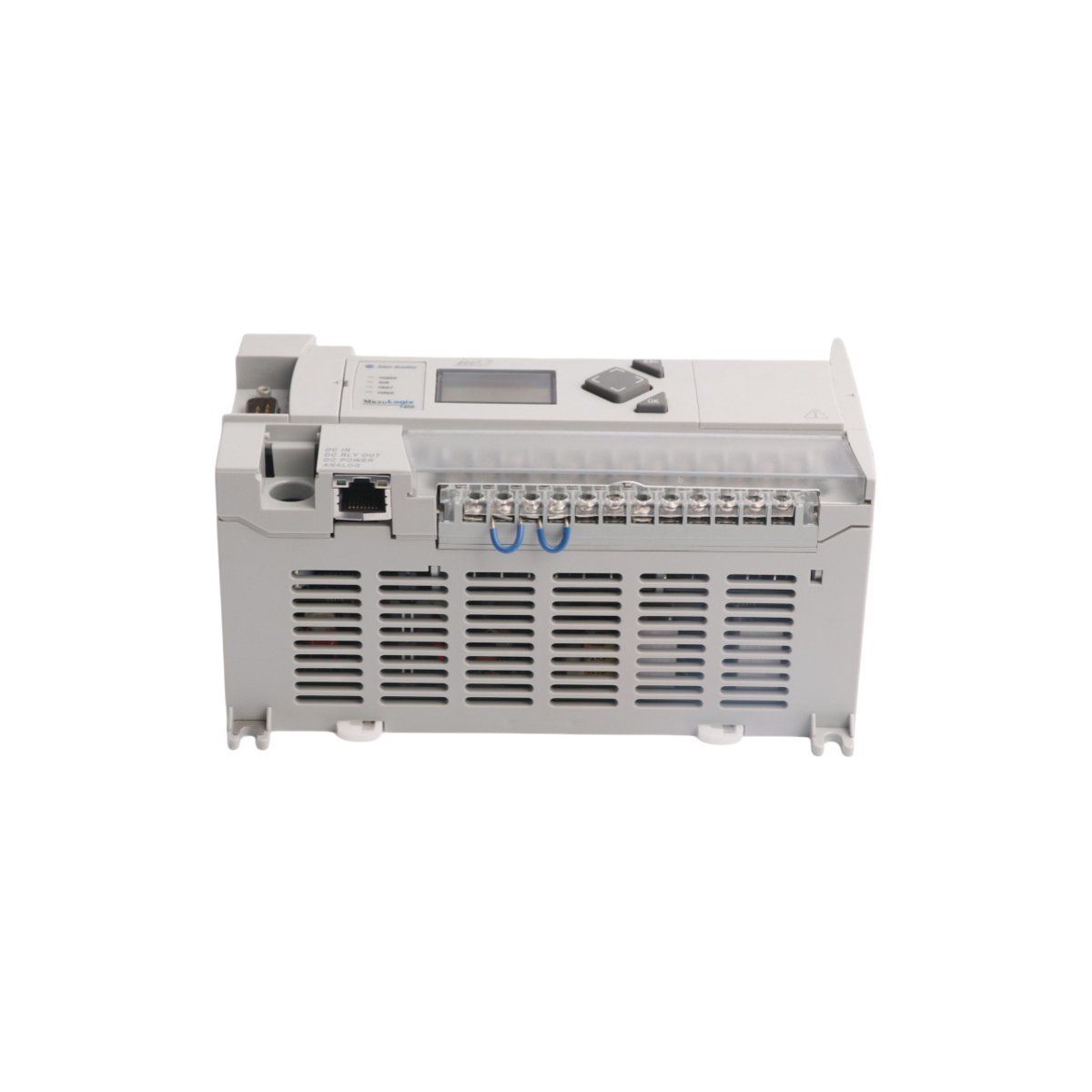

The Allen Bradley 1766-L32BXBA is a versatile and expandable MicroLogix 1400 controller designed to manage complex automation tasks through a high-density I/O configuration. This unit integrates digital and analog control with advanced networking capabilities, providing a complete automation solution for standalone machinery and distributed industrial systems.

Advanced I/O and Control Logic

The 1766-L32BXBA excels in applications requiring high-speed data acquisition and precise output management. It features a total of 32 integrated digital I/O points, including 12 fast 24V DC inputs for high-frequency pulse counting and 8 standard 24V DC inputs. The output side provides six relay outputs and six fast 24V DC outputs, allowing for both heavy load switching and high-speed pulse train control. Furthermore, this model includes four built-in analog channels (two inputs and two outputs), which eliminate the need for separate expansion modules in basic process control loops.

Integrated Communications and Data Management

Rockwell Automation prioritized connectivity by equipping the 1766-L32BXBA with three independent communication ports. The controller includes an RJ-45 EtherNet/IP port for high-speed messaging and DNP3 over IP, an isolated RS-232/RS-485 combo port, and a non-isolated RS-232 port. These interfaces allow the PLC to communicate simultaneously with HMIs, variable frequency drives, and remote SCADA systems. To protect critical logic, the 20 KB user memory is non-volatile, while an internal real-time clock manages time-stamped events and scheduled operations without external synchronization.

Industrial Scalability and Reliability

While the 1766-L32BXBA functions as a powerful standalone unit, it also supports up to seven 1762 MicroLogix expansion I/O modules for larger system requirements. The front-panel LCD display provides technicians with real-time status updates and the ability to modify controller data without specialized tools. This combination of local monitoring and modular expansion makes the 1766-L32BXBA an essential component for modern manufacturing, packaging, and water treatment facilities seeking long-term reliability and low maintenance costs.
