Product Overview

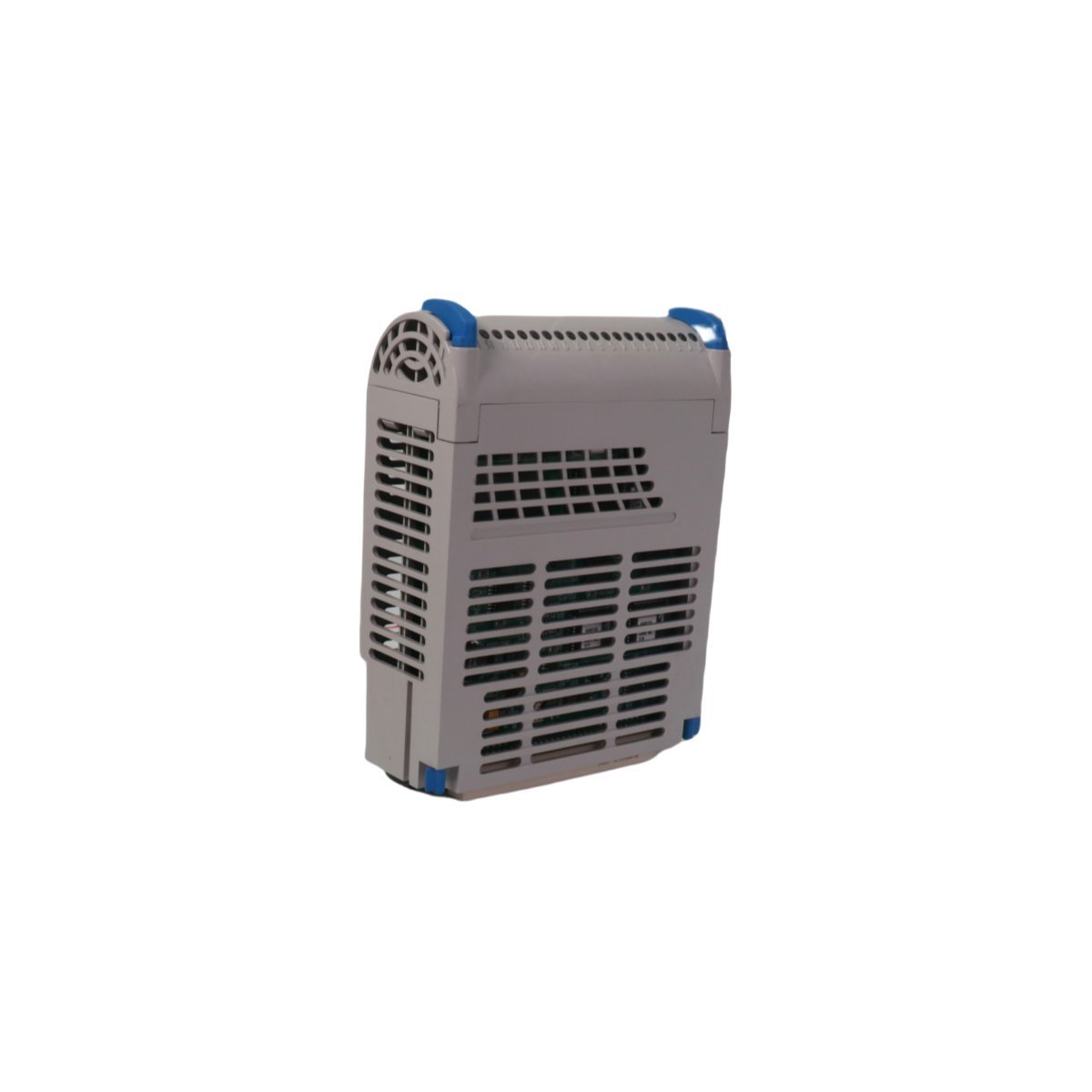

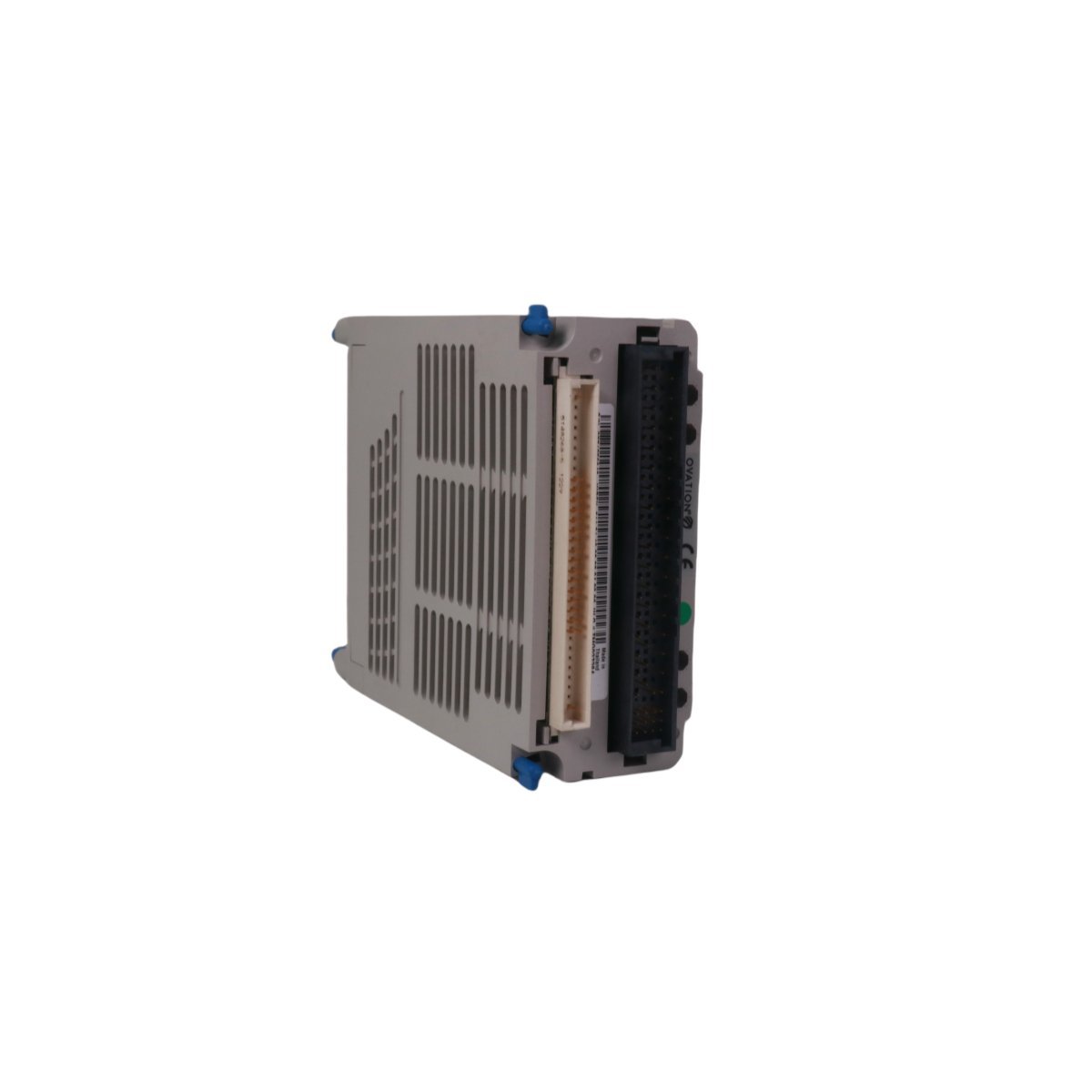

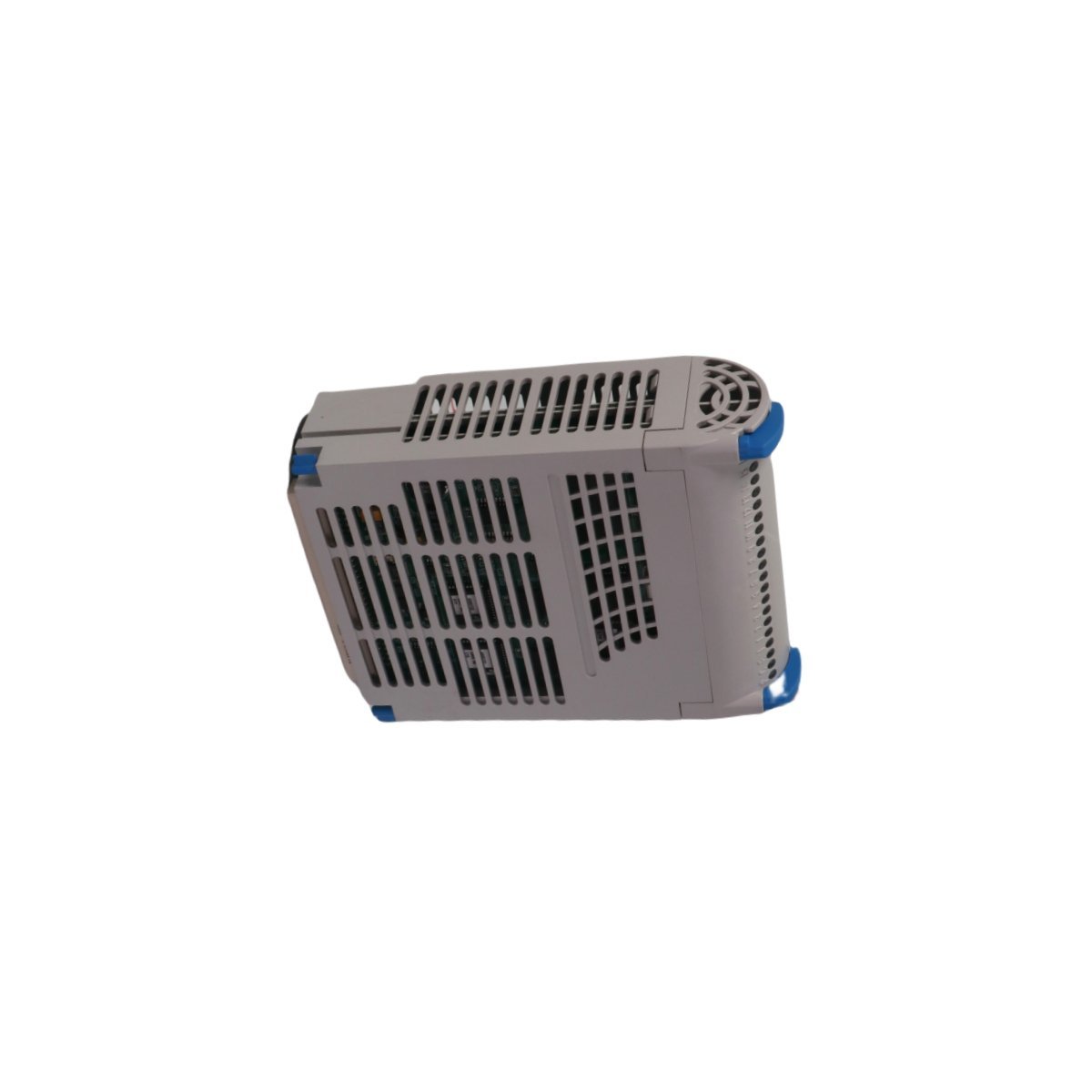

The Emerson 1C31189G01 is a specialized 8-channel speed detector interface designed for the Ovation™ Distributed Control System (DCS). This module provides high-precision pulse frequency monitoring, enabling the control system to accurately track and regulate the rotational velocity of critical industrial machinery.

High-Precision Speed Monitoring and Analysis

The 1C31189G01 module functions as the primary bridge between rotational speed sensors and the DCS processor. By capturing high-frequency pulses from magnetic pickups or proximity probes, the card converts raw mechanical motion into digital frequency data. This real-time processing allows for immediate detection of overspeed conditions or unexpected velocity fluctuations in steam turbines, gas turbines, and large industrial motors. Consequently, the module plays a vital role in preventing mechanical stress and ensuring the safety of high-value rotating assets.

Advanced Signal Integration and Reliability

Engineered for the demanding environments of power generation and water treatment facilities, the 1C31189G01 features eight independent channels to maximize system density and monitoring coverage. Each channel incorporates advanced filtering to eliminate electrical noise and signal “jitter,” which ensures that only clean, accurate pulse data reaches the controller. Furthermore, the robust architecture of this speed detector interface guarantees stable performance under continuous duty cycles. Although this specific revision transitioned to a legacy status in late 2018, it remains a critical component for facilities maintaining existing Ovation architectures that require original manufacturer precision.

Application and System Compatibility

This speed detector input module integrates seamlessly with the Ovation I/O bus, facilitating rapid data exchange with the controller. It supports a variety of speed sensing technologies, providing engineers with the flexibility to deploy it across diverse machine protection and control strategies. By utilizing this interface, operators can maintain tighter process control loops, reduce mechanical wear through smoother speed transitions, and enhance the overall lifecycle of their turbine and machine configurations.
