Description

Product Overview

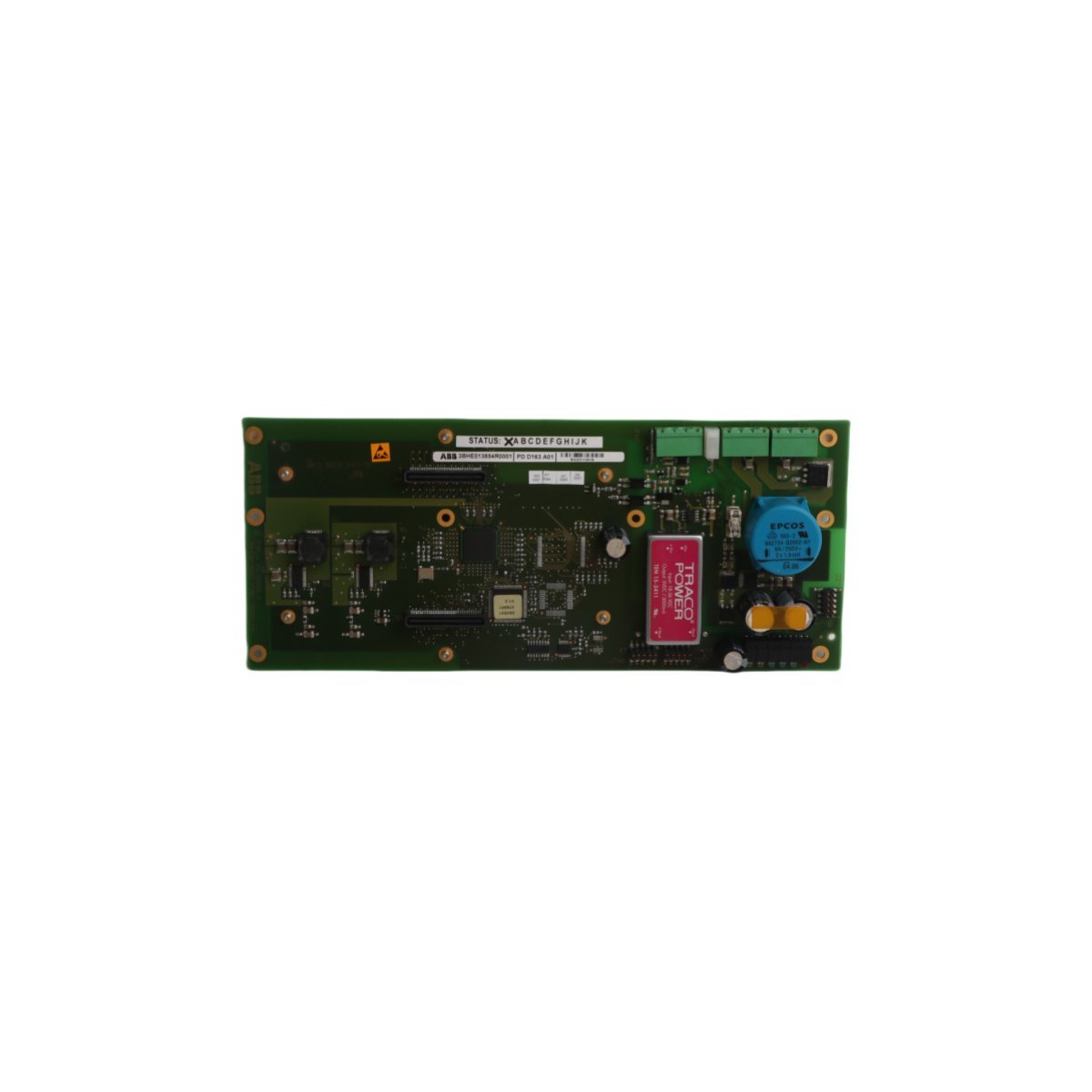

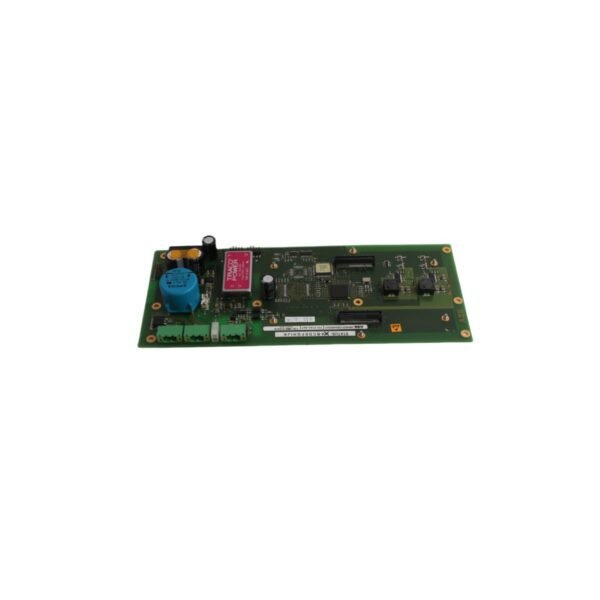

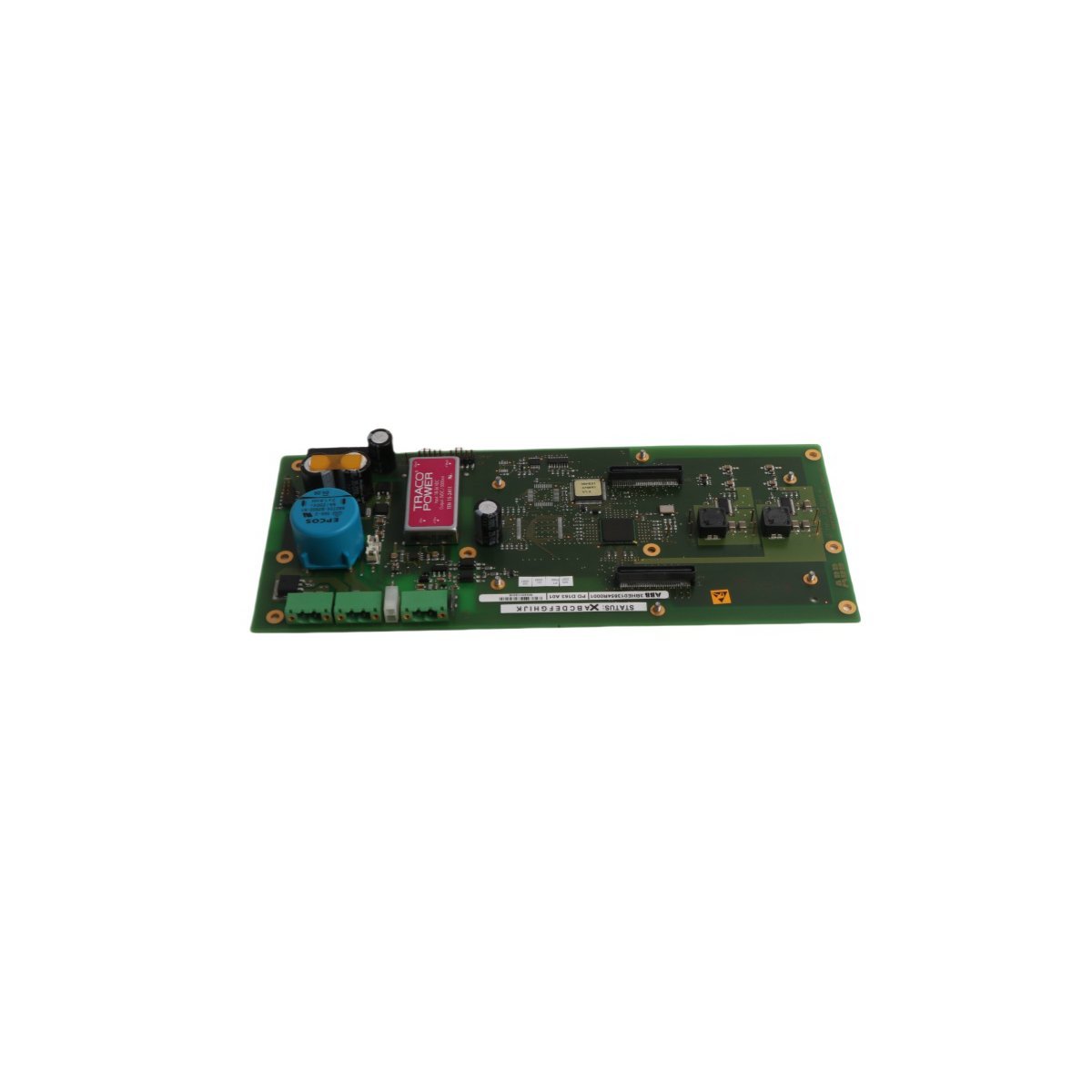

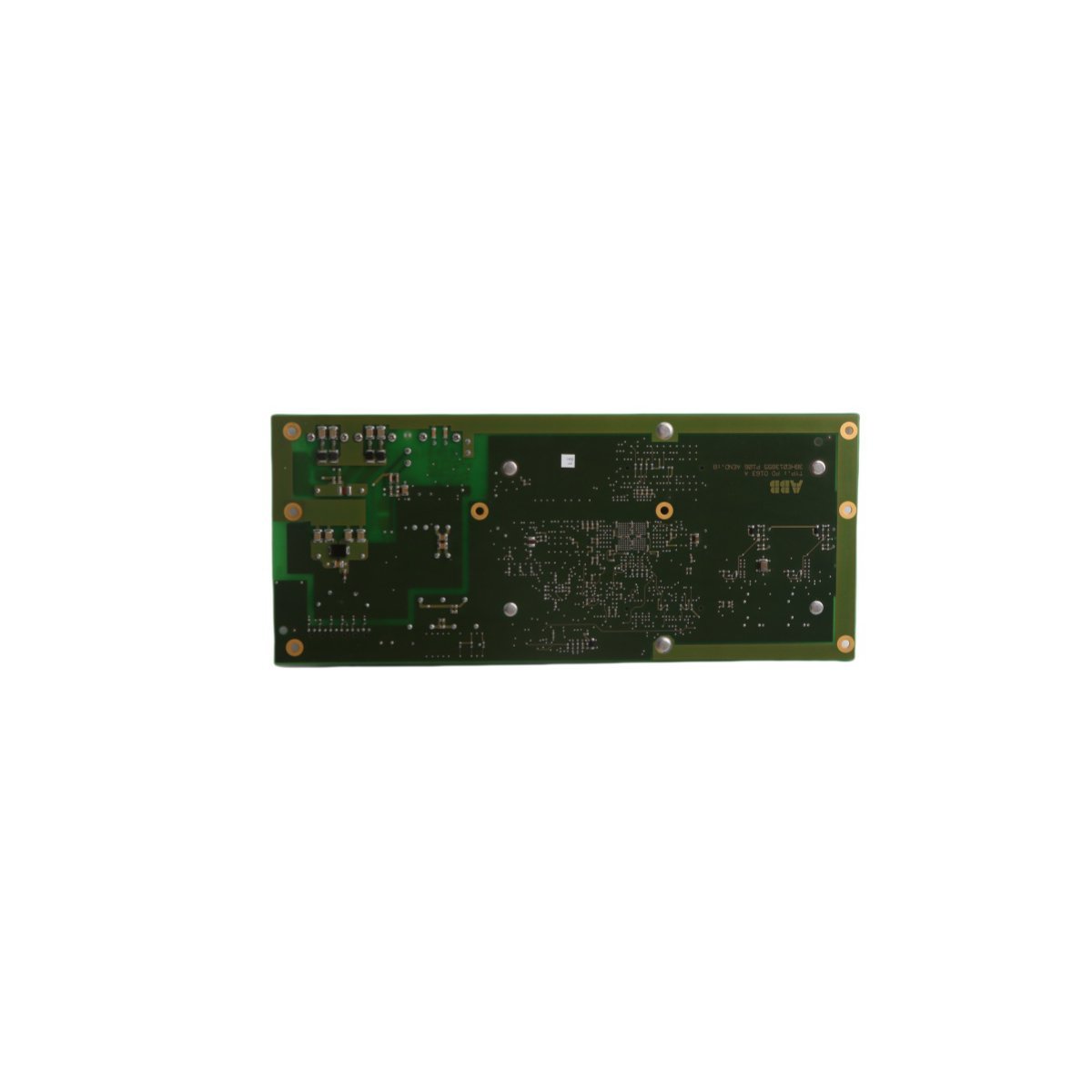

The ABB PDD163A01 3BHE013854R0001 is a specialized high-voltage inverter module engineered for the UNITROL excitation series. This board regulates power conversion and signal modulation to ensure stable generator excitation and grid synchronization.

High-Voltage Power Conversion and Control

The PDD163A01 inverter board functions as a critical power electronics component within the UNITROL system. It converts DC inputs into precise AC drive signals to manage the excitation winding of large industrial synchronous machines. By utilizing high-frequency switching technology, the board maintains an exceptionally stable output voltage, which directly improves the efficiency of the power generation cycle. Moreover, the integrated control circuitry allows for rapid adjustments to the excitation current, enabling the system to react instantaneously to grid load changes or transient faults.

Integration and System Scalability

ABB designed the 3BHE013854R0001 for maximum interoperability within Distributed Control Systems (DCS). Because the board supports various industrial communication protocols, it integrates seamlessly into existing ABB architectures and third-party automation platforms. The hardware’s modular design facilitates “plug-and-play” installation, which significantly reduces the complexity of system commissioning. Furthermore, this compatibility ensures that facilities can modernize their excitation systems without replacing entire cabinet infrastructures.

Operational Efficiency and Durability

To promote sustainable industrial operations, the PDD163A01 features an energy-optimized circuit architecture that minimizes internal power losses. This reduction in heat dissipation not only lowers energy costs but also extends the lifespan of the electronics. The board is manufactured in Sweden using premium-grade materials capable of withstanding the electrical stress and thermal cycling typical of high-voltage environments. Consequently, this module provides long-term reliability in critical infrastructure applications, such as hydroelectric plants and heavy industrial refineries.
