Description

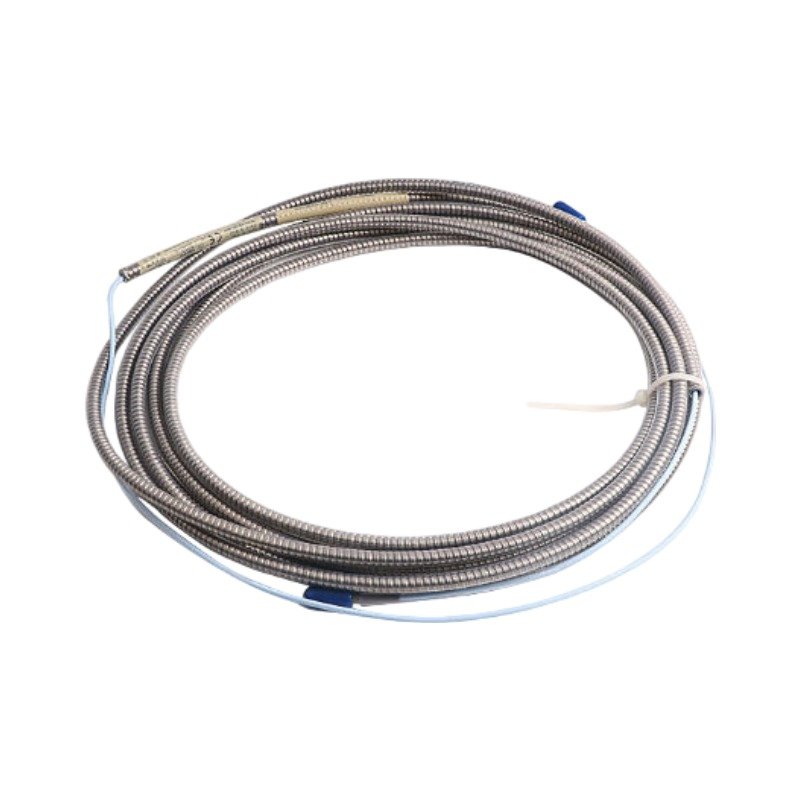

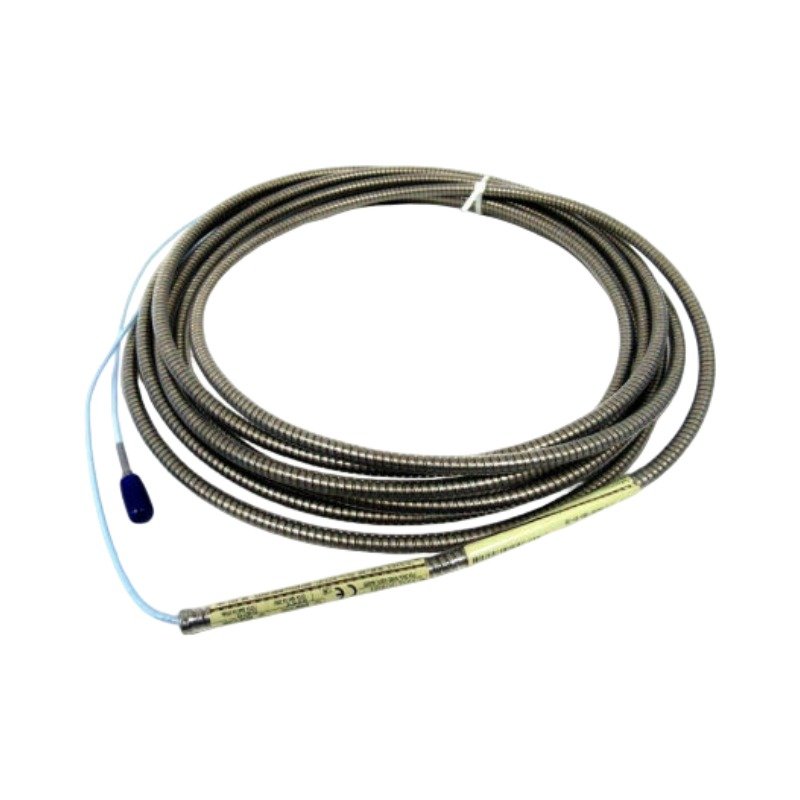

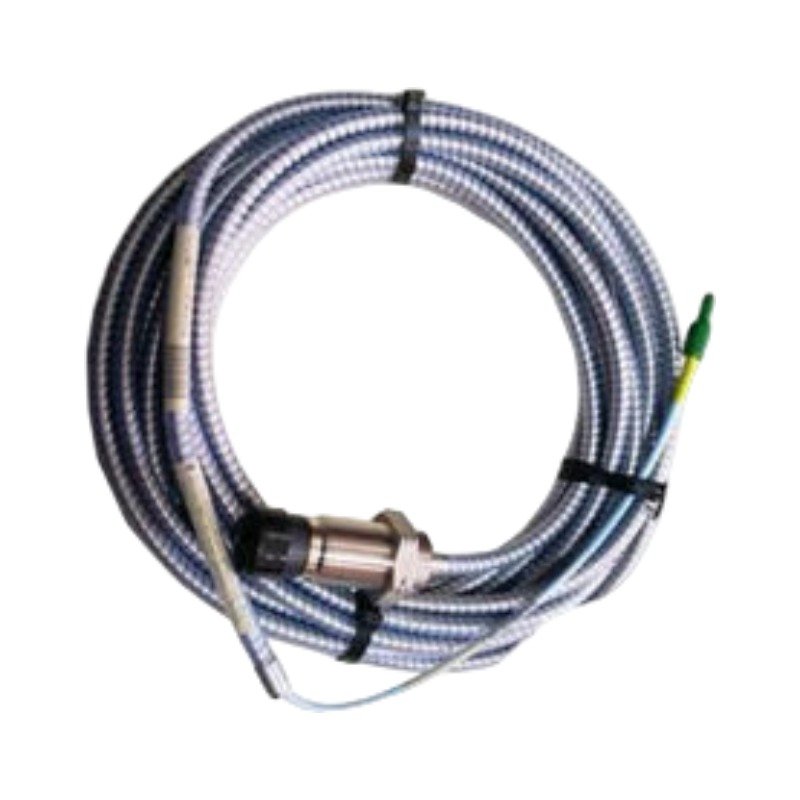

The Bently Nevada 330930-065-00-CN, also cataloged as the 330930 Proximity Extension Cable, operates as a dedicated hardware component for high-frequency signal transmission within 3300 XL NSv Proximity Transducer platforms. The component links a non-contacting proximity probe to a remote Proximitor sensor, providing the precise impedance channel required to measure rotor dynamics on rotating machinery. This specific variation utilizes localized regional regulatory approval standards while maintaining matching physical and electrical specifications to standard series architectures.

Hardware Specifications

Machinery Monitoring and Eddy-Current Probe Scaling

The extension cable incorporates specific electrical properties calibrated for precise eddy-current probe scaling. This precise calibration maintains the exact system capacitance required to perform gap voltage validation (-10 VDC targets) without signal degradation. Because proximity transducers operate on radio frequency (RF) eddy current principles, any variance in cable length or impedance shifts the calibration curve. Consequently, this specialized cable eliminates cross-talk suppression issues when multiple sensor leads route through shared conduit channels, ensuring stable vibration and position data for critical turbomachinery diagnostics.

Frequently Asked Questions

Q: What does the CN suffix signify in the model number configuration?

A: The CN suffix indicates that the component complies with country-specific regulatory certification protocols and regional conformity standards, allowing deployment within localized hazardous zones requiring specialized certification documentation.

Q: Can this cable be paired with a standard 3300 XL 8 mm proximity probe system?

A: No. The 330930 series is engineered solely for the 3300 XL NSv Proximity Transducer System. Mixing components across different systems alters the impedance matching, which disrupts eddy-current probe scaling and causes measurement error.

Field Installation Guidelines

• Minimum Bend Radius: Maintain a minimum bend radius of 25.4 mm (1.0 in) during routing to prevent internal coaxial dielectric degradation.
• Conduit Routing: Route the cable through dedicated, grounded metal conduits to prevent signal cross-talk suppression breakdown from nearby high-voltage AC lines.
• Terminal Torque: Ensure terminal connections are clean and secure, applying recommended finger-tight torque to the coaxial connectors before sliding the silicone boots into place.
• Grounding Isolation: Keep the coaxial shields isolated from the machine ground along the cable run, terminating the shield connection exclusively at the transducer housing block.
