Description

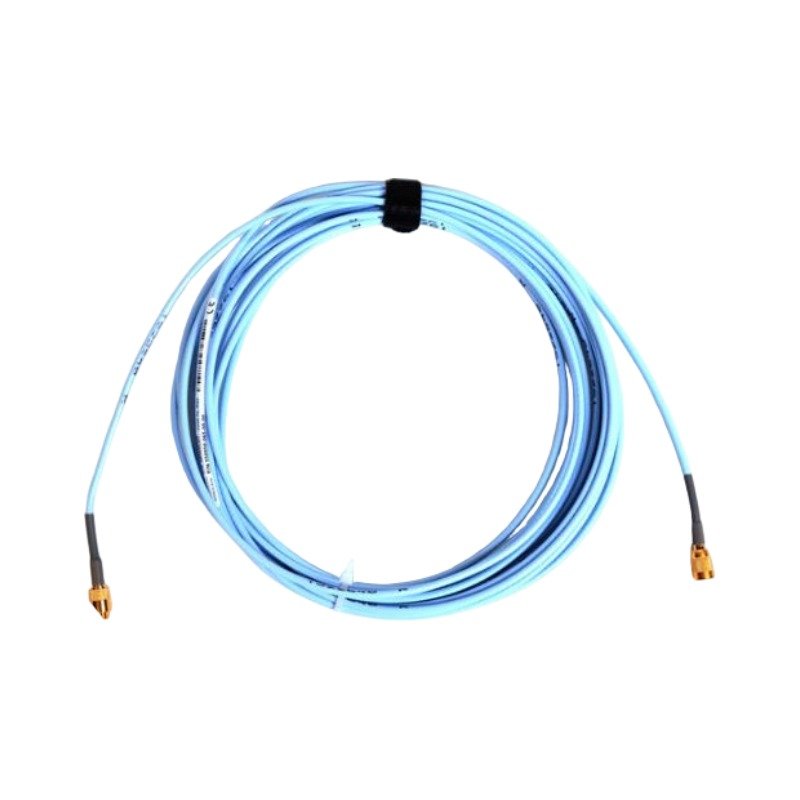

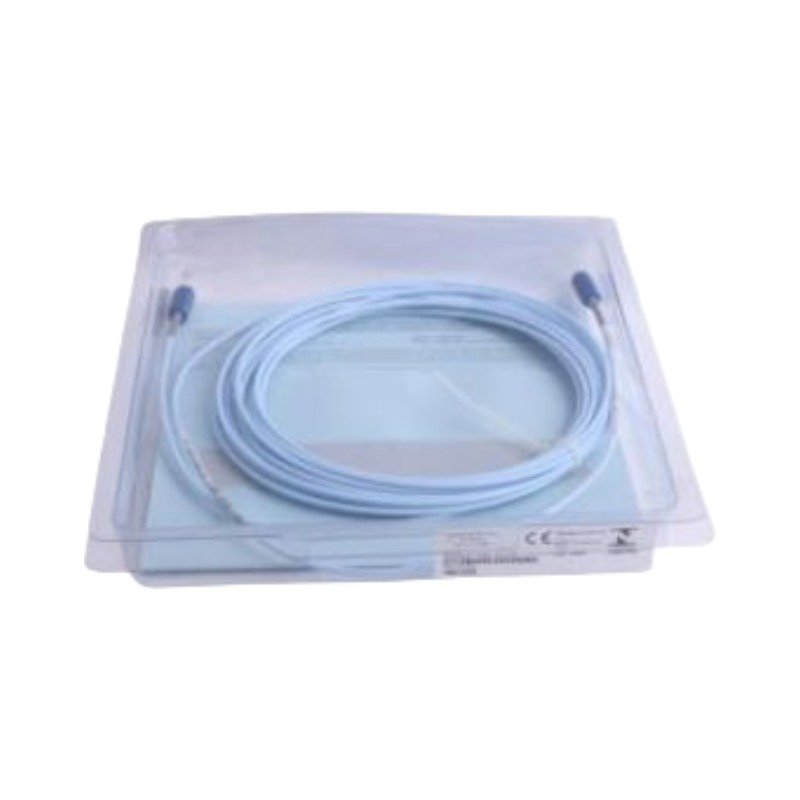

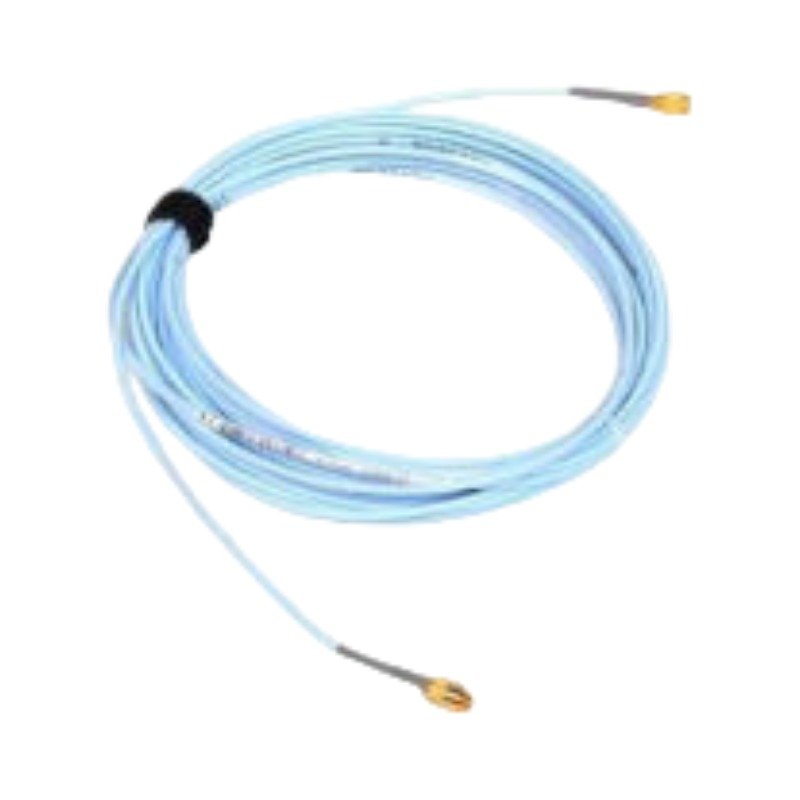

Configured for cross-talk suppression and signal transmission in machinery monitoring systems, the Bently Nevada 330930-065-00-05 (330930 Proximity Extension Cable) provides direct physical/electrical execution. This hardware component links a 3300 XL NSv proximity probe to a 3300 XL NSv proximity transducer system, enabling accurate rotor dynamics measurements. The cable architecture preserves signal integrity by matching the precise electrical impedance requirements of the driver circuit.

Hardware Specifications

Machinery Monitoring and Eddy-Current Probe Scaling

The extension cable incorporates specific electrical properties calibrated for precise eddy-current probe scaling. This precise calibration maintains the exact system capacitance required to perform gap voltage validation (-10 VDC targets) without signal degradation. Because proximity transducers operate on radio frequency (RF) eddy current principles, any variance in cable length or impedance shifts the calibration curve. Consequently, this specialized cable eliminates cross-talk suppression issues when multiple sensor leads route through shared conduit channels, ensuring stable vibration and position data for critical turbomachinery diagnostics.

Frequently Asked Questions

Q: Can this 6.5-meter extension cable be altered or cut to a shorter length during installation?

A: No. Altering the physical length of the cable modifies its total electrical capacitance and resistance, which directly misaligns the factory calibration for eddy-current probe scaling and invalidates the -10 VDC gap voltage validation targets.

Q: What is the purpose of the silicone boot option denoted by the suffix codes?

A: The integrated silicone boots provide a physical seal over the coaxial connectors. This sealing prevents fluid ingress and protects against mechanical damage in environments with high moisture, oil, or chemical exposure.

Field Installation Guidelines

• Minimum Bend Radius: Maintain a minimum bend radius of 25.4 mm (1.0 inch) during routing to prevent internal coaxial dielectric degradation.
• Conduit Routing: Route the cable through dedicated, grounded metal conduits to prevent signal cross-talk suppression breakdown from nearby high-voltage AC lines.
• Terminal Torque: Ensure terminal connections are clean and secure, applying recommended finger-tight torque to the coaxial connectors before sliding the silicone boots into place.
• Grounding Isolation: Keep the coaxial shields isolated from the machine ground along the cable run, terminating the shield connection exclusively at the transducer housing block.
