Description

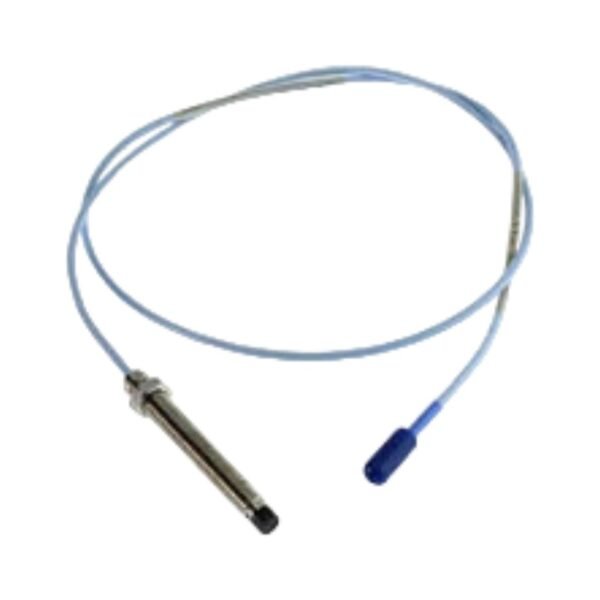

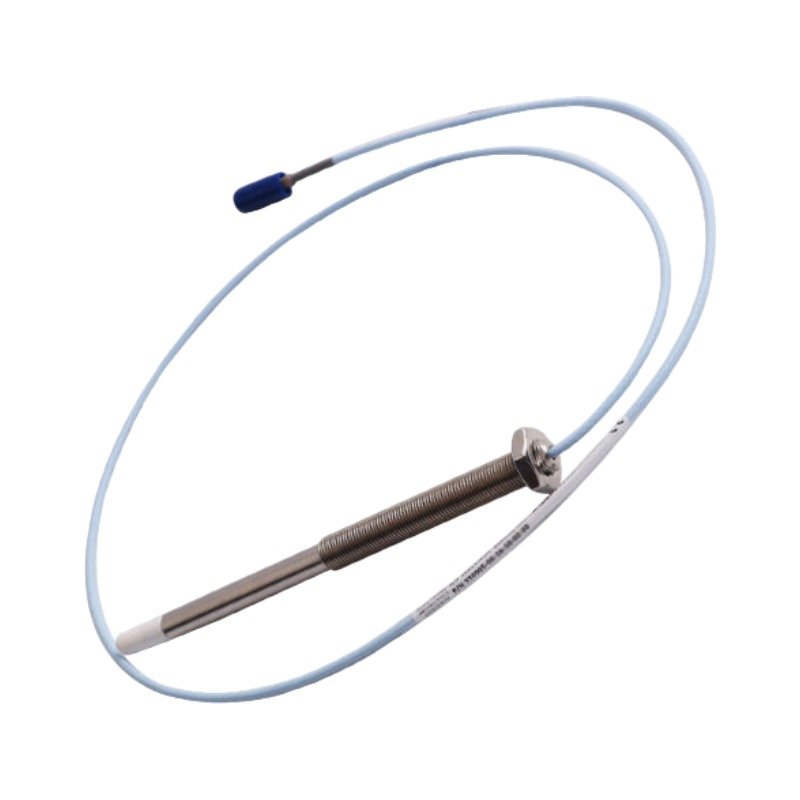

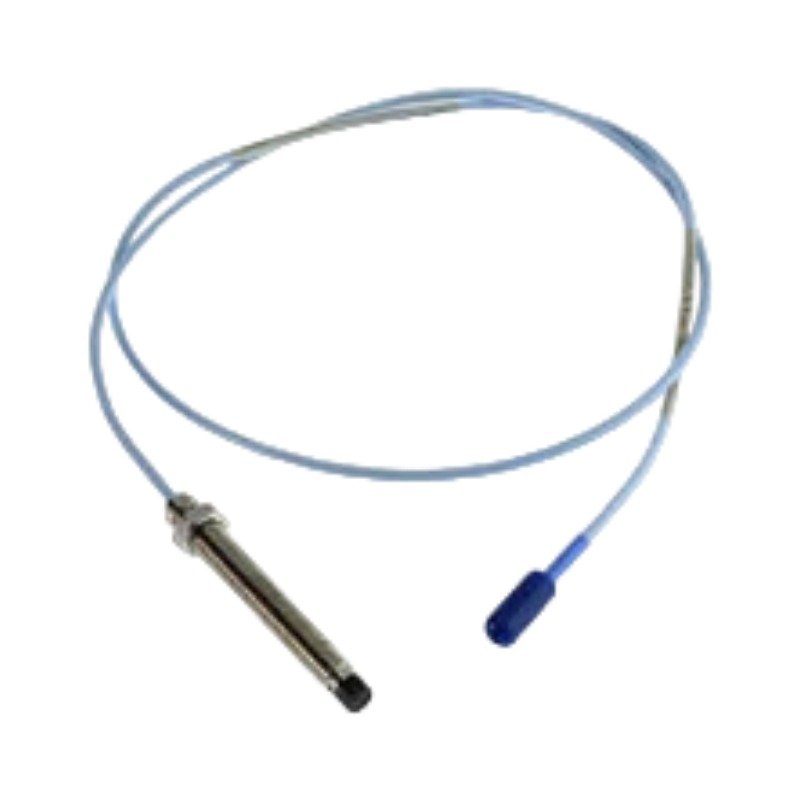

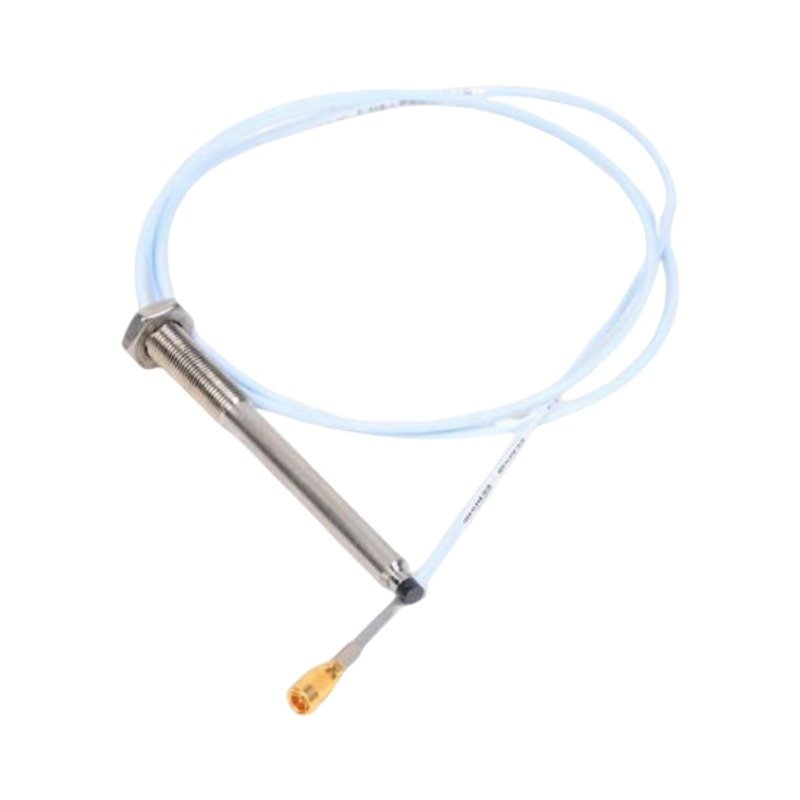

Configured for non-contacting vibration and displacement measurements in tight installation spaces, the Bently Nevada 330905-00-07-10-02-05 (330905 Proximity Probe) provides direct physical/electrical execution. Consequently, the sensor translates high-frequency eddy-current changes into proportional voltage metrics within 3300 XL NSv Proximity Transducer System platforms.

Suffix Breakdown & Model Matrix

• 330905: Base Model for 3300 XL NSv Proximity Probe, M10 x 1 Thread, Without Armor
• 00: 0 mm Unthreaded Length
• 07: 70 mm Overall Case Length
• 10: 1.0 m (39 in) Total Length
• 02: Miniature Coaxial ClickLoc Connector, Standard Cable
• 05: Multiple Agency Approvals

Hardware Specifications

Gap Voltage Validation and Eddy-Current Probe Scaling

Field technicians execute regular gap voltage validation to anchor the 5 mm probe tip inside its defined linear measuring spectrum. Specifically, precise calibration requires a -10 VDC target voltage at the exact center of the physical operational span. Furthermore, eddy-current probe scaling depends directly on the metallurgical characteristics of the rotating target shaft. Because small-diameter components are susceptible to signal anomalies, this configuration enforces cross-talk suppression between adjacent transducer paths to maintain absolute clarity in tracking rotor dynamics.

Frequently Asked Questions

Q: Why do technicians select the 3300 XL NSv probe series instead of standard 8 mm proximity probes?

A: The NSv series features a narrower 5 mm tip diameter and a compact M10 housing. Consequently, these features allow the assembly to function in restricted counterbore spaces and measure small shafts under 51 mm where standard sensors fail.

Q: What operational risks occur if the total system cable length deviates from the calibrated design?

A: Mismatching the 1.0 m integral probe cable with incorrect extension paths shifts the circuit capacitance. As a result, this variance alters the nominal 7.87 V/mm scale factor and introduces measuring errors.

Field Installation Guidelines

First, thread the metric M10 x 1 probe housing into the pre-drilled casing bore by hand. Next, use a calibrated torque wrench to tighten the assembly to a maximum limit of 7.5 N m. Additionally, maintain a minimum physical separation from surrounding metallic structures to avoid side-view interference. Finally, join the ClickLoc miniature coaxial interface to the extension line, and wrap the junction with self-fusing insulation tape to intercept environmental moisture.
