Description

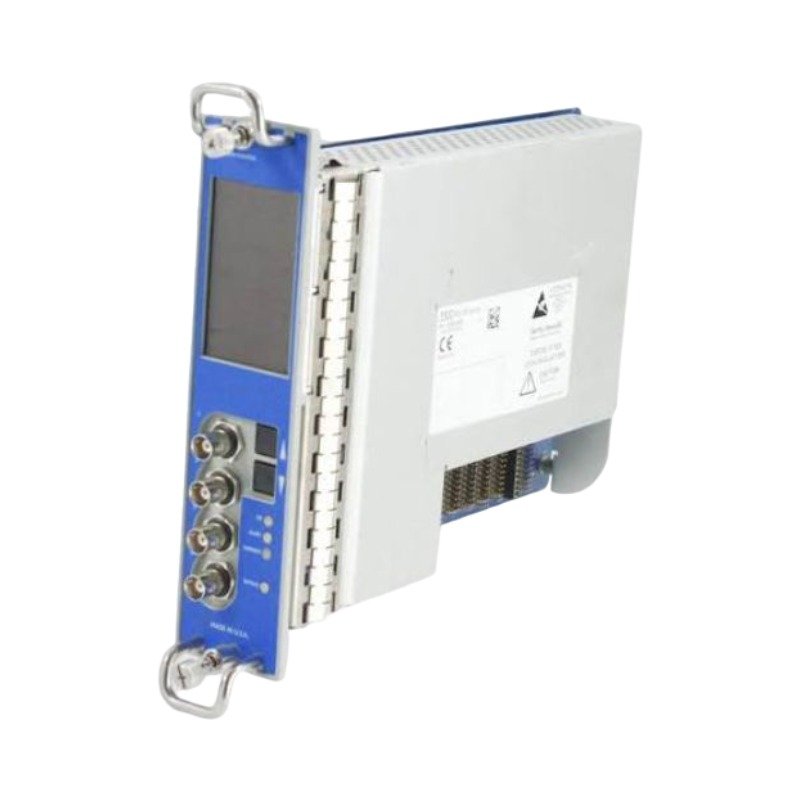

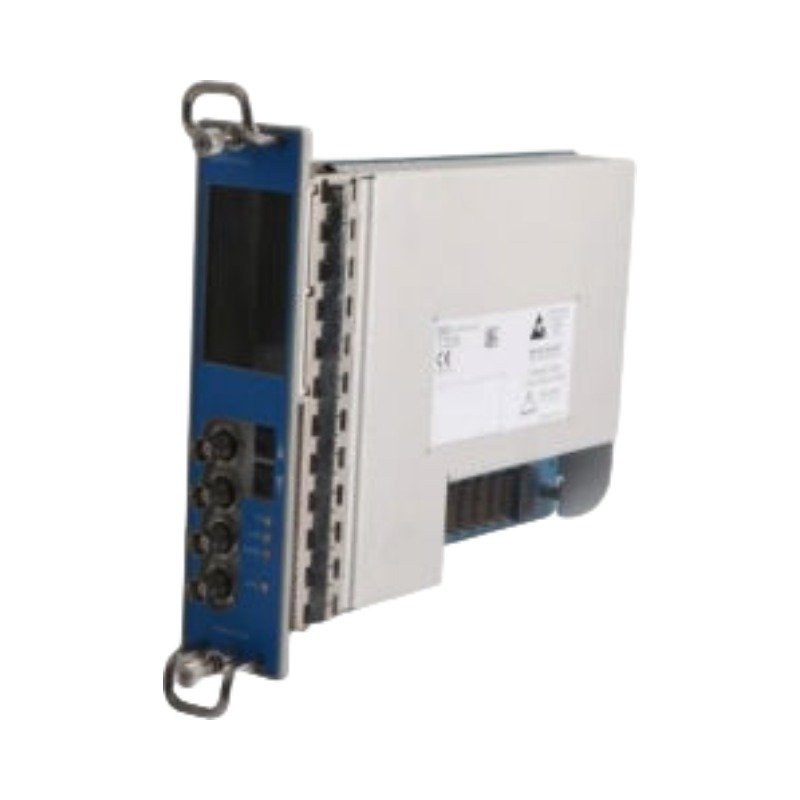

The Bently Nevada 3500/42E, also cataloged as the Bently Nevada 285691-01 Proximitor/Seismic Monitor, operates as a dedicated hardware component for four-channel continuous machinery protection within legacy 3300 rack replacement platforms. Consequently, the processor conditions input signals from proximity probes, velocity sensors, and accelerometers into stable proportional values. This processing enables rapid asset health evaluation and activates automated machine trip circuits when thresholds breach safe operating parameters.

Hardware Specifications

Gap Voltage Validation and Eddy-Current Probe Scaling

Field engineers execute gap voltage validation across the four independent channels to verify that attached transducers operate inside their linear measurement range. Specifically, the 3500/42E module monitors the DC bias voltage to ensure it tracks within standard baseline constraints. Furthermore, correct eddy-current probe scaling ensures that the monitor translates incoming millivolt data into micro-meter or mil displacement figures without introducing scaling degradation. Because the module incorporates precise filtering networks, the processing core isolates raw shaft metrics and optimizes cross-talk suppression between tightly packed radial transducer strings.

Frequently Asked Questions

Q: How does the 3500/42E 285691-01 module inform technicians about channel health at the panel face?

A: The front panel utilizes four dedicated status LEDs. Specifically, the OK LED signals standard operation, while individual ALERT, DANGER, and BYPASS LEDs provide instantaneous notice regarding channel status changes and alarm activation.

Q: Can maintenance staff swap this monitor while the remaining 3500 Encore rack remains live?

A: Yes, the module framework supports hot-swap installation inside the backplane architecture. However, engineers must bypass the corresponding trip relays first to prevent accidental machine shutdowns from signal disruption during insertion.

Field Installation Guidelines

First, slide the 3500/42E module into its designated slot in the 3500 Encore chassis until the rear connectors mate. Next, tighten the upper and lower captive chassis screws using a standard screwdriver to ground the front faceplate. Additionally, check that the field wiring terminal blocks map correctly to the rear I/O module to preserve channel isolation. Finally, boot the 3500 Rack Configuration Software to upload the specific channel definitions, full-scale ranges, and alarm setpoints required for the plant machinery.
