Description

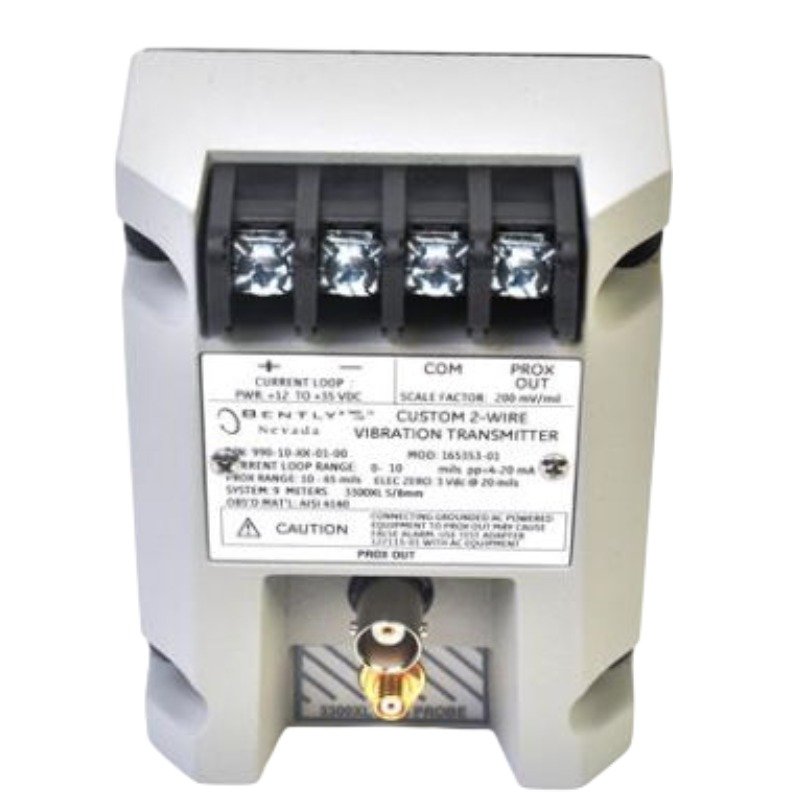

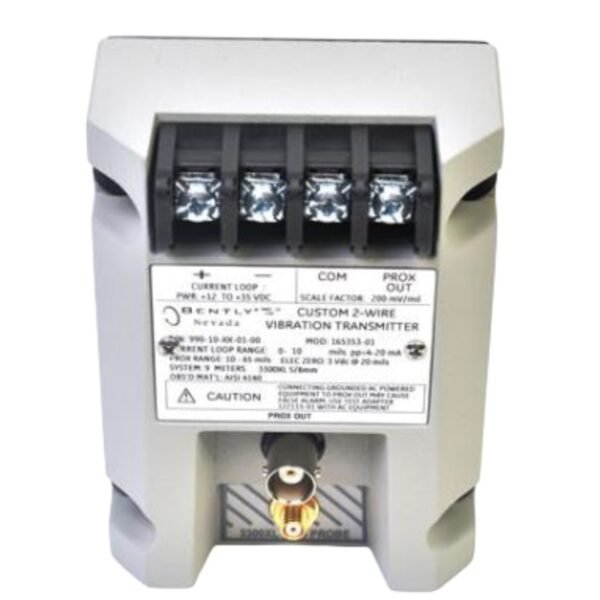

The Bently Nevada 990-10-XX-01-00, also cataloged as the 990 Vibration Transmitter, operates as a dedicated hardware component for processing machinery vibration signals within continuous asset monitoring loops. Configured for non-contacting displacement measurement, the device accepts raw input from a 3300 NSv proximity probe configuration to output a proportional 4-20 mA current signal. The integrated transmitter housing executes localized signal conditioning, eliminating the requirement for an external standalone Proximitor sensor module.

Hardware Specifications

Machinery Monitoring and Eddy-Current Probe Scaling

The system design relies on precise eddy-current probe scaling to convert the physical displacement of rotating shafts into electronic metrics. The transmitter applies internal high-frequency excitation to the proximity probe, monitoring the modulation of radio frequency fields caused by target movement. This process enables gap voltage validation (-10 VDC targets) across the 1.4 mm linear span of the 3300 NSv transducer. To preserve data integrity during multi-axis sensor tracking, internal shielding prevents cross-talk suppression failures when conductors share localized enclosures, maintaining clean rotor dynamics tracking for automation interfaces.

Frequently Asked Questions

Q: How does the transmitter respond if the input coaxial cable gets severed or disconnected?

A: The hardware initiates an integrated Not OK/Signal Defeat circuit. Upon detecting a fault, the loop current falls below 3.6 mA within 100 microseconds, disabling false vibration tracking and preventing accidental alarm state execution in the control system.

Q: Can the non-isolated PROX OUT coaxial port be connected directly to mains-powered instruments?

A: No. The PROX OUT and COM terminals share a non-isolated reference with the 4-20 mA loop current. Connecting an AC-powered oscilloscope directly risks grounding faults; a dedicated 122115-01 test adapter must isolate the diagnostic tap.

Field Installation Guidelines

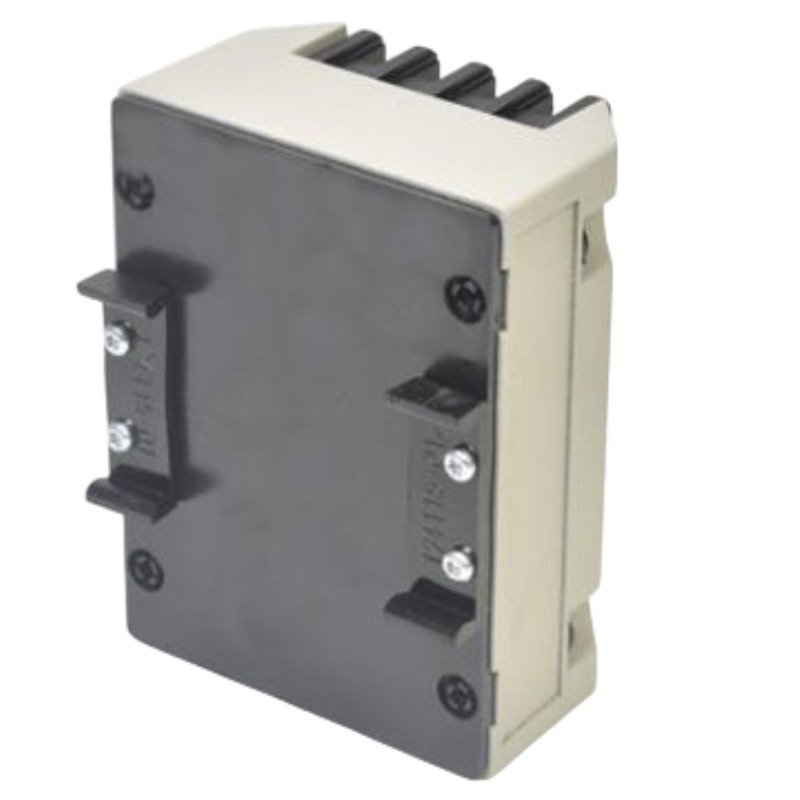

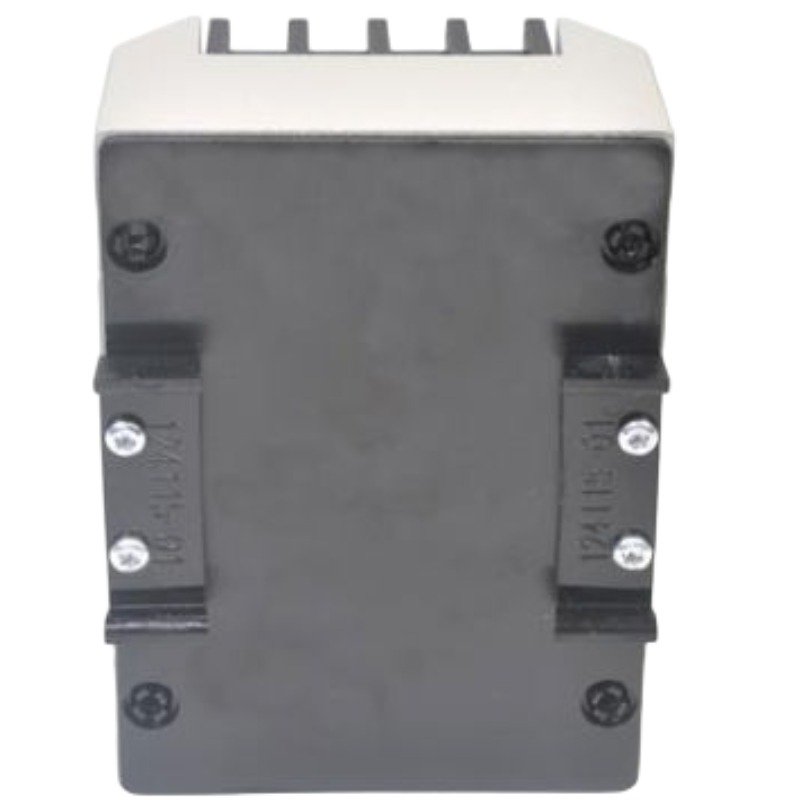

• DIN Rail Assembly: Snap the integrated retention clips firmly onto standard 35 mm DIN rails, ensuring no physical movement exists along the mounting axis.
• Conduit Termination: Route incoming probe extension lines in isolated, metal conduits to prevent EMI injection from concurrent electrical machinery feeds.
• Terminal Wiring Torque: Secure all wire connections within the terminal block to a maximum torque specification of 0.56 Nm to prevent thread distortion.
• Grounding Configuration: Verify that the loop shield maintains single-point grounding at the control cabinet terminal and remains completely isolated at the transmitter case.
