Description

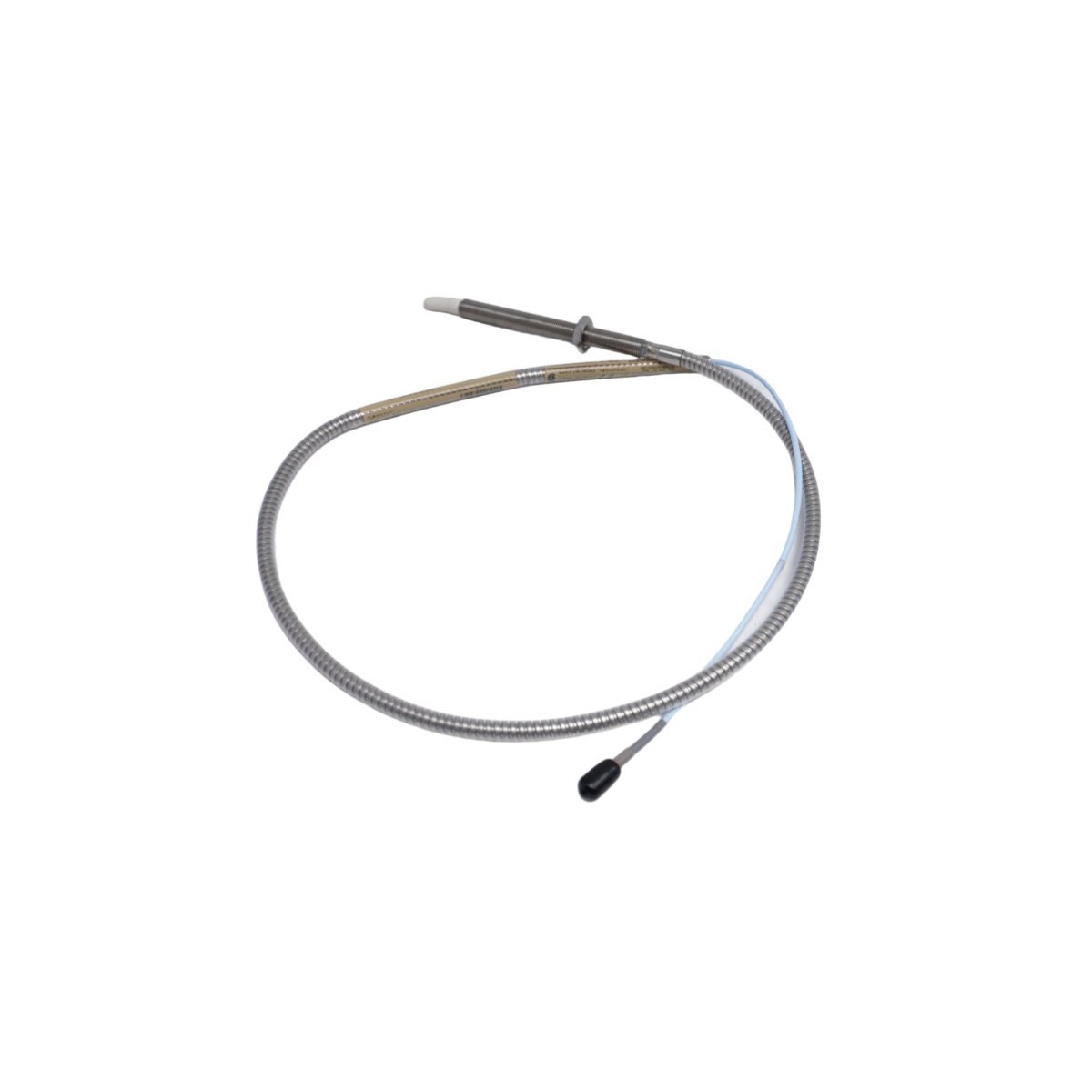

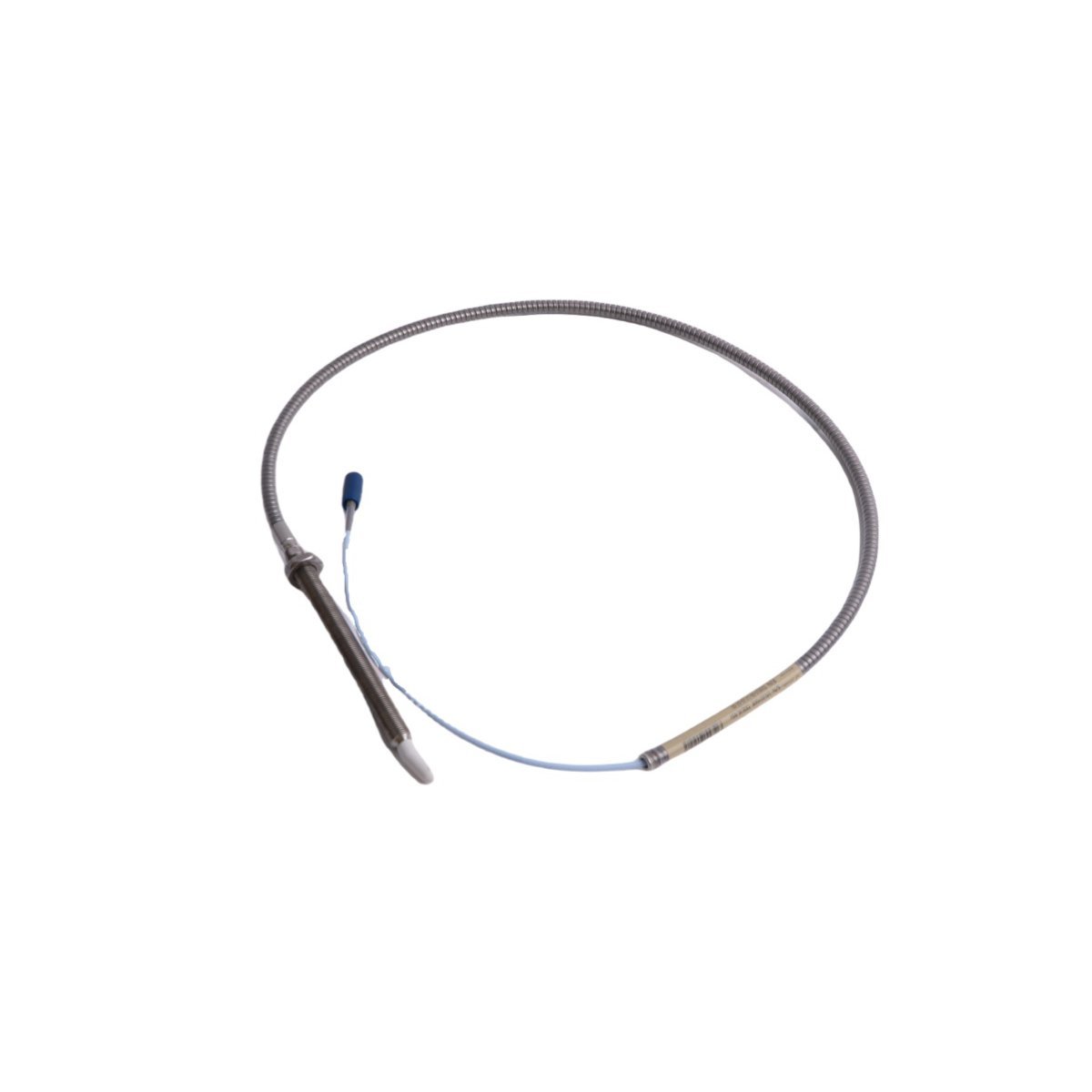

330910-00-13-10-02-00 | Bently Nevada | 3300 XL 8 mm Proximity Probes

### Product Description
This is a non-contact eddy-current proximity probe designed for continuous displacement and vibration monitoring of rotating machinery.
Moreover, it delivers high-resolution analog output for shaft position, vibration, and speed measurements in harsh industrial environments.
Therefore, it is integrated into asset protection systems to detect early mechanical faults before catastrophic failure occurs.

### Technical Specifications

### Typical Applications
– Monitoring radial vibration on steam turbine shafts
– Measuring axial position of compressor thrust collars
– Detecting shaft runout and bearing wear in centrifugal pumps
– Providing input signals to 3300 XL 16-channel monitor systems

### FAQ
What is the standard cable length for this probe?
The probe includes a 5-meter integral coaxial cable with a 3/8-24 UNF connector.

Is calibration required before installation?
Yes, each probe must be calibrated with its matching extension cable and前置器 (proximity driver) per API 670.

Can this probe operate in high-temperature environments?
It is rated for continuous operation up to +121 °C at the probe tip; derating applies above that.
