Description

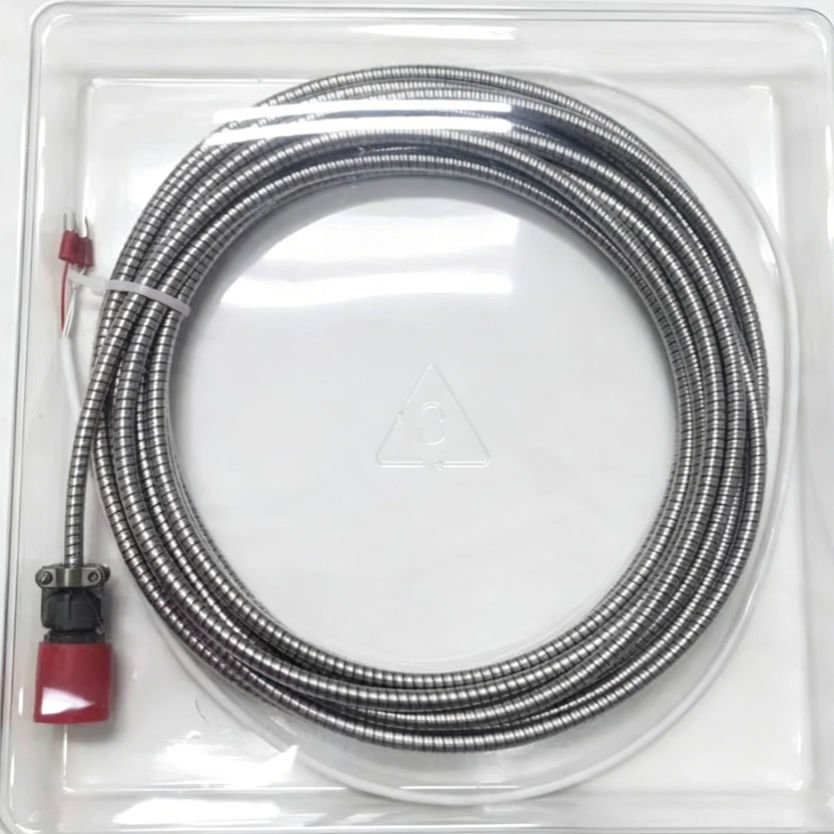

The Bently Nevada 330851-02-000-060-10-00-CN, also cataloged as the 330851 25 mm Proximity Probe, operates as a dedicated hardware component for high-speed dynamic data acquisition within Bently Nevada 3500 Monitoring Systems or Trendmaster platforms. Specifically, this non-contacting eddy-current sensor continuously tracks physical shaft changes relative to fluid-film bearings. It translates micro-inch mechanical displacements into high-resolution analog electrical parameters without making physical contact with the rotating target surface, which subsequently protects high-speed machinery from catastrophic mechanical failure.

Hardware Specifications

Rotor Dynamics & Eddy-Current Probe Scaling

The 330851-02-000-060-10-00-CN monitors massive rotor dynamics on large steam turbine generators by feeding high-frequency analog signals directly into remote Proximitor sensors. Concurrently, the 25 mm tip generates a concentrated RF magnetic field that induces eddy currents on the target shaft. Consequently, as the mechanical gap changes, the sensor monitors variation in the loop impedance, establishing a wide linear sensing range of 12.7 mm. To ensure precise calibration, technicians verify gap voltage validation across standard -10 VDC targets or mid-range voltage regions. Because adjacent machinery sensors emit overlapping fields, installing components according to minimum separation standards implements effective cross-talk suppression. As a result, the probe isolates true differential expansion profiles and low-frequency structural resonances without experiencing cross-channel modulation.

Frequently Asked Questions

Q: What specific target material must engineers use to satisfy the factory 0.787 V/mm scale factor accuracy?

A: The transducer system requires a Bently Nevada supplied AISI 4140 steel target with a minimum diameter of 61 mm. Utilizing alternative target metal substrates shifts the eddy-current properties, which consequently compromises the calibrated interchangeability parameters.

Q: Can this unarmored proximity probe withstand immersion in synthetic lubrication fluids at high temperatures?

A: Yes. The probe tip consists of high-grade polyphenylene sulfide (PPS), and the integral lead wire utilizes fluoroethylene propylene (FEP) insulation. Consequently, these materials maintain chemical structural integrity when exposed to industrial lubricants within a continuous operating window of -35 to +200 deg C.

Field Installation Guidelines

• Mechanical Thread Engagement: Thread the M30x2 probe body into the mounting bracket by hand, then lock the final physical position using the included locknut. Do not exceed the maximum rated installation torque limit of 163 N-m to prevent shearing the outer stainless steel casing.
• Coaxial Connector Handling: Finger-tighten the miniature coaxial ClickLoc connectors together, then apply exactly 0.565 N-m of physical torque using a calibrated connector wrench. Subsequently, slide a silicone connector protector kit over the junction to eliminate moisture ingress.
• Cable Bend Layout: Route the 75-ohm triaxial probe cable through protective conduit lines toward the local terminal housing. To prevent internal physical conductor deformation and subsequent signal attenuation, maintain a minimum physical bend radius of 25.4 mm along the entire layout route.
