Technical Overview

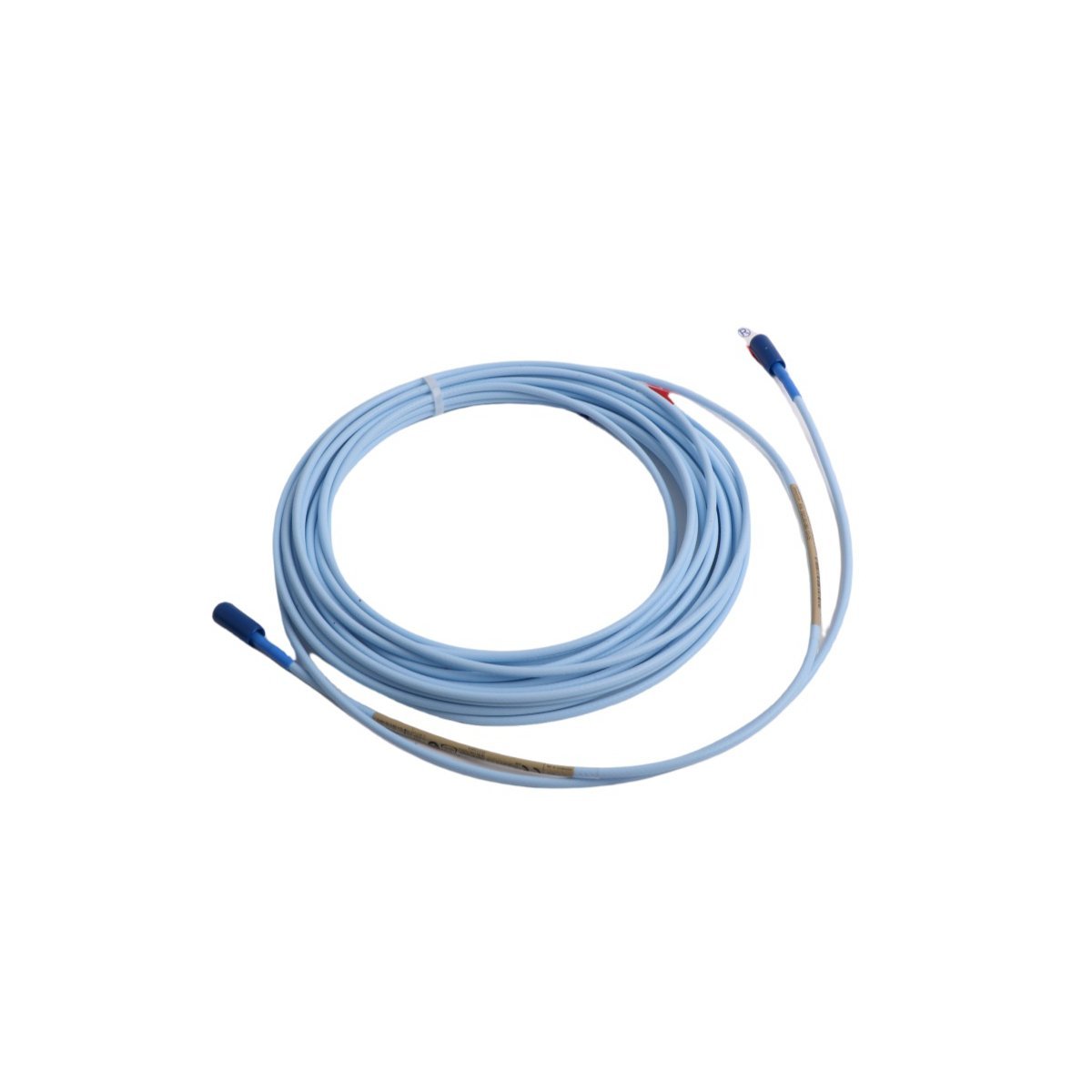

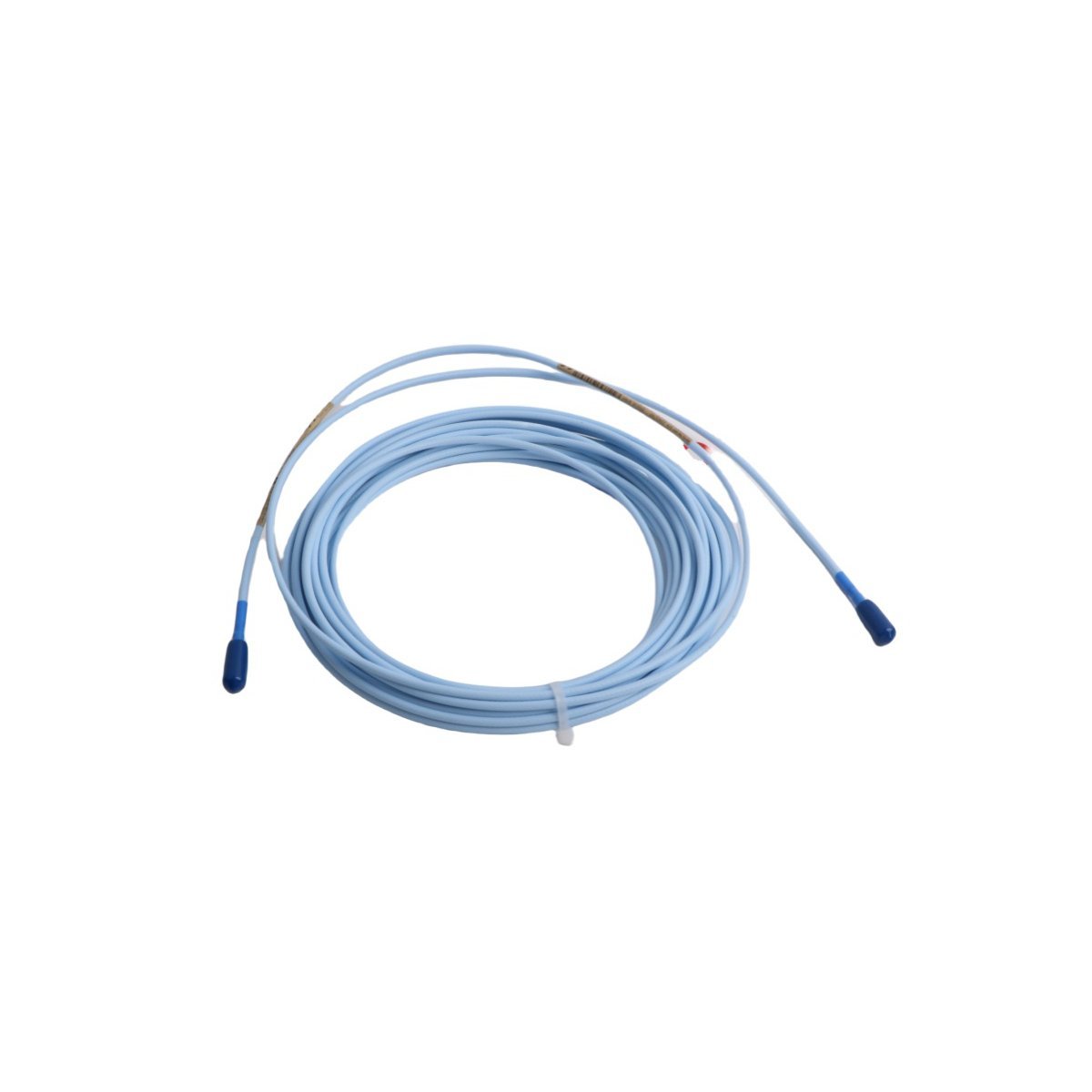

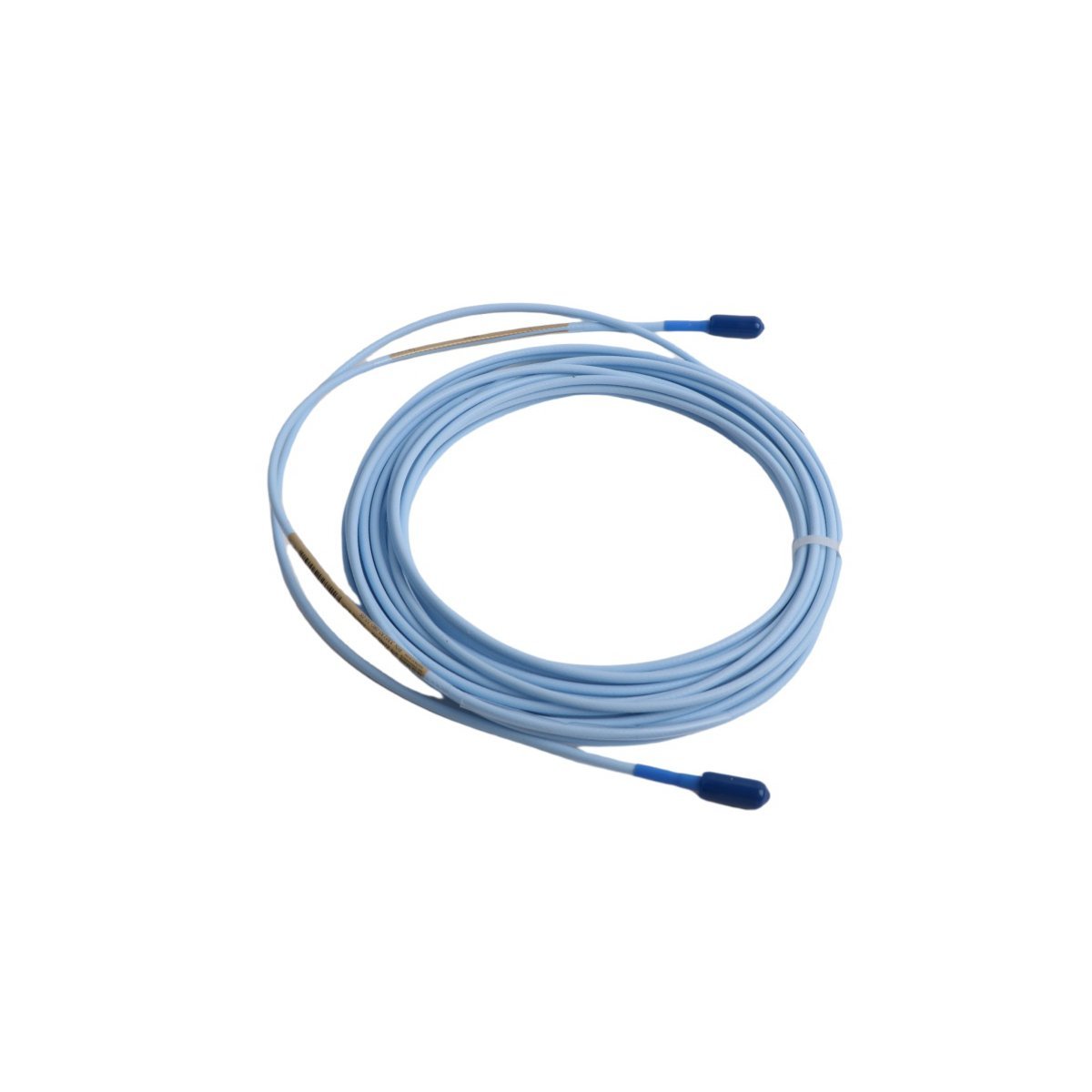

The Bently Nevada 330130-080-10-05 is a high-reliability 3300 XL Standard Extension Cable engineered for demanding industrial condition monitoring applications. Designed as an integral component of the industry-standard 3300 XL proximity transducer system, this cable ensures stable, low-noise signal transmission between the probe,前置器 (proximity driver), and monitoring instrumentation—critical for accurate shaft vibration, position, and speed measurements in rotating machinery. Its robust construction meets stringent requirements for electromagnetic compatibility (EMC), thermal stability, and mechanical durability across harsh environments including power generation, oil & gas, petrochemical, and heavy manufacturing facilities.

Manufactured to exacting OEM specifications, the 330130-080-10-05 features precision-matched impedance and shielded twisted-pair conductors that preserve signal integrity over extended distances—minimizing attenuation and cross-talk even under high EMI conditions. The cable’s 10-meter length (32.8 ft) provides optimal flexibility for sensor placement in complex machinery layouts without compromising measurement fidelity. It is fully compatible with all 3300 XL series probes and monitors, including the 3300 XL 5/8 mm, 8 mm, and 11 mm probe families, and supports standard 10–50 VDC bias voltage operation per API 670 and ISO 10816 guidelines.

Key Features

• OEM-Approved Compatibility: Fully certified for seamless integration with Bently Nevada 3300 XL proximity systems—including probes,前置器 (proximitor), and 3500/3300 series monitors.
• High-Fidelity Signal Transmission: Precision 50 Ω coaxial design with double-shielded construction (foil + braided) ensures exceptional noise immunity and minimal phase shift across 0–10 kHz bandwidth.
• Industrial-Grade Durability: PVC jacket rated for -40°C to +85°C operating temperature; abrasion-, oil-, and moisture-resistant for long service life in turbine halls, compressor skids, and pump stations.
• Plug-and-Play Installation: Pre-terminated with standard 3300 XL 4-pin M12 connectors (male/female) and color-coded strain relief—reducing field commissioning time and human error.

Specifications

• Part Number: 330130-080-10-05
• Manufacturer: Bently Nevada (a Baker Hughes business)
• Type: 3300 XL Standard Extension Cable – 10 Meter Length
• Warranty: 24-month limited warranty against defects in materials and workmanship

Contact us for bulk pricing and availability
