Description

Technical Overview

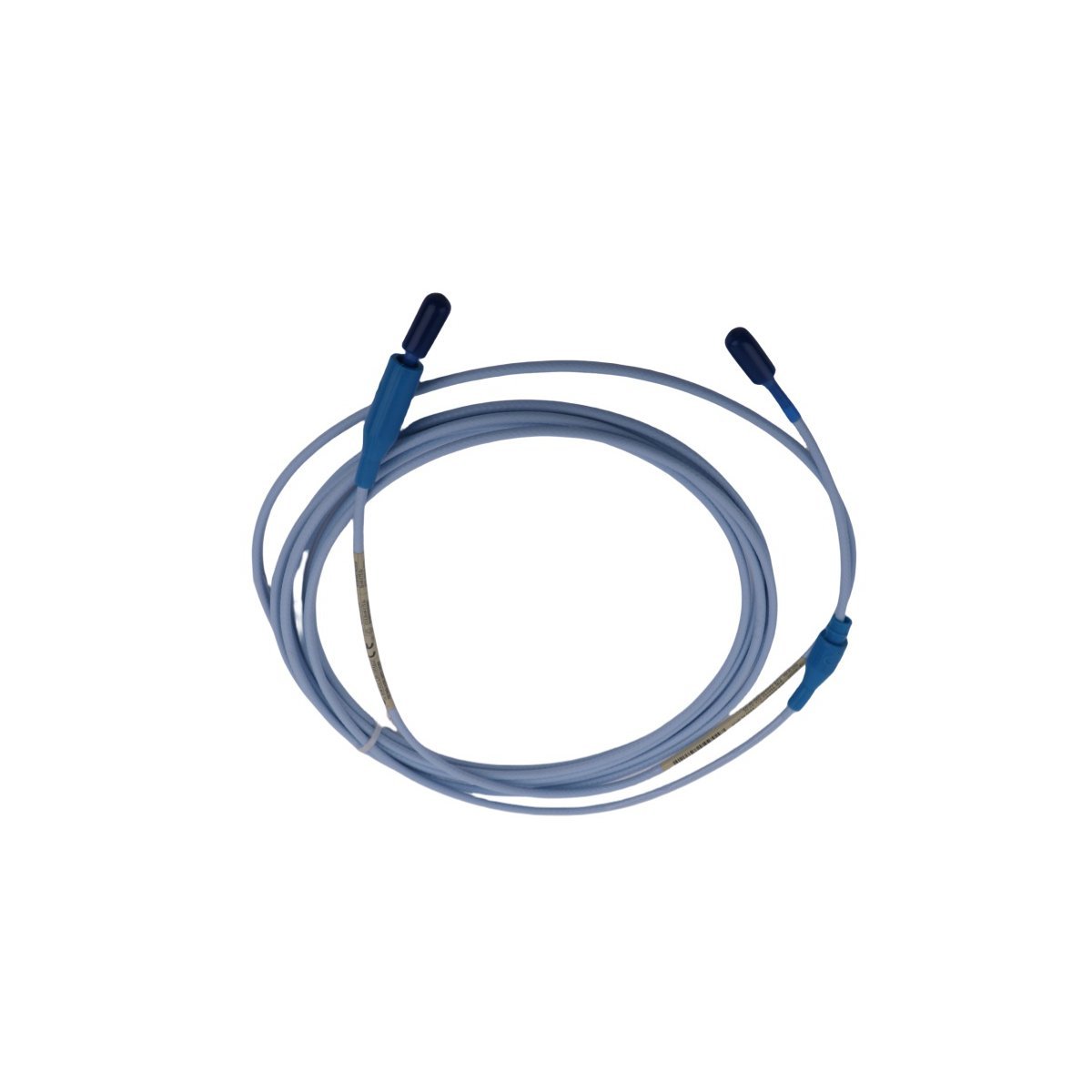

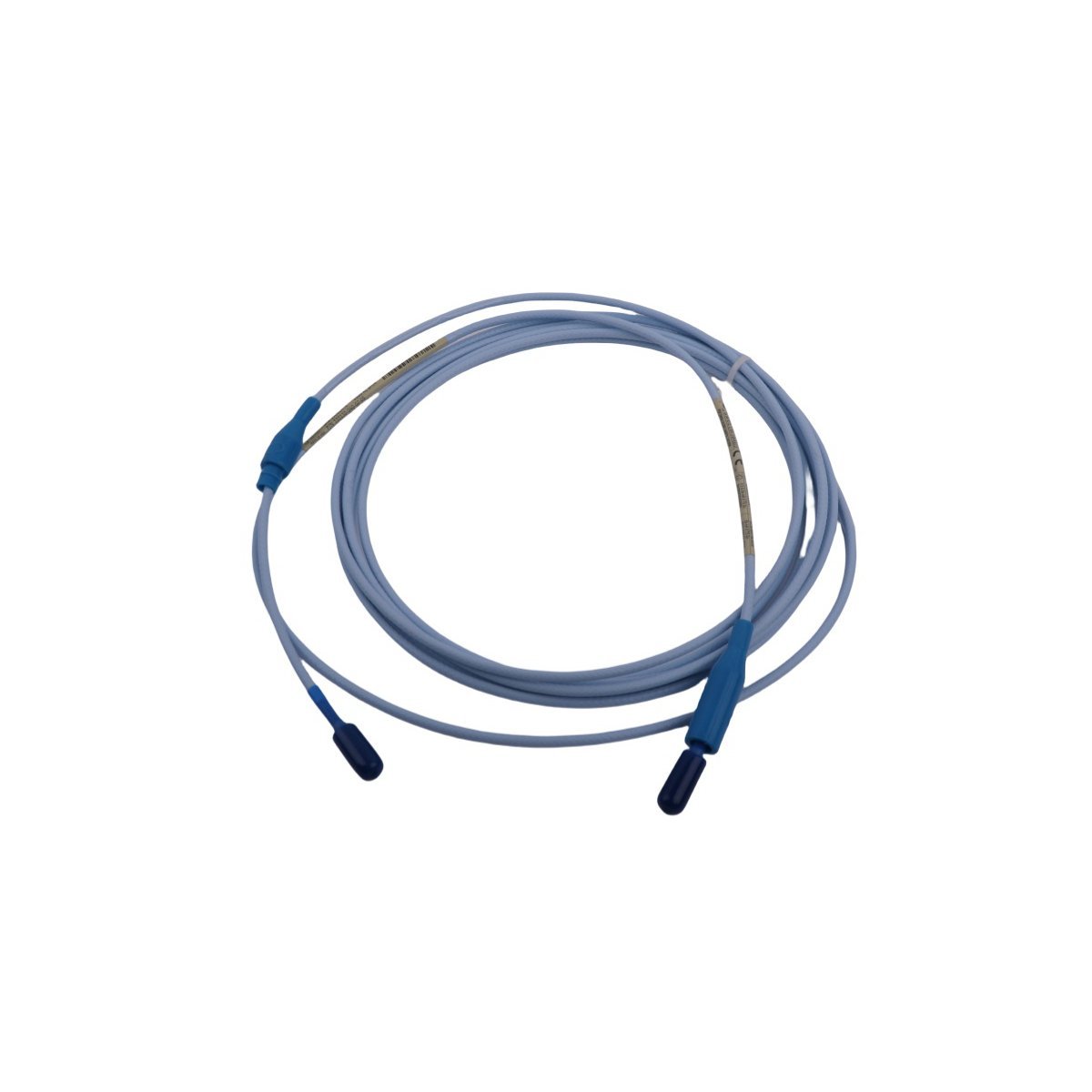

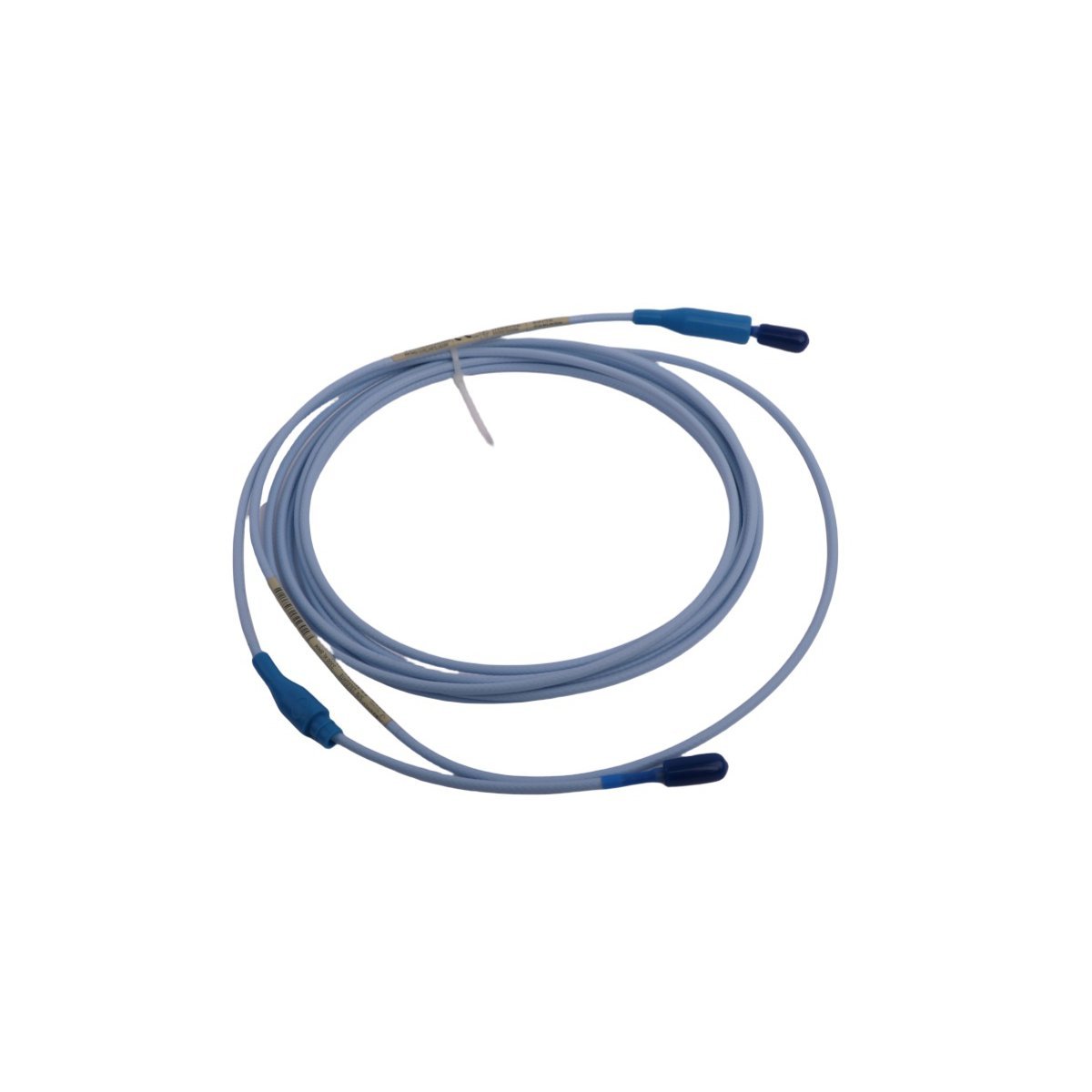

The Bently Nevada 330130-040-02-05 is a high-reliability extension cable engineered specifically for use within the 3300 XL 8 mm and 3300 NSV proximity transducer systems. Designed to maintain signal integrity over extended distances in demanding industrial environments, this cable ensures precise vibration and position monitoring critical for rotating machinery protection—such as turbines, compressors, and motors—in power generation, oil & gas, and heavy manufacturing applications. Its robust construction minimizes electromagnetic interference (EMI) and thermal noise, supporting accurate dynamic measurement even under harsh conditions including wide temperature fluctuations, mechanical stress, and exposure to oils and solvents.

Engineered to meet stringent API 670 and ISO 10816 standards for machinery protection systems, the 330130-040-02-05 integrates seamlessly with Bently Nevada’s condition monitoring ecosystem. It features precision-matched impedance and low-capacitance coaxial design to preserve the high-frequency fidelity required for reliable shaft orbit analysis and fault detection. The cable’s length (4.0 meters) is optimized to bridge sensor-to-preamp or preamp-to-monitor connections without compromising calibration stability or system sensitivity—making it ideal for retrofit installations or modular panel configurations where routing flexibility and minimal signal degradation are essential.

Key Features

• EMI-Resistant Shielding: Double-shielded (foil + braided) construction for superior noise immunity in electrically noisy plant environments.
• Temperature-Rated Performance: Rated for continuous operation from –40°C to +125°C, ensuring reliability across extreme ambient and process conditions.
• Factory-Calibrated Compatibility: Pre-tested and matched to Bently Nevada 3300 XL 8 mm probe systems—no field recalibration required upon installation.
• Durable Industrial Jacket: Oil-, chemical-, and abrasion-resistant Teflon®-based outer jacket for extended service life in harsh mechanical settings.
• Plug-and-Play Connectivity: Equipped with industry-standard 3-pin MIL-C-5015 connectors (male/female) for quick, secure mating with 3300 series probes,前置 amplifiers, and monitoring units.

Specifications

• Part Number: 330130-040-02-05
• Manufacturer: Bently Nevada (a Baker Hughes business)
• Type: Extension Cable — 4.0 m, coaxial, shielded, for 3300 XL 8 mm proximity systems
• Warranty: 24-month limited warranty against defects in materials and workmanship
