Product Description

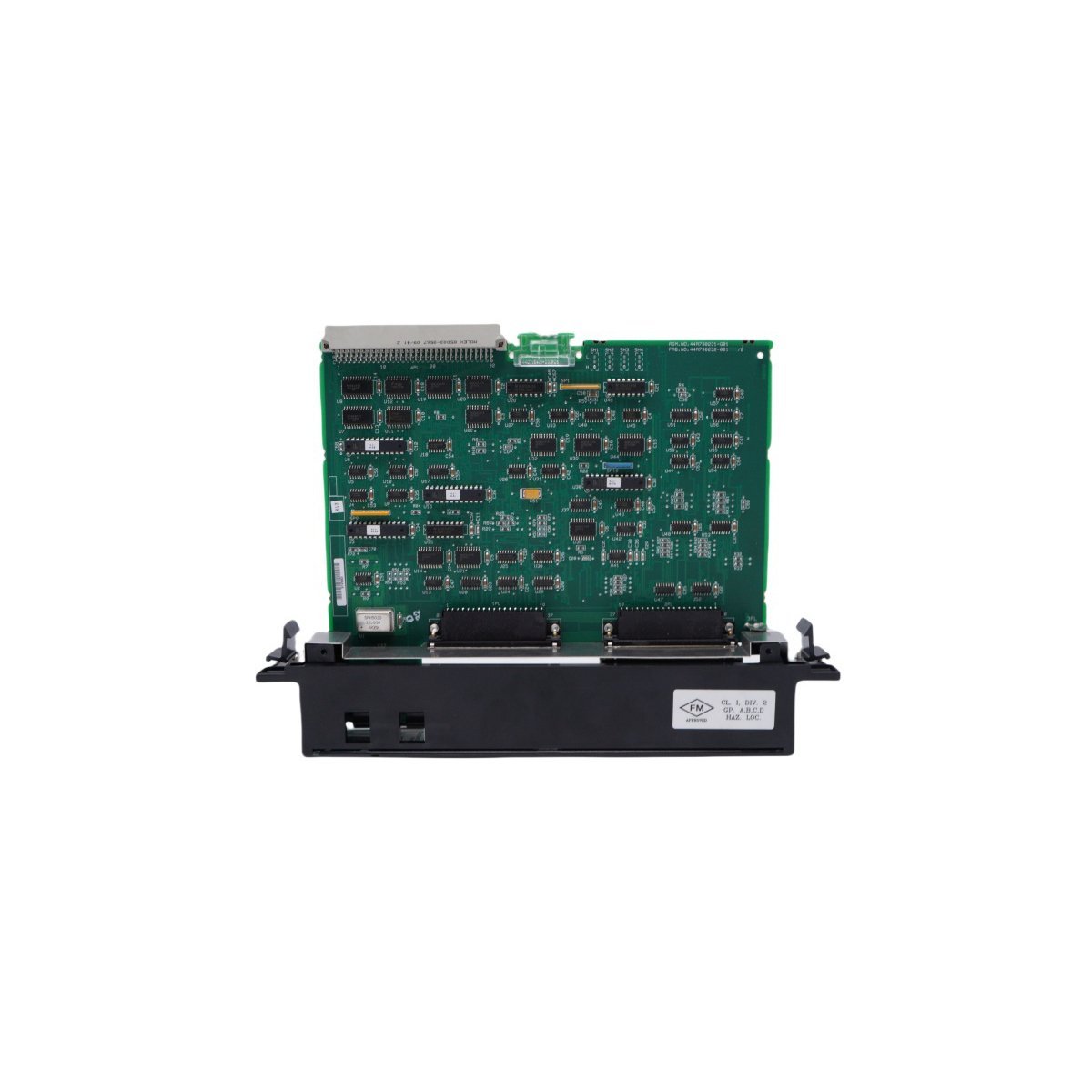

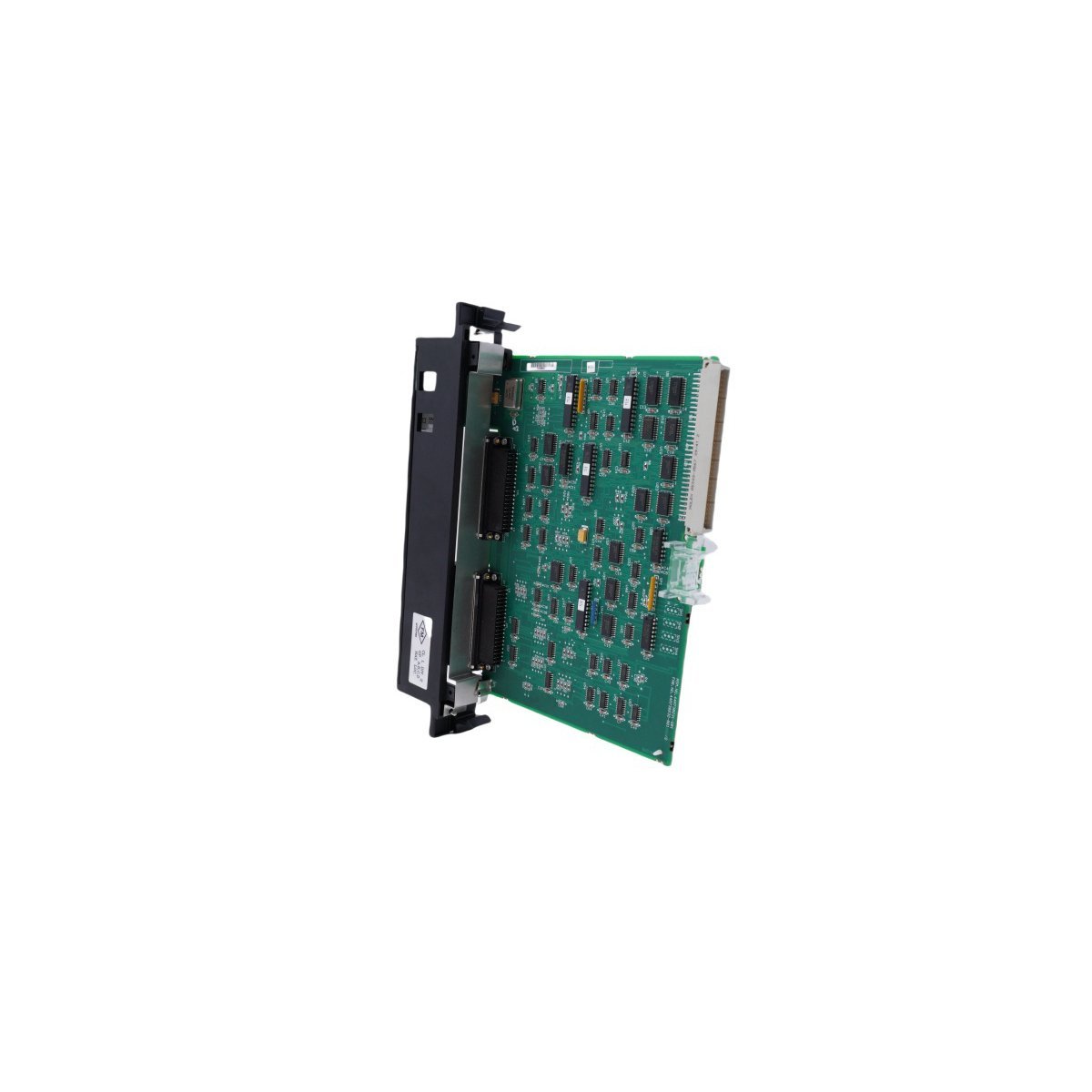

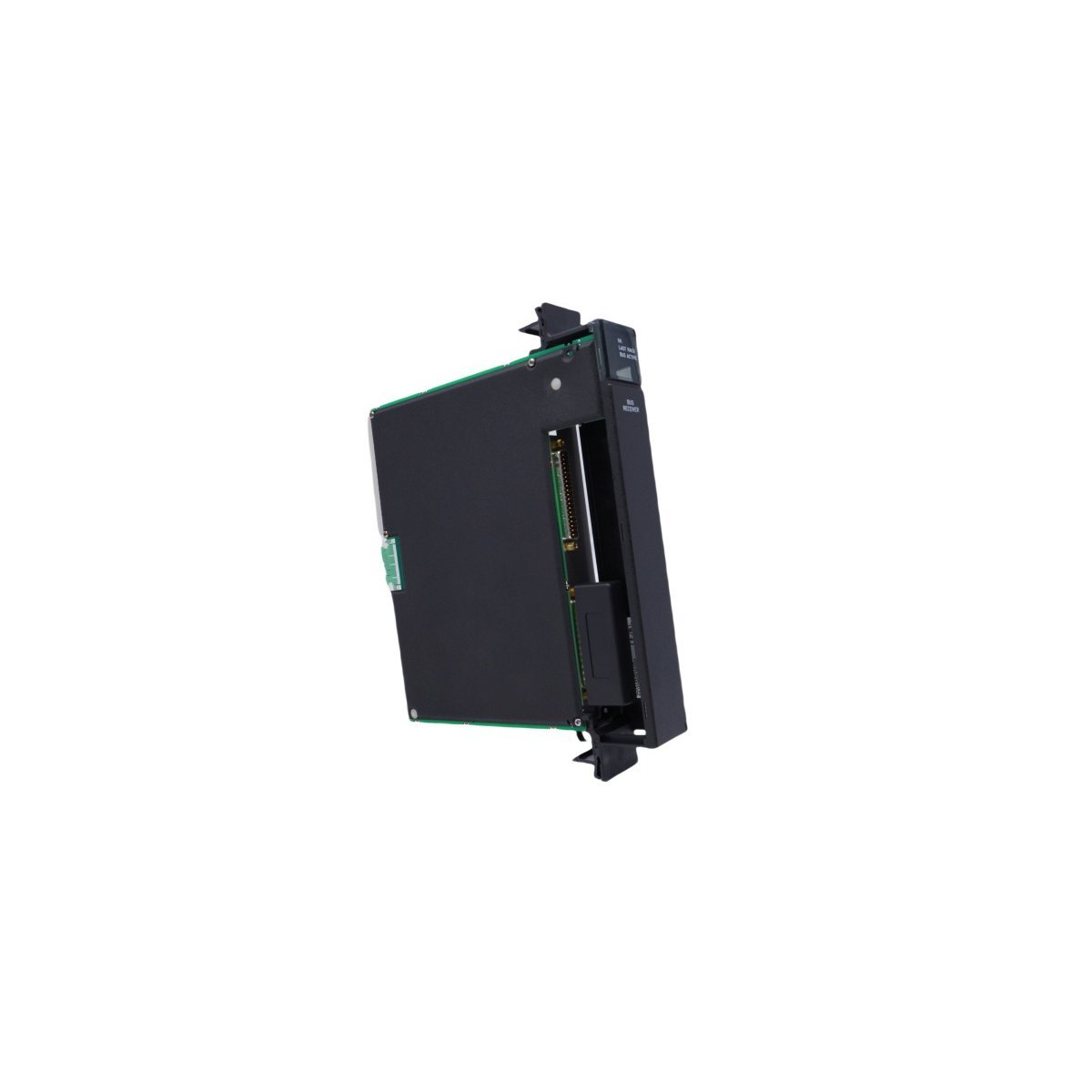

The GE Fanuc IC697BEM711 is a dedicated Bus Receiver Module designed for the Series 90-70 Programmable Logic Controller (PLC) ecosystem. It serves as the critical interface for expanding I/O capabilities beyond the primary CPU chassis by receiving signals from a Bus Transmitter module (such as the IC697BEM713).

Expansion Capabilities and System Architecture

This module facilitates the daisy-chaining of multiple racks to create a large-scale automation network. A single transmitter can support up to seven IC697BEM711 receiver modules, effectively broadening the system’s reach to accommodate additional I/O and specialty option modules. To maintain signal integrity across the expansion, the total distance from the transmitter to the final receiver must remain within 50 feet (15 meters).

Technical Implementation and Connectivity

The IC697BEM711 occupies one slot in an expansion chassis. It communicates via high-speed parallel architecture to ensure data remains synchronized with the central processor. For proper network termination, the final receiver in any expansion chain requires a terminating resistor (model IC697ACC702). This prevents signal reflection and ensures stable communication across the local bus.

• Configuration: Supports software-based setup via MS-DOS or Windows environments.
• Installation: Compatible with any available slot in a Series 90-70 rack, excluding slot 1.
• Status Monitoring: Front-panel LED indicators provide immediate feedback regarding power status and bus communication health.
• Interface: Features a high-density connector for expansion cable attachment.
