Description

Brief Product Description

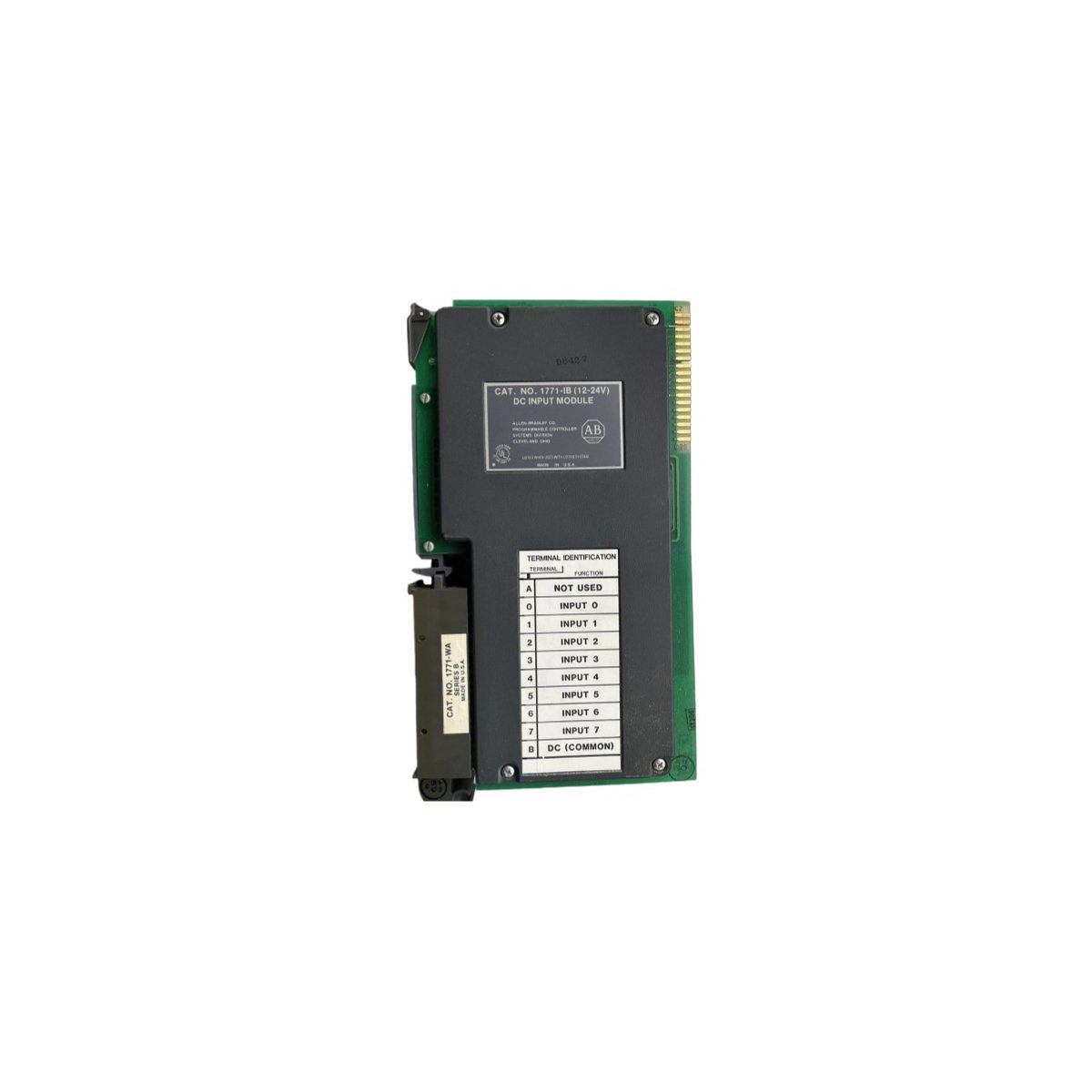

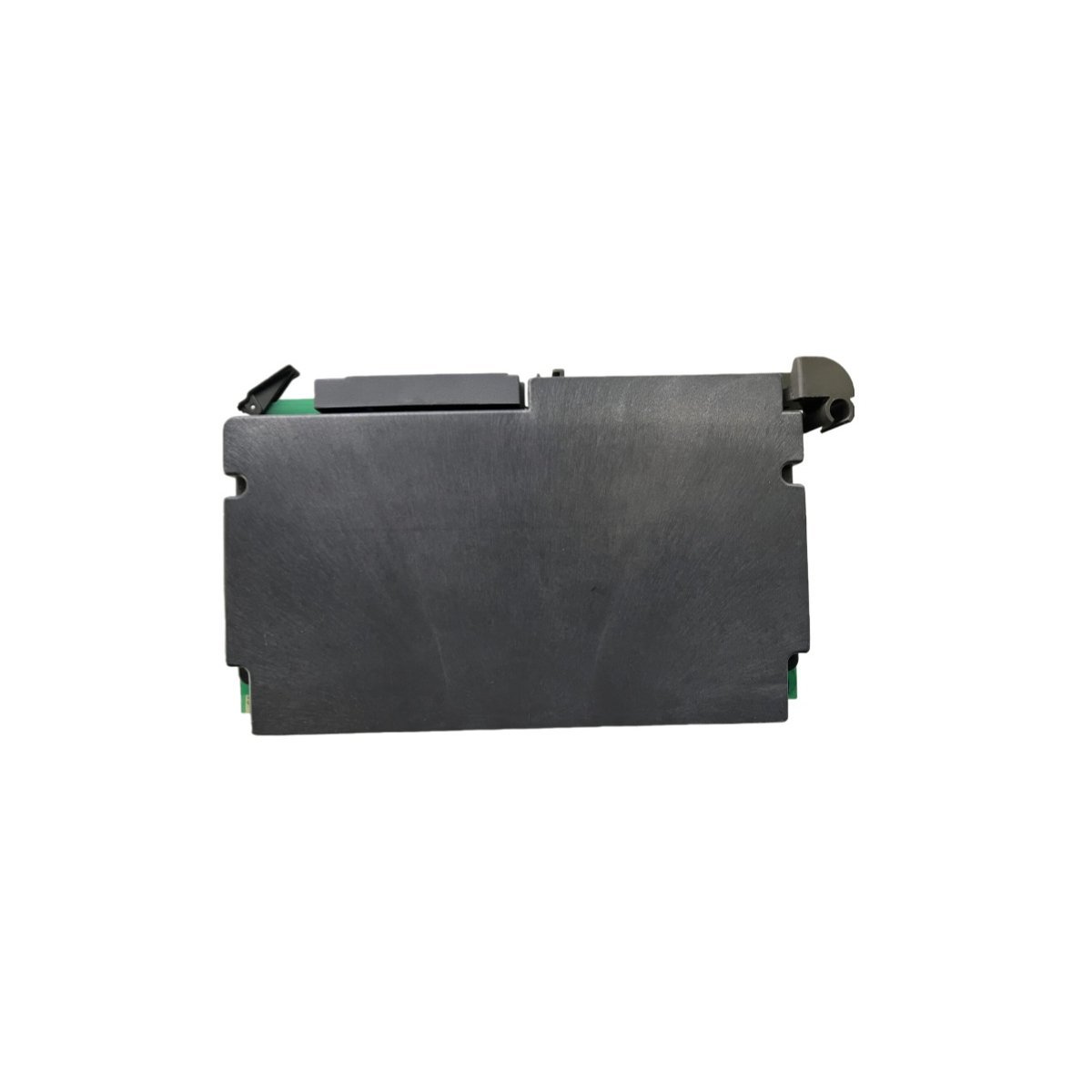

The Allen-Bradley 1771-IB is a high-performance 8-channel digital DC input module designed to interface field devices with PLC-5 control systems. It converts 12-24V DC signals from sensors and switches into reliable logic levels for the processor while providing essential electrical noise filtering.

Versatile Field Device Integration

The Allen-Bradley 1771-IB functions as a primary interface between the PLC-5 processor and external field equipment. This module accepts 12-24V DC signals from a wide variety of sinking devices, including limit switches, photoelectric eyes, and proximity sensors. By converting these raw electrical signals into clean logic data, the module allows the controller to monitor factory floor status in real-time. Because it draws power directly from the 1771 I/O chassis backplane, it eliminates the need for external logic-side power supplies. This streamlined integration makes it a preferred choice for expanding legacy automation systems without adding significant wiring complexity.

Signal Integrity and Timing Control

To ensure precise operation in electrically noisy industrial environments, the 1771-IB incorporates advanced signal conditioning hardware. The module features built-in input filtering that effectively mitigates the impact of contact bounce and electromagnetic interference. Specifically, it employs a nominal 12ms turn-on delay and a 20ms turn-off delay, which helps stabilize signals from mechanical relay contacts. Furthermore, the module manages off-state leakage current up to 3mA. This threshold prevents high-impedance leakage from being misinterpreted as an “on” state, thereby protecting the system against false triggering and improving overall logic reliability.

Maintenance-Ready Design and Durability

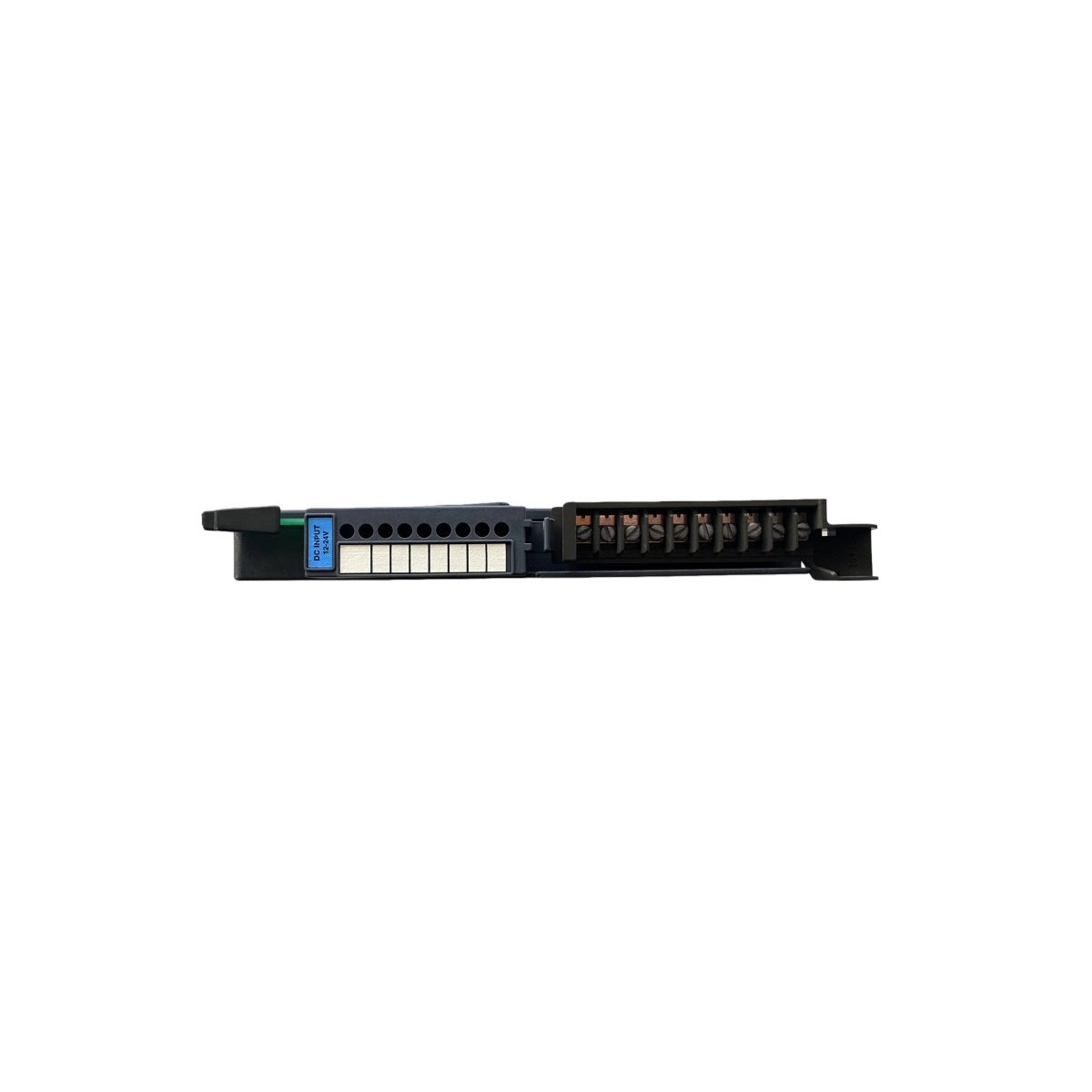

Rockwell Automation designed the 1771-IB for long-term serviceability and rapid troubleshooting. Each channel features a front-panel status indicator that provides immediate visual confirmation of input activity, allowing technicians to diagnose field-side issues without specialized tools. The rugged modular construction ensures the hardware survives the vibrations and thermal shifts typical of industrial control cabinets. Although Allen-Bradley discontinued the series on June 30, 2016, this module remains a critical component for maintaining existing PLC-5 installations. Its proven track record in heavy manufacturing and infrastructure projects demonstrates its resilience and the enduring quality of the 1771 platform.

Key Technical Characteristics

• 8-Channel DC Inputs: Monitored independently to support multiple field devices per module.
• 12-24V DC Voltage Range: Compatible with standard industrial sensor and switch outputs.
• Backplane Powered: Draws 75mA maximum current from the I/O chassis, reducing external wiring.
• Integrated Filtering: Reduces electrical noise and mechanical contact bounce for cleaner logic.
• Diagnostic LEDs: Front-facing indicators simplify channel-level health monitoring and repair.
• DC Sinking Configuration: Designed for use with sourcing field devices in standard control loops.

Technical Specifications
