Description

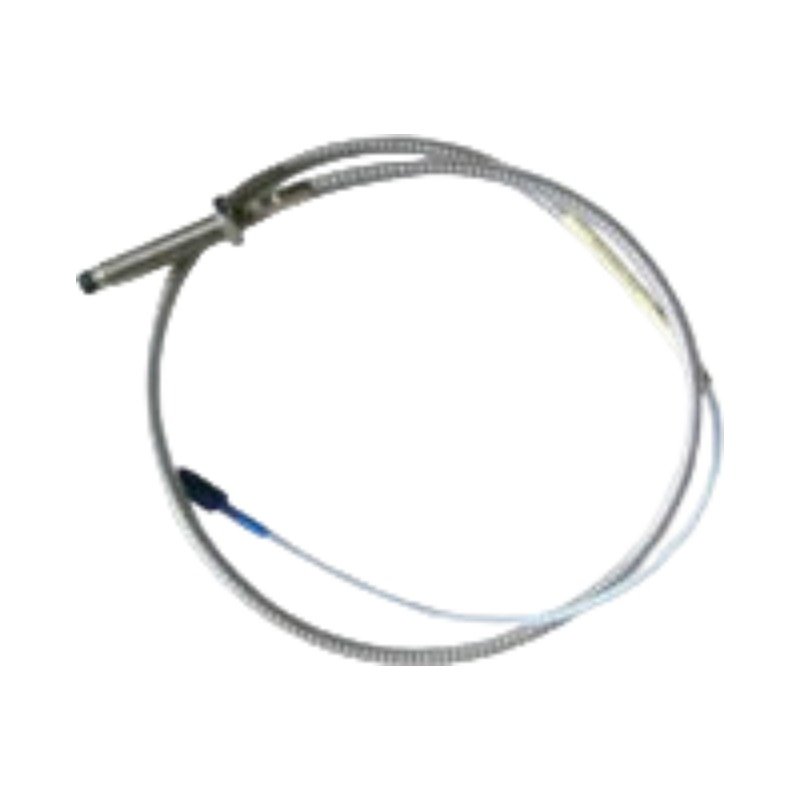

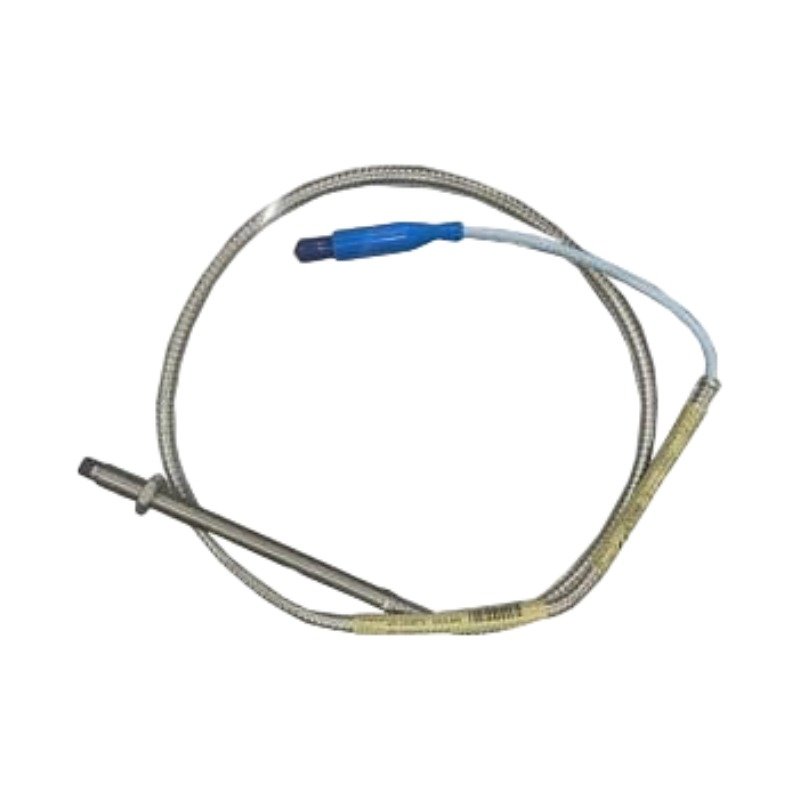

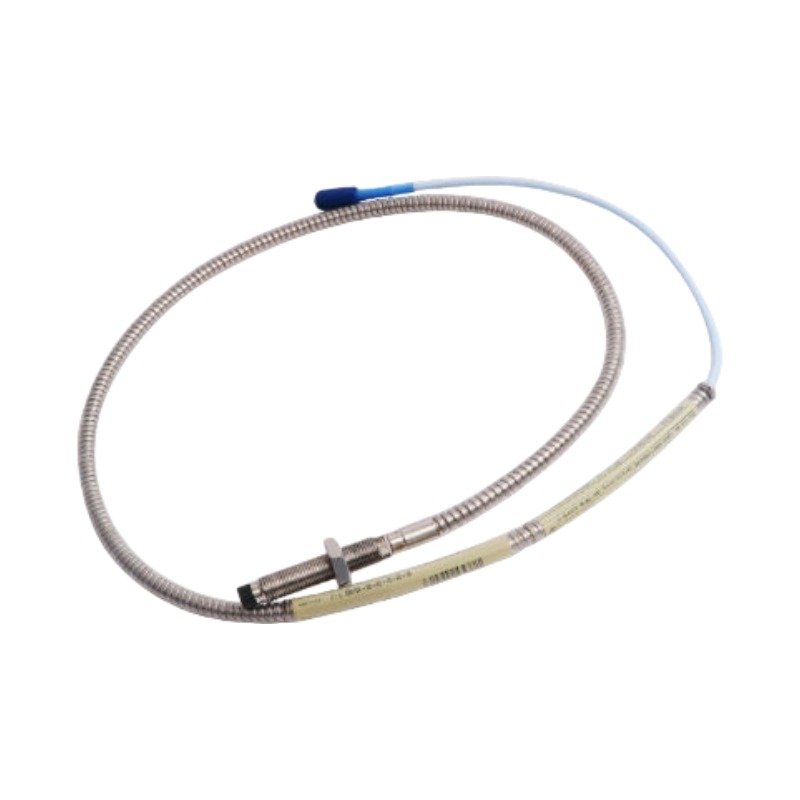

The Bently Nevada 330104-05-10-10-02-05 serves as the primary 330104 8 mm Proximity Probe utilized to execute static and dynamic shaft displacement measurements across 3300 XL Proximity Transducer System platforms.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The Bently Nevada 330104-05-10-10-02-05 depends on precise eddy-current probe scaling to track microscopic clearance modifications relative to a rotating shaft. Field installation routines require gap voltage validation (-10 VDC targets) across the linear range to ensure optimal sensor performance before capturing machine data. This accurate baseline tracking feeds critical diagnostics regarding rotor dynamics, identifying abnormalities such as oil whirl, unbalance, and structural structural misalignments. In complex multi-probe bearing assemblies, the integrated stainless steel armor jacket provides robust mechanical insulation, contributing to cross-talk suppression and physical shielding against fluid spray and abrasive debris.

Frequently Asked Questions

Q: What protection does the integrated armor option provide to the internal cable?

A: The flexible AISI 302 stainless steel armor jacket shields the low-noise coaxial cable from severe mechanical damage, crushing forces, and abrasion within the bearing housing or conduit routes.

Q: Can this 1.0 meter armored probe be coupled directly to a 3500 rack without an extension cable?

A: No, the 3300 XL Proximitor sensor requires a total calibrated loop length of either 5.0 meters or 9.0 meters. Running the 1.0 meter probe without its matching 4.0 meter or 8.0 meter extension cable will prevent proper operation due to tuning mismatches.

Field Installation Guidelines

• Thread Insertion Calibration: Install the M10 x 1 threaded body into the machine housing, checking that the 50 mm unthreaded section slides freely through the clearance bore without binding against sharp edges.
• Coaxial Connector Coupling: Join the gold-plated miniature ClickLoc coaxial connections by applying direct axial force until they click together, confirming the internal retention collar has mechanically locked.
• Armor System Grounding: Maintain the proximity probe casing and armor connection electrically isolated from the machine housing, terminating the overall cable shield exclusively at the designated Proximitor sensor ground terminal.
