Description

Technical Overview

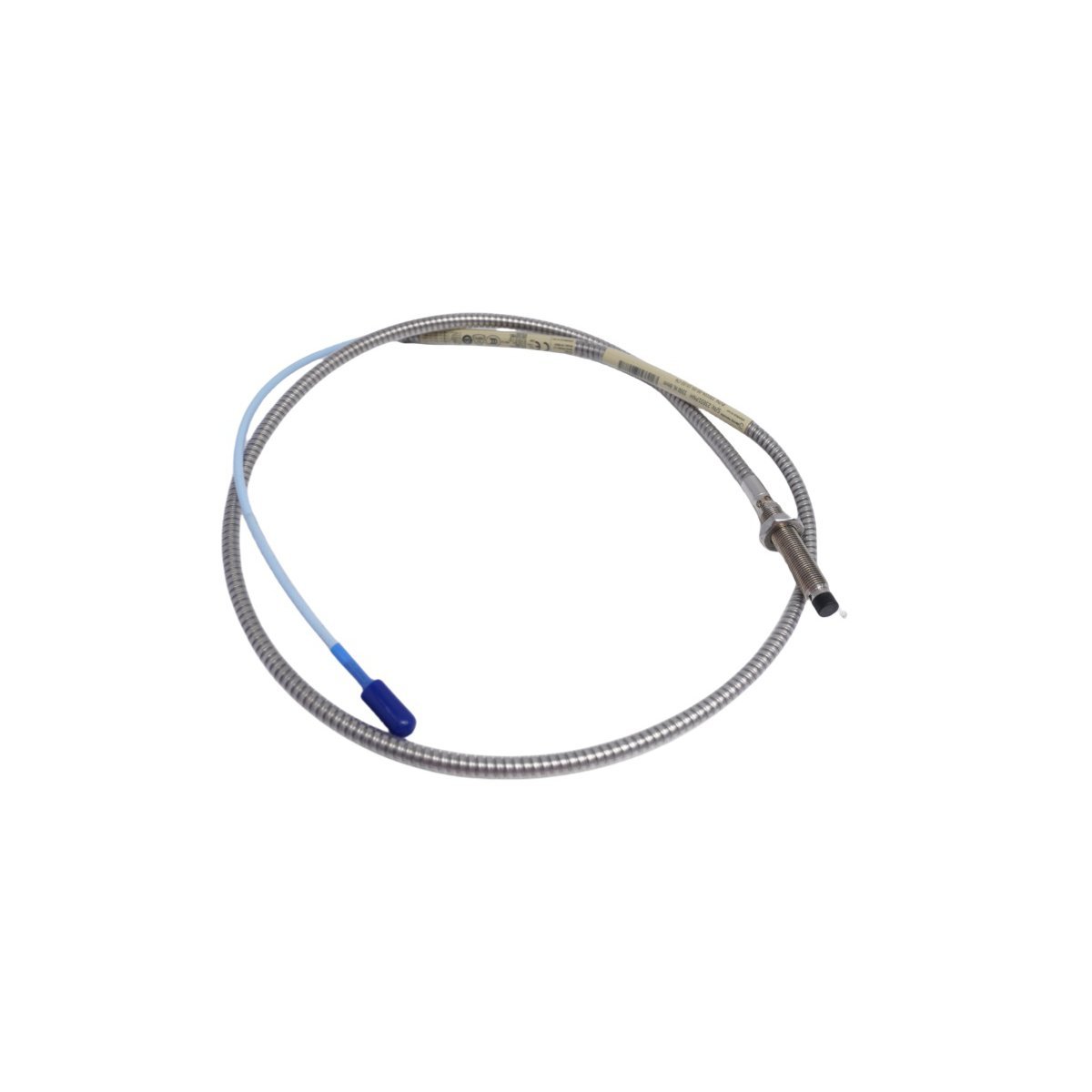

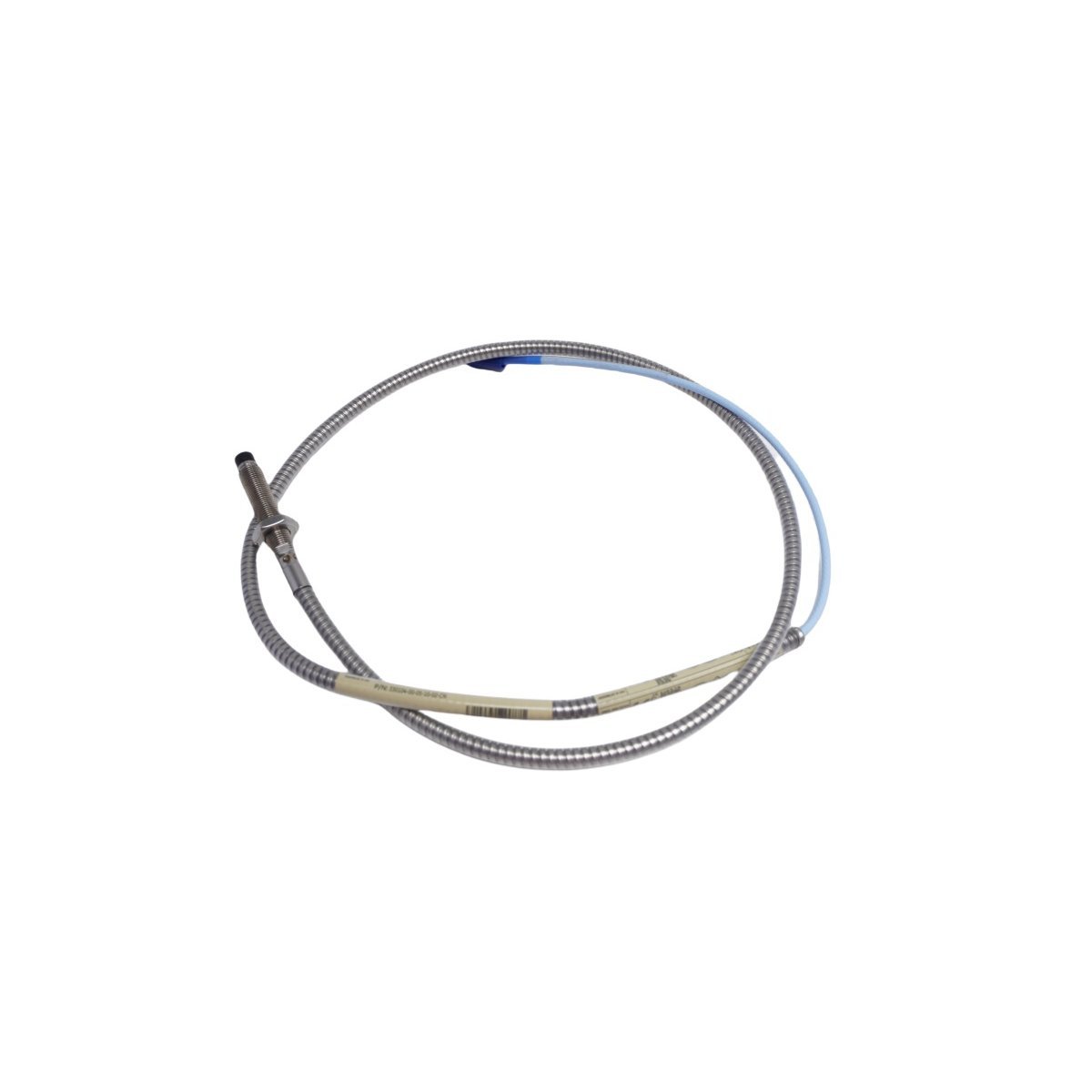

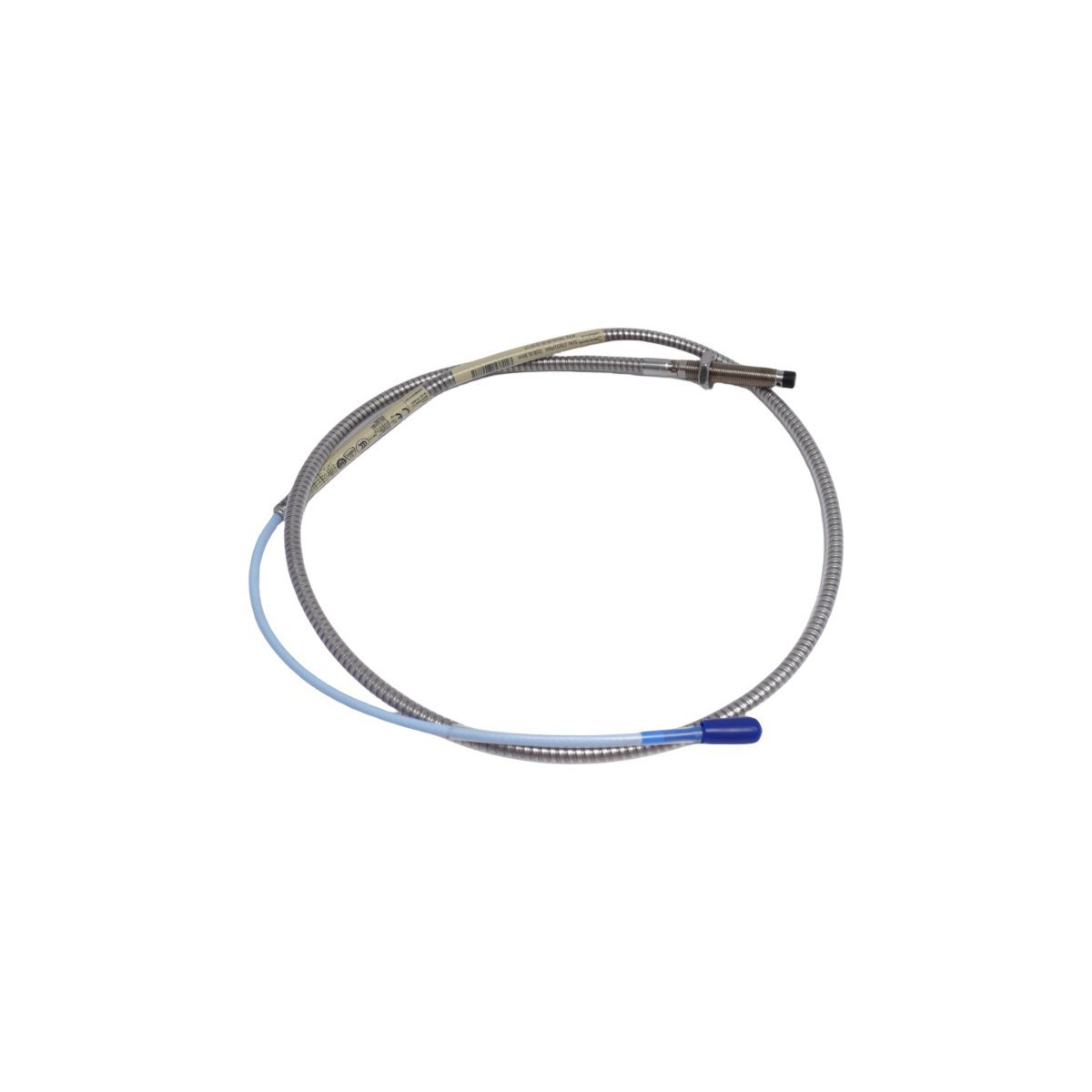

The Bently Nevada 330104-00-05-10-02-CN is a high-precision 3300XL 8 mm proximity probe engineered for mission-critical machinery protection and condition monitoring in demanding industrial environments. As part of the industry-leading 3300XL family, this probe delivers exceptional linearity, thermal stability, and electromagnetic interference (EMI) immunity—ensuring reliable shaft displacement, vibration, and position measurements across turbines, compressors, motors, and gearboxes. Its robust stainless steel housing and integrated coaxial cable are designed for long-term operation in high-temperature, high-vibration, and corrosive settings typical of power generation, oil & gas, and heavy manufacturing facilities.

Calibrated to meet API 670 standards for machinery protection systems (MPS), the 330104-00-05-10-02-CN features a nominal 8 mm sensing diameter and a linear range of ±2.0 mm, with a sensitivity of 7.87 V/mm (200 mV/mil). The probe’s optimized eddy-current technology enables sub-micron resolution and repeatable output—even under fluctuating ambient conditions. It is fully compatible with Bently Nevada 3300 XL 25 mm and 50 mm extension cables and 3300/3500 series monitors, supporting seamless integration into existing asset health monitoring infrastructures without costly system overhauls.

Key Features

• API 670–Compliant Performance: Certified for use in machinery protection systems requiring adherence to API RP 670 (4th edition) specifications.
• Enhanced Environmental Resilience: IP67-rated housing with Teflon-insulated, low-noise coaxial cable rated for continuous operation up to +125°C.
• Plug-and-Play Compatibility: Designed for direct integration with 3300XL monitoring systems—including 3300 XL 25 mm and 50 mm extensions—minimizing commissioning time and configuration errors.
• High-Fidelity Signal Integrity: Optimized coil geometry and shielding deliver superior signal-to-noise ratio and minimal phase shift across operating bandwidth (0–10 kHz).
• Traceable Calibration: Supplied with NIST-traceable calibration certificate and individual serial-numbered documentation for audit-ready compliance.

Specifications

• Part Number: 330104-00-05-10-02-CN
• Manufacturer: Bently Nevada (a Baker Hughes business)
• Type: 3300XL 8 mm Proximity Probe
• Warranty: 24-month limited warranty covering material defects and workmanship under normal industrial use

Contact us for bulk pricing and availability
