Product Description

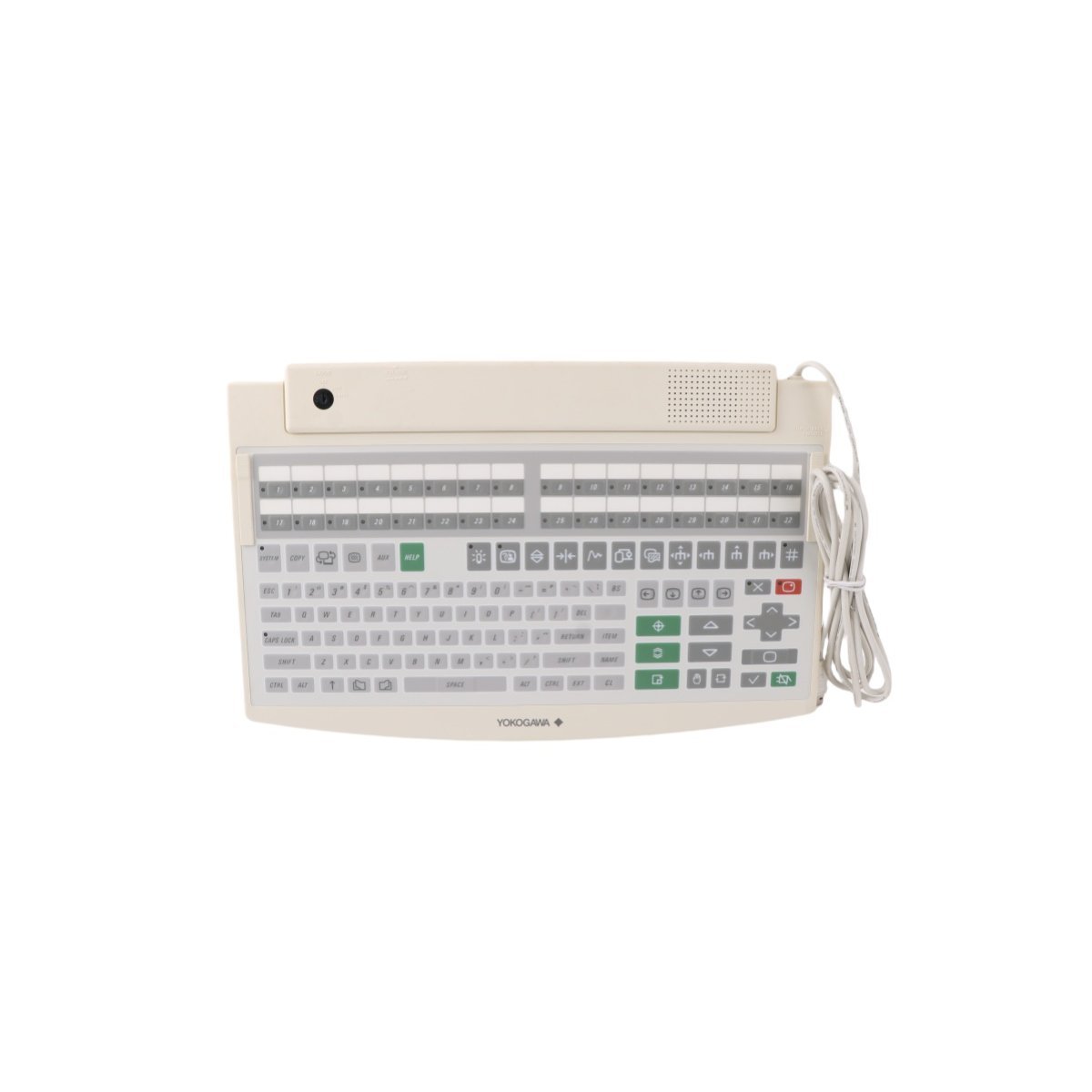

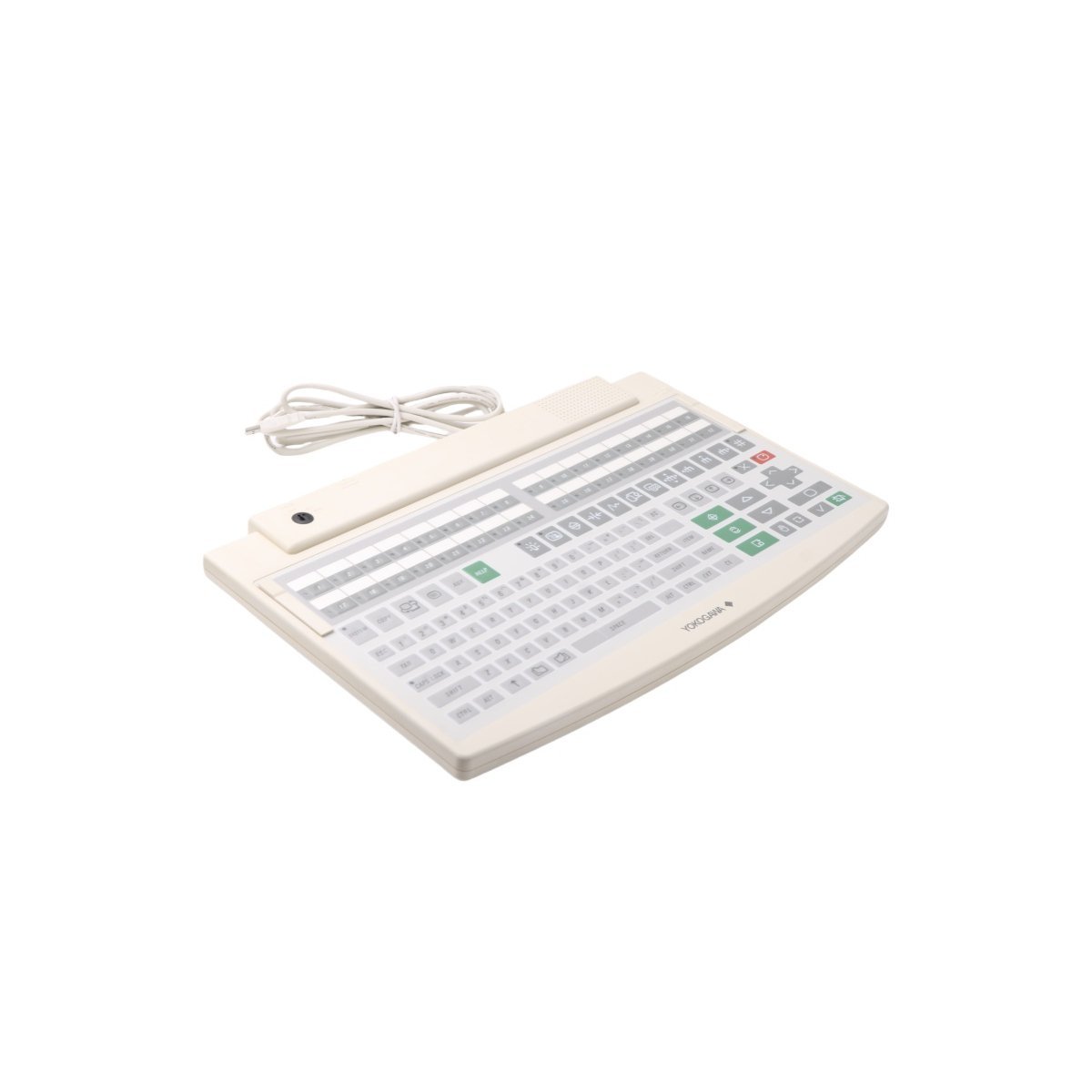

The Yokogawa AIP830-101 serves as a heavy-duty Human-Machine Interface (HMI) console designed specifically for Human Interface Station (HIS) installations within CENTUM VP distributed control systems. This specialized, flat-profile hardware enables operators to execute precise, single-loop control actions and manage real-time process overview screens simultaneously. Because reliable input infrastructure directly impacts plant safety, Yokogawa constructed this console to withstand the continuous physical demands of centralized control room environments.

To streamline complex plant management tasks, the device organizes various dedicated hardware keys into highly functional, intuitive operational groups. Plant engineers configure these specific function clusters to call up windows immediately, control process variables smoothly, or trigger pre-assigned macros. Furthermore, the unit features built-in dual-alert systems that combine a traditional internal buzzer with an independent, integrated USB speaker mechanism. Consequently, control room personnel receive instantaneous, unambiguous acoustic feedback whenever critical process alarms or system diagnostic warnings trigger across the industrial facility.

Technical Characteristics

• Model Identification: AIP830-101
• Manufacturer: Yokogawa Electric Corporation
• System Architecture: CENTUM VP Distributed Control System (DCS) / Desktop HIS
• Interface Type: Dual USB Type-A connections (both ports require direct connection to the host PC)
• USB Standards Supported: USB 2.0 Full-Speed (keyboard input functionality); USB 1.1 (integrated sound system operations)
• Key Layout Architecture: Combined alphanumeric segment, dedicated window call commands, and 64 user-definable process control keys
• Electrical Input Voltage: 5 V DC ($\pm$5% tolerance) supplied directly via the USB bus
• Peak Current Draw: 1.0 A maximum current consumption
• Safety & Compliance Standards: Certified to meet international IEC 61010-1 Class I engineering parameters
• Mounting Configurations: Panel-mount or VESA-compliant configurations (mounting bracket infrastructure must support a minimum load of 10 kg)
• Operational Temperature Window: 5°C to 40°C ambient range during active runtime
• Ambient Humidity Range: 20% to 80% RH relative humidity (completely non-condensing)
• Physical Mass: 2.06 kg net weight (increases to approximately 2.5 kg with VESA mounting bracket attached)
• Chassis Dimensions: 44.0 cm x 28.5 cm x 5.2 cm
