Description

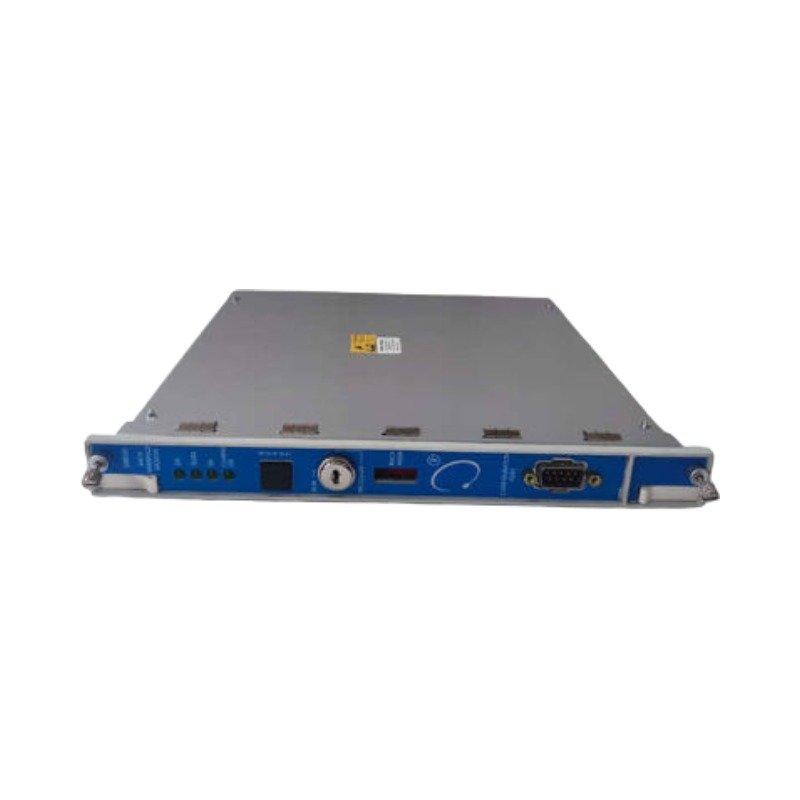

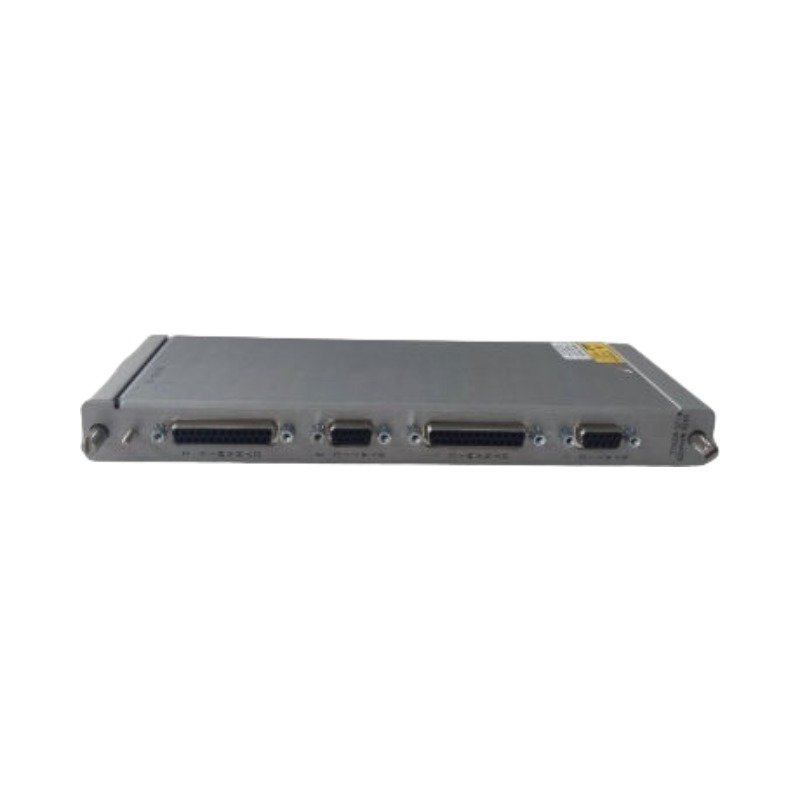

The Bently Nevada 3500/20, also cataloged as the 3500/20 Rack Interface Module (RIM), operates as a dedicated hardware component for rack configuration and machinery data retrieval within 3500 Series Machinery Protection System networks.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

Consequently, this module manages the configuration files that dictate how the downstream cards execute precise eddy-current probe scaling. During gap voltage validation, the RIM transmits the software parameters that lock in the -10 VDC baseline tracking parameters; therefore, the system accurately interprets rotor dynamics across all channels. Furthermore, the communication subassembly utilizes active cross-talk suppression. This mechanism strictly isolates the serial data transmission burst from the driving radio frequency (RF) paths of adjacent proximity monitors, thereby preventing signal degradation during high-throughput monitoring intervals.

Frequently Asked Questions

Q: Does the 3500/20 module actively process the machine shutdown loop or affect safety trips?

A: No. The RIM handles configuration and host data exchange exclusively. It remains completely separate from the critical machinery protection path; therefore, a module removal will not affect the operation of active protection monitors.

Q: What specific data path does the RIM use to communicate configuration changes to the rest of the rack?

A: The module passes data directly across the multi-layer passive backplane using a proprietary protocol. Consequently, this architecture ensures instantaneous parameter updates to all targeted monitor cards in the system.

Q: How can technicians protect the rack configuration from unauthorized modifications through this module?

A: The front panel features a physical key switch. Technicians must turn this switch to the “RUN” position and extract the key; as a result, this action mechanically restricts unauthorized remote or local configuration changes.

Field Installation Guidelines

• Shielding and Grounding: Field engineers must connect the serial communication cable shields to the designated chassis grounding screws. Meanwhile, avoid connecting the shield at the remote host computer side to prevent ground loop currents.
• Slot Constraint Compliance: Installers must place the main RIM card exclusively into Slot 1 of the chassis. Consequently, this strict positioning aligns the module with the dedicated power distribution and configuration lines built into the backplane.
• Conduit Isolation: Route all serial communication lines through dedicated, grounded steel conduit. Furthermore, ensure these data cables do not share runs or run in parallel proximity to high-voltage AC cables or variable frequency drive (VFD) output paths.
• Terminal Torque Specifications: Tighten all field wiring terminal screws on the rear interface module to a torque rating of 0.56 N-m (5.0 in-lb). Consequently, this action maintains structural gas-tight connectivity and resists vibration loosening.
