Product Overview

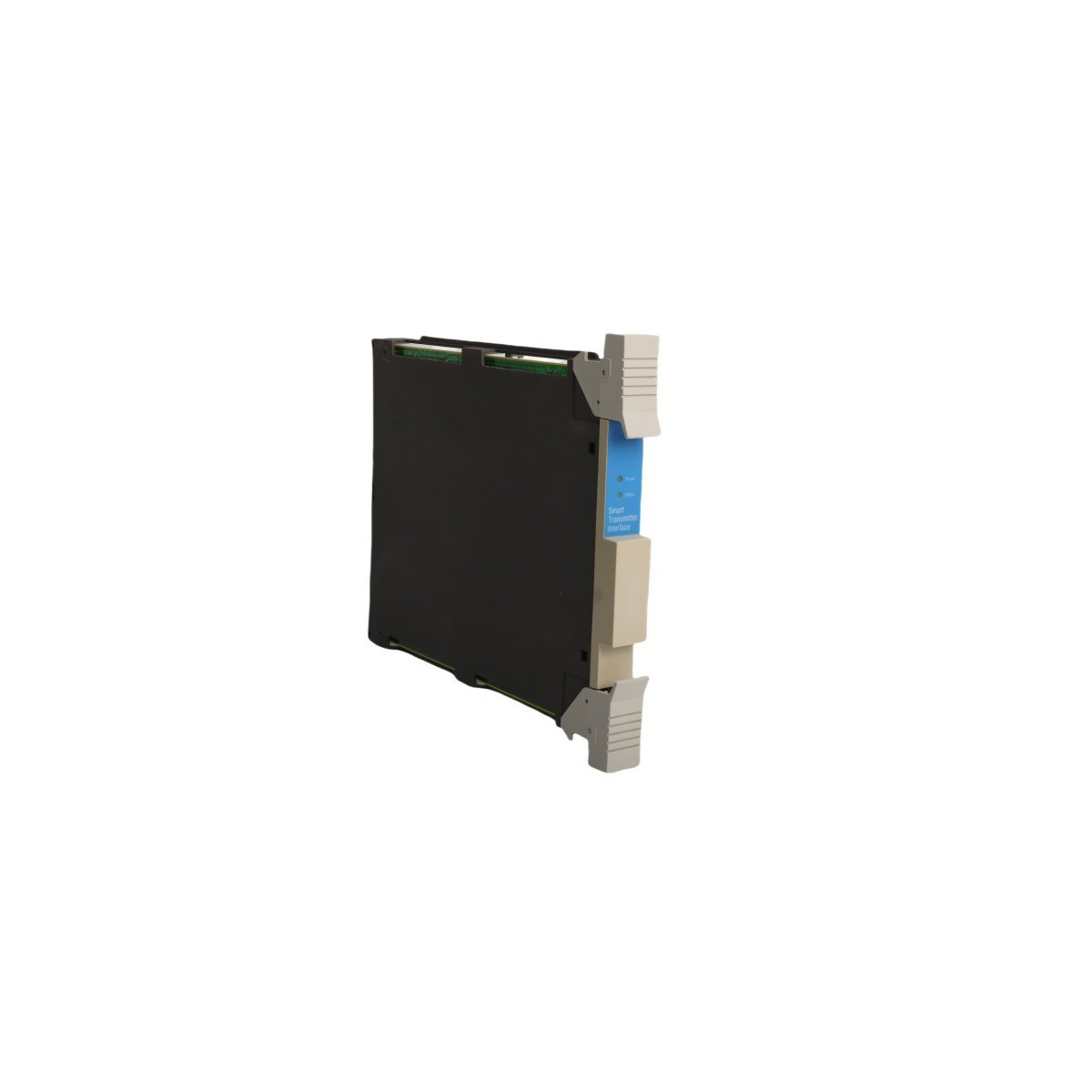

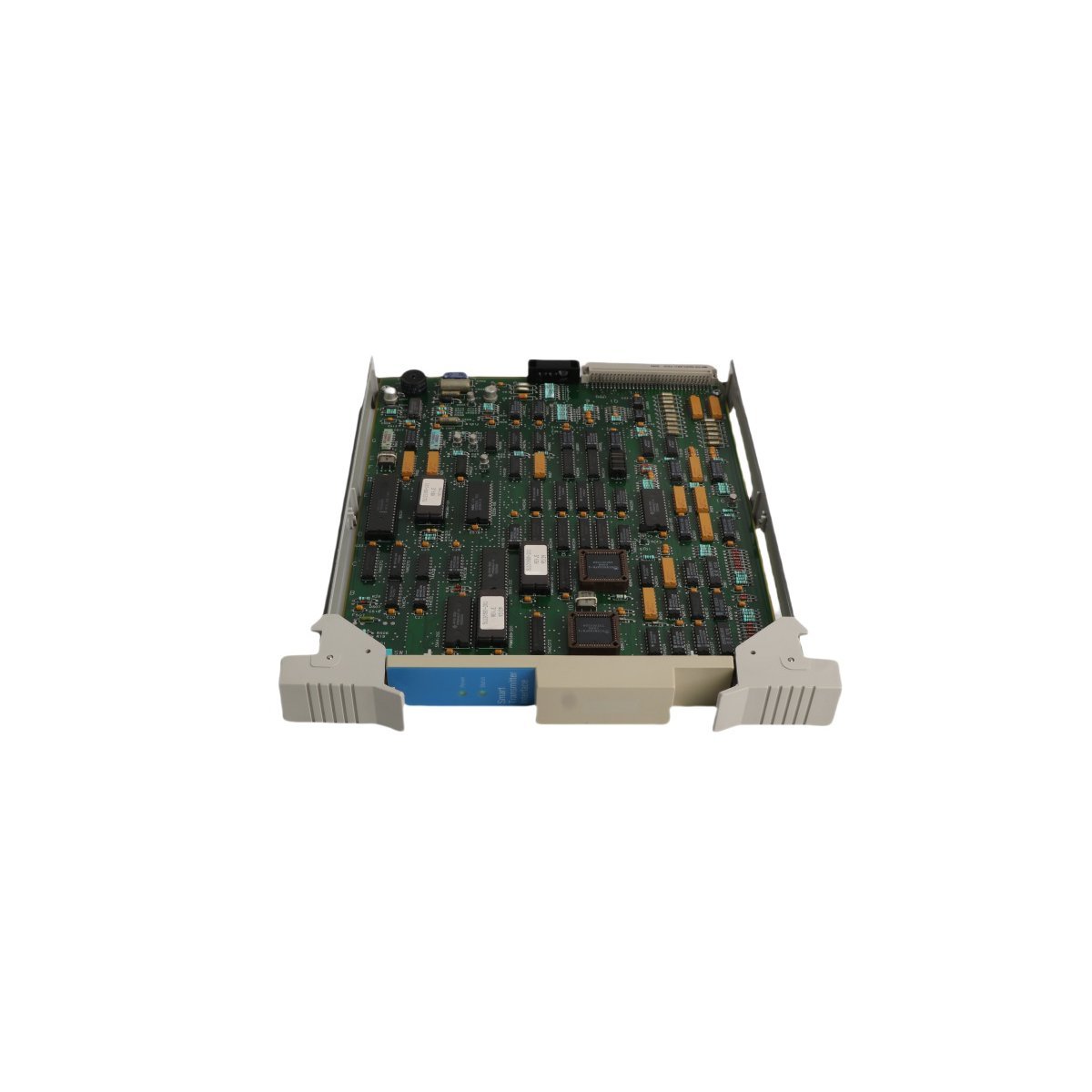

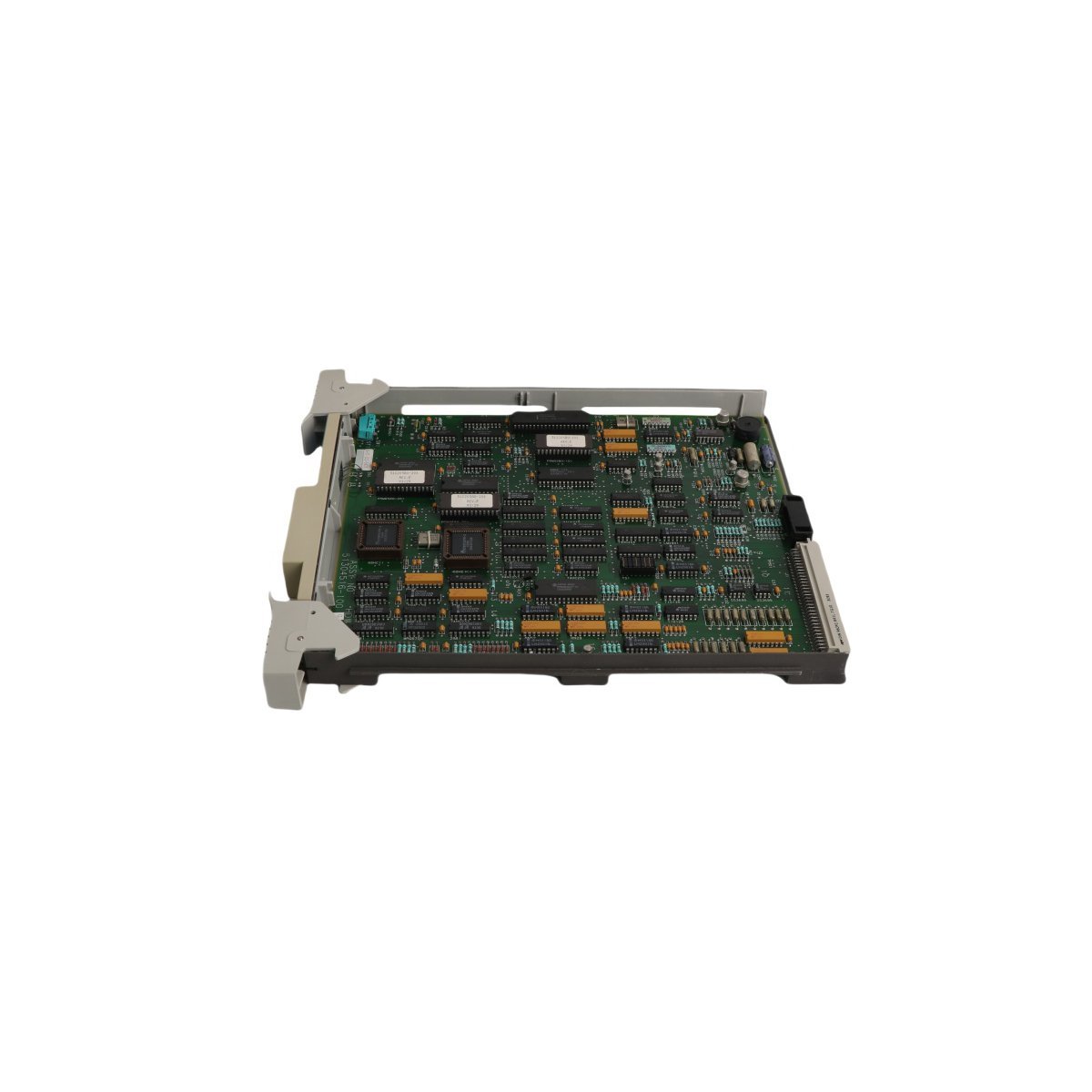

The Honeywell 51304516-100 serves as a high-performance Smart Transmitter Interface (STI) module within the Experion PKS and legacy DCS architectures. This module functions as the primary communication bridge between field-mounted smart transmitters and the central control network. By facilitating the intake of both primary process variables and secondary diagnostic data, the unit empowers operators with comprehensive visibility into field instrumentation health and process stability.

Digital Signal Integrity and Integration

Unlike traditional analog-only interfaces, the 51304516-100 utilizes advanced digital processing to eliminate the signal degradation often associated with long-distance cable runs. The module supports bidirectional communication, which allows the control system to not only receive data but also remotely configure and calibrate field devices. This capability significantly reduces the need for manual field inspections. Furthermore, the module digitizes signals at the source, ensuring that critical measurements for pressure, temperature, and flow remain precise and noise-free.

Operational Reliability and Diagnostics

Honeywell engineered this interface to thrive in demanding industrial environments where electromagnetic interference (EMI) and extreme temperature fluctuations are common. The 51304516-100 includes integrated diagnostic features that monitor the loop integrity of connected transmitters. Consequently, the system can identify faults such as open circuits or sensor drifts before they impact production. This proactive monitoring approach minimizes unplanned downtime and optimizes the maintenance lifecycle of the plant’s instrumentation.

Technical Characteristics

• Product Range: Honeywell Experion PKS Series
• Module Function: Smart Transmitter Interface (STI)
• Signal Compatibility: Supports multi-vendor smart transmitters (Analog and Digital)
• Communication: High-speed bidirectional data exchange with Ethernet routing support
• Accuracy: Source-level signal digitization for maximum data precision
• Resilience: Hardened against EMI/RFI interference and thermal stress
• Configuration: Remote device management and diagnostic tracking capabilities

Physical and Logistical Specifications

• Brand: Honeywell
• Model Number: 51304516-100
• Origin: USA
• Unit Weight: 0.27 kg
• Dimensions: 2.9 cm x 32 cm x 27.8 cm
• Customs Tariff (HS Code): 8537101190
• Condition: Brand New
• System Type: Distributed Control System (DCS)

Industrial Applications

The 51304516-100 is widely deployed in sectors such as oil and gas refining, chemical manufacturing, and power generation. Because it reduces wiring complexity while improving data density, it is an essential component for facilities transitioning toward digital transformation and advanced automation. Whether managing a single critical loop or integrating a large-scale transmitter farm, this module ensures the control system receives high-quality, actionable data.
