Description

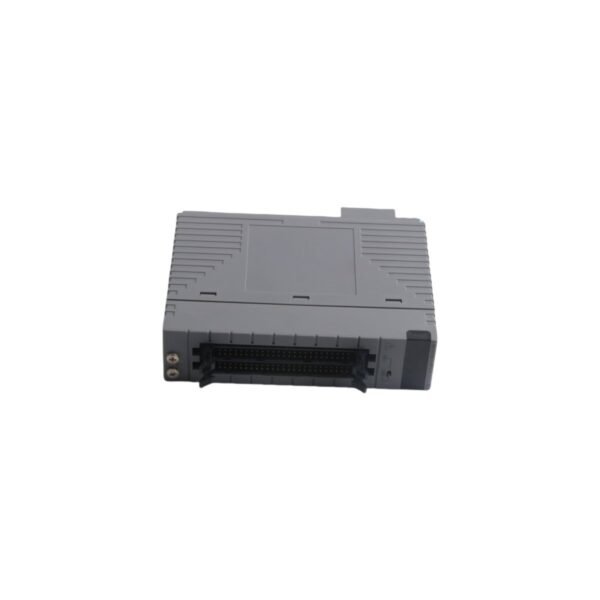

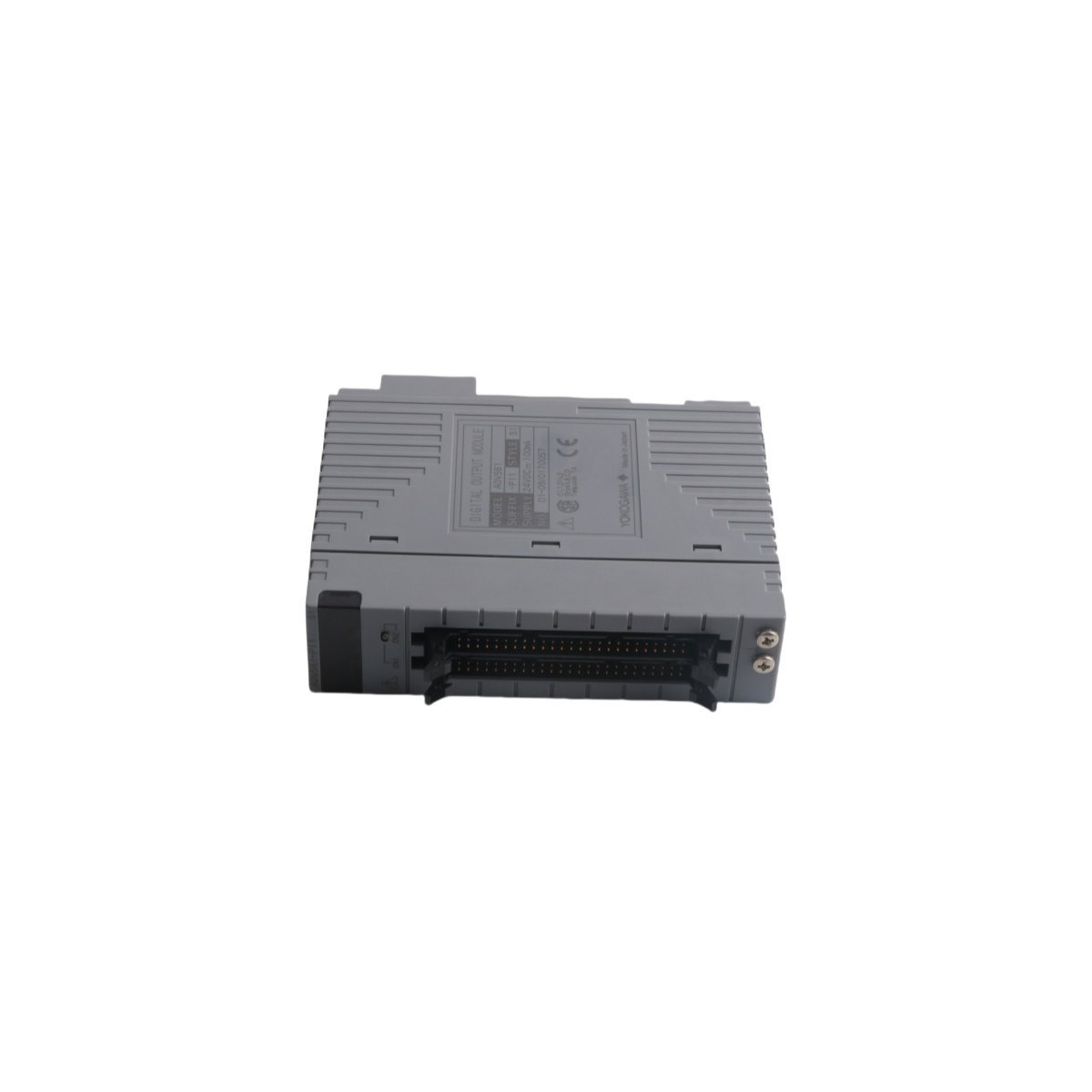

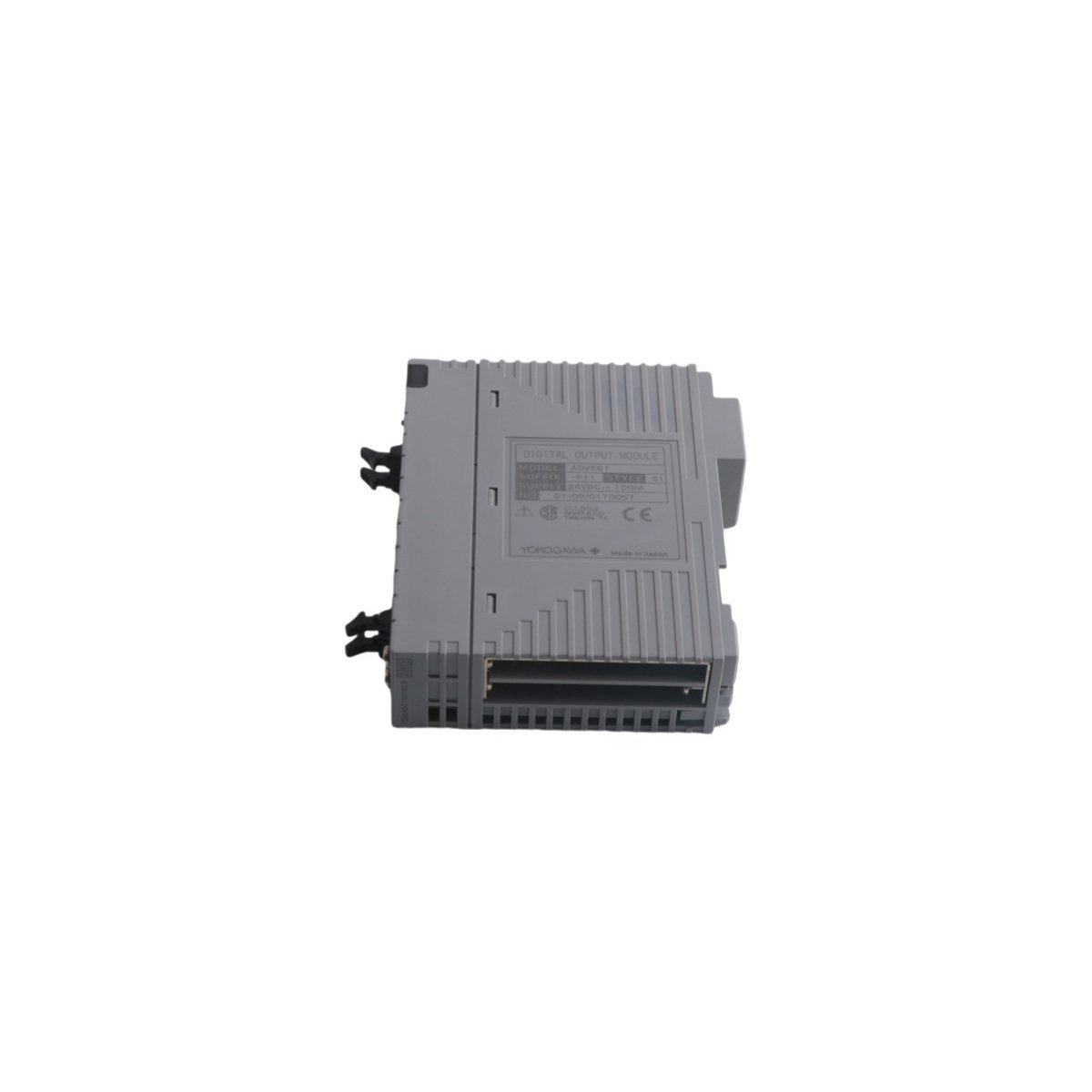

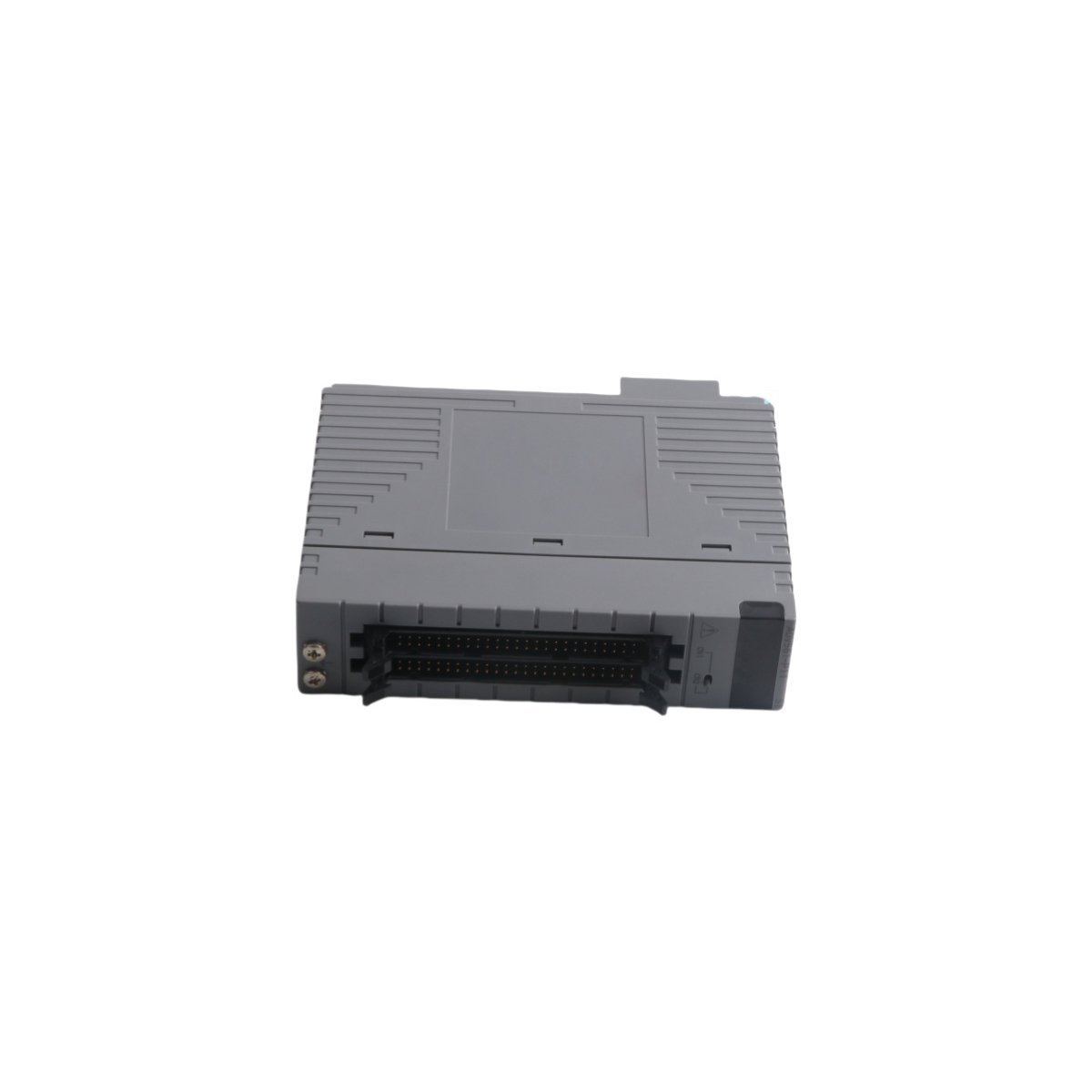

The Yokogawa ADV561-P11 S1 serves as a high-density digital output interface for advanced DCS platforms. This module executes precise command signals to drive field devices like solenoid valves and relays. It provides a stable 24V DC output across multiple channels for consistent equipment operation. Furthermore, the internal circuitry ensures minimal signal leakage during the “off” state. This high level of signal integrity prevents accidental triggering of sensitive industrial hardware. Consequently, the module enhances the safety and predictability of automated process loops.

Advanced Communication and Integration

This digital output unit features an integrated RS-485 interface for secondary data exchange. It integrates seamlessly into the CENTUM VP FIO architecture for rapid system updates. Moreover, the hardware supports real-time monitoring of output status via the control station. This capability allows for immediate detection of field-side wiring issues or module faults. Because it uses standardized communication protocols, engineers can easily incorporate it into existing network topologies. These features significantly reduce the complexity of large-scale system integration projects.

Industrial Ruggedness and Form Factor

Yokogawa builds the ADV561-P11 S1 to withstand extreme industrial environments. The module offers superior thermal resistance for reliable operation in high-temperature cabinets. Additionally, the slim 3.2 cm profile optimizes rail space in crowded control rooms. Its lightweight design does not compromise its structural durability against vibration. The unit also includes built-in surge protection to shield the DCS from electrical transients. Therefore, it remains a preferred choice for heavy manufacturing and energy production facilities.

Technical Specifications
