Product Overview

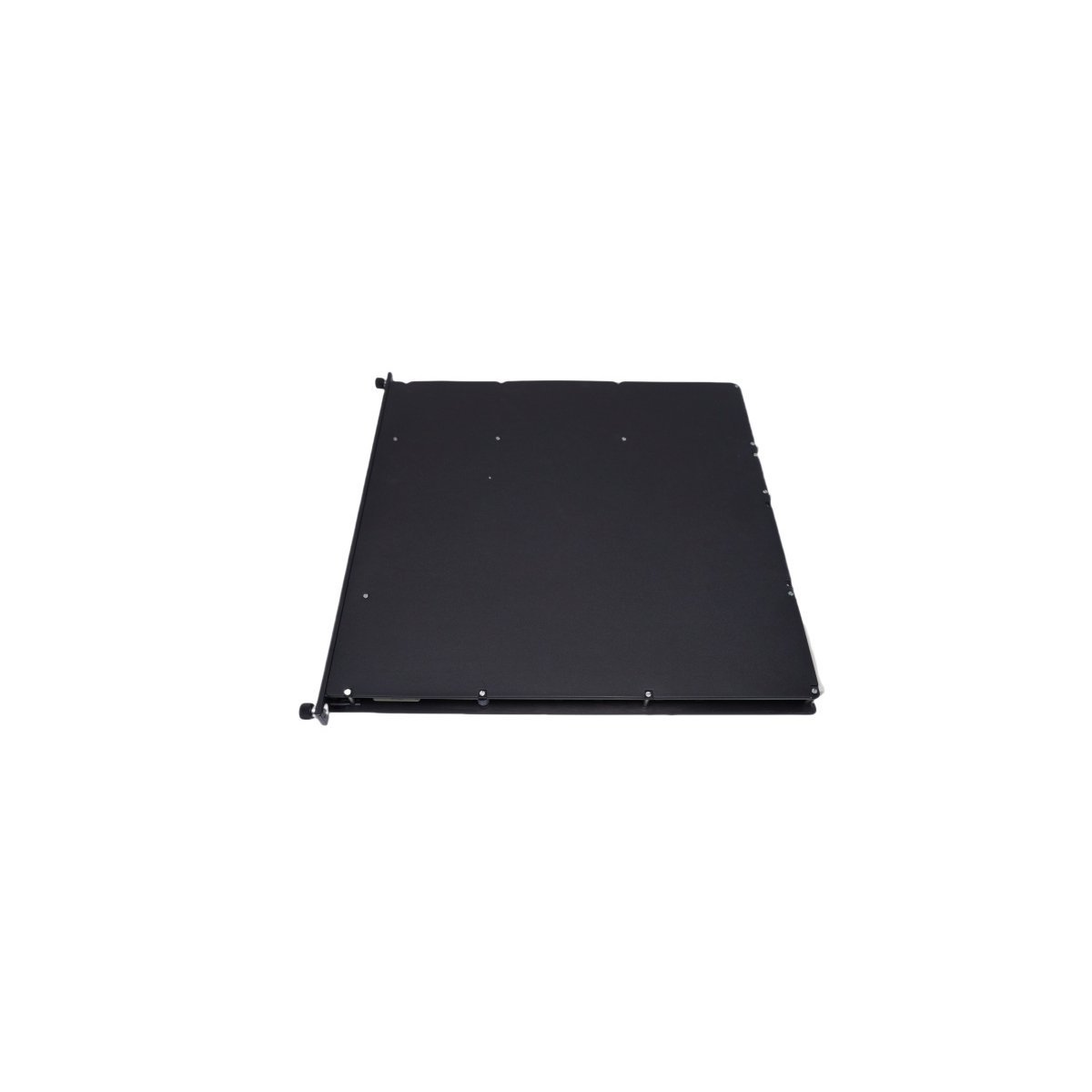

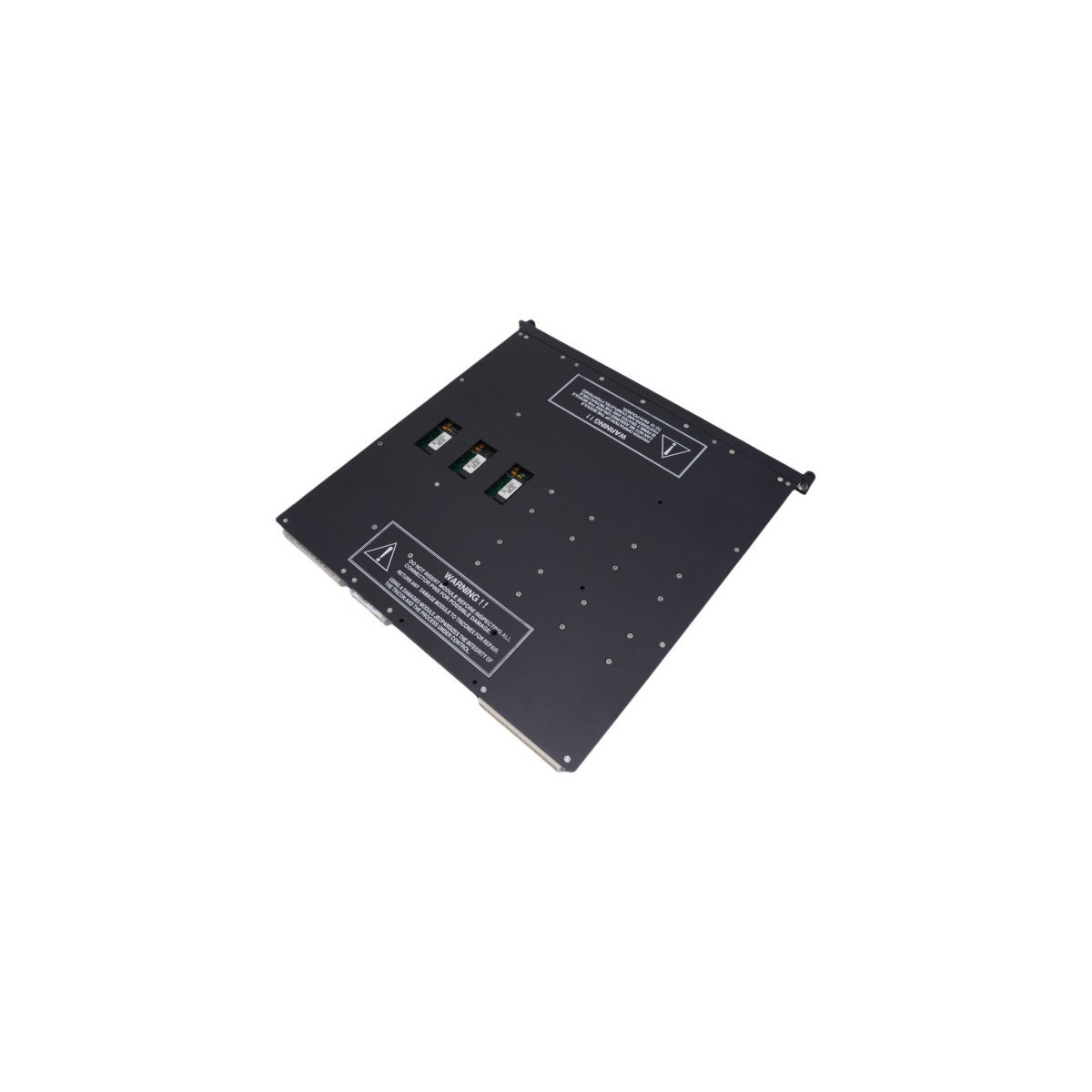

The Triconex 3601E is a high-reliability, 16-channel digital output module designed for 115 VAC applications within Triple Modular Redundant (TMR) safety systems.² This opto-isolated module provides a secure interface between the safety controller and high-voltage field actuators, ensuring fail-safe execution of critical control commands.

TMR Architecture and Fail-Safe Switching

The 3601E module leverages Triple Modular Redundant (TMR) technology to eliminate single points of failure in safety-critical loops.³ Every output command undergoes a hardware-based voting process across three independent branches, ensuring that a single component fault cannot prevent a trip or cause an accidental activation. Consequently, the module maintains absolute control integrity for essential field devices such as solenoid valves, motor starters, and emergency alarms. By isolating the 115 VAC field power from the sensitive logic backplane through advanced opto-isolation, the 3601E prevents electrical surges or transients from damaging the main processors.

Advanced Diagnostics and System Monitoring

Schneider Electric engineered the 3601E with a comprehensive suite of supervised diagnostic features. The module continuously performs “output voter” tests to verify that all internal switches are responding correctly to logic commands. Furthermore, it identifies external issues such as field-side blown fuses or power loss, reporting these status updates in real-time to the main controller. This proactive diagnostic approach allows maintenance teams to resolve potential failures before they impact plant safety. Because the module supports high-speed fault detection, it effectively minimizes the “mean time to repair” (MTTR), which is vital for maintaining the high availability required in continuous process industries.

Industrial Hardening and Seamless Maintenance

Built for the most demanding environments, the 3601E features a ruggedized construction that operates reliably under extreme thermal and mechanical stress. The module integrates seamlessly into the Tricon chassis and supports hot-swapping, which permits the replacement of active modules without interrupting the process. Transitioning to this high-performance output card simplifies system architecture by reducing the need for external interposing relays in many 115 VAC applications. This compact, high-density design significantly optimizes cabinet space while meeting the rigorous IEC 61508 SIL 3 certification standards for safety-instrumented systems (SIS).
