Description

Product Overview

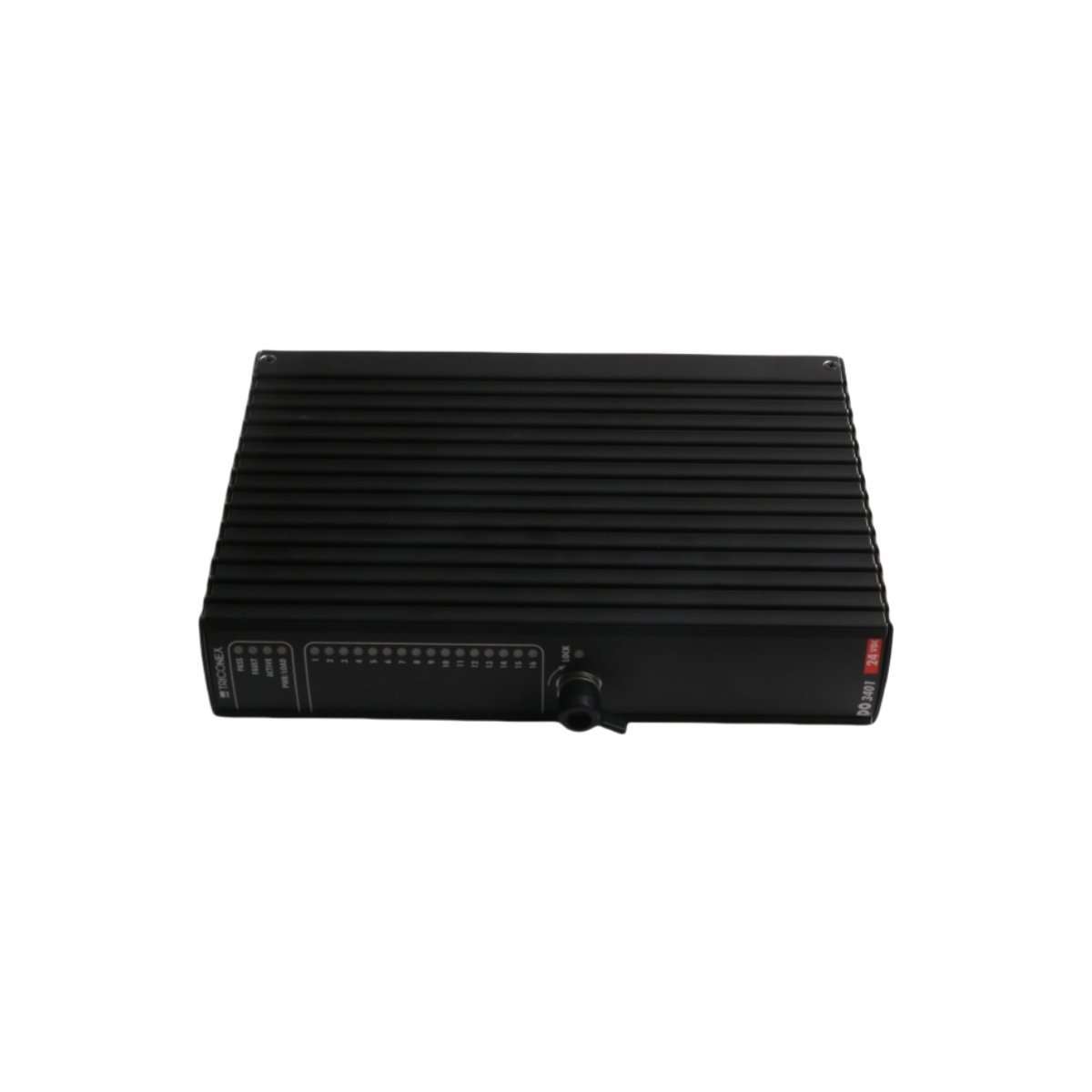

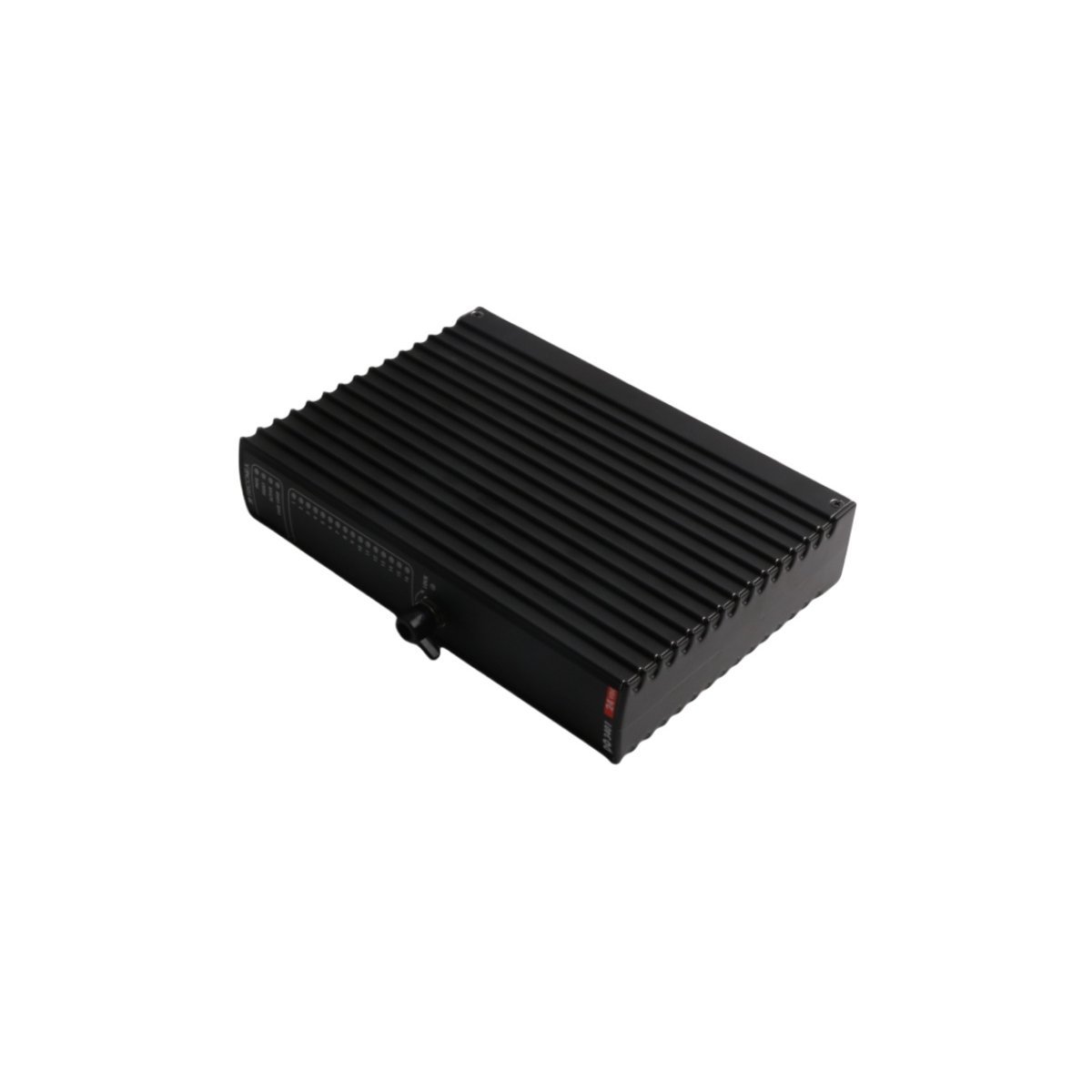

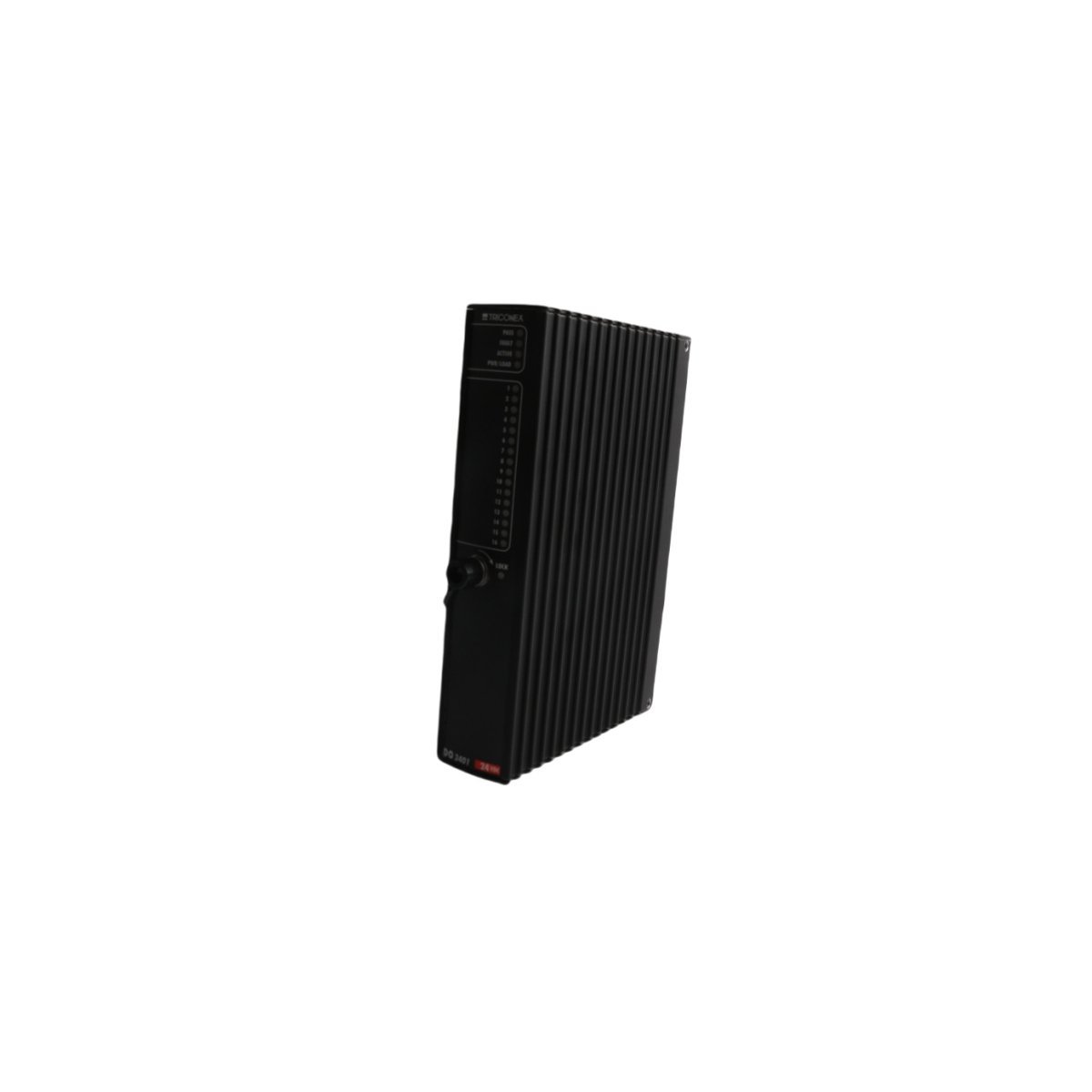

The Triconex DO 3401S2 is a 16-point Triple Modular Redundant (TMR) digital output module designed to drive final control elements in safety-critical industrial processes. It ensures maximum uptime and fail-safe performance by utilizing three independent execution paths and hardware voting logic for every output signal.

Triple Modular Redundant Architecture

The DO 3401S2 achieves superior fault tolerance by integrating three completely independent processing branches—Channels A, B, and C—within a single module. Each branch features its own dedicated microprocessor that communicates directly with the system’s main processors. These channels process output commands asynchronously, while a final hardware voting circuit determines the physical state of the field signal. This TMR design allows the module to maintain perfect operational integrity even if a single processing path fails. Consequently, the DO 3401S2 provides the high-availability control required for emergency shutdown (ESD) and critical safety instrumented systems (SIS).

Isolated Channel Integrity and Diagnostics

To prevent fault propagation across the system, the DO 3401S2 features 16 channels that are both electrically and optically isolated from one another. This design choice ensures that an electrical surge or component failure on one point remains localized, protecting adjacent channels and the controller backplane. Furthermore, the module executes continuous background diagnostics to monitor the health of the output switches and field wiring. By identifying latent failures without disrupting the process, the DO 3401S2 empowers maintenance teams to perform predictive repairs. Transitioning to this supervised architecture significantly enhances the safety loop’s reliability in high-risk environments.

Industrial Application and Safety Compliance

Schneider Electric built the DO 3401S2 to satisfy the rigorous demands of the oil and gas, petrochemical, and power generation sectors. Because the module carries a SIL 3 safety certification, it complies with international standards for protecting personnel and high-value assets. The hardware effectively manages final control elements such as solenoid valves, actuators, and motor starters. Additionally, its hot-swappable capability permits module replacement during live operations, which eliminates the need for costly process interruptions. This combination of ruggedized hardware and advanced internal logic makes the DO 3401S2 a benchmark for digital output performance in modern safety systems.

Technical Specifications
