Description

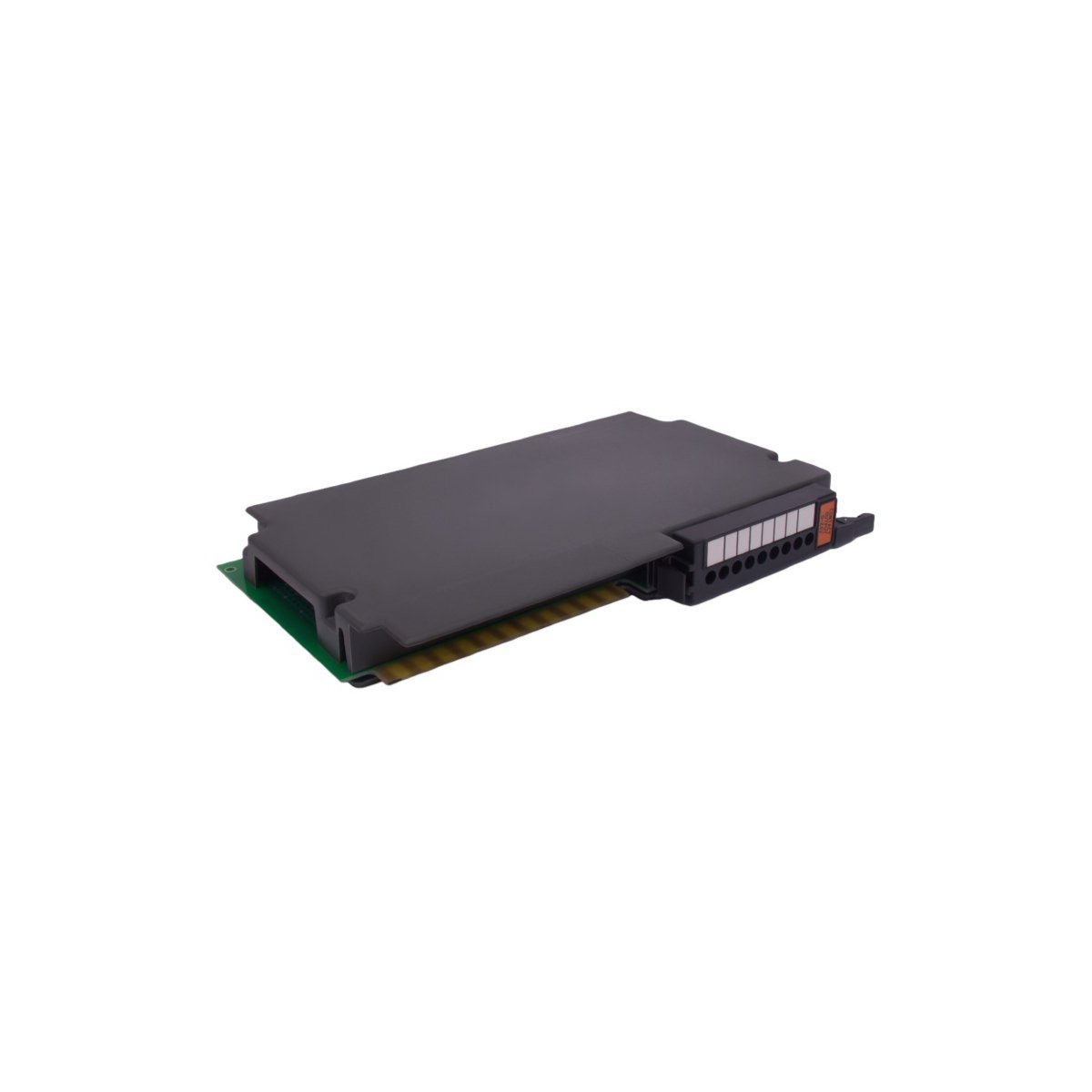

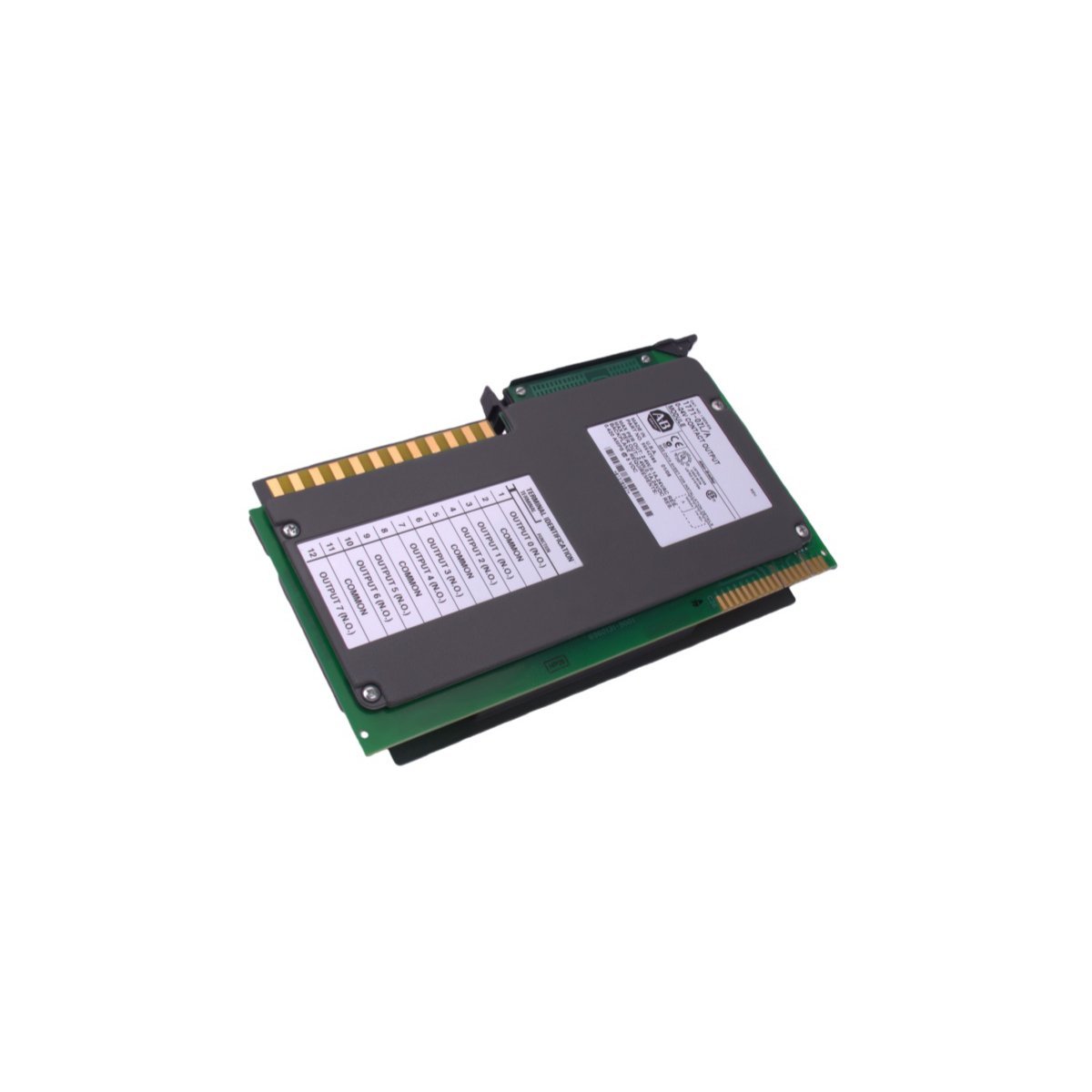

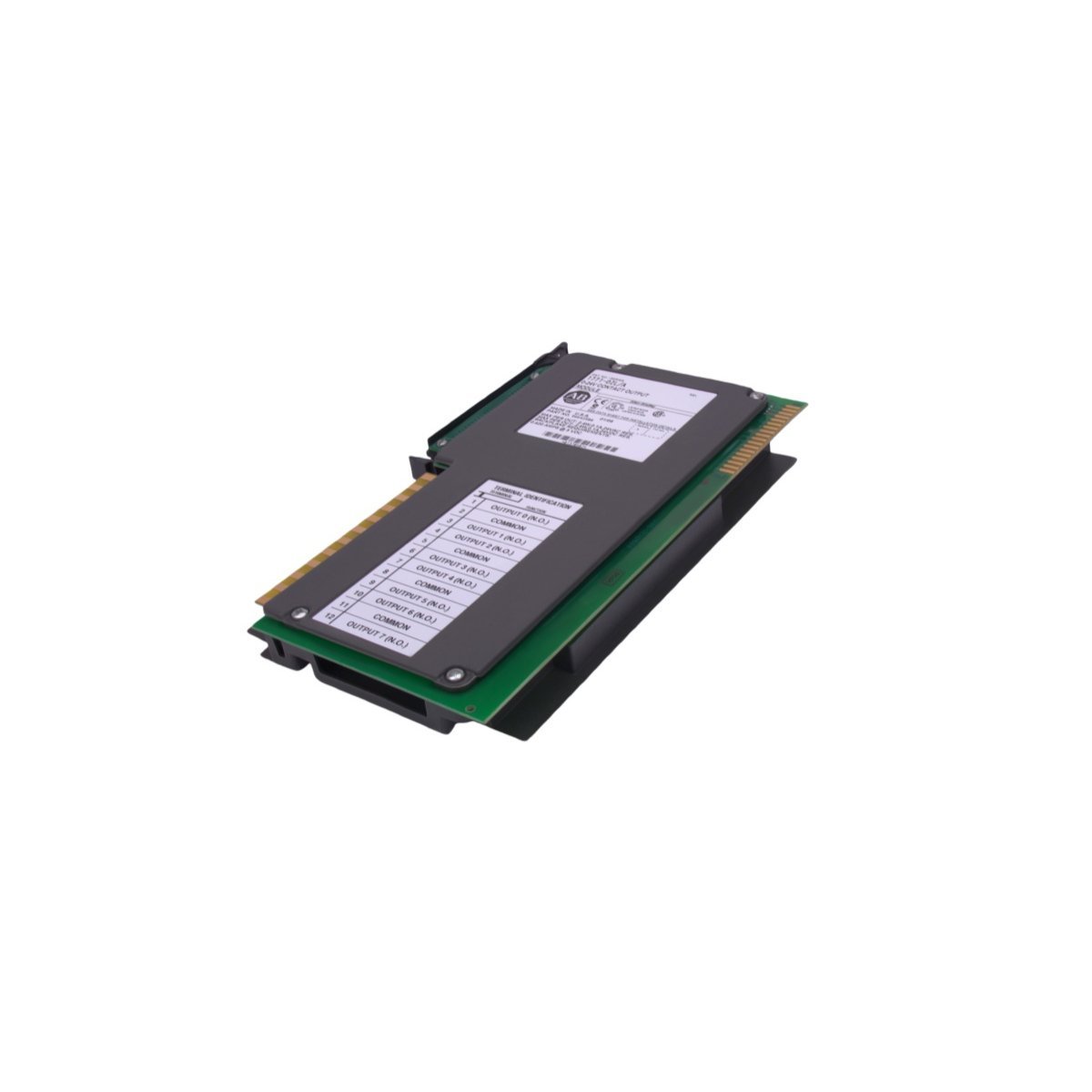

The Allen-Bradley 1771-OZL is a specialized digital output solution for legacy PLC-5 control systems. This module features dry-reed relay technology to provide highly reliable switching for low-power circuits. It serves as a bridge between the processor and sensitive field devices requiring electrical isolation. Because it uses mechanical contacts, the unit ensures clean signal transmission without leakage current.

Core Technical Specifications

Isolated Architecture and Contact Design

The 1771-OZL organizes its eight outputs into four separate groups for maximum flexibility. Each pair of contacts utilizes an independent common terminal to prevent electrical cross-talk. Furthermore, the hermetically sealed relay design protects internal components from corrosive industrial atmospheres. This construction also enables rapid response times compared to standard electromechanical relays.

Diagnostic Monitoring and Field Application

Each output point includes a dedicated status indicator on the front panel. These LEDs provide immediate visual confirmation of the relay state for maintenance personnel. Consequently, users can diagnose circuit issues or logic errors without external testing equipment.

This module excels in applications involving low-voltage instrumentation and signal-level switching. It often interfaces with interposing relays, small solenoids, or high-impedance electronic loads. Its ability to handle both AC and DC voltages makes it a versatile tool for legacy system maintenance.

Environmental and Installation Standards

The module installs directly into a standard 1771 Universal I/O chassis slot. It operates reliably within a temperature range of 0 to 60 °C. Additionally, the rugged housing withstands the vibrations typical of heavy manufacturing environments. Proper keying of the backplane prevents incorrect module insertion to protect system integrity.
