Description

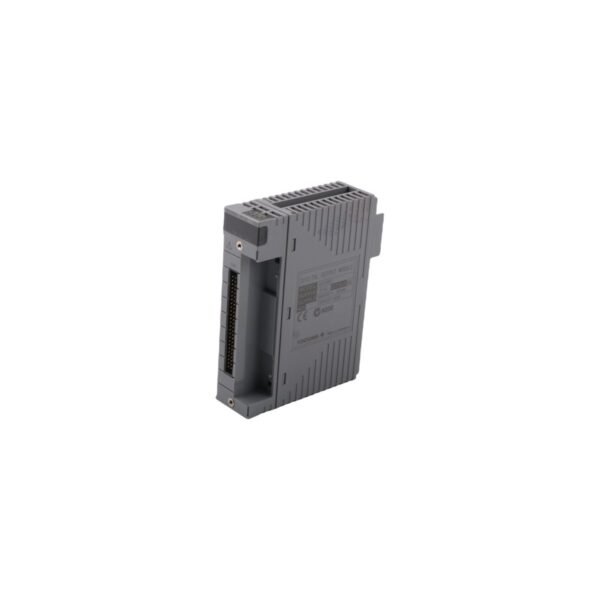

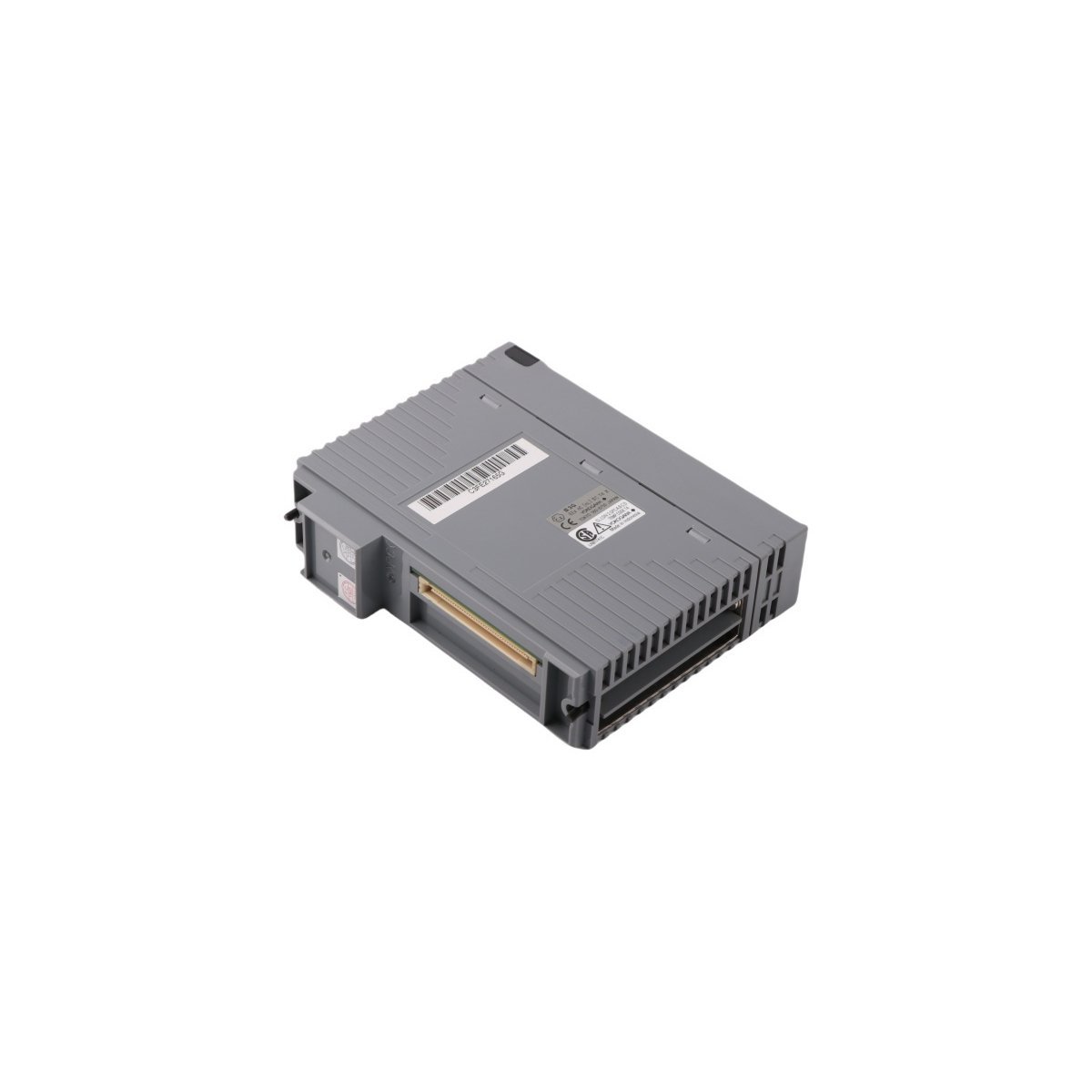

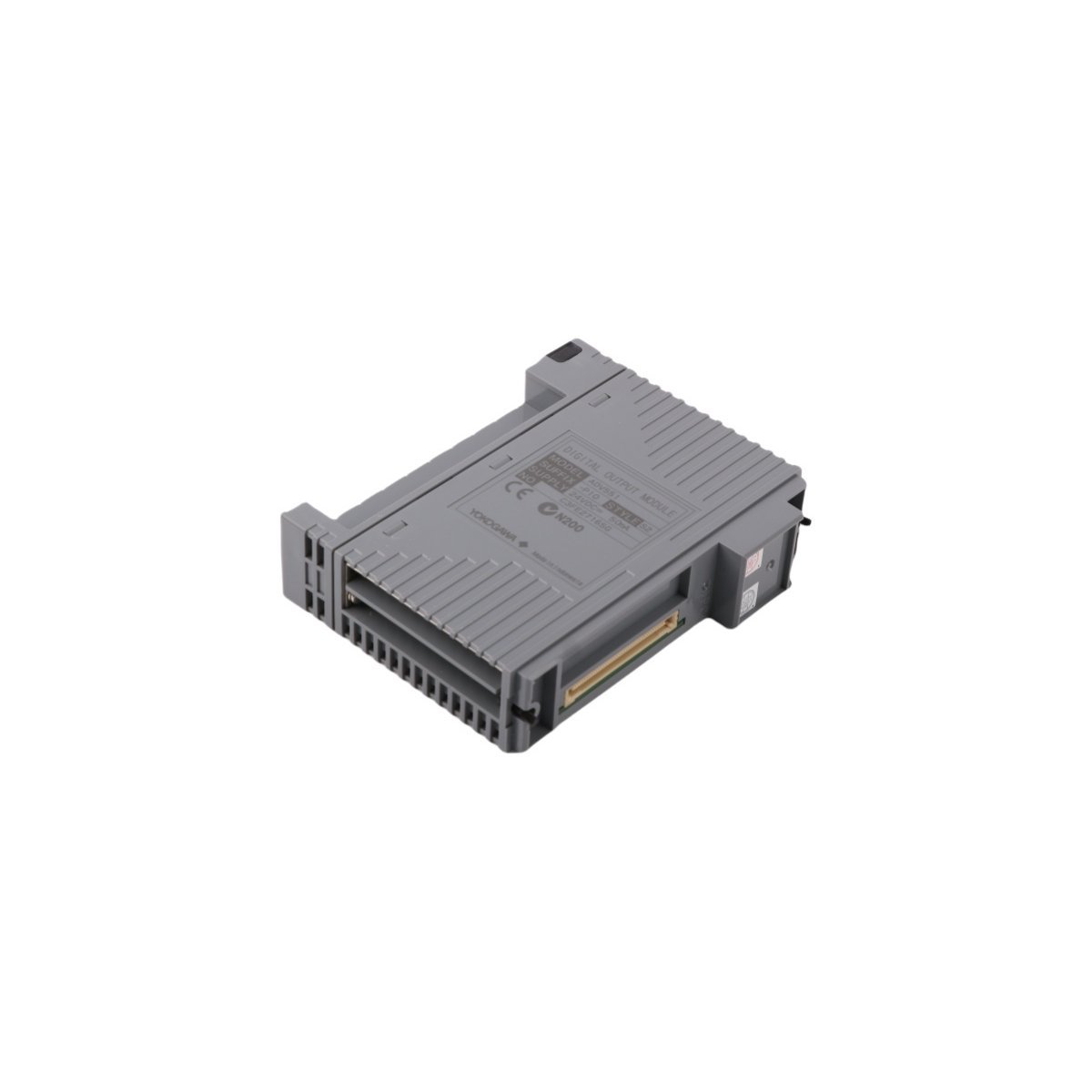

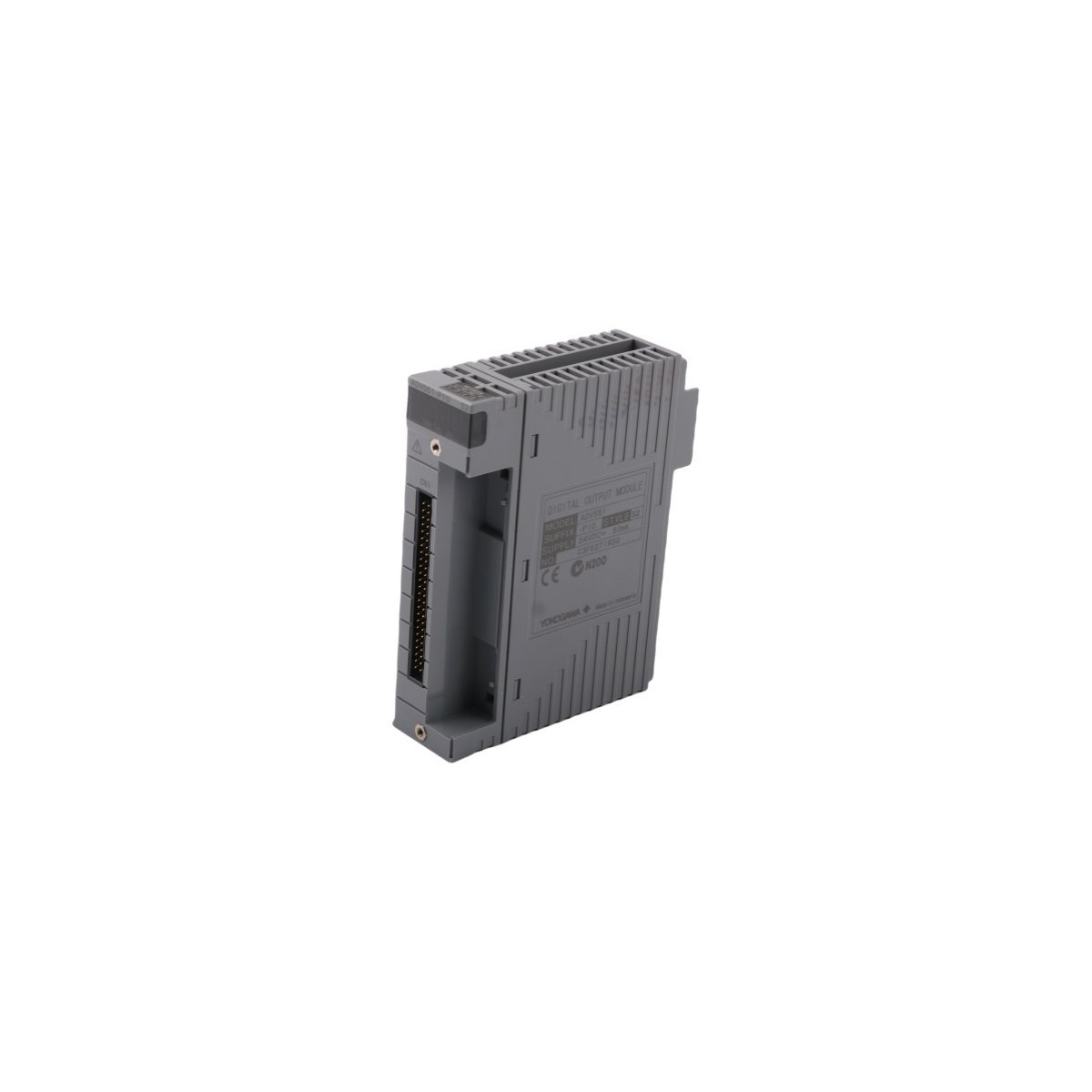

The Yokogawa ADV551-P10 S2 serves as a high-density discrete output interface for the CENTUM VP control system. This module provides 32 isolated channels to drive external field equipment like solenoids and relays. It facilitates precise command execution between the controller and plant hardware. Consequently, operators achieve stable control over complex industrial sequences. Its architecture prioritizes high-speed response times and signal integrity in demanding automation loops.

Reliability remains a core feature of the ADV551-P10 S2 hardware design. The module incorporates advanced diagnostic tools to monitor internal circuit health. Furthermore, the “S2” designation indicates enhanced processing capabilities for real-time state analysis. This ensures the system reacts instantly to changing process conditions. Each channel features robust protection against electrical noise to prevent unintended signal triggers.

Technical Characteristics and Specifications

• Manufacturer: Yokogawa Electric Corporation
• Model Number: ADV551-P10 S2
• Module Type: Digital Output Module
• Channel Count: 32 Channels
• Rated Load Voltage: 24V DC
• Maximum Load Current: 100 mA per channel
• Isolation: Optical isolation for system protection
• Weight: 0.2 kg
• Casing Dimensions: 3.2 x 10.8 x 13 cm
• System Platform: CENTUM VP / CS 3000
• Country of Origin: Japan
• Mounting: FIO Bus Type

Operational Benefits and Integration

The ADV551-P10 S2 features a compact footprint to optimize cabinet space in control rooms. This efficiency allows for high-density I/O configurations without increasing hardware volume. Moreover, the module supports hot-swapping to facilitate maintenance without stopping the process. This capability ensures continuous plant operation during hardware replacements or upgrades.

In terms of environmental resilience, the module withstands significant temperature fluctuations. It remains stable in environments ranging from -20°C to +70°C. Additionally, the unit complies with international safety standards for industrial control equipment. Status indicators on the front panel provide clear visual feedback for troubleshooting. These LEDs show power status and individual output states for rapid onsite assessment.

Application and Performance

Engineers typically deploy the ADV551-P10 S2 in chemical, power, and refining sectors. It manages critical discrete signals for valve actuators and motor starters. Furthermore, the module utilizes a high-reliability FIO bus interface for data exchange. This robust connection minimizes latency during high-speed logic execution. Therefore, the module provides a dependable solution for safety interlocks and sequence controls.
