Description

Functional Overview

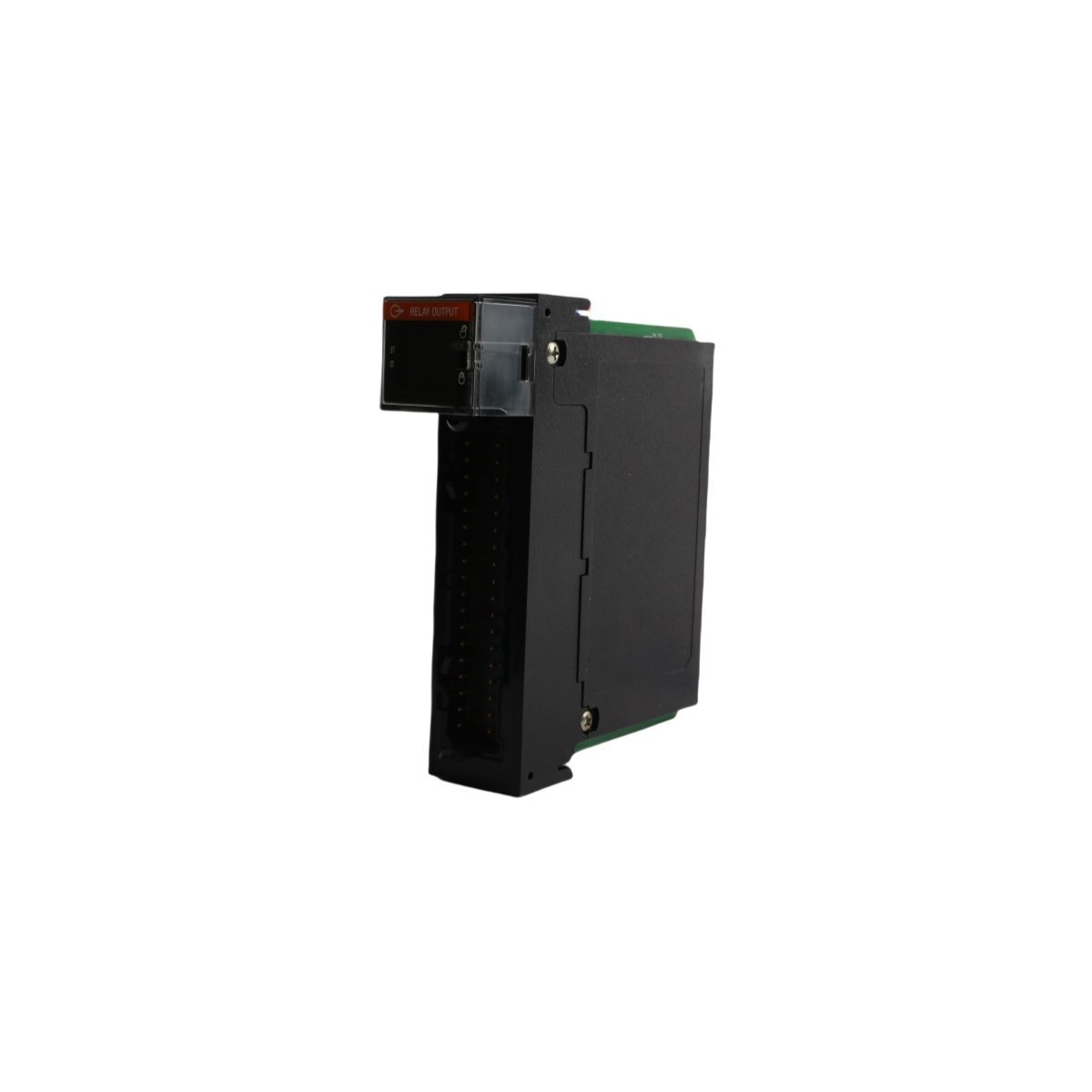

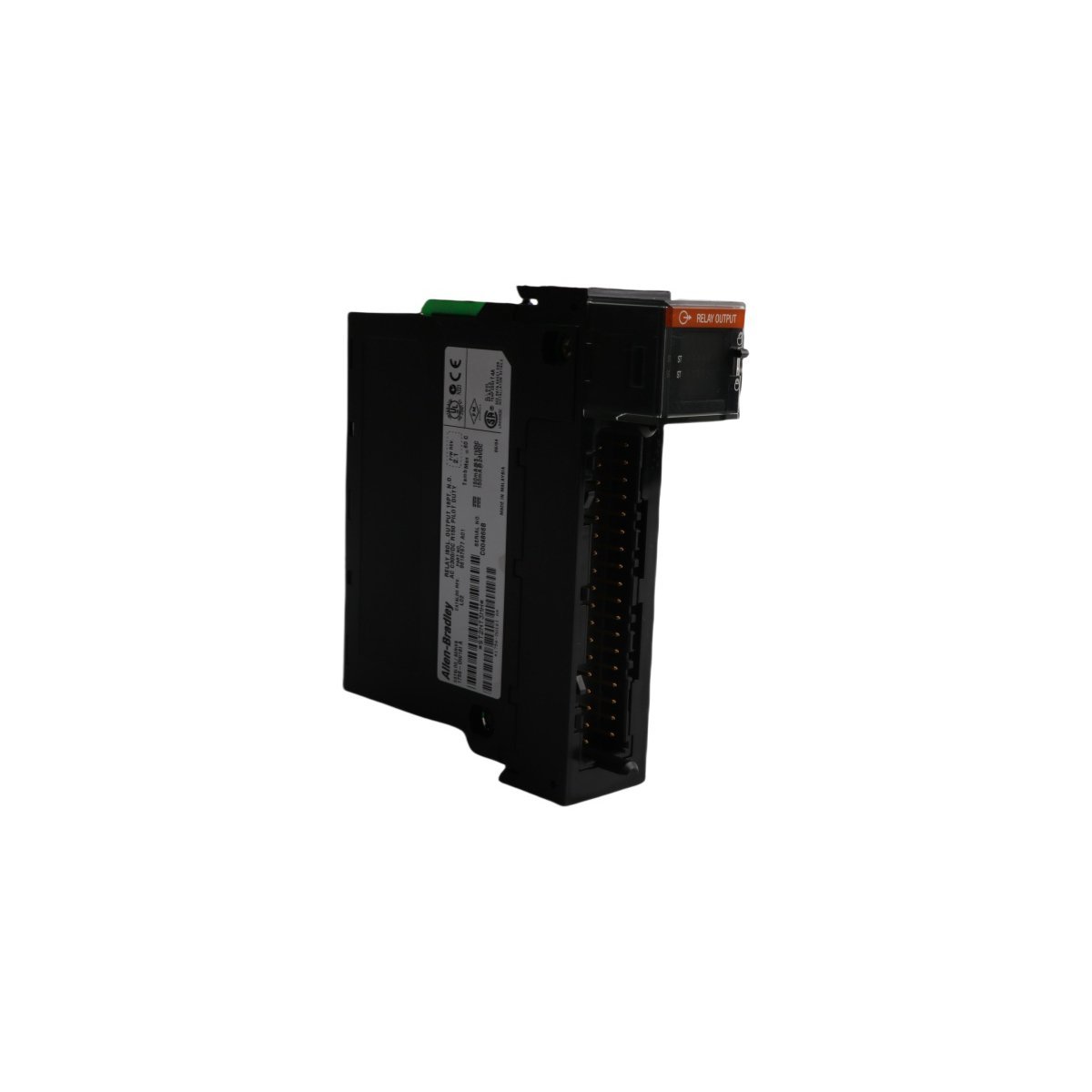

The Allen-Bradley 1756-OW16I is a high-density, 16-channel isolated digital relay output module within the ControlLogix smart automation family. Engineered by Rockwell Automation, this module provides discrete ON/OFF actuation for a wide variety of field devices, such as solenoids, motor starters, indicators, and interposing relays.

Because it utilizes electromechanical relay contacts rather than solid-state switching, the module offers high versatility, allowing it to switch both AC and DC voltage loads. The defining architectural advantage of the 1756-OW16I is its complete channel-to-channel isolation, which prevents electrical faults, ground loops, or noise on one field circuit from affecting adjacent channels or the backplane chassis.

Telemetry and Smart System Integration

Operating natively within the ControlLogix architecture, the 1756-OW16I leverages Allen-Bradley’s high-speed producer/consumer communication model. This allows the output states and critical diagnostic telemetry to be broadcast efficiently across the local chassis backplane or over industrial networks like EtherNet/IP without taxing the central controller’s processing overhead.

The module features intelligent scheduling and precise system-level timestamping capabilities, allowing engineers to log exactly when a relay changes state for root-cause event analysis. Additionally, the module supports Removal and Insertion Under Power (RIUP), enabling maintenance personnel to swap out hardware without powering down the chassis, minimizing production downtime.

Diagnostics and Heavy Industrial Resilience

To simplify commissioning and field troubleshooting, the 1756-OW16I is equipped with highly visible per-channel LED status indicators on the front panel, giving operators a clear indication of individual relay coil states at a glance. It integrates comprehensive module-level fault reporting that alerts the controller to communication anomalies or hardware errors.

The hardware is ruggedized and globally certified under stringent standards including Class I Division 2 for hazardous environments, alongside UL, CSA, FM, and CE listings. For safe field wiring connection, the module installs directly into a standard ControlLogix chassis slot and requires a compatible Removable Terminal Block (RTB), such as the 1756-TBCH or 1756-TBSH.

Technical Data

Field Industrial Applications

The electromechanical versatility and complete channel isolation of the 1756-OW16I make it an essential choice for control networks where differing field voltages are managed within a single chassis. It is widely used across water/wastewater treatment, oil and gas refining, automotive assembly, and material handling systems for:

• Mixed-Voltage Control Circuitry: Simultaneously switching 120V AC control loops and low-voltage 24V DC pilot lights without requiring auxiliary isolation components.
• Interposing Relay Logic: Safely driving high-power motor starter coils or heavy contactors that produce large inductive voltage spikes.
• Emergency Shutdown (ESD) Systems: Providing highly dependable, isolated contact closures for system-level safety interlocks and remote trip lines.
• Telemetry Interfacing: Providing dry contact status signals from the primary PLC network to independent third-party monitoring packages or legacy SCADA telemetry systems.
