Description

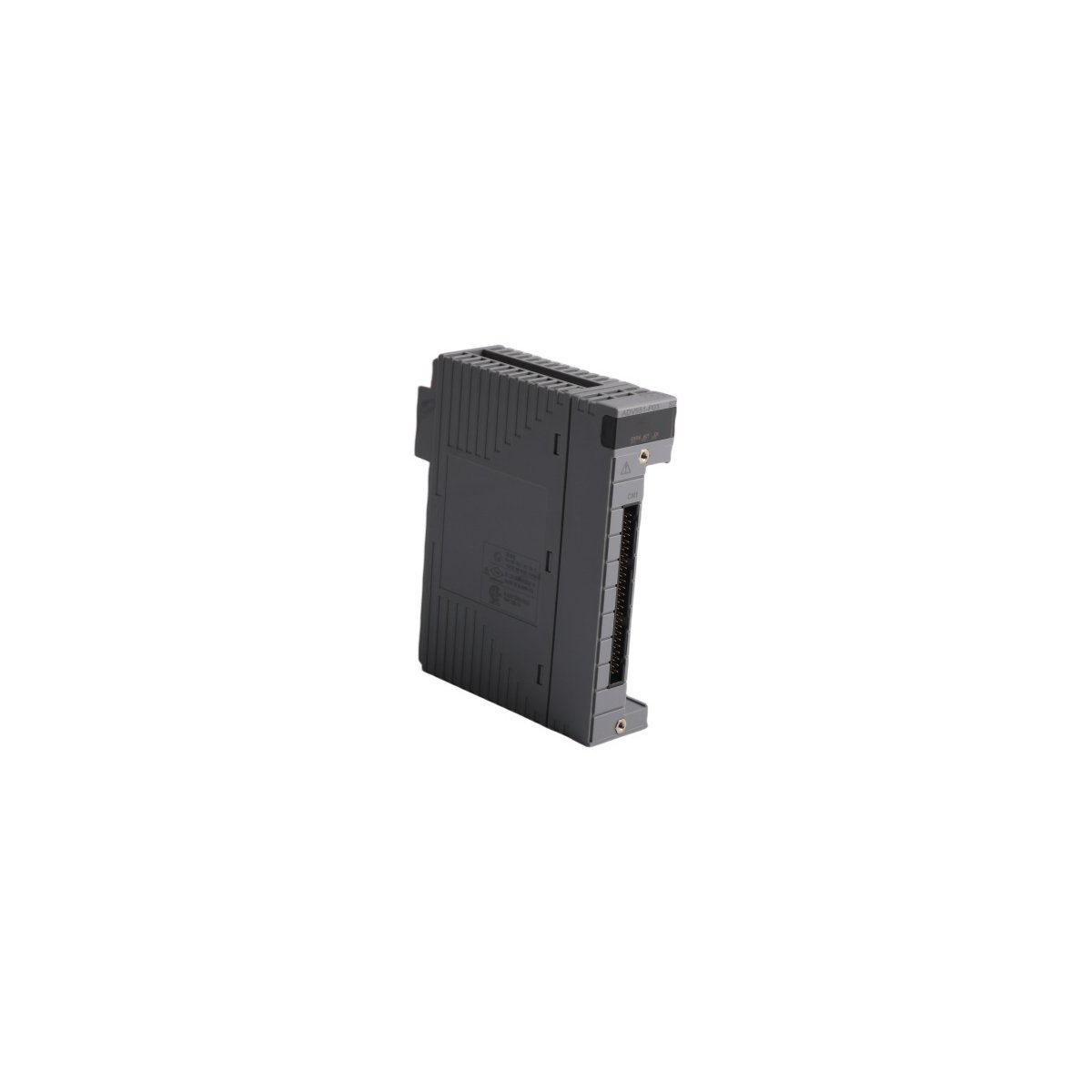

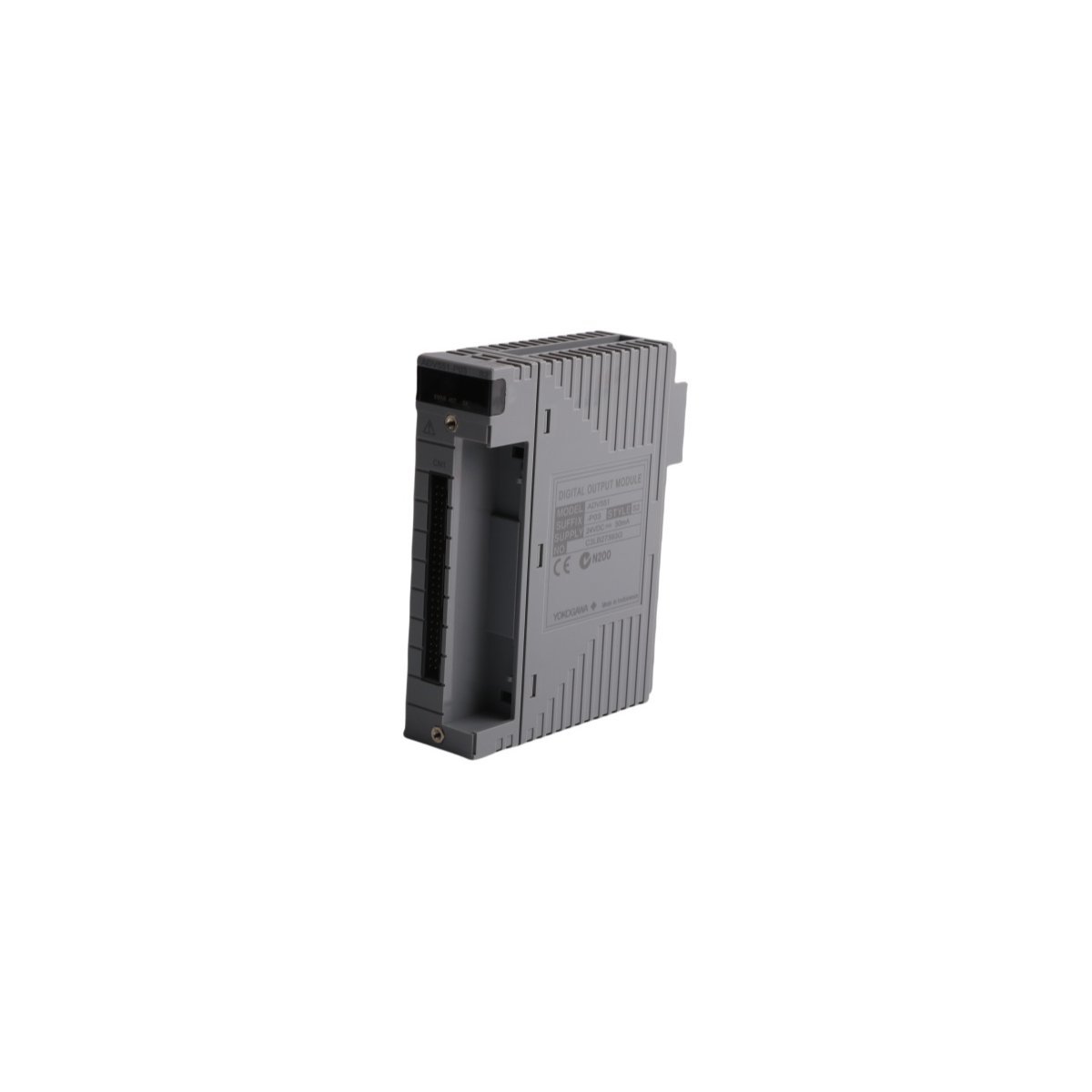

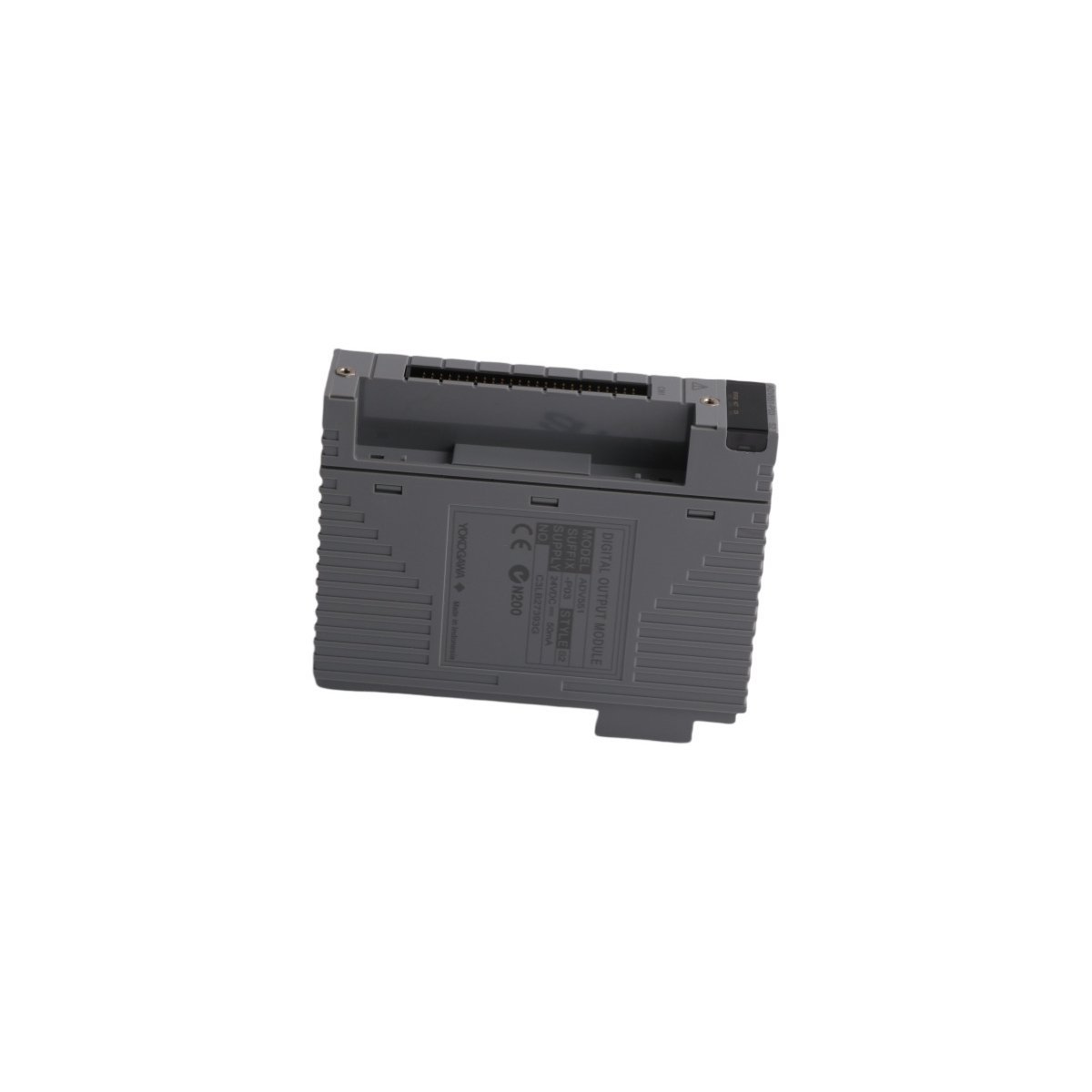

The Yokogawa ADV551-P03 S2 serves as a high-reliability discrete output interface within the CENTUM VP DCS environment. This module provides 32 isolated channels for controlling external field devices. It primarily manages solenoids, relays, and motor starters in industrial automation settings. Furthermore, its advanced design ensures seamless communication between the controller and the plant floor.

Operational integrity remains a key focus for this digital component. The module features individual channel isolation to prevent electrical interference between circuits. Additionally, it incorporates sophisticated self-diagnostic routines to monitor hardware health. These functions allow the system to detect faults before they impact plant productivity.

Technical Specifications

• Manufacturer: Yokogawa Electric Corporation
• Model Number: ADV551-P03 S2
• Type: Digital Output Module (FIO)
• Output Channels: 32-channel discrete outputs
• Rated Voltage: 24 V DC
• Load Current: Max 100 mA per channel
• Isolation Type: Optical isolation for system protection
• Weight: 0.18 kg
• Casing Dimensions: 3.2 x 10.2 x 13 cm
• System Platform: CENTUM VP / CS 3000
• Origin: Japan

Industrial Applications and Performance

The ADV551-P03 S2 excels in harsh process environments such as chemical refineries and power plants. Its robust construction resists thermal stress and vibration during continuous operation. Moreover, the module supports hot-swapping to facilitate maintenance without stopping the control station. This capability significantly reduces unplanned downtime during hardware upgrades or repairs.

Integration with the FIO bus architecture allows for high-speed signal processing. The module utilizes an optimized algorithm to ensure low-latency response times for critical interlocks. Consequently, operators maintain precise control over complex manufacturing sequences. Each unit complies with international safety standards for industrial control hardware.

Maintenance and Lifecycle

Yokogawa builds these modules for long-term service in demanding industrial facilities. The compact footprint allows for high-density mounting in standard 19-inch racks. Furthermore, the unit features a fanless cooling design to eliminate mechanical failure points. Status LEDs on the front panel provide immediate visual feedback for troubleshooting. These indicators show power status, communication health, and individual channel states.
