Product Overview

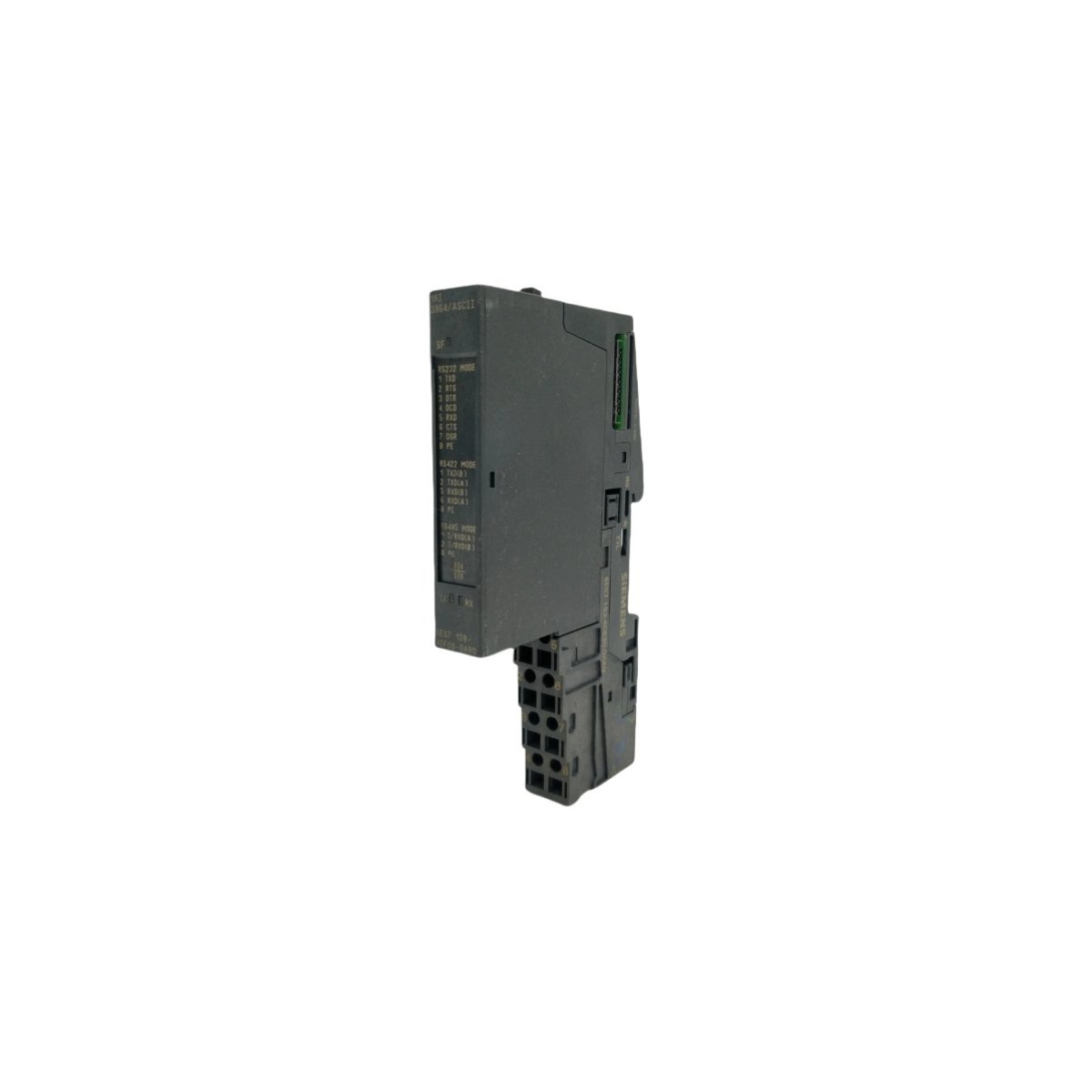

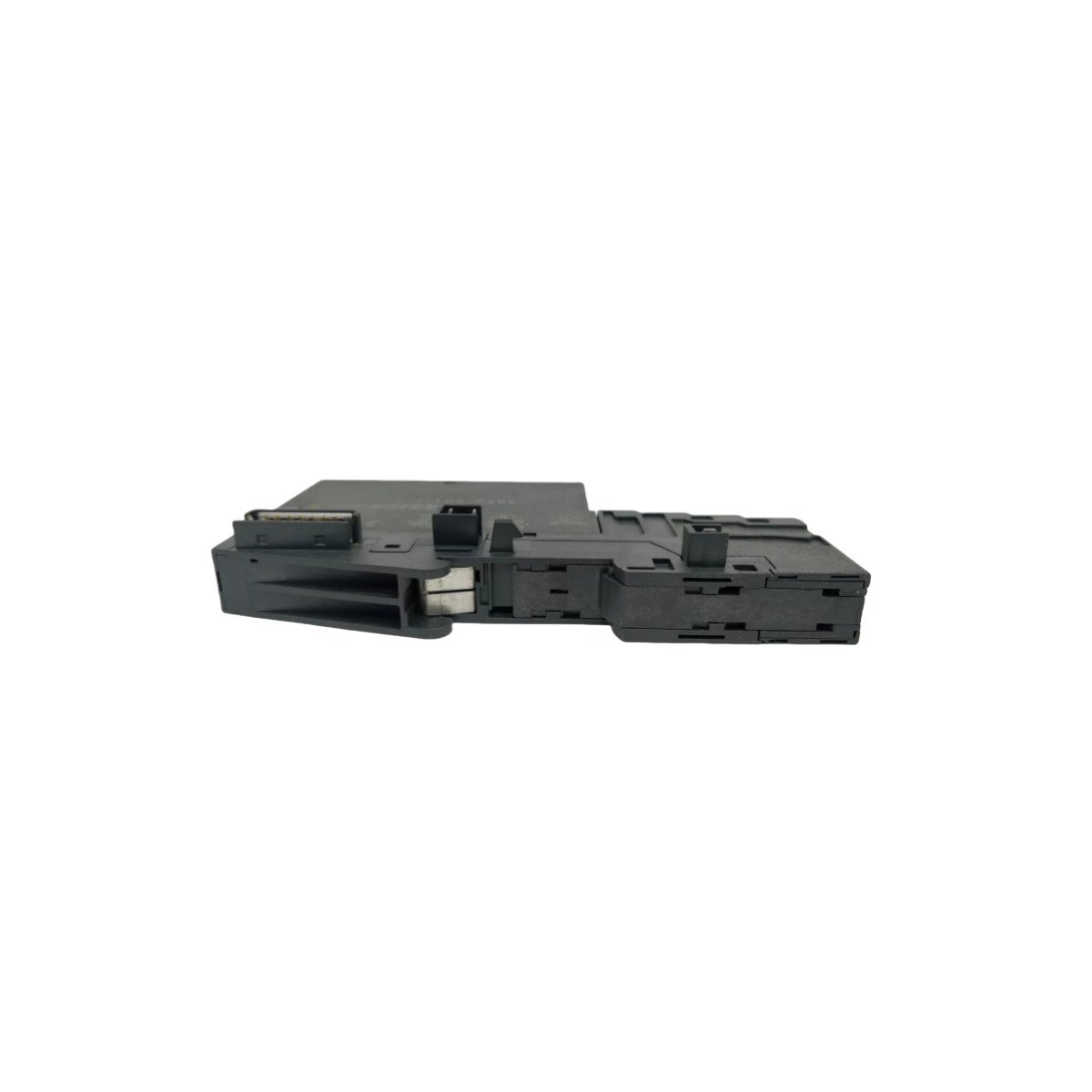

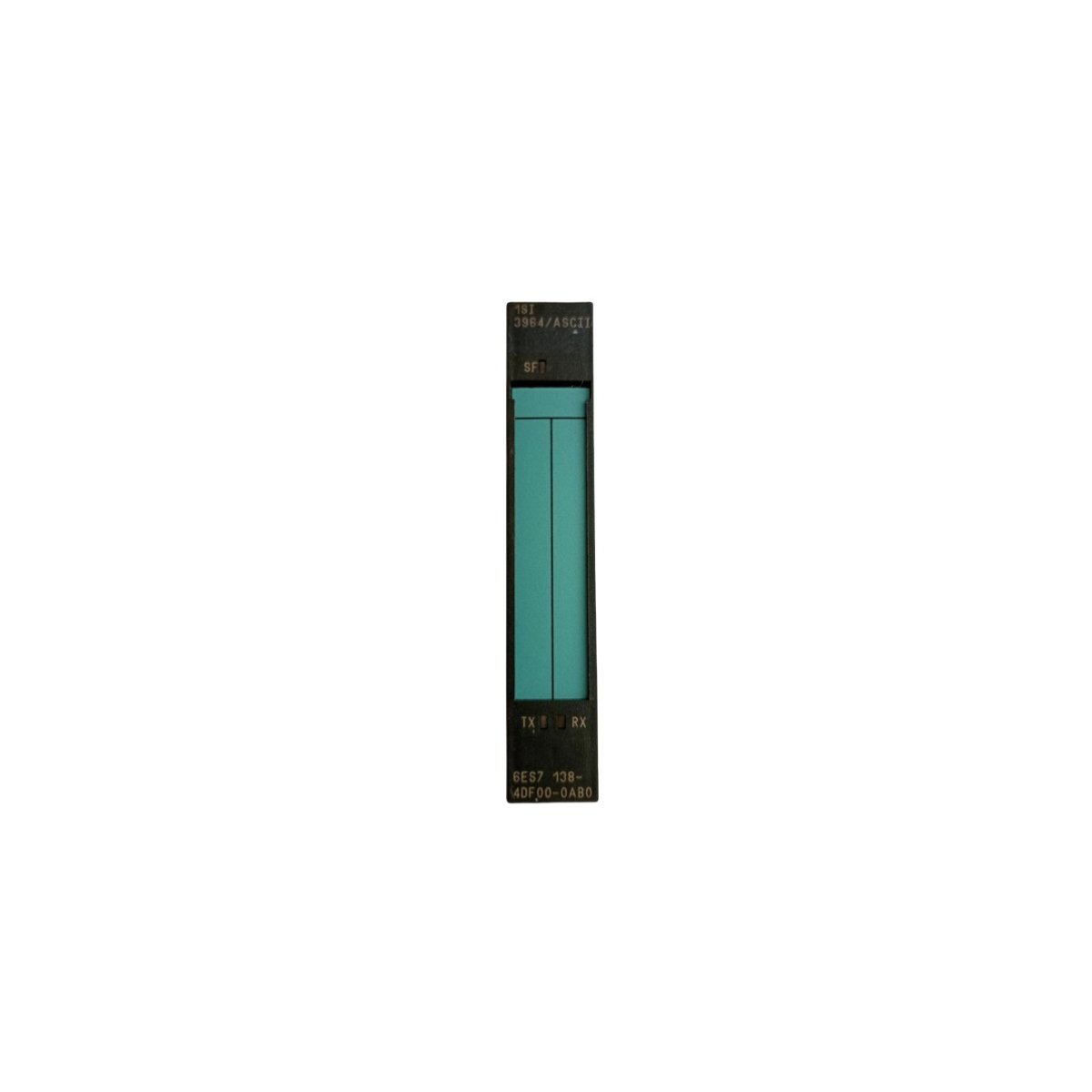

The Siemens 6ES7138-4DF00-0AB0 serves as a high-performance serial interface module specifically engineered for the SIMATIC ET 200S distributed I/O system. This module enables seamless data exchange between the PLC and external serial devices by providing a robust 1SI (Single Serial Interface) channel. Due to its flexible configuration, the device supports various industrial communication standards, ensuring compatibility with a wide array of field instruments and legacy equipment.

Technical Specifications

• Model Number: 6ES7138-4DF00-0AB0
• Manufacturer: Siemens
• System Compatibility: SIMATIC ET 200S
• Interface Type: 1SI (Serial Interface)
• Physical Layer Standards: RS232, RS422, RS485
• Protocols Supported: ASCII, 3964R, Modbus (via function block)
• Operating Voltage: 24 VDC
• Width: 15 mm
• Protection Rating: IP20

Functional Capability

This interface module acts as a bridge for complex automation tasks, facilitating bidirectional data communication between the controller and serial-based peripherals. Engineers utilize the module to integrate scanners, printers, barcode readers, and weighing scales directly into the ET 200S station. Furthermore, the unit processes data using a dedicated microprocessor, which offloads communication handling from the main CPU, thereby optimizing overall cycle times.

Operators manage the module through the TIA Portal or STEP 7 software, where they define transmission parameters such as baud rate, parity, and character format. Because the hardware supports multiple physical standards, users switch between RS232, RS422, and RS485 depending on the cable requirements and distance to the target device. Additionally, the inclusion of integrated diagnostic LEDs allows maintenance teams to verify link status and troubleshoot data transmission issues immediately.

Operational Advantages

The compact 15 mm form factor allows for high-density mounting within standard electrical control cabinets. Since the module features a hot-swappable design, technicians replace the unit during ongoing operations without interrupting the entire network segment. Moreover, the robust electronic architecture ensures reliable signal integrity, even in industrial environments subject to high electromagnetic interference. By implementing this module, users achieve a scalable and efficient method for extending their controller’s connectivity to diverse peripheral hardware.
