Description

Technical Overview and Core Functionality

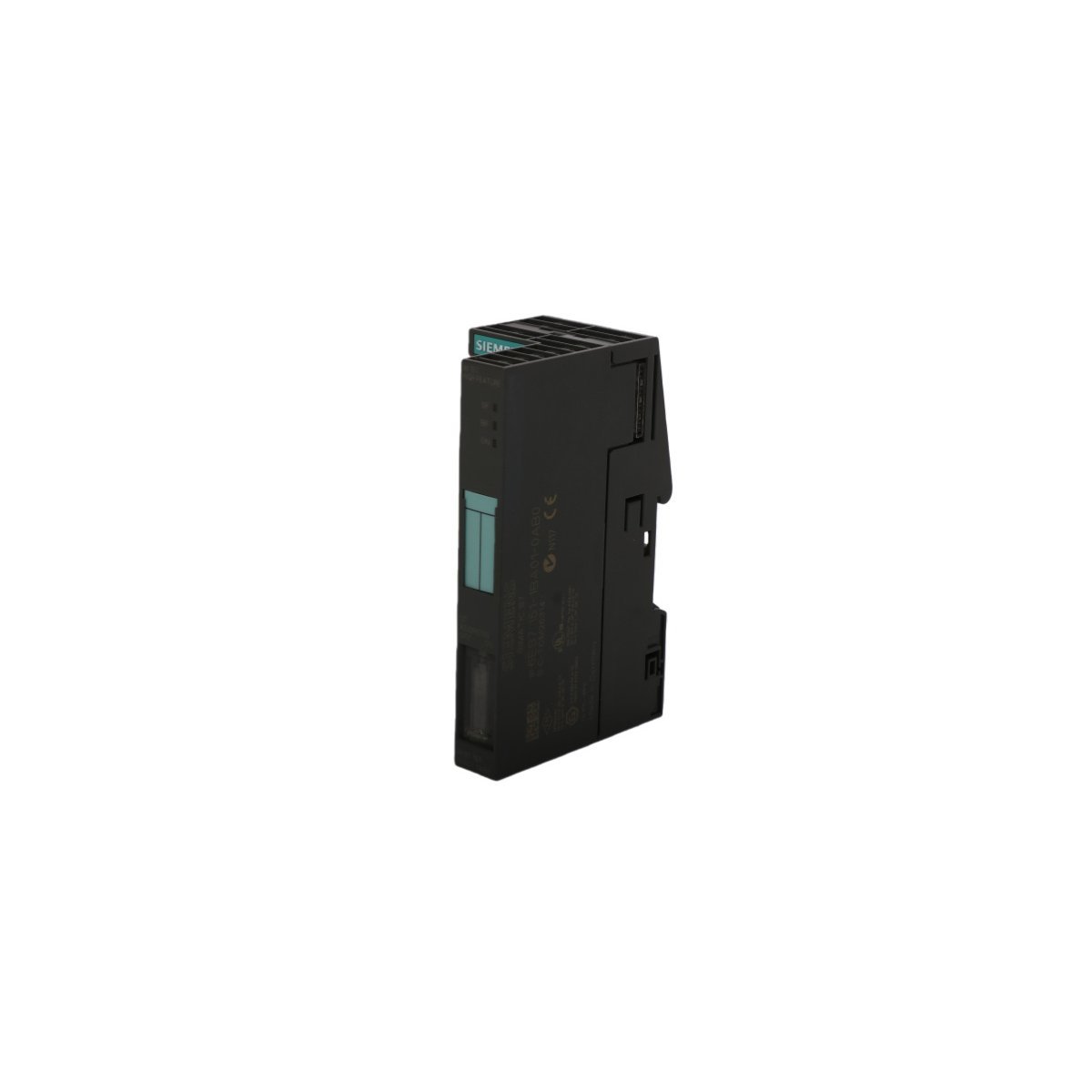

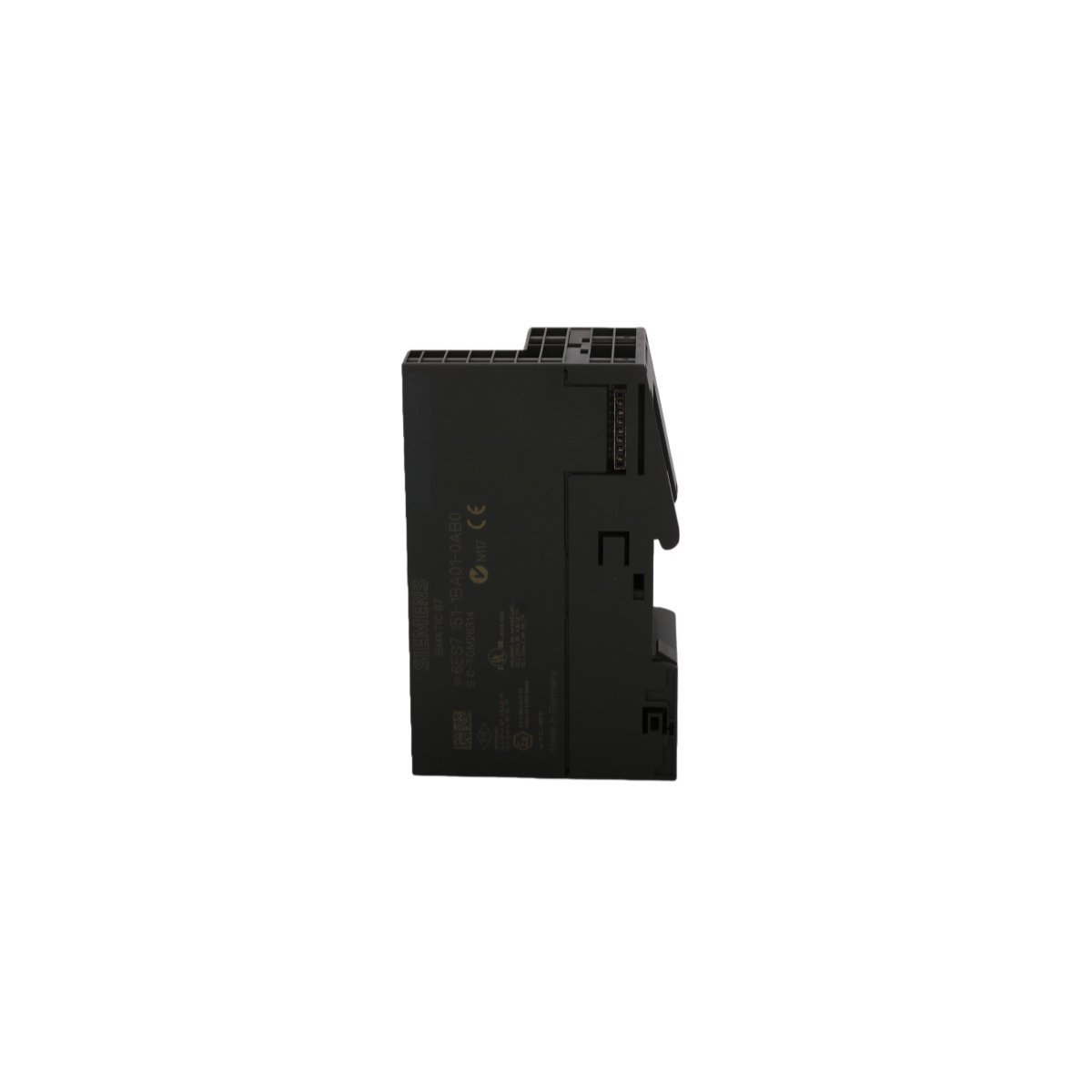

The Siemens 6ES7151-1BA00-0AB0 serves as the primary communication link for the SIMATIC ET 200S distributed I/O station. As an IM 151-1 Standard interface module, it facilitates high-speed data exchange between the central PLC and remote I/O components via the PROFIBUS DP protocol. This module is engineered to operate as a DP slave, allowing for the decentralized placement of sensors and actuators closer to the physical process, which significantly reduces wiring complexity and installation costs.

Modular Expansion and System Capacity

This interface module supports a versatile and scalable architecture. It manages the internal backplane bus, providing power and data synchronization for up to 63 peripheral modules. Users can integrate a diverse mix of digital and analog I/O, power modules, and motor starters within a single station. The 6ES7151-1BA00-0AB0 handles a maximum data volume of 244 bytes for both input and output directions, ensuring that even high-density configurations remain responsive and efficient within the automation network.

Performance Specifications

• Product Brand: Siemens
• Product Family: SIMATIC ET 200S
• Module Type: IM 151-1 Standard Interface
• Order Number: 6ES7151-1BA00-0AB0
• Communication Protocol: PROFIBUS DP (up to 12 Mbit/s)
• Maximum Address Space: 244 Bytes Input / 244 Bytes Output
• Station Expansion: Supports up to 63 modules per station
• Supply Voltage: 24 V DC

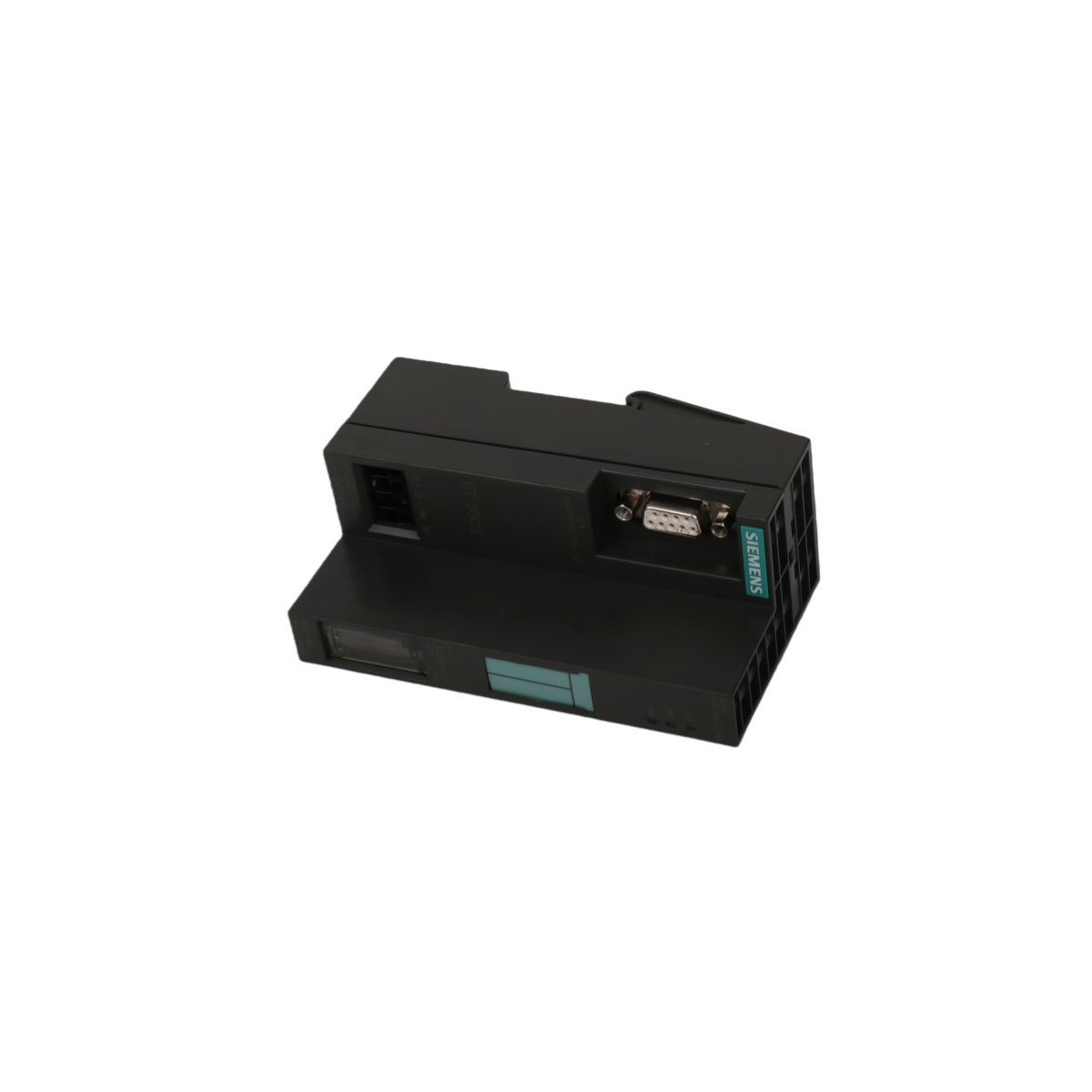

• Physical Interface: 9-pin Sub-D female connector
• Dimensions: 45 mm (W) x 119.5 mm (H) x 75 mm (D)
• Approximate Weight: 0.15 kg

Application and Integration

The IM 151-1 Standard is primarily utilized in factory automation and machine-level control systems where reliable PROFIBUS connectivity is required without the overhead of specialized “High Feature” functions. Because it supports the modular design of the ET 200S system, it allows for “hot swapping” of modules when used with appropriate terminal modules, thereby minimizing downtime during maintenance. Engineers typically deploy this module in cabinets to provide a cost-effective, high-density I/O solution for Siemens S7-300, S7-400, or compatible third-party PROFIBUS masters.
