Product Overview

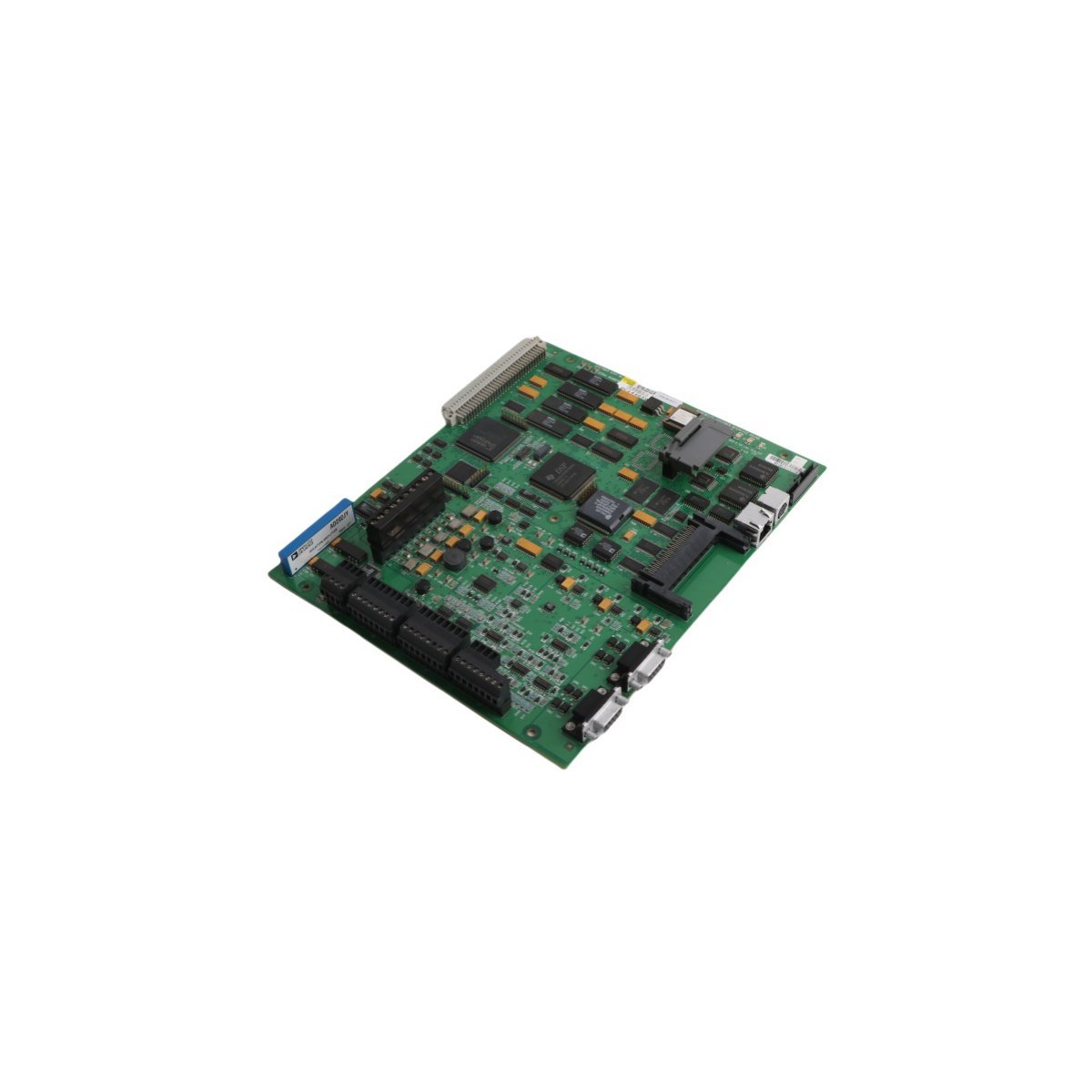

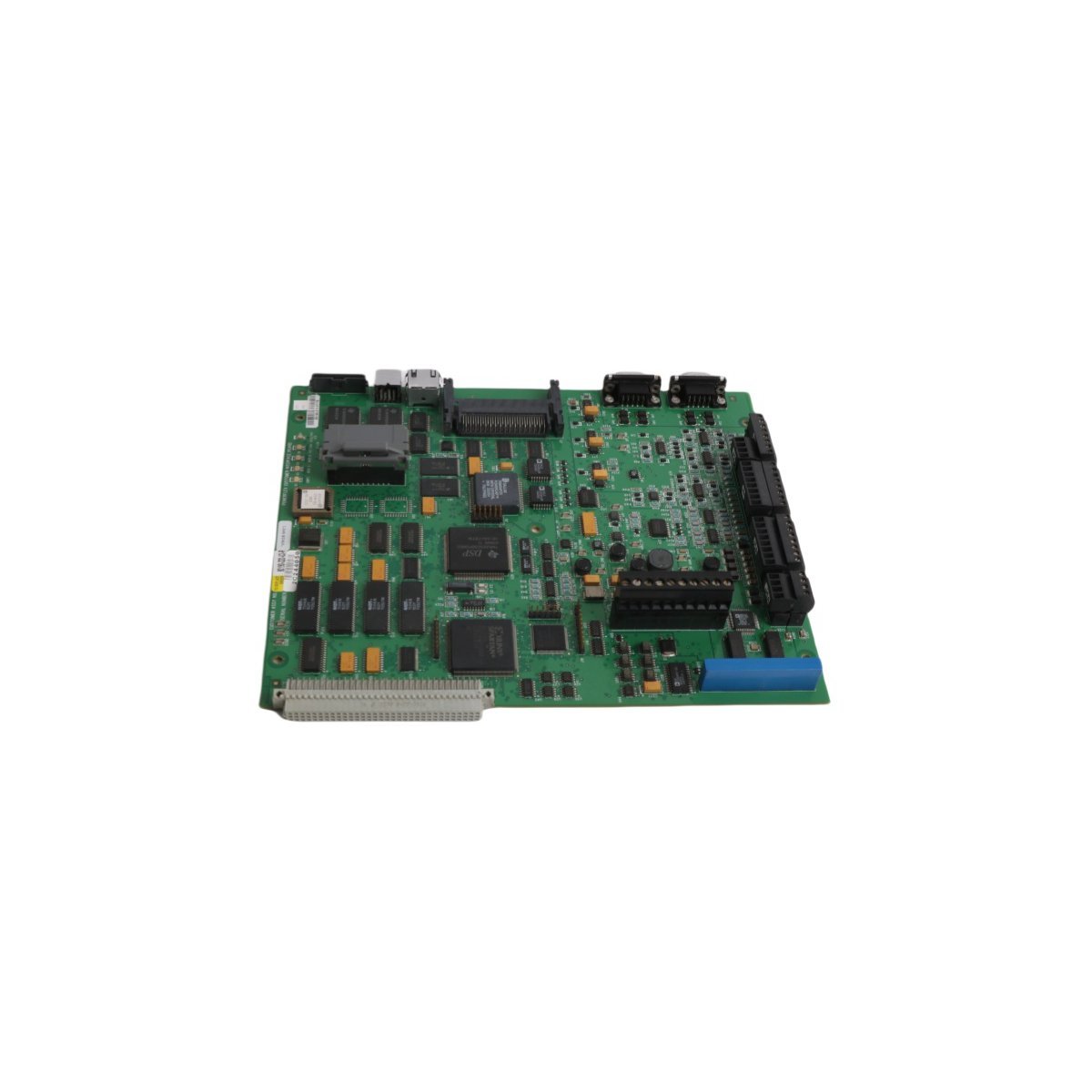

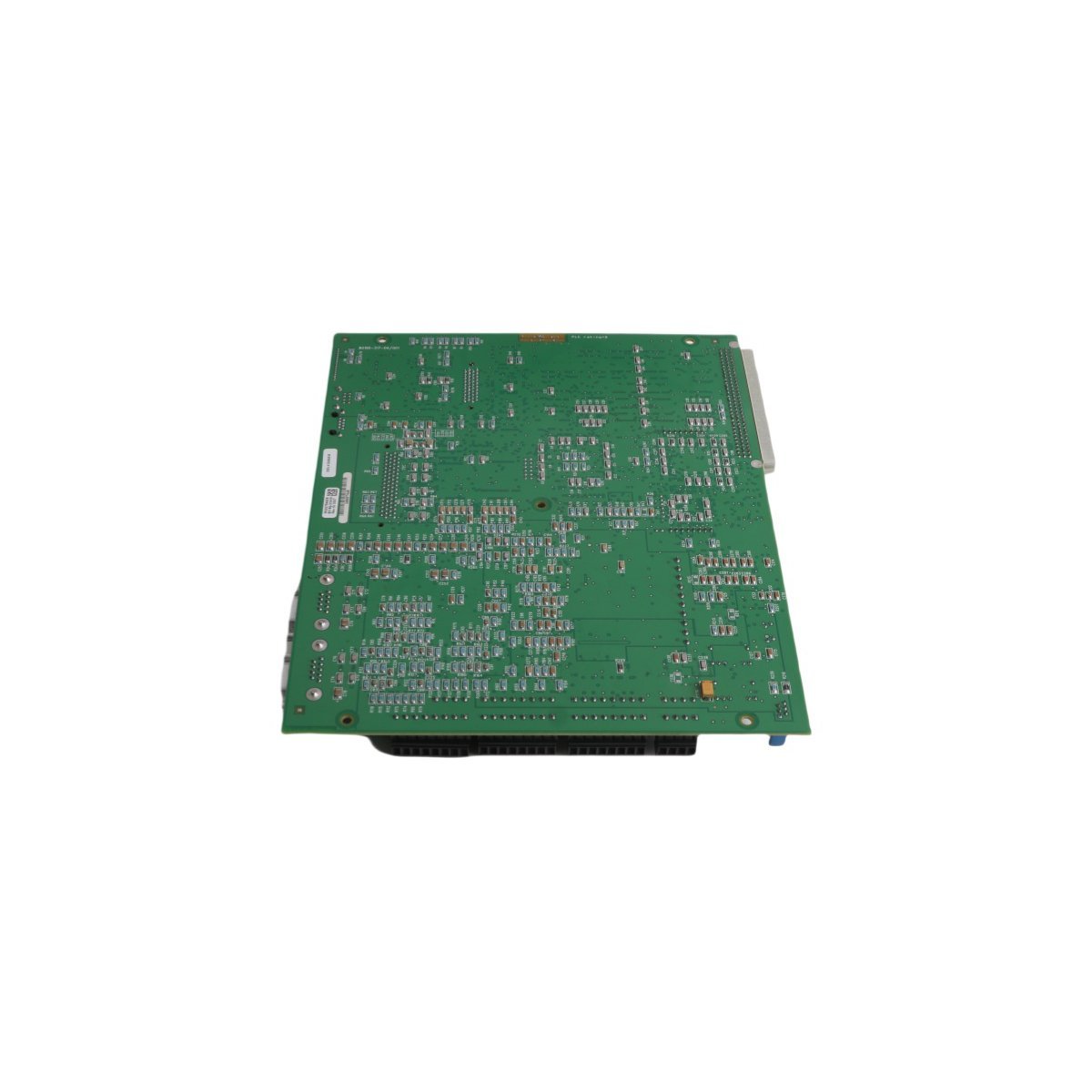

The Allen Bradley 80190-320-03-R functions as a central control motherboard within the Rockwell Automation hardware ecosystem. This module provides the essential circuitry required to coordinate high-speed logic execution and peripheral communication across complex industrial frameworks. By acting as the primary customer interface board, it facilitates deterministic data processing for critical manufacturing sectors, including automotive assembly and pharmaceutical production. Consequently, this motherboard ensures that high-speed packaging lines maintain consistent cycle times while minimizing signal latency between the processor and field-level instrumentation.

Technical Characteristics and System Integration

The 80190-320-03-R architecture incorporates ruggedized components capable of withstanding the electrical noise and mechanical stress common in heavy industrial environments. Specifically, the board supports advanced diagnostic routines that allow maintenance teams to identify potential faults before they result in system failure. Because the motherboard integrates with established networking protocols such as EtherNet/IP and DeviceNet, it allows for seamless data transparently across the enterprise. Furthermore, the unit features a high-reliability power stage and enhanced thermal management, ensuring stable operation during continuous, heavy-duty processing cycles in temperatures ranging from -20 to 60 deg C.

Functional Benefits and Applications

• Advanced processing logic supports high-speed motion control and real-time synchronization for multi-axis machinery.
• The rugged design architecture provides resistance to mechanical vibration up to 5g, protecting internal circuitry from physical fatigue.
• Embedded security protocols and diagnostic functions help operators improve overall equipment effectiveness (OEE) by reducing unplanned outages.
• Flexible interface options allow for easy integration into existing PLC-5 system architectures during hardware retrofits or expansions.

Technical Specifications

• Manufacturer: Allen Bradley (Rockwell Automation)
• Model Number: 80190-320-03-R
• Product Type: Control Motherboard / Interface Board
• System Compatibility: PLC-5 / ControlLogix Series
• Operating Temperature: -20 to 60 deg C
• Vibration Resistance: 5g (Operational)
• Weight: 0.48 kg
• Dimensions: 25 cm x 21.8 cm x 3.5 cm
• Origin: USA
• HS Code: 8537101190
