Description

Product Overview

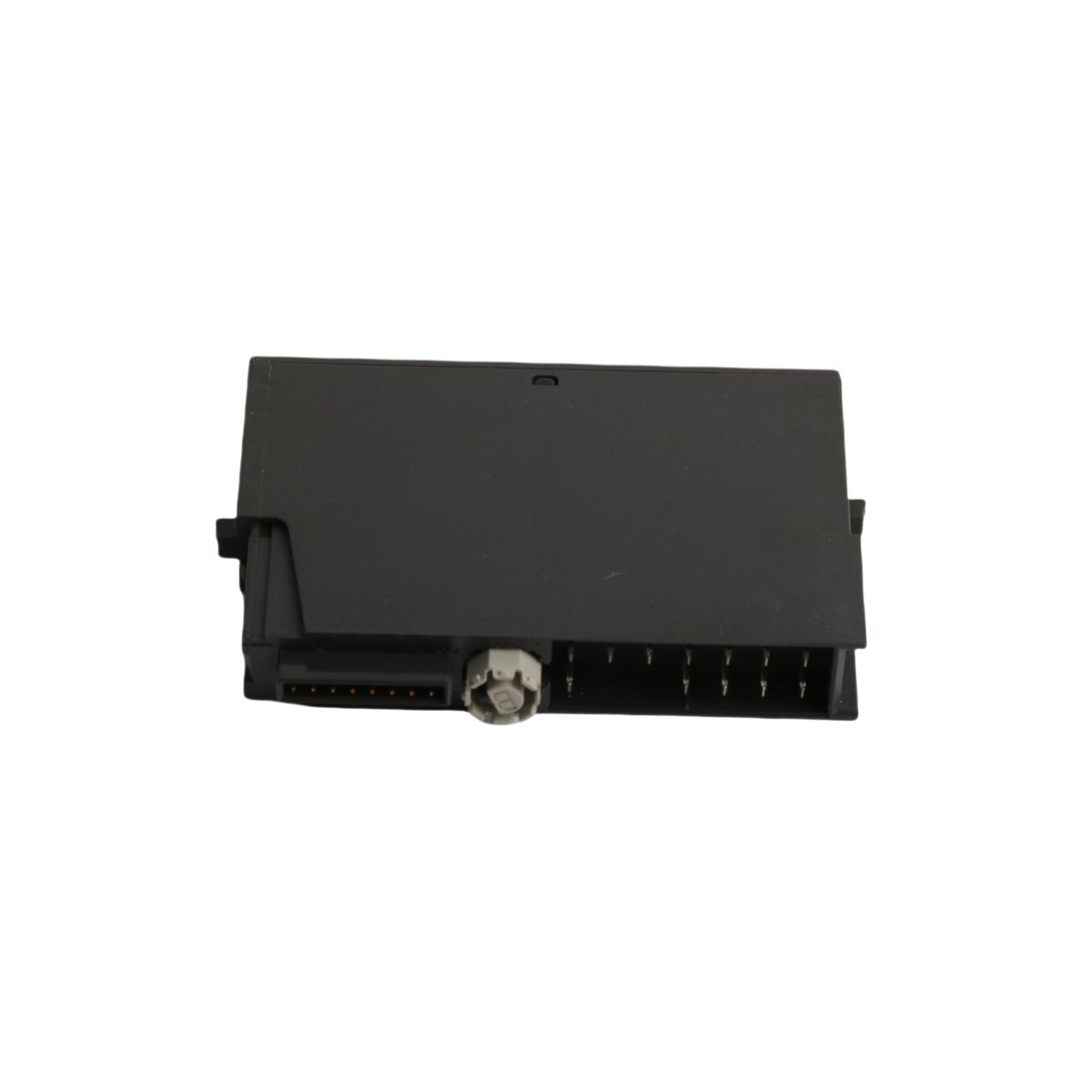

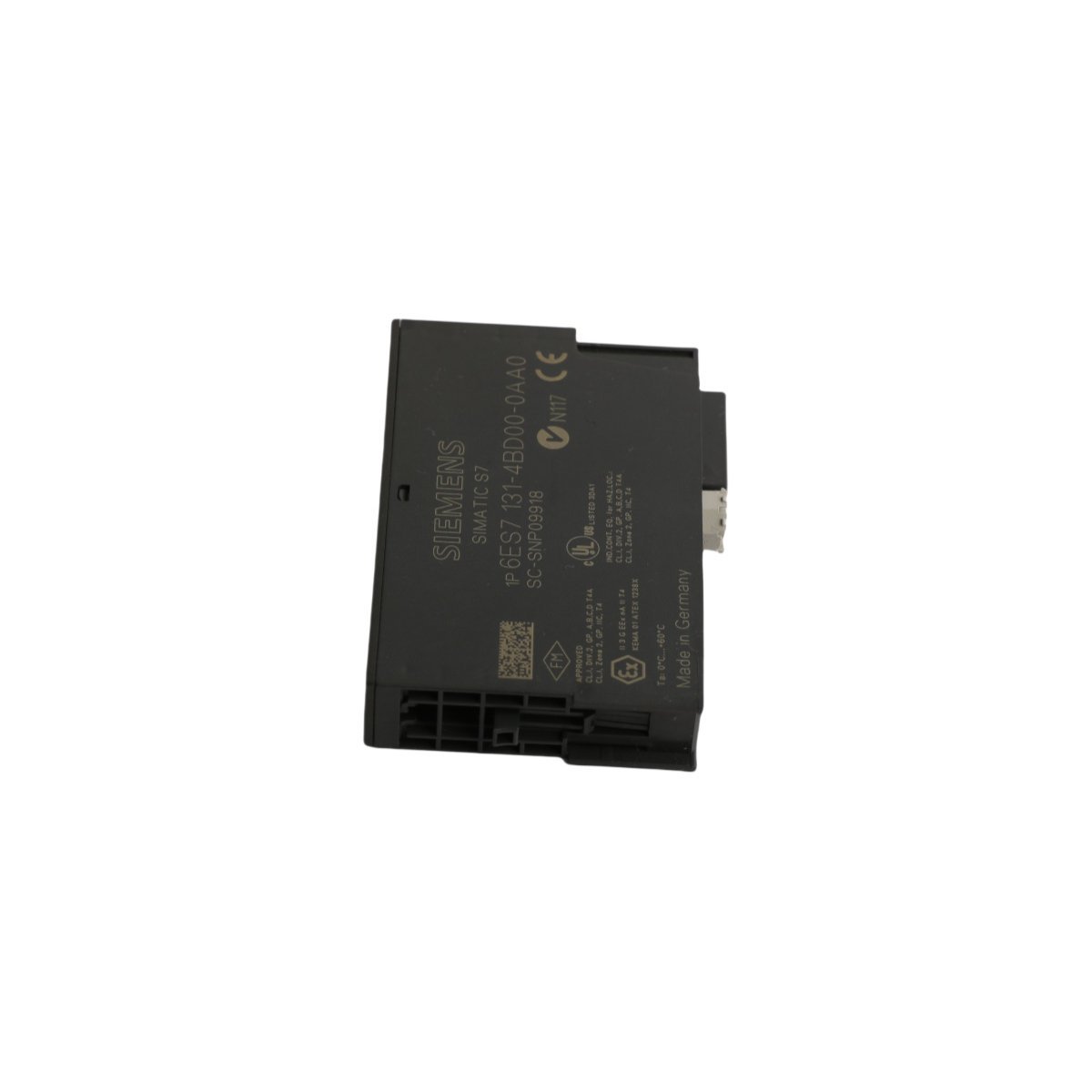

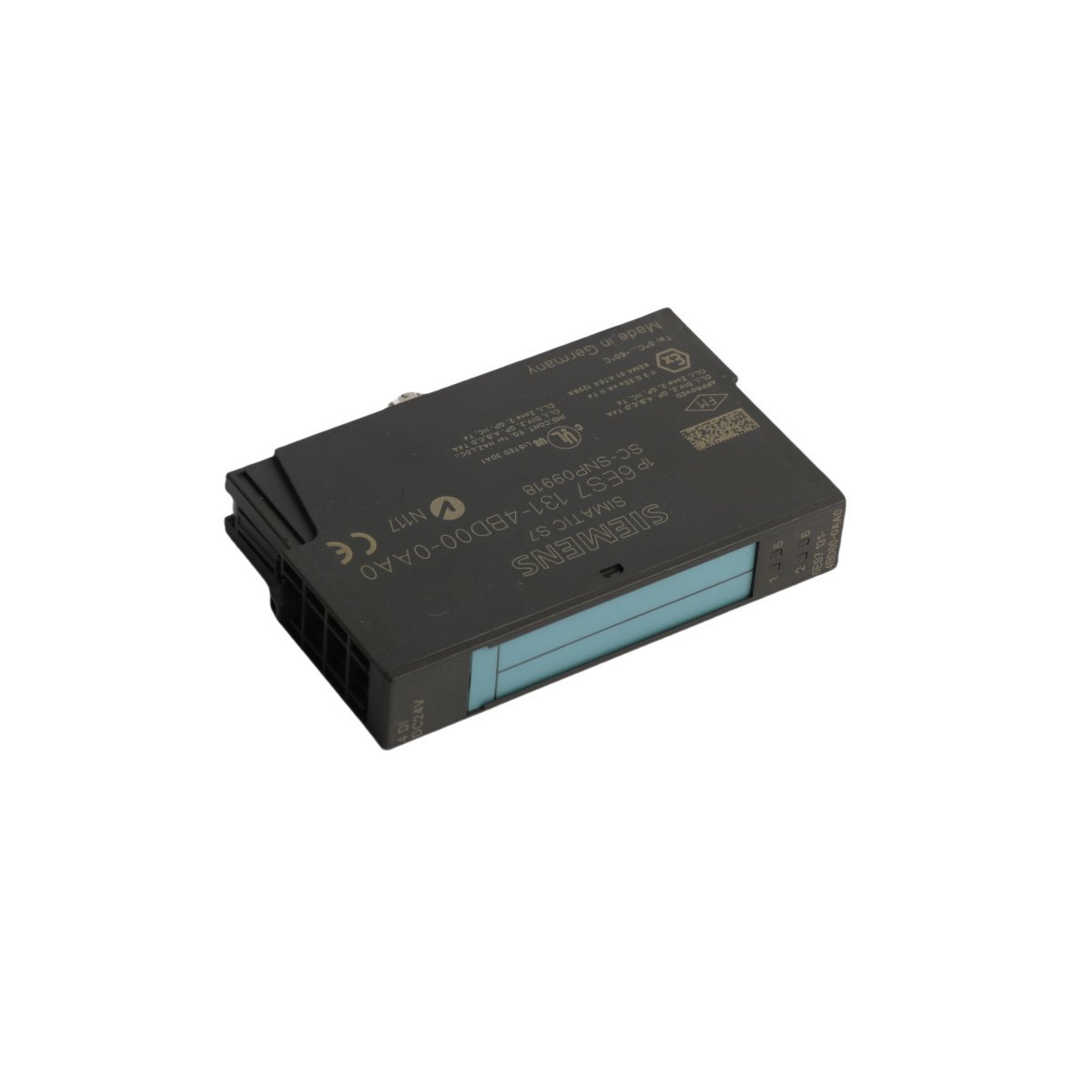

The Siemens 6ES7131-4BD00-0AA0 functions as a high-density digital input electronic module within the SIMATIC ET 200S distributed I/O system. System architects integrate this module into automated control architectures to facilitate the acquisition of four discrete 24 VDC signals from field-level devices. Because the unit utilizes a slim 15 mm form factor, engineers effectively maximize cabinet space while maintaining high channel density. Furthermore, the module ensures reliable signal processing for standard industrial sensors, pushbuttons, and limit switches across various manufacturing environments.

Technical Specifications

• Brand: Siemens
• Model Number: 6ES7131-4BD00-0AA0
• Product Series: SIMATIC ET 200S
• Module Type: Digital Input (DI) Electronic Module
• Number of Inputs: 4 Channels
• Input Voltage: 24 VDC
• Width: 15 mm
• Weight: 0.24 kg
• Dimensions: 10.5 cm x 12.5 cm x 4 cm
• Customs Tariff Number (HS Code): 8537101190
• Origin: Germany

Functional Characteristics and System Integration

This input module processes binary control signals with high precision, which guarantees consistent data transmission to the central programmable logic controller (PLC). Furthermore, the module supports hot-swapping capabilities when mounted on appropriate terminal modules. Consequently, maintenance teams perform component replacements without interrupting the operation of the remaining I/O stations. This feature significantly reduces downtime during critical production cycles.

Additionally, the hardware incorporates internal diagnostic functionality that monitors input status and module health. Therefore, operators identify signal integrity issues or hardware malfunctions immediately through the system’s diagnostic LEDs. Moreover, the 24 VDC sinking input configuration ensures compatibility with standard industrial sensors. By implementing this module, integrators build robust, scalable distributed I/O nodes that satisfy the rigorous demands of modern packaging, material handling, and process automation applications.
