Description

Product Overview

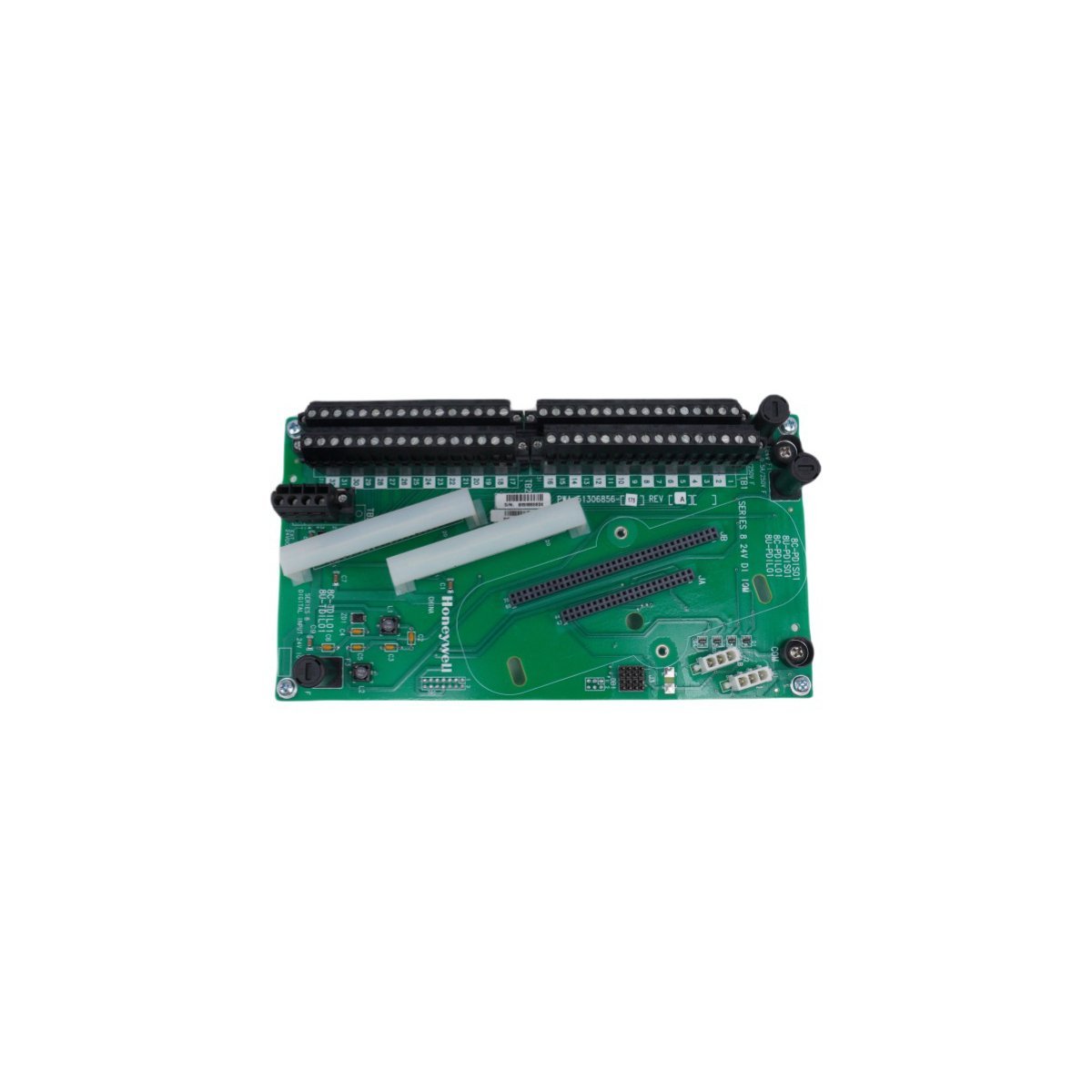

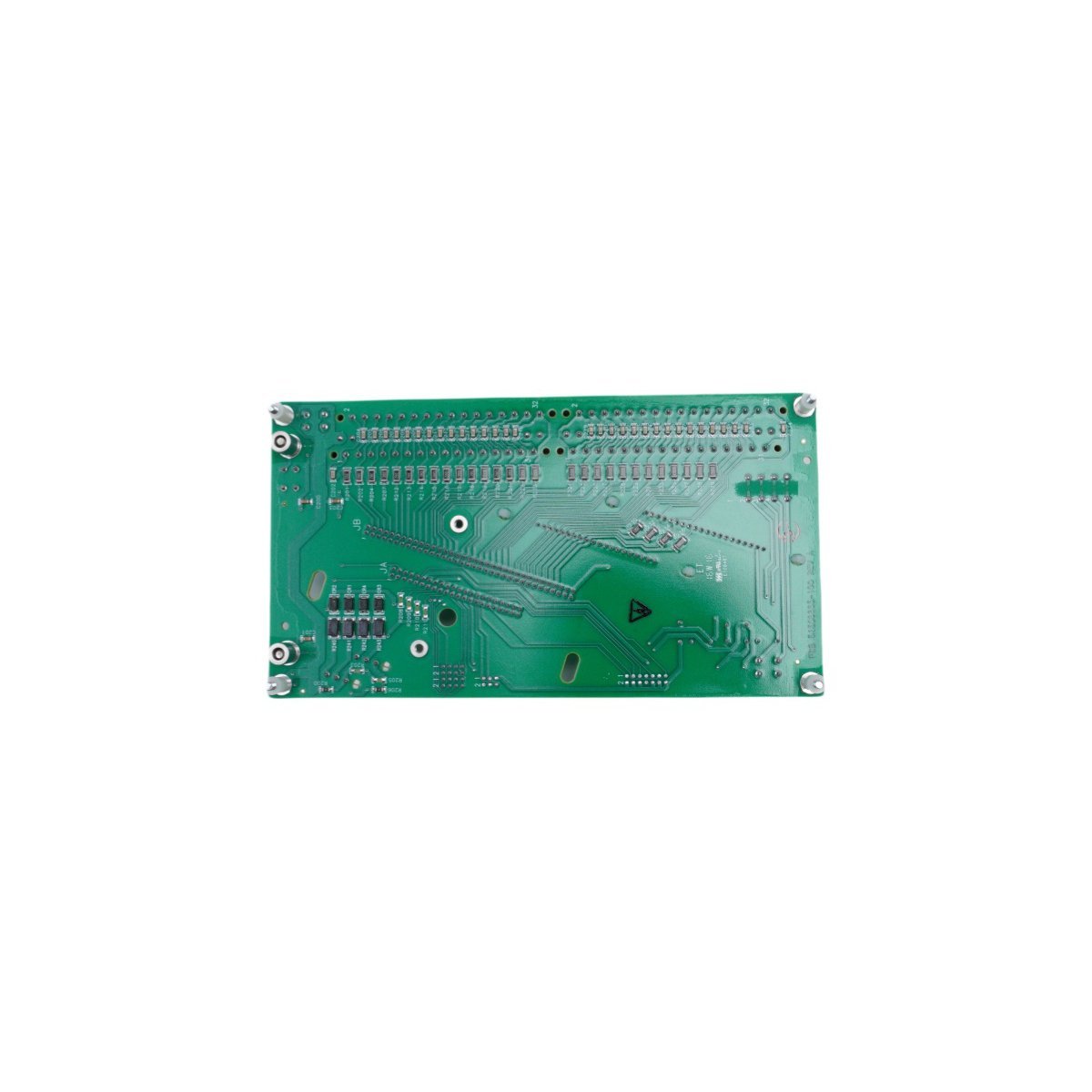

The Honeywell 8C-TDIL01, identified by part number 51306856-175, serves as a high-performance Digital Input module within the Series 8 distributed control system (DCS) architecture. This hardware component functions as a critical interface between field sensors and the central control processor. Engineers utilize this module to monitor binary states in demanding industrial environments where signal integrity and operational uptime remain absolute priorities.

Technical Specifications

• Model Number: 8C-TDIL01
• Order Number: 51306856-175
• Manufacturer: Honeywell
• Product Series: Series 8
• Module Classification: Digital Input Board
• System Compatibility: Distributed Control Systems (DCS)
• Physical Weight: 0.5 kg
• Dimensions: 17.3 cm x 10 cm x 12.2 cm
• HS Code: 8537101190
• Current Lifecycle Status: Active
• Integrated Communication: Ethernet-based routing

Functional Capabilities and Industrial Application

Honeywell designed this module to facilitate robust data acquisition across complex industrial landscapes. Because the device employs advanced signal conditioning, it effectively converts field-level digital signals into precise data points for the controller. This conversion process improves overall system responsiveness while minimizing latency in mission-critical loops. Furthermore, the unit incorporates sophisticated onboard diagnostics that allow maintenance teams to identify and resolve faults rapidly, thereby reducing mean time to repair (MTTR).

The compact physical footprint of the 8C-TDIL01 allows operators to maximize cabinet density without compromising thermal management. Constructed from high-grade industrial materials, the module withstands extreme temperatures, vibration, and electromagnetic interference often found in power plants, refineries, and manufacturing facilities. Its modular architecture simplifies both the initial installation and subsequent hardware upgrades, enabling seamless scalability for evolving automation requirements.
