Description

Product Overview

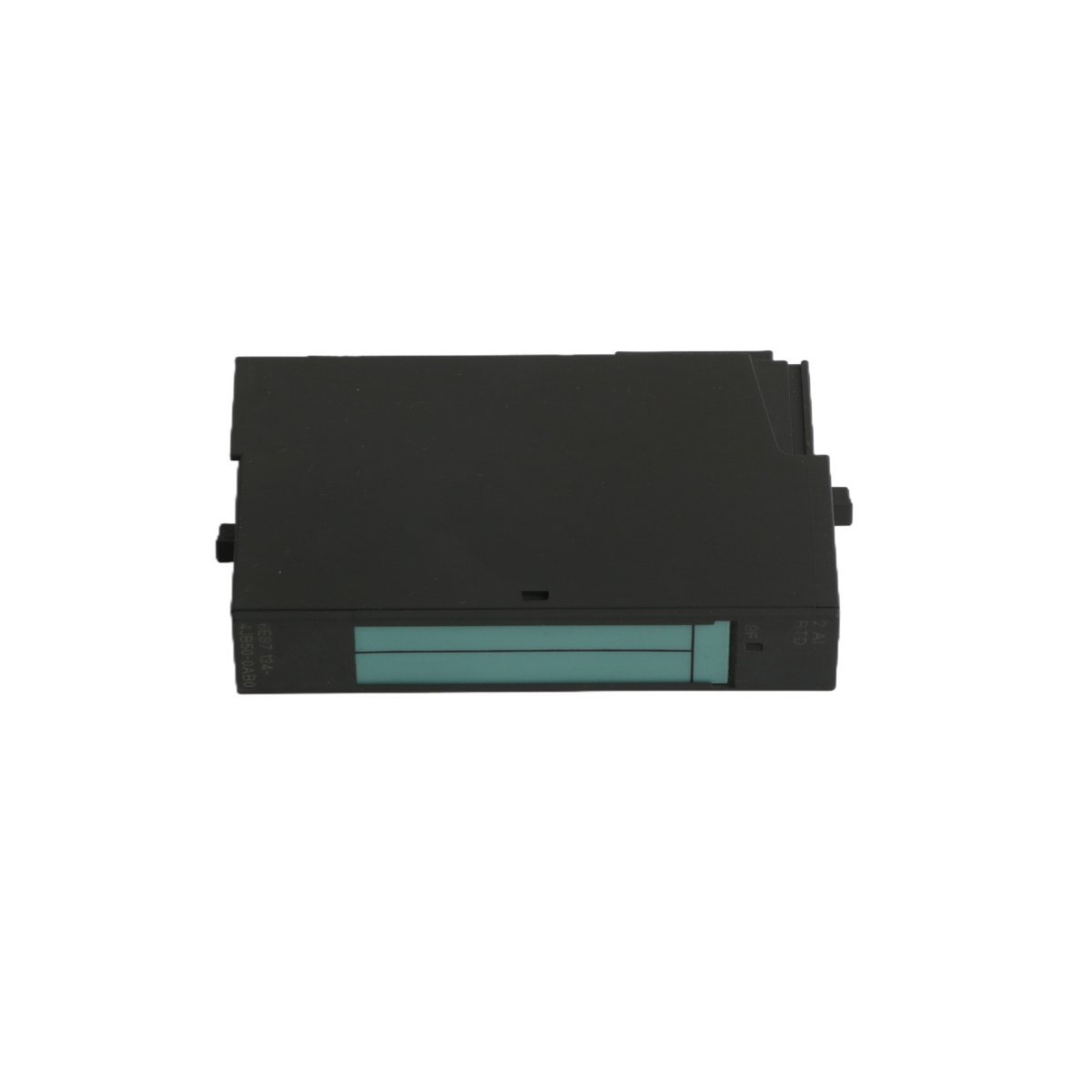

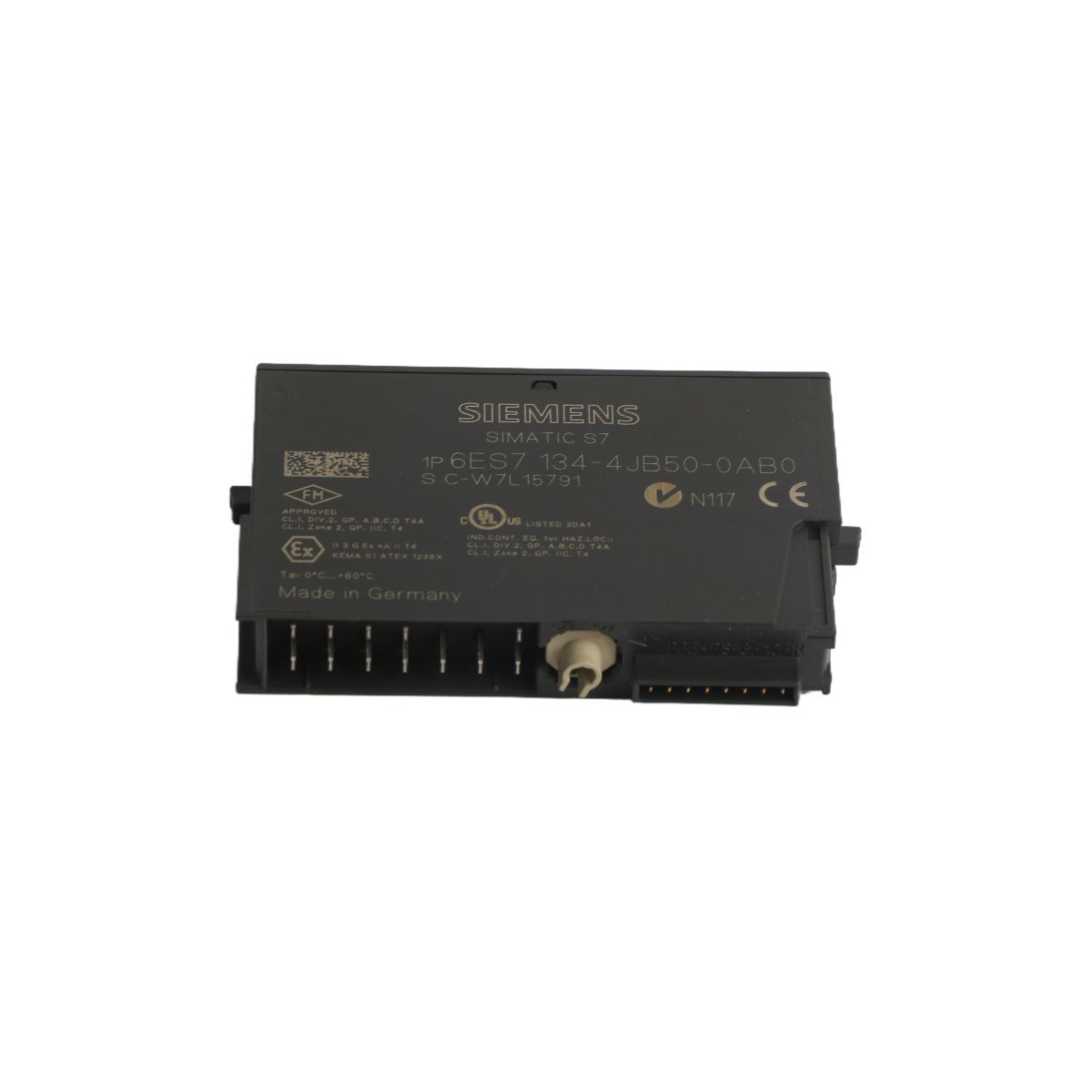

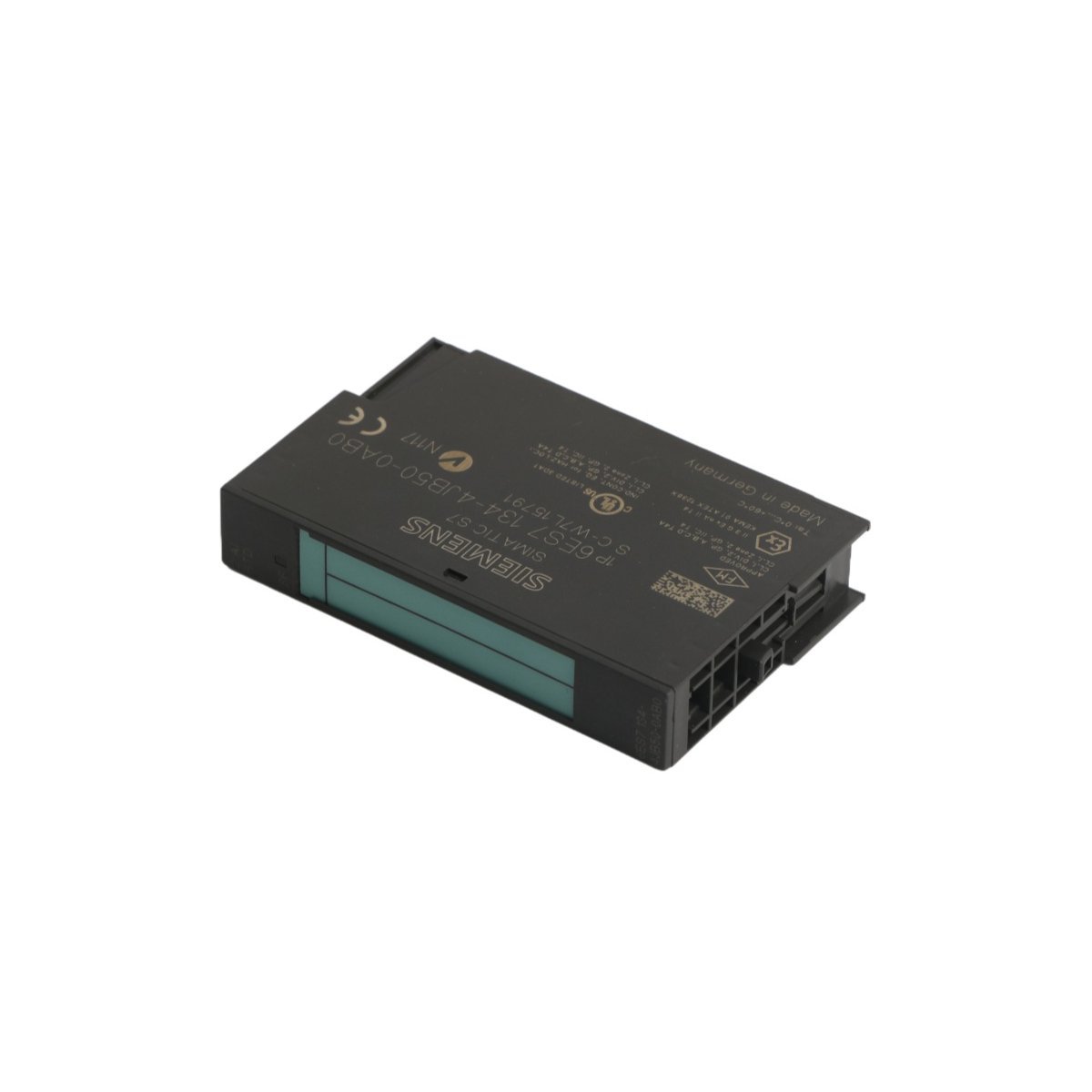

The Siemens 6ES7134-4JB01-0AB0 operates as a specialized analog electronic module within the SIMATIC ET 200S distributed I/O peripheral system. This module provides dual-channel thermocouple measurement capabilities, allowing industrial systems to capture precise temperature data from remote field locations. Because it features a compact 15mm installation width, it enables high-density signal processing in space-restricted control cabinets. This unit effectively bridges the gap between raw thermal sensor signals and the central PLC logic via the ET 200S backplane.

Technical Performance and Signal Processing

This module supports an extensive array of thermocouple types, including types B, E, J, K, L, N, R, S, and T, along with a ±80mV voltage measurement range. It achieves high-resolution data conversion at 15 bits plus a sign bit, which ensures that even the most minute temperature fluctuations remain visible to the control system. To improve data integrity, the module performs internal linearization of the thermocouple characteristic curves and provides built-in cold junction compensation. Furthermore, the unit manages isolated channels to prevent ground loops and enhance electrical noise immunity in heavy industrial environments.

Key Technical Specifications

• Brand: Siemens
• Series: SIMATIC ET 200S
• Model Number: 6ES7134-4JB01-0AB0
• Module Type: 2 AI TC (Analog Input Thermocouple)
• Number of Channels: 2
• Resolution: 15 bits + sign
• Cycle Time: 65ms per channel
• Supported Sensors: Thermocouples and ±80mV signals
• Diagnostics: Group fault display (SF LED) and wire break detection
• Power Consumption: 30 mA from the backplane bus
• Dimensions: 15mm x 81mm x 52mm
• Weight: 0.04 kg
  Origin: Germany

Application and Integration

The 6ES7134-4JB01-0AB0 excels in process industries such as chemical manufacturing, food processing, and pharmaceutical production, where maintaining strict temperature profiles is critical for quality assurance. Since it belongs to the widely deployed ET 200S family, it integrates seamlessly into PROFIBUS or PROFINET architectures via the appropriate interface modules. Although this specific part number has reached legacy status in the Siemens product lifecycle, it remains an essential spare part for maintaining and extending the operational life of existing automated machinery.
