Description

Technical Capabilities and Performance

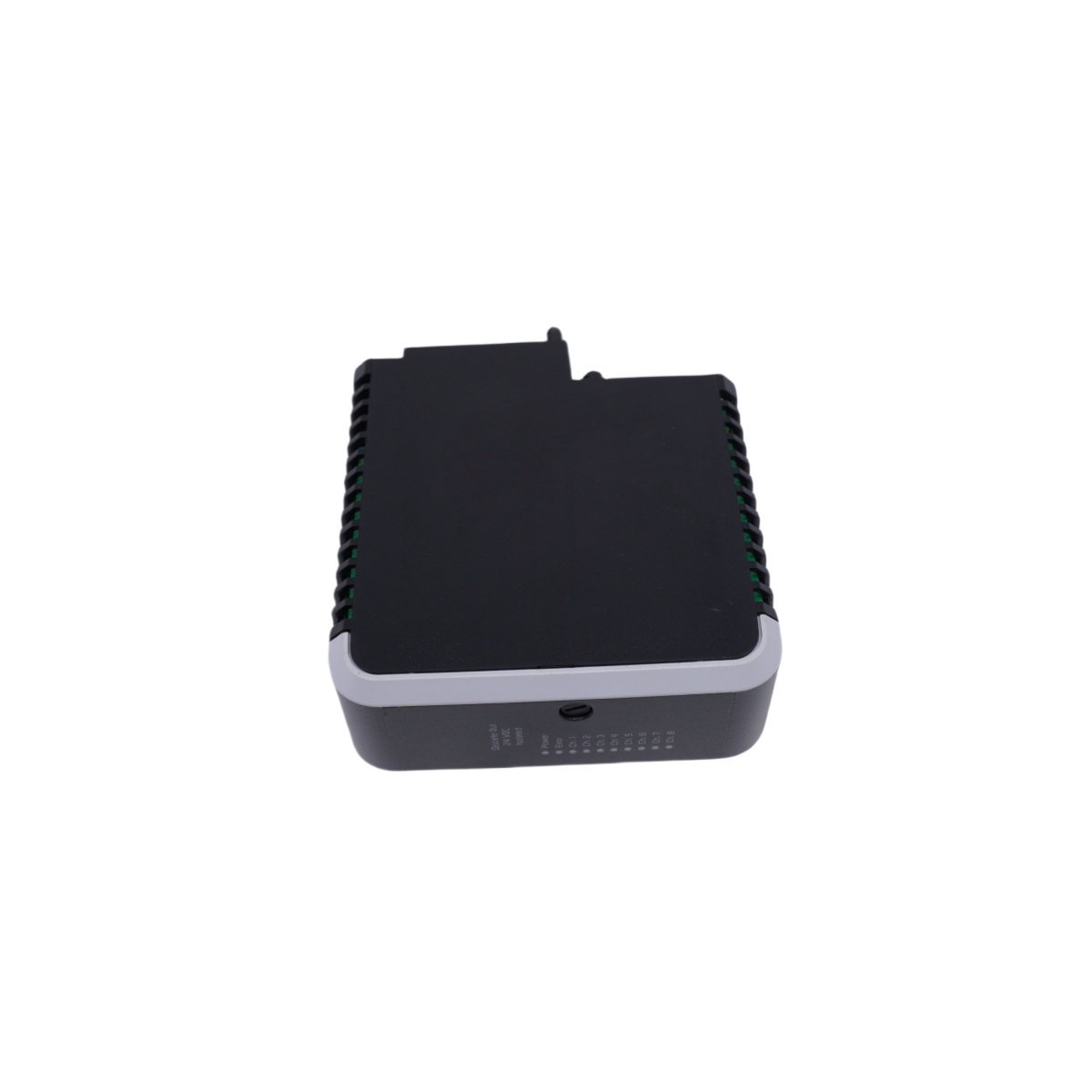

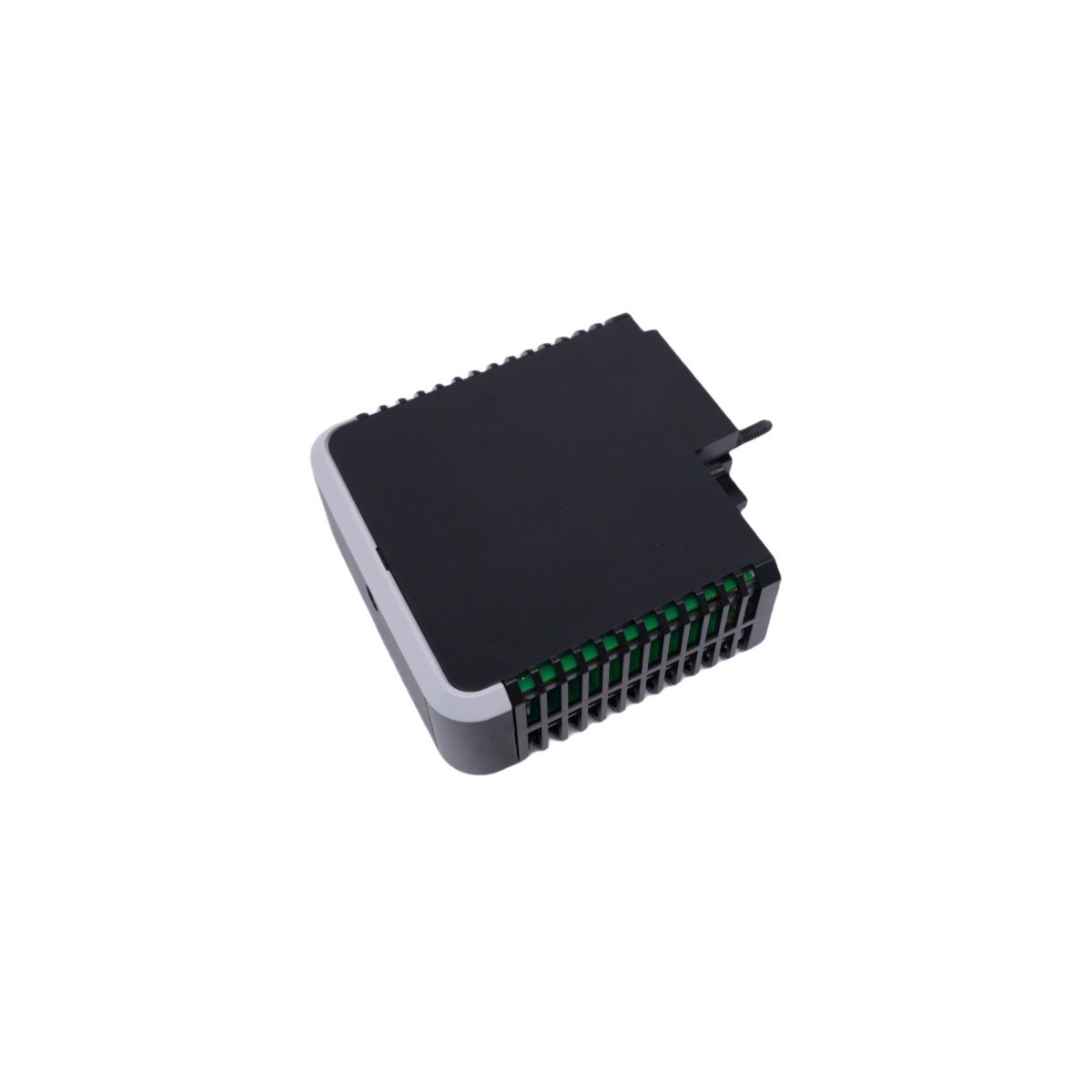

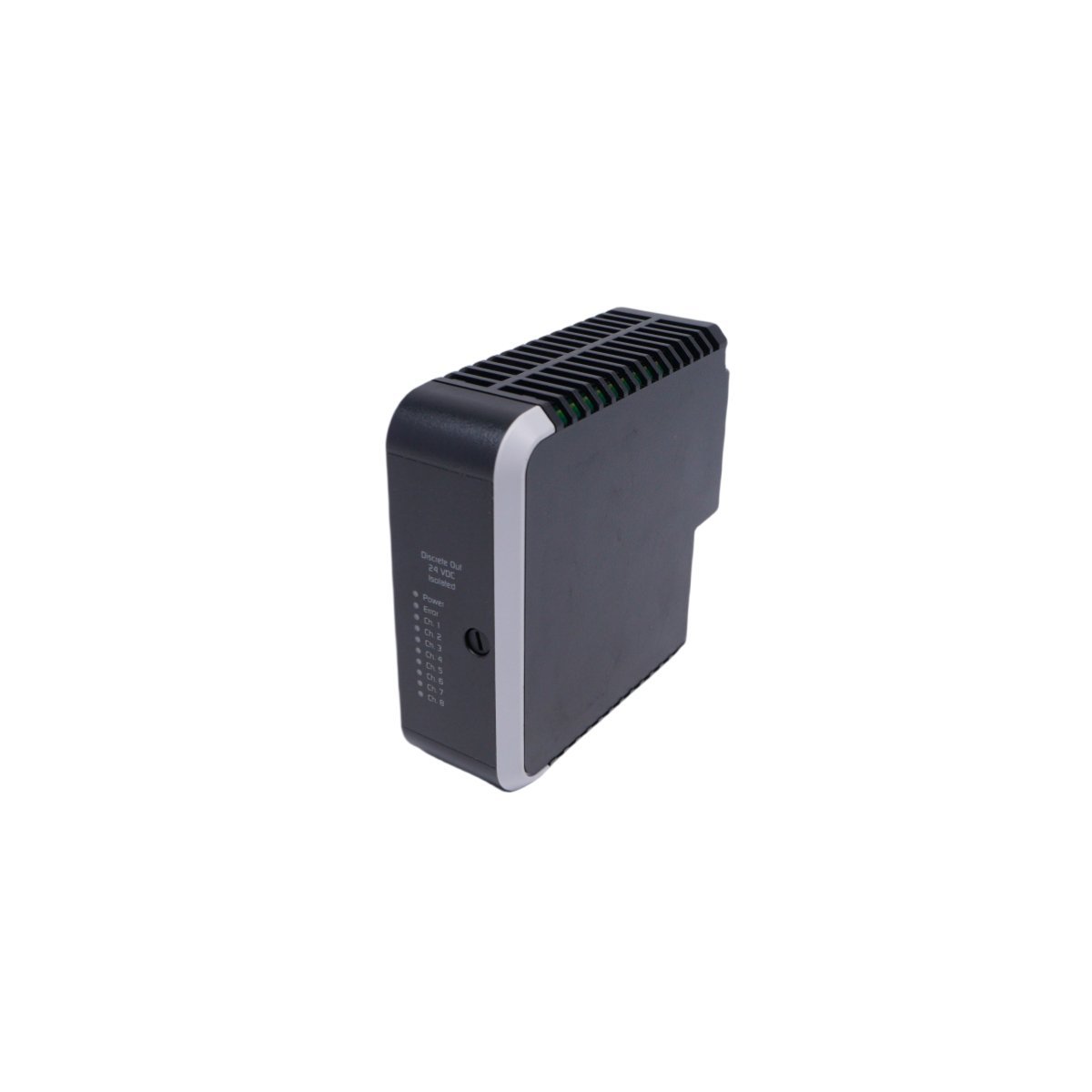

The Emerson KJ3208X1-BA2, also identified by order number 13P0105X012, functions as a high-precision analog input component within the DeltaV M-series I/O subsystem. This module facilitates the digitization of field signals by supporting eight channels of 4-20mA HART inputs. By utilizing advanced HART communication protocols, the module allows engineers to access integrated device diagnostics and calibration data directly from the control room. Consequently, this bidirectional communication enhances the accuracy of process variables while reducing the need for manual field inspections.

Operational Applications

Industrial facilities employ this module to maintain rigorous control over complex processes. Because the module supports high-speed data sampling, it delivers real-time monitoring capabilities essential for safety-instrumented systems and critical control loops. Furthermore, its ability to filter electrical noise ensures signal integrity even in high-interference environments. Professionals typically deploy this hardware in the following sectors:

• Oil and gas refining for pressure and temperature monitoring
• Chemical processing plants requiring precise flow regulation
• Power generation facilities for steam and turbine control
• Pharmaceutical manufacturing where environmental consistency is mandatory

Product Specifications

• Manufacturer: Emerson (Fisher-Rosemount)
• Model Identifier: KJ3208X1-BA2
• Order Number: 13P0105X012
• I/O Type: 8-Channel Analog Input (4-20mA HART)
• System Compatibility: DeltaV M-series DCS
• Physical Mass: 0.2 kg
• External Dimensions: 16.8 x 8.7 x 4.4 cm
• Country of Origin: United States

Engineering Design and Installation

Emerson designed the KJ3208X1-BA2 with a focus on modularity and long-term durability. The unit features a hot-swappable design, which enables maintenance personnel to replace modules without interrupting the power supply to the remaining I/O carrier. Additionally, the robust housing protects internal circuitry against the corrosive atmospheres often found in industrial settings. This hardware specifically streamlines the transition from traditional analog signaling to digital intelligence, thereby future-proofing existing automation infrastructures.
