Product Overview

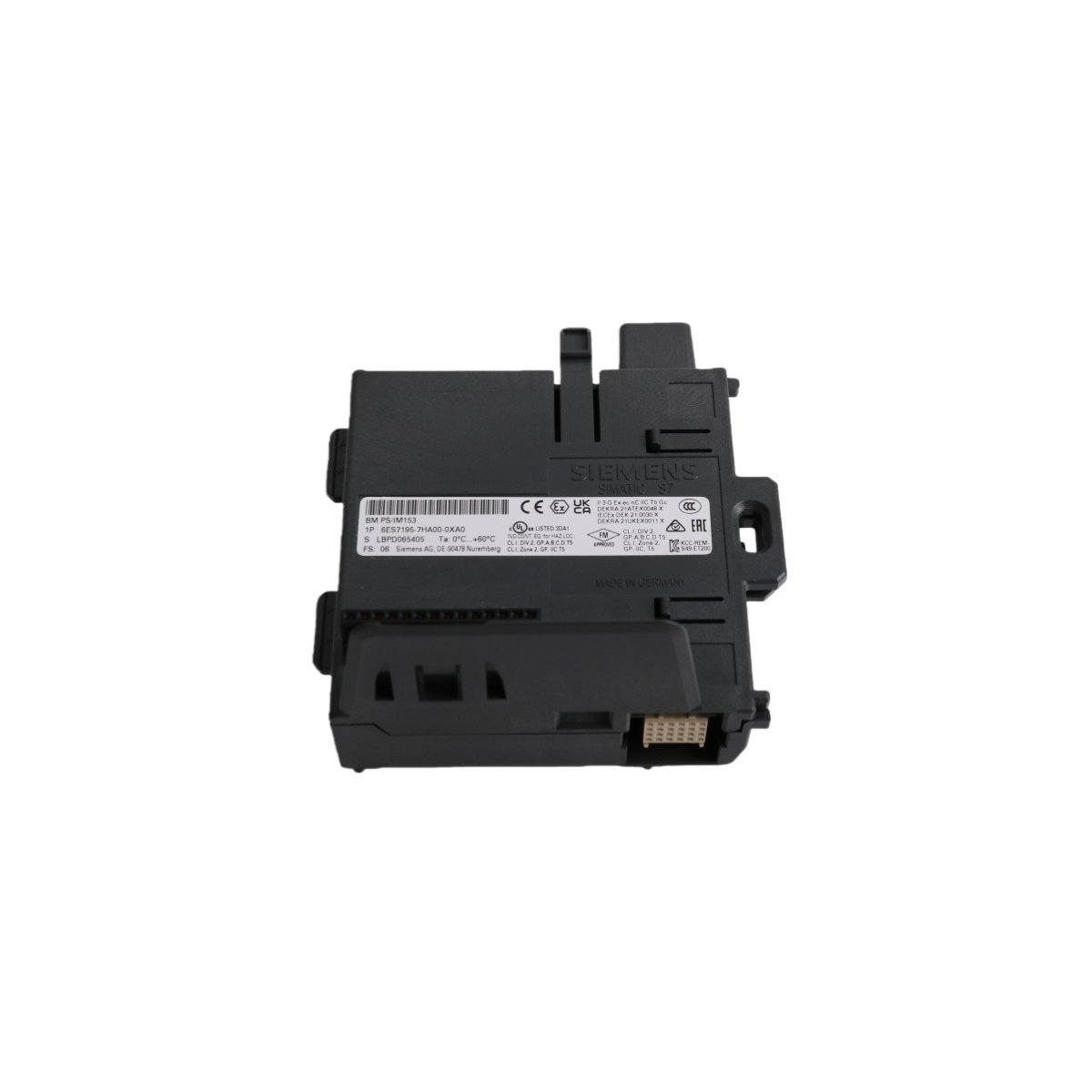

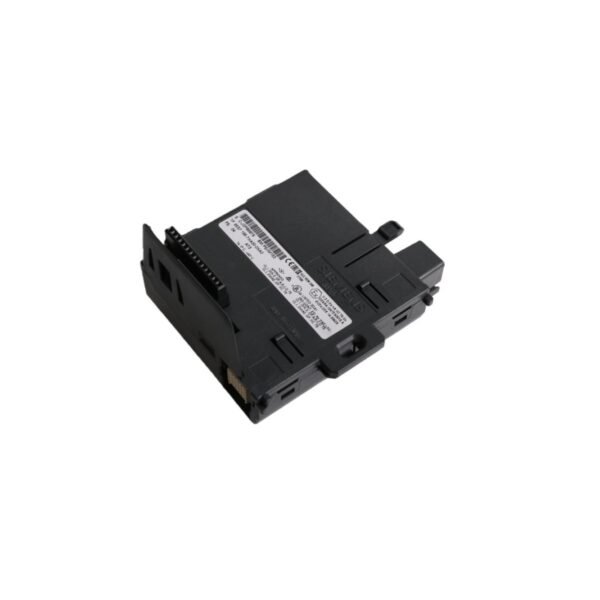

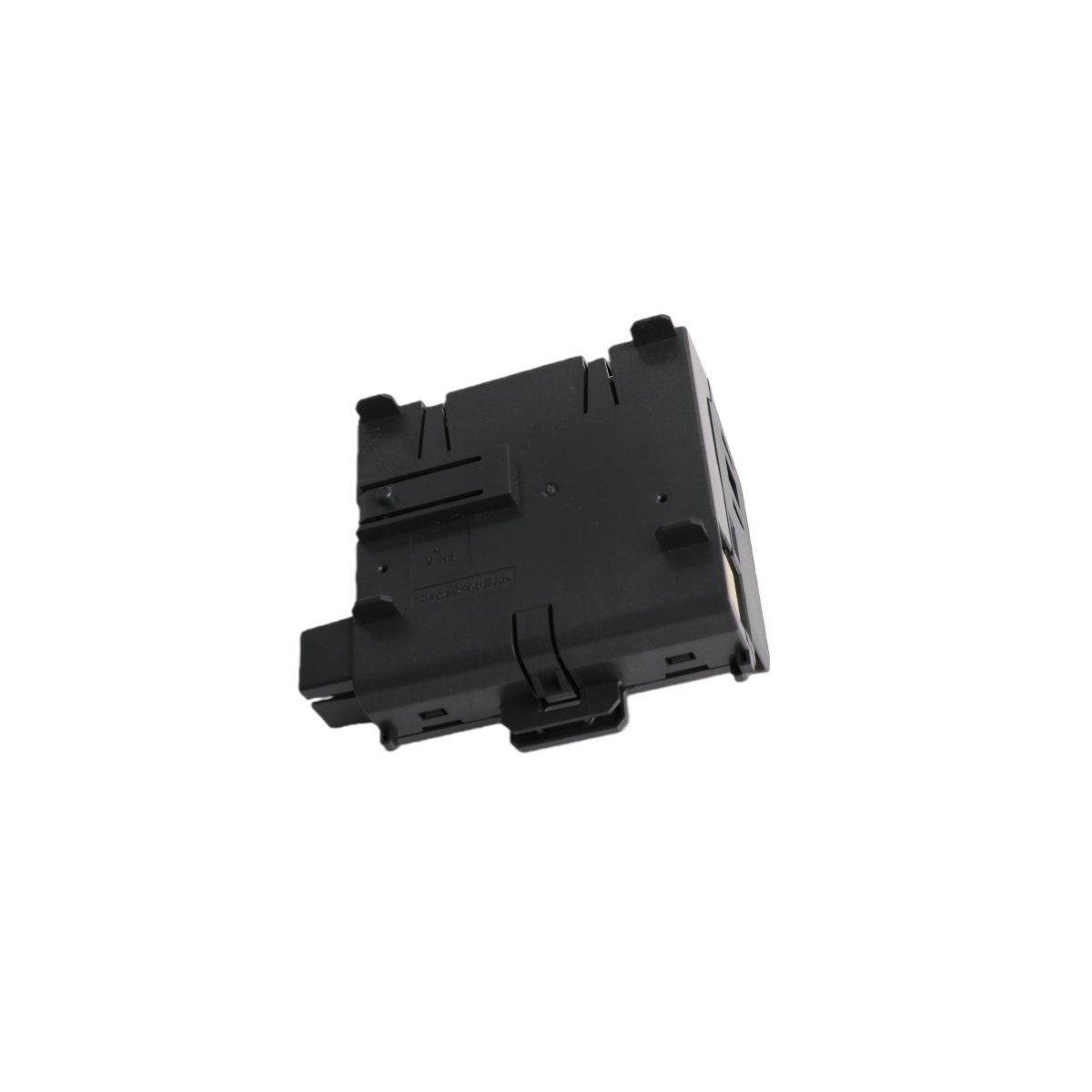

The Siemens 6ES7195-7HA00-0XA0 serves as a foundational bus module within the SIMATIC ET 200M distributed I/O architecture. Siemens engineers developed this component to provide a stable physical mounting base for integrated interface modules and power supply units. By facilitating reliable signal distribution and power routing, this module ensures the integrity of the PROFIBUS DP network across demanding industrial environments. It functions as the central carrier, allowing controllers to maintain constant communication with remote I/O stations in process automation and manufacturing applications.

Key Technical Characteristics

• Compatibility: Specifically engineered for SIMATIC ET 200M stations
• Module Accommodation: Supports both power supply modules and IM153 interface modules
• Hot-Swapping Capability: Enables the replacement of modules during active runtime
• Protection Class: IP20 rating with integrated bus module cover for enhanced durability
• Mounting Requirements: Symmetrical DIN rail installation
• Connectivity: Standardized backplane bus for seamless data transmission
• Operational Reliability: Designed for high-availability systems requiring minimal downtime

Functional Advantages

This bus module optimizes system maintenance through its support for live insertion and removal of modules. Because the device permits component replacement while the system remains in Run mode, maintenance teams avoid unnecessary production halts during routine service or hardware upgrades. Furthermore, the robust housing protects critical internal connections against environmental stressors and mechanical interference. Consequently, technicians achieve a more resilient automation setup that simplifies troubleshooting and supports rapid system expansion.

System Integration

When integrating this module into an existing infrastructure, users benefit from its straightforward, space-efficient design. The module architecture organizes complex cabling tasks by providing a secure, centralized terminal point. This structure reduces installation time and minimizes the risk of wiring errors during initial setup or site modifications. By serving as a reliable backbone, the module ensures consistent performance in environments where signal clarity and operational continuity remain the highest priority.
