Technical Overview

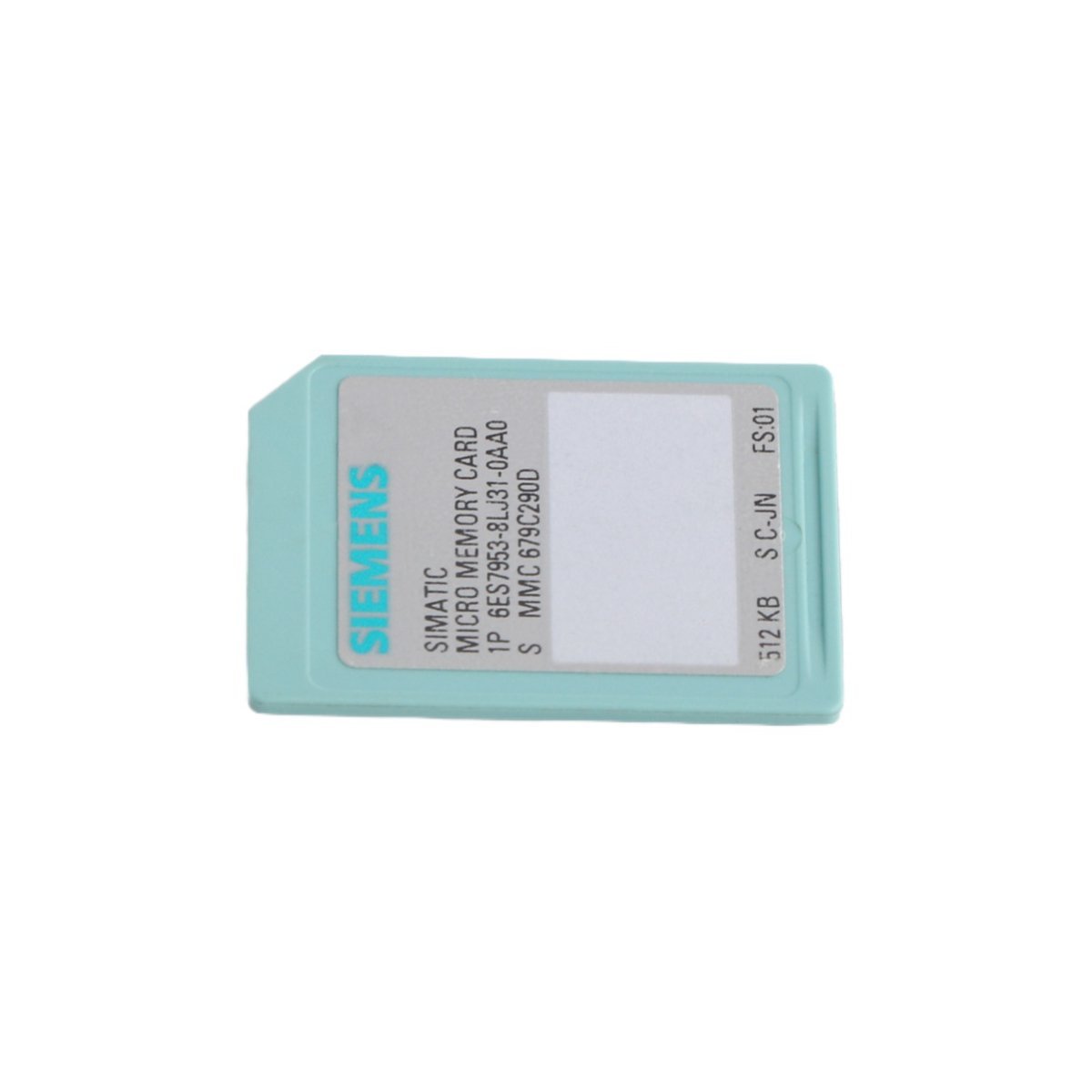

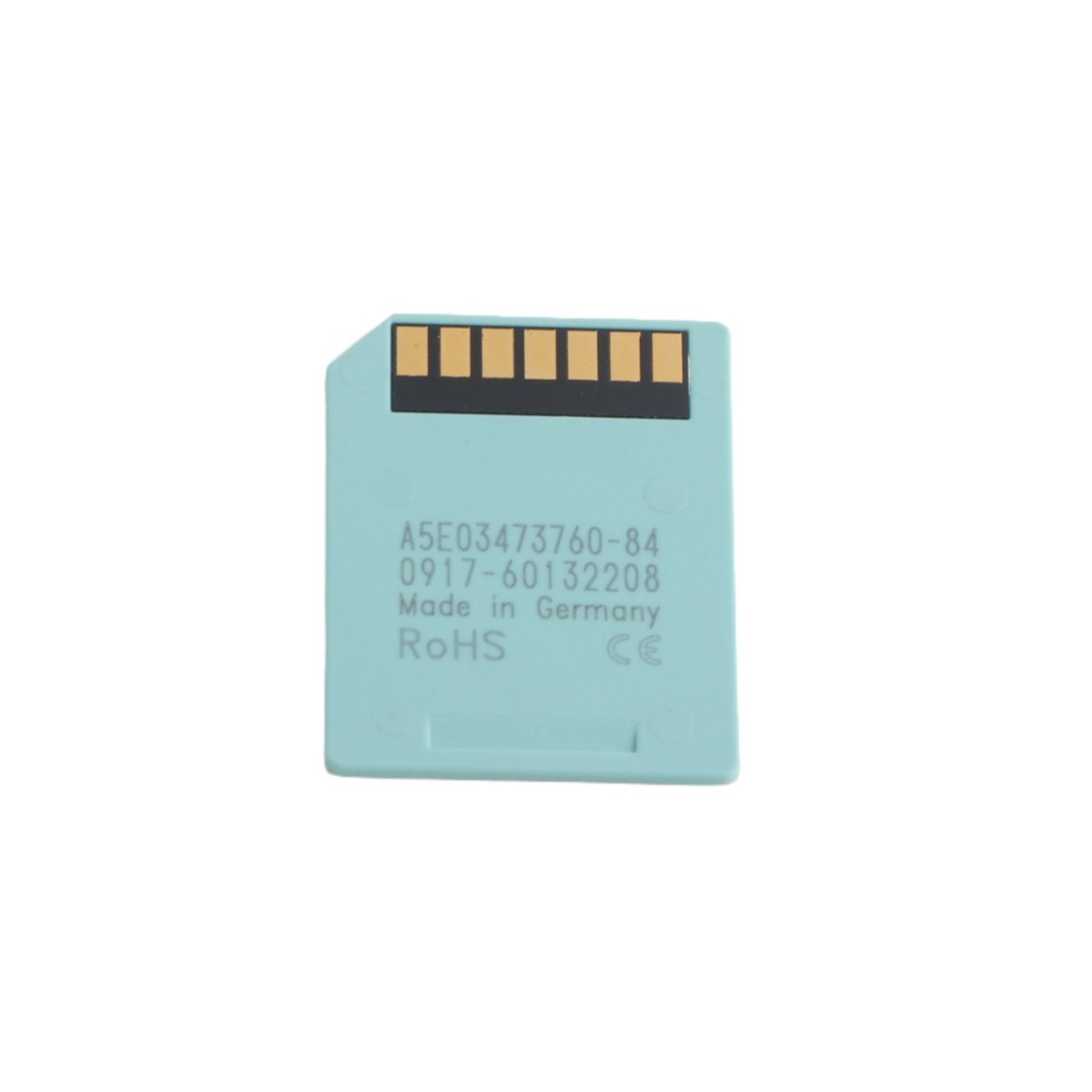

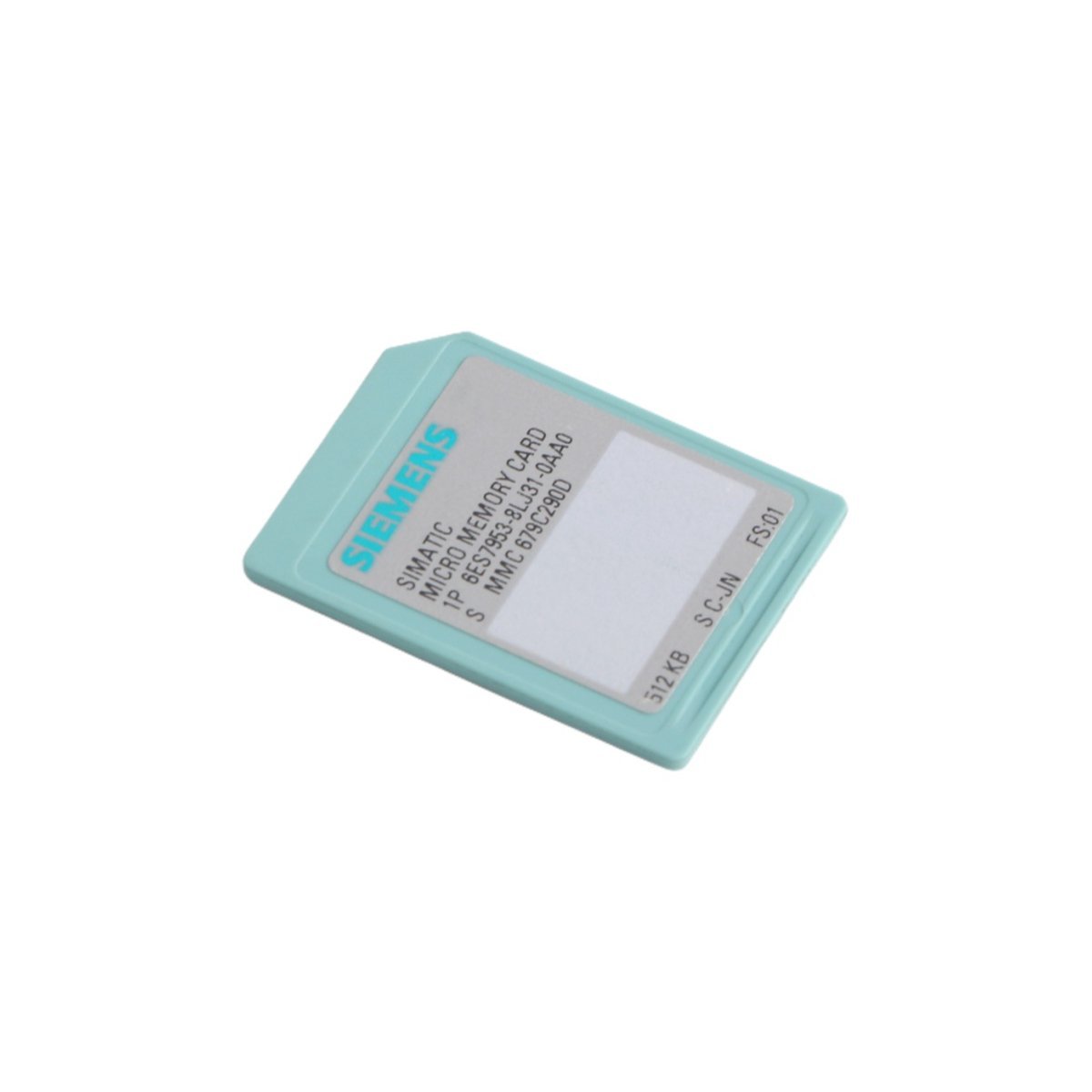

The Siemens 6ES7953-8LJ31-0AA0 functions as a dedicated Micro Memory Card (MMC) engineered specifically for the SIMATIC S7-300, C7, and ET 200 distributed I/O families. Siemens designed this card to provide 512 KB of non-volatile storage, which secures essential operating system data, application software, and configuration parameters. Because it utilizes robust 3.3V flash technology, the module maintains data integrity effectively, even when the power supply to the controller drops or fails.

Key Technical Specifications

• Product Designation: SIMATIC S7 Micro Memory Card
• Storage Capacity: 512 KB
• Supported Controllers: SIMATIC S7-300 series, C7 units, and ET 200 interface modules
• Memory Type: Non-volatile Flash
• Operating Voltage: 3.3 V DC
• Form Factor: Compact industrial MMC
• Lifecycle Status: Legacy product (Phase-out initiated October 2023)

Operational Benefits

This memory card simplifies the maintenance of industrial automation systems by providing a reliable medium for project portability and firmware management. Furthermore, engineers frequently utilize the card to perform rapid system updates, as it allows for the seamless transfer of project data between different hardware units. Due to its industrial-grade construction, the module resists the negative effects of electrical interference, high-vibration environments, and fluctuating temperatures. Consequently, the card helps facilities minimize technical overhead and prevents the loss of critical production settings.

System Integration

When integrating this component into existing control architectures, technicians benefit from its plug-and-play compatibility with established S7-300 backplanes. As an essential link in the automation loop, the MMC ensures that the CPU retains its operational logic and diagnostic history across multiple power cycles. Additionally, because the card operates independently of the PLC’s internal RAM, it provides an extra layer of redundancy for complex manufacturing processes. Finally, although Siemens has moved this model into a legacy phase, it remains a vital component for sustaining the operational uptime of thousands of legacy automation installations worldwide.
