Description

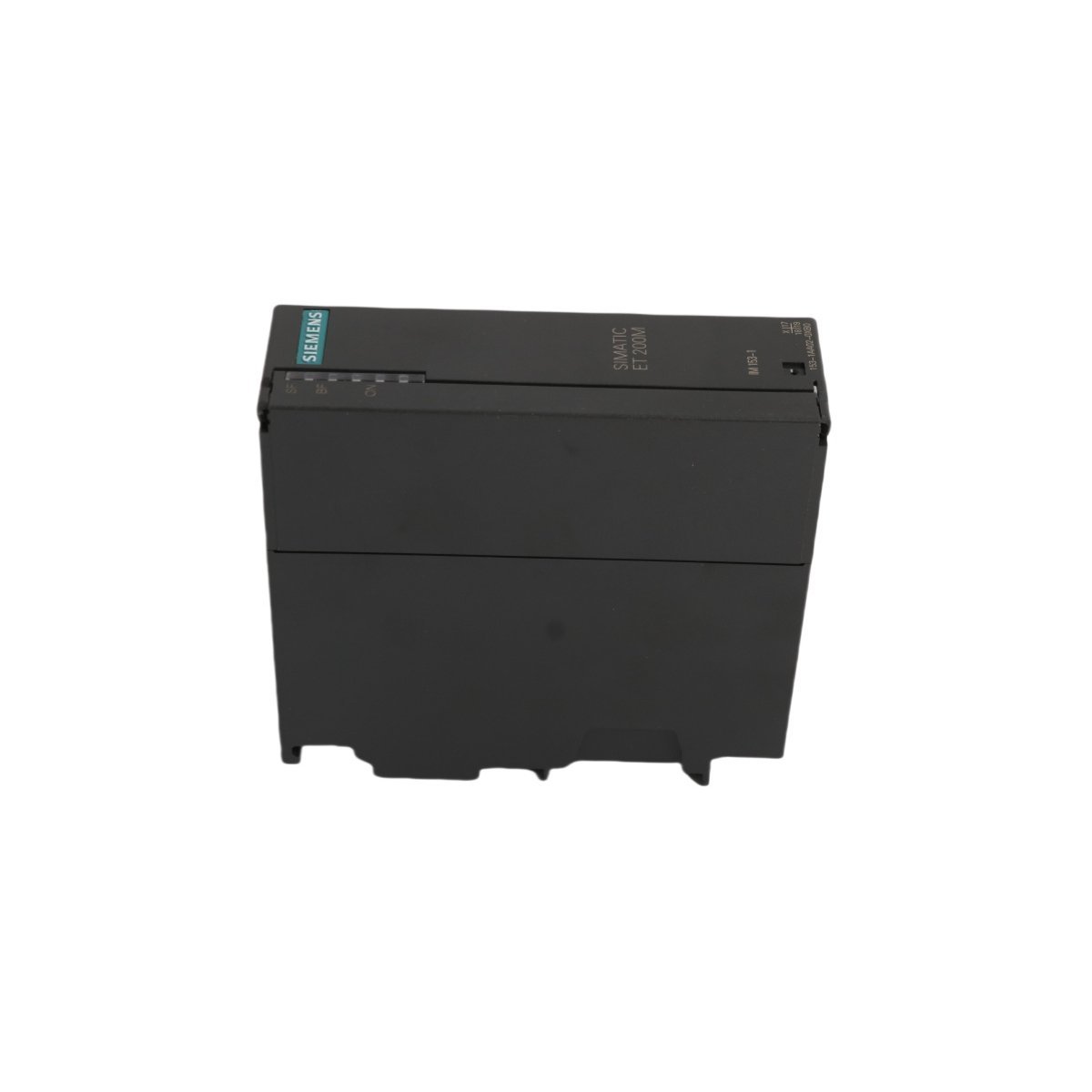

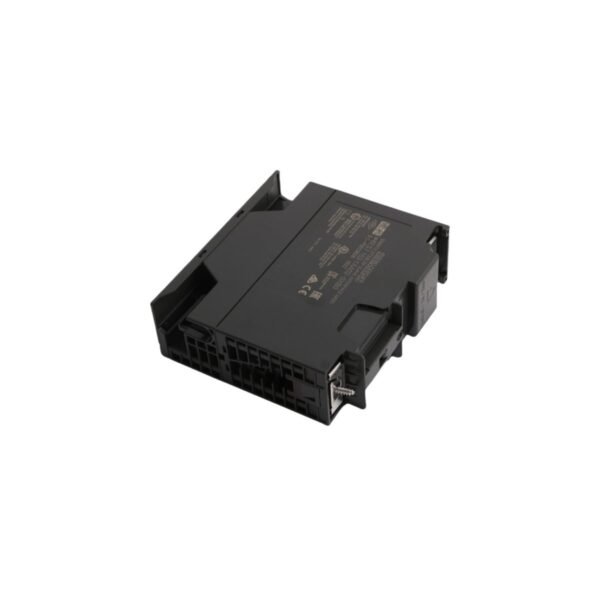

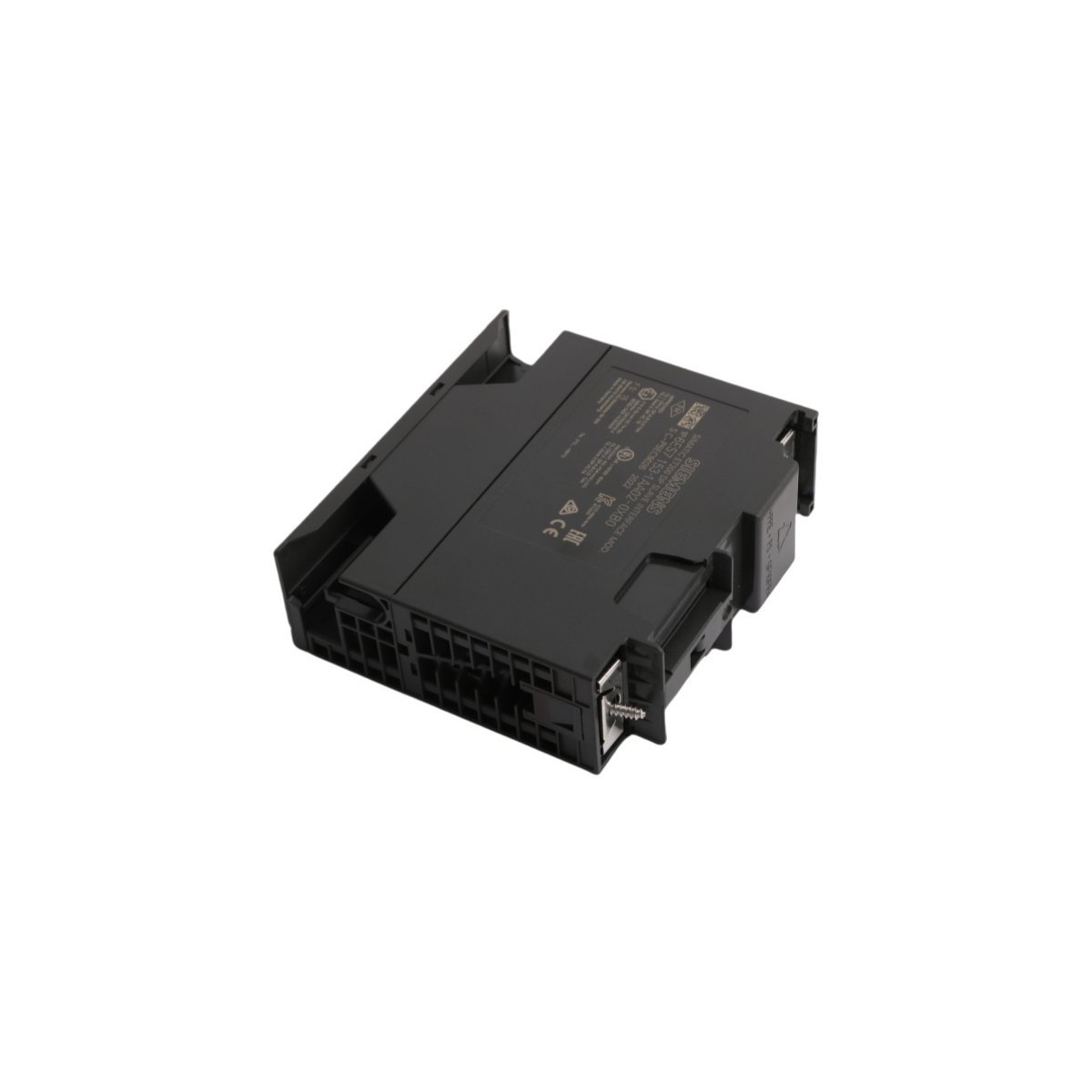

The Siemens 6ES7153-1AA02-0XB0, also cataloged as the 6ES7153-1AA02-0XB0 Interface Module, operates as a dedicated hardware component for PROFIBUS DP signal interfacing within Simatic S7-300 distributed I/O systems.

Hardware Specifications

Industrial Communication Bus Velocity and Scalability

The 6ES7153-1AA02-0XB0 supports high-speed PROFIBUS DP deterministic communication protocols. Backplane bus communication velocity is optimized for cyclic data exchange between the DP master and the S7-300 I/O modules. The module facilitates I/O density scaling by supporting the connection of up to 12 S7-300 signal, function, and communication modules on a single rack. Firmware flash compatibility is managed via the PG/PC interface, ensuring alignment with current Step 7 project configurations and hardware catalog revisions.

Frequently Asked Questions (FAQ)

Q: What is the maximum baud rate supported by the 6ES7153-1AA02-0XB0 on a PROFIBUS DP network?

A: The module supports automatic baud rate detection and operates at transmission speeds up to 12 Mbps.

Q: Can I replace I/O modules connected to this interface module while the system is powered?

A: Yes, the ET 200M system design supports active backplane bus operation, allowing for module replacement without interrupting the PROFIBUS communication of other nodes.

Q: Does this module require an external 24 VDC power supply?

A: Yes, a regulated 24 VDC supply must be connected to the module to power the backplane bus and the attached S7-300 I/O modules.

Field Installation Guidelines

Initially, you must mount the module onto a standard 35 mm DIN rail. Furthermore, it is imperative to ensure the rail is properly grounded to the cabinet chassis, as this is necessary to minimize electromagnetic interference (EMI).

Subsequently, you should maintain a minimum clearance of 50 mm above and below the module; by doing so, you allow for adequate convection cooling and heat dissipation. Regarding the wiring, when connecting the PROFIBUS DP cable, you are required to use a standard 9-pin D-sub connector. Moreover, you must verify that the termination resistors at both ends of the segment are set to the ON position.

Prior to applying power to the network, you must ensure that the rack ID (PROFIBUS address) is correctly configured via the physical address switches located on the front of the module. Finally, and most importantly, you should guarantee that the screen of the PROFIBUS cable is connected to the functional ground through the metal housing of the connector; consequently, this ensures the integrity of the signal path.

In summary, by following these steps in strict sequence, you ensure both mechanical stability and electrical reliability. Therefore, adhere to these guidelines during the entire installation process.
