Description

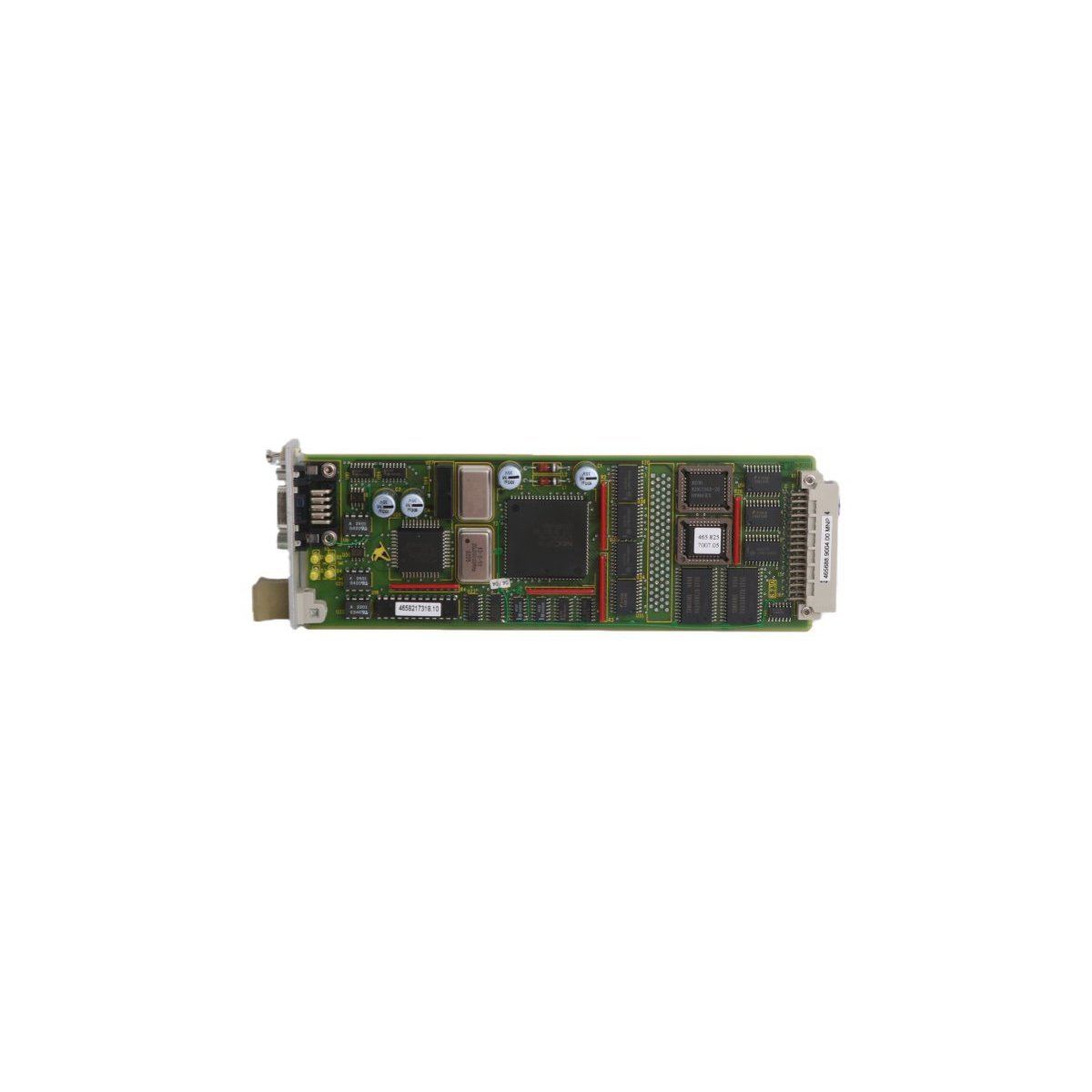

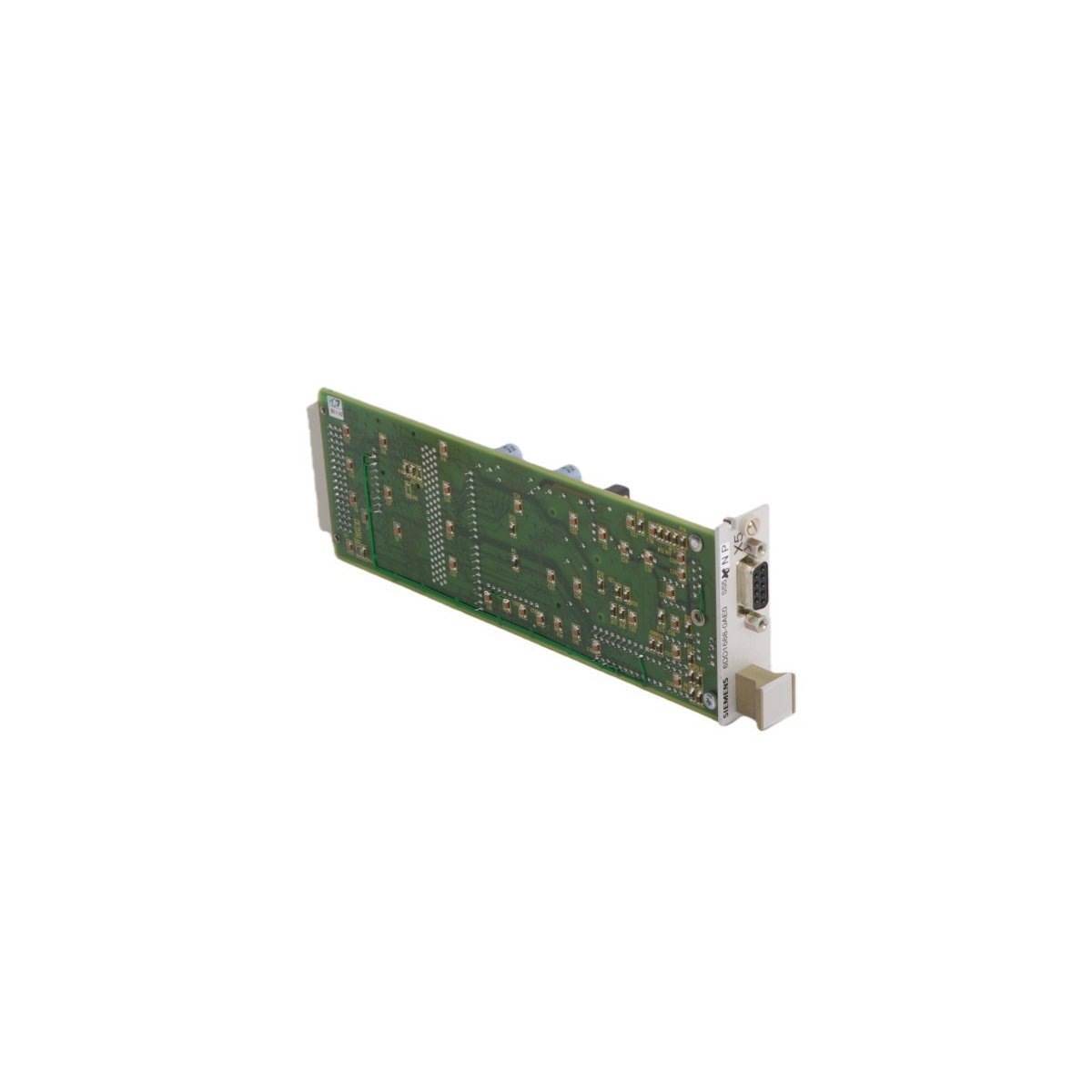

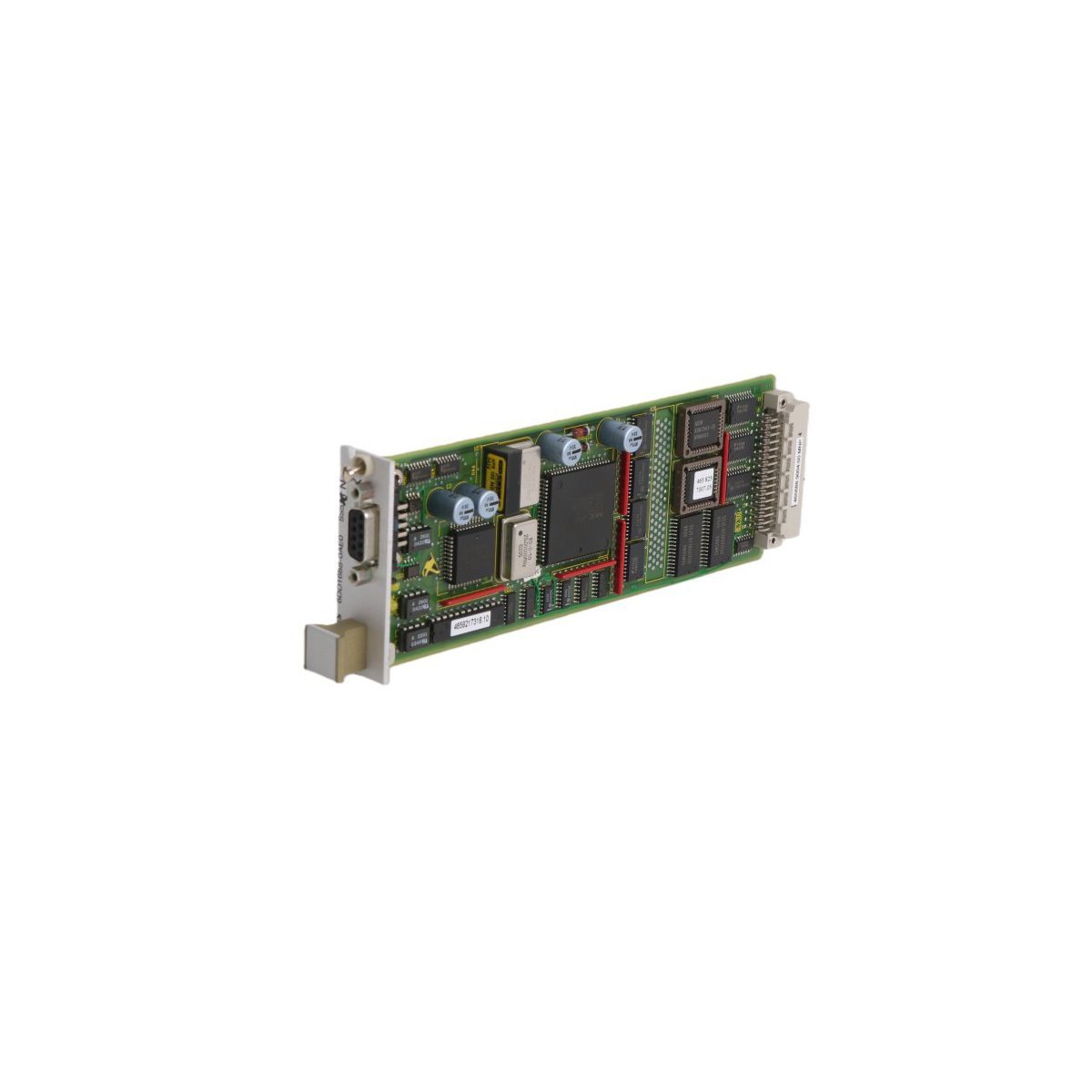

The Siemens 6DD1688-1AB0, also cataloged as the 6DD1688-1AB0 Interface Module, operates as a dedicated hardware component for serial data communication (SS2/V.24) within SIMADYN D control platforms.

Hardware Specifications

PLC Control & Connectivity

The 6DD1688-1AB0 module facilitates high-speed data transmission across SIMADYN D backplane architectures. To begin with, it supports deterministic communication protocols necessary for time-critical synchronization between the processor and connected peripheral devices. Furthermore, this module ensures I/O density scaling, thereby allowing for modular expansion within complex drive control networks. In addition to these capabilities, the unit maintains full firmware flash compatibility; consequently, this enables standardized operational updates through the central controller bus. Moreover, by utilizing this modular approach, the system achieves consistent performance, while simultaneously preserving hardware integrity across multiple diverse installations.

Frequently Asked Questions (FAQ)

Q: What is the primary function of the SS2 interface on this module?

A: The SS2 interface provides a V.24 standard serial connection, facilitating point-to-point data exchange between the SIMADYN D controller and external diagnostic or communication terminals.

Q: Is this module compatible with other SIMADYN D submodules?

A: Yes, it is designed for integration within the SIMADYN D card rack system, maintaining physical and electrical compatibility with standard system backplanes.

Q: Does the module require specific software configuration?

A: Yes, configuration of the communication parameters, including baud rate and handshake protocols, must be performed via the SIMADYN D system software to match the requirements of the connected peripheral device.

Field Installation Guidelines

• Verify that the SIMADYN D rack is disconnected from the main power supply before inserting or removing the module.
• Ensure the module is seated fully into the intended rack slot to maintain secure contact with the backplane connector.
• Tighten the front panel fastening screws to ensure mechanical stability and proper grounding to the rack chassis.
• Utilize high-quality shielded V.24 serial cabling to minimize signal attenuation and noise interference.
• Route communication cables separately from high-voltage power lines to prevent electromagnetic coupling and data transmission errors.
• Confirm that the termination settings match the requirements of the communication loop to avoid signal reflection issues.
