Description

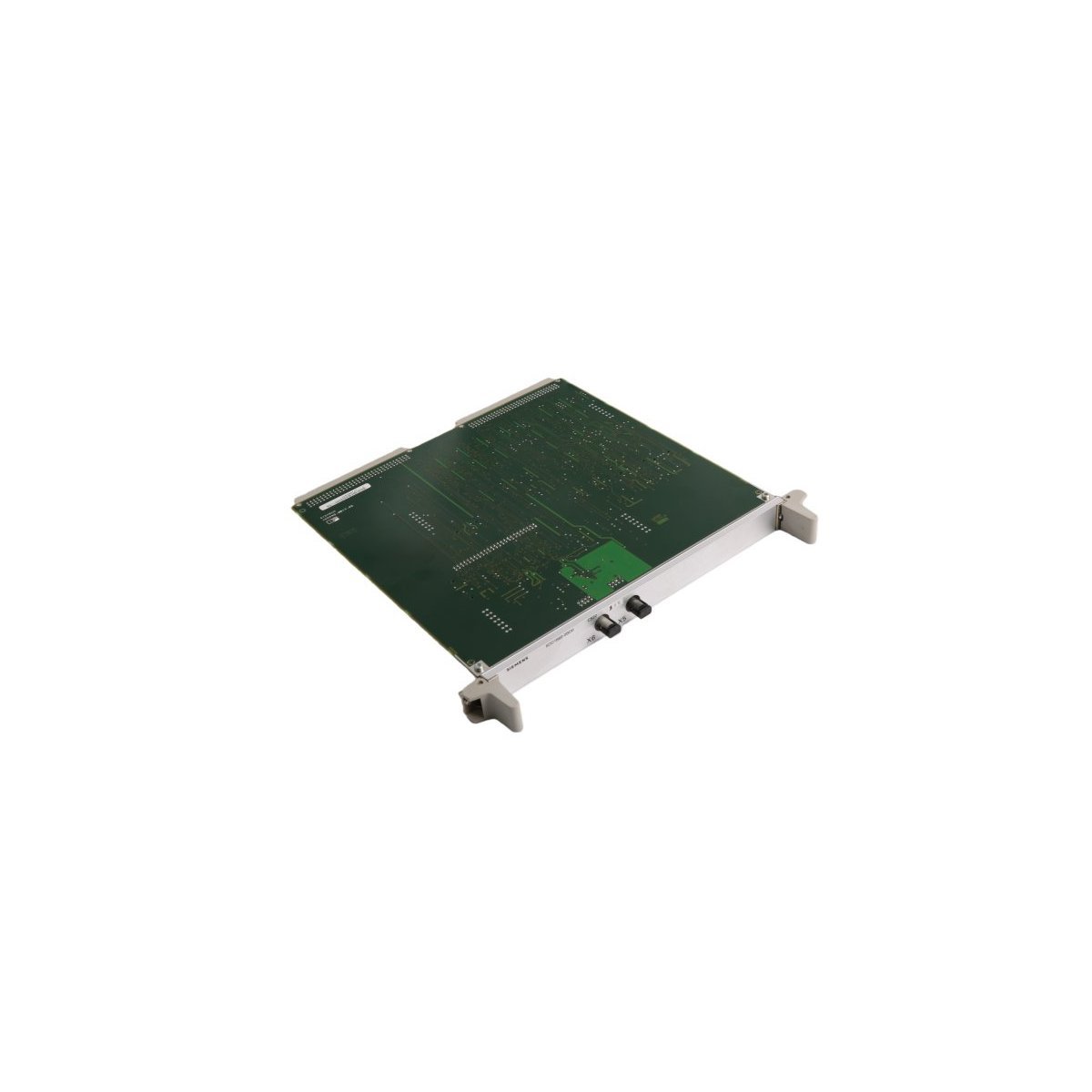

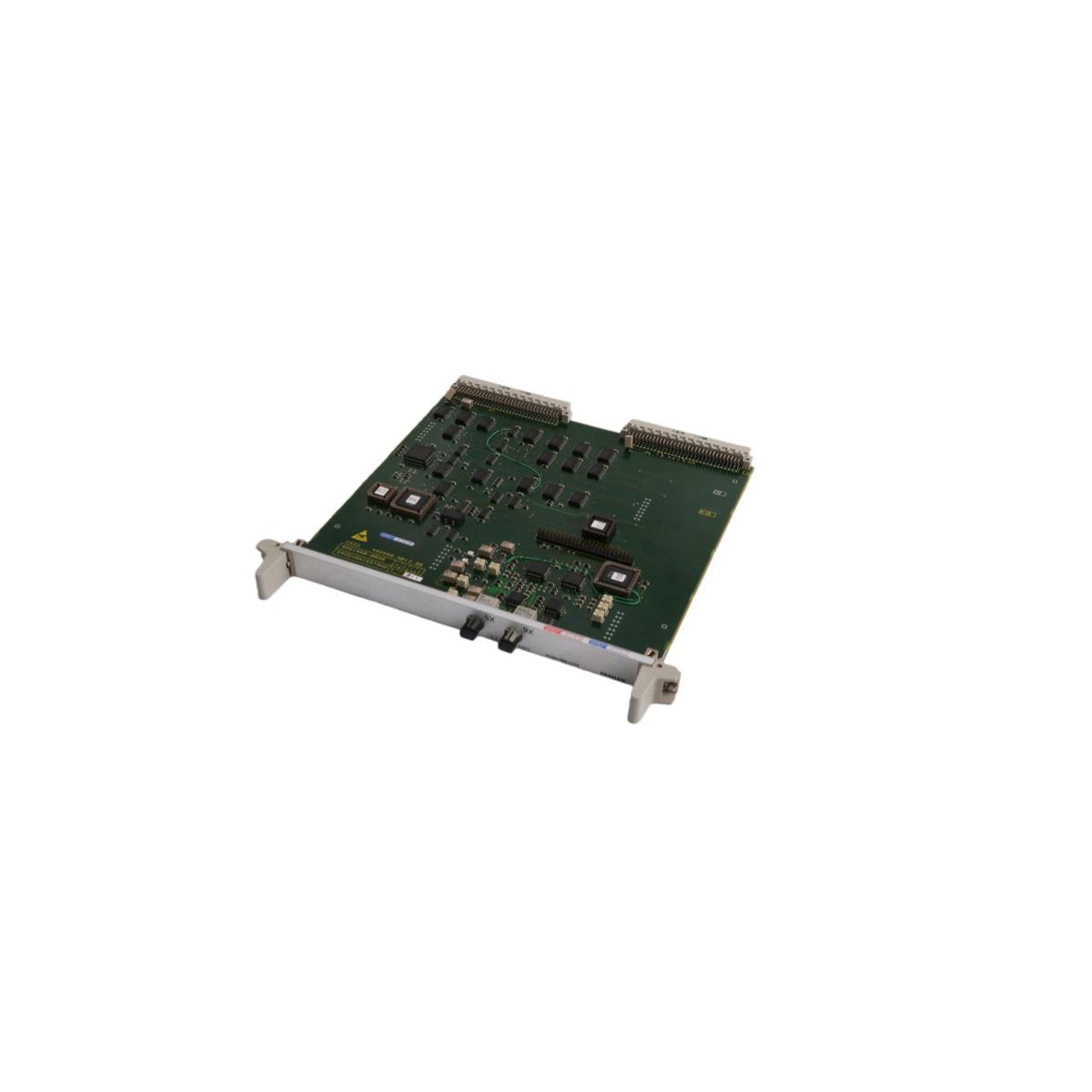

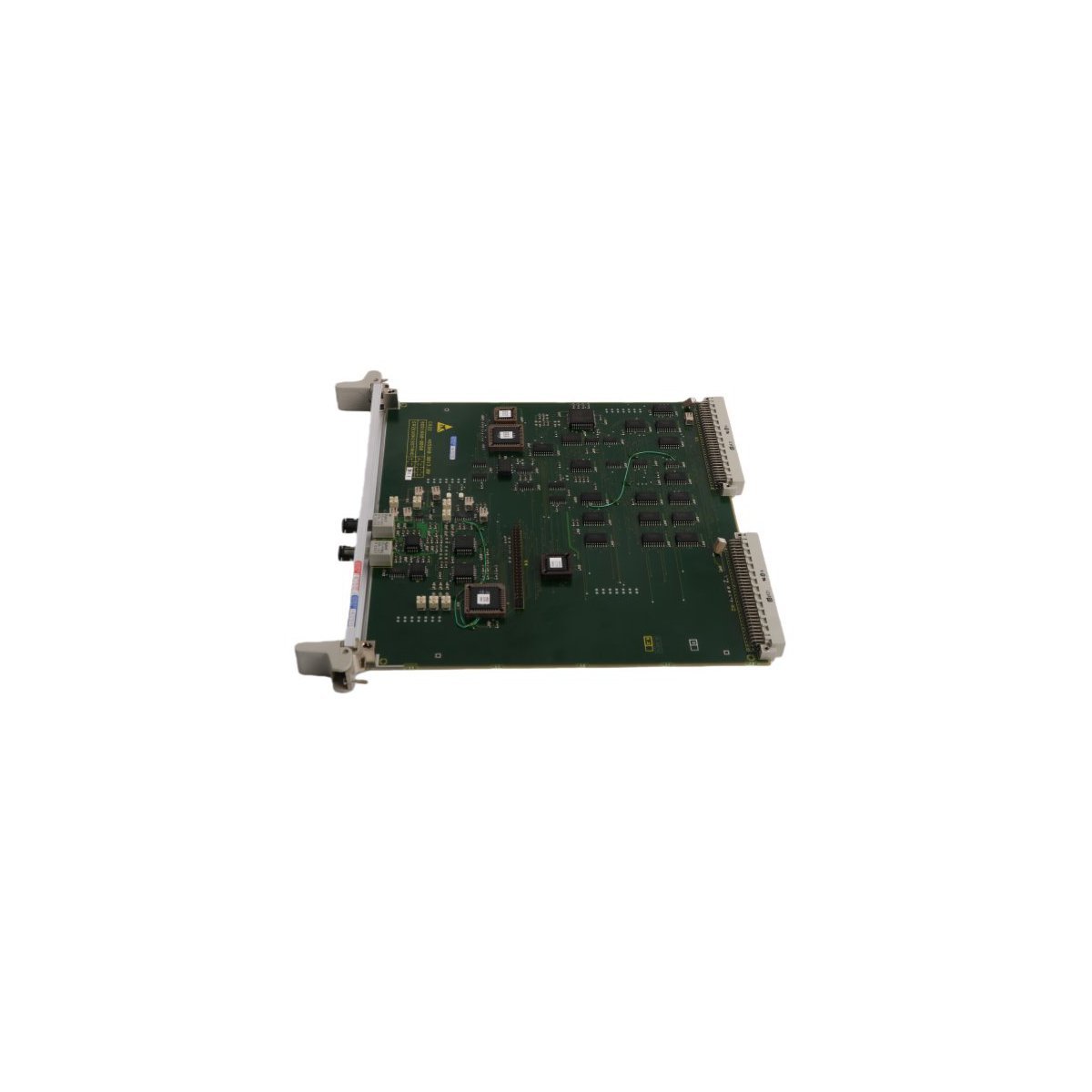

Configured for high-speed fiber optic data exchange in SIMADYN D and SIMATIC TDC control architectures, the Siemens 6DD1660-0BD0 (6DD1660-0BD0 CS22 Slave Module) provides direct physical coupling for master-slave synchronization across industrial networks.

Hardware Specifications

Industrial Control System Connectivity

The 6DD1660-0BD0 utilizes high-speed backplane bus communication velocity to manage synchronization tasks between subracks. The module architecture supports I/O density scaling through fiber optic expansion, ensuring deterministic data transfer across complex automation platforms. Firmware flash compatibility is managed via the host controller, maintaining synchronization integrity during network configuration updates.

Frequently Asked Questions (FAQ)

Q: What is the primary limitation regarding fiber optic cable length for this module?

A: The operational distance is constrained by the signal attenuation of the connected fiber optic link; ensure that the fiber type and termination quality meet the requirements for the specific SIMADYN D bus cycle time to maintain data deterministic performance.

Q: Can this module operate in a redundant master-slave configuration?

A: The 6DD1660-0BD0 functions as a slave node; redundancy is managed through the higher-level master control logic and the configuration of the fiber optic ring or star topology within the SIMADYN D rack architecture.

Field Installation Guidelines

• To begin with, ensure all power to the subrack is strictly isolated before inserting the module into the designated rack position; consequently, this precaution effectively avoids potential backplane bus short-circuits.
• Subsequently, seat the module firmly to fully engage the backplane connectors; furthermore, proceed to tighten the front-panel retaining screws to guarantee mechanical stability against any persistent industrial vibration.
• In addition to this, when connecting the fiber optic cables, it is imperative to inspect the connectors for any debris; meanwhile, you must ensure the minimum bend radius is strictly maintained to prevent signal loss or, more importantly, permanent fiber damage.
• Following the physical connection, after the installation is complete, verify the link status indicators on the front panel; by doing so, you can confirm successful synchronization with the master module.
• Finally, as a last step, confirm that the system configuration parameters align precisely with the physical addressing assigned to the module; thereby, you will enable correct and error-free data exchange on the bus.
