Description

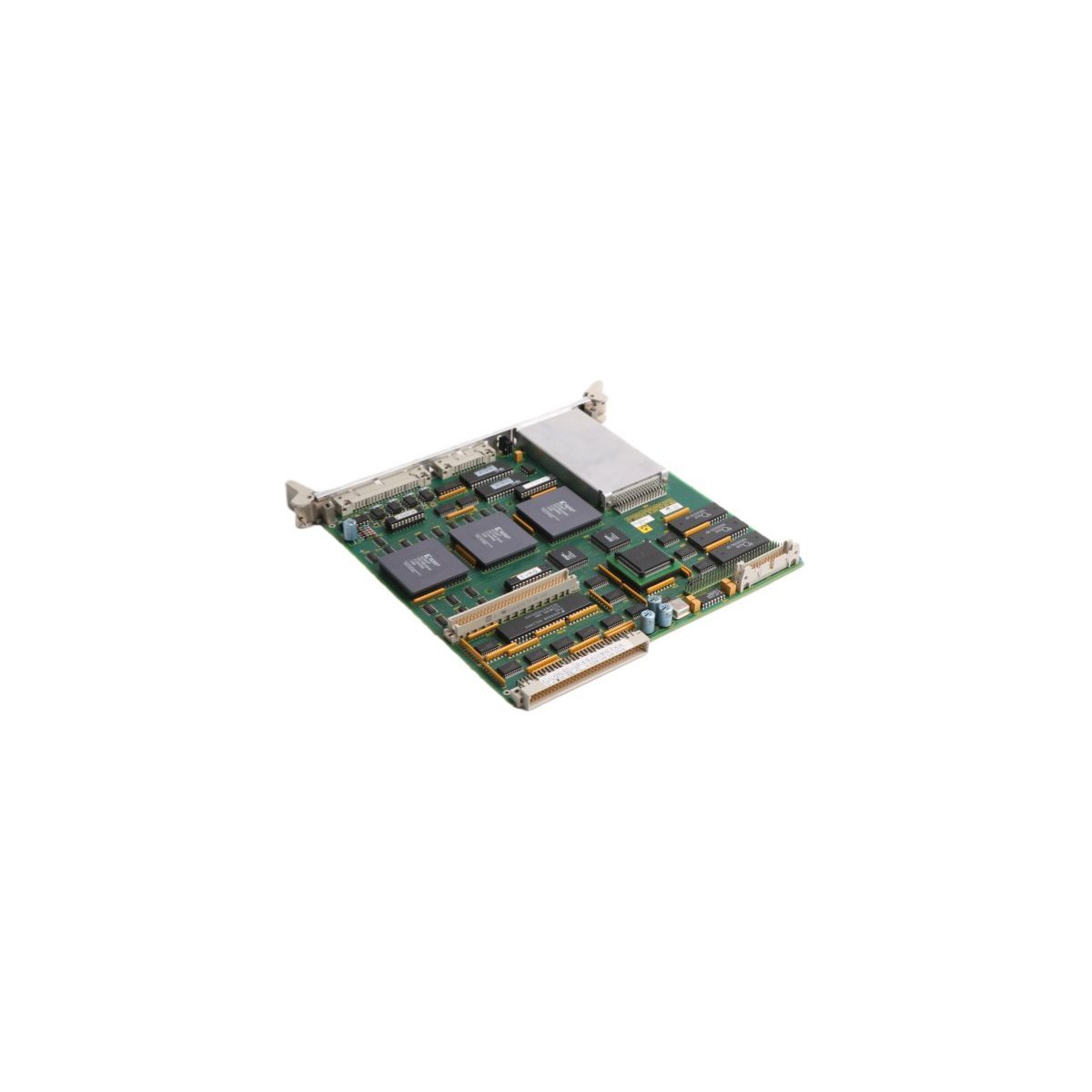

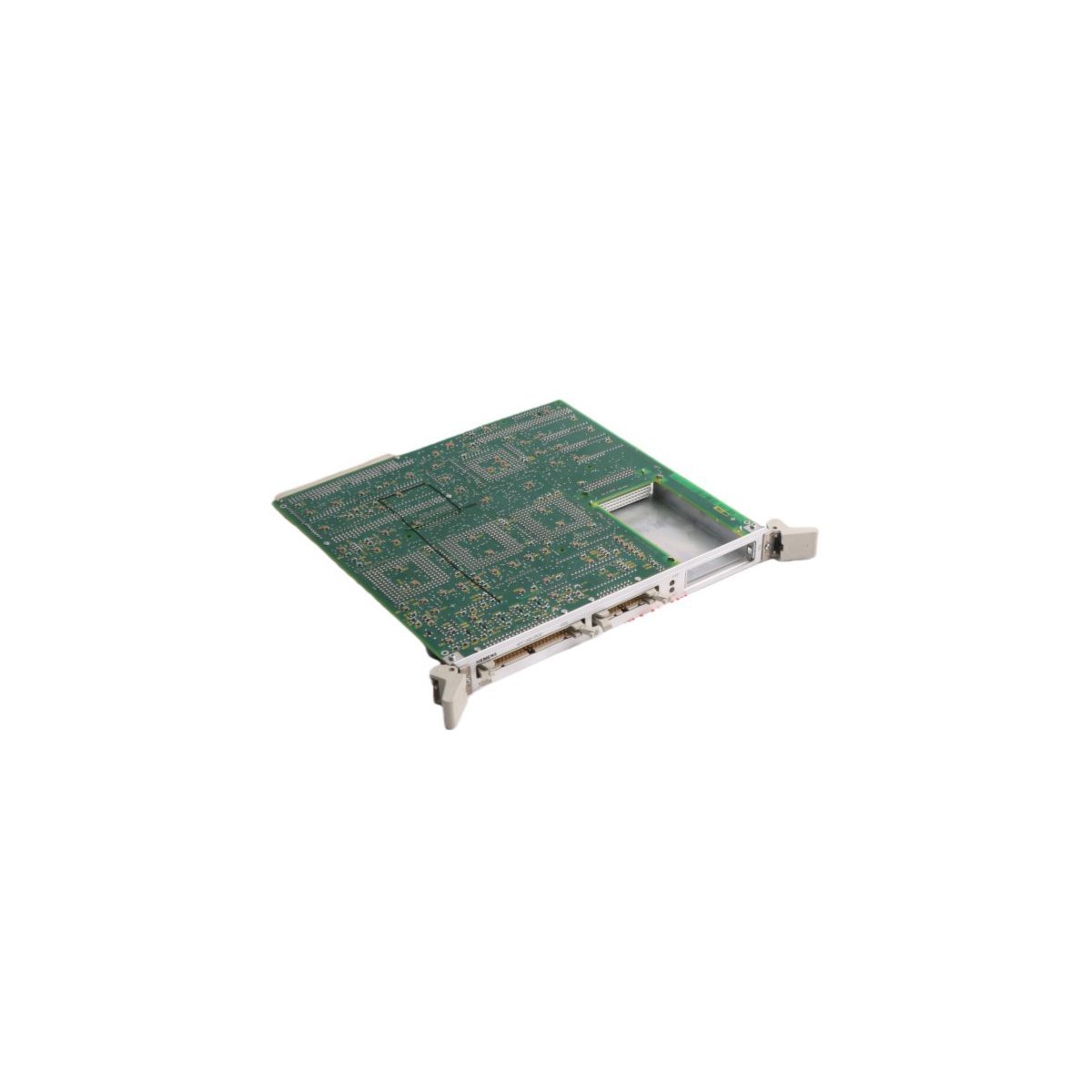

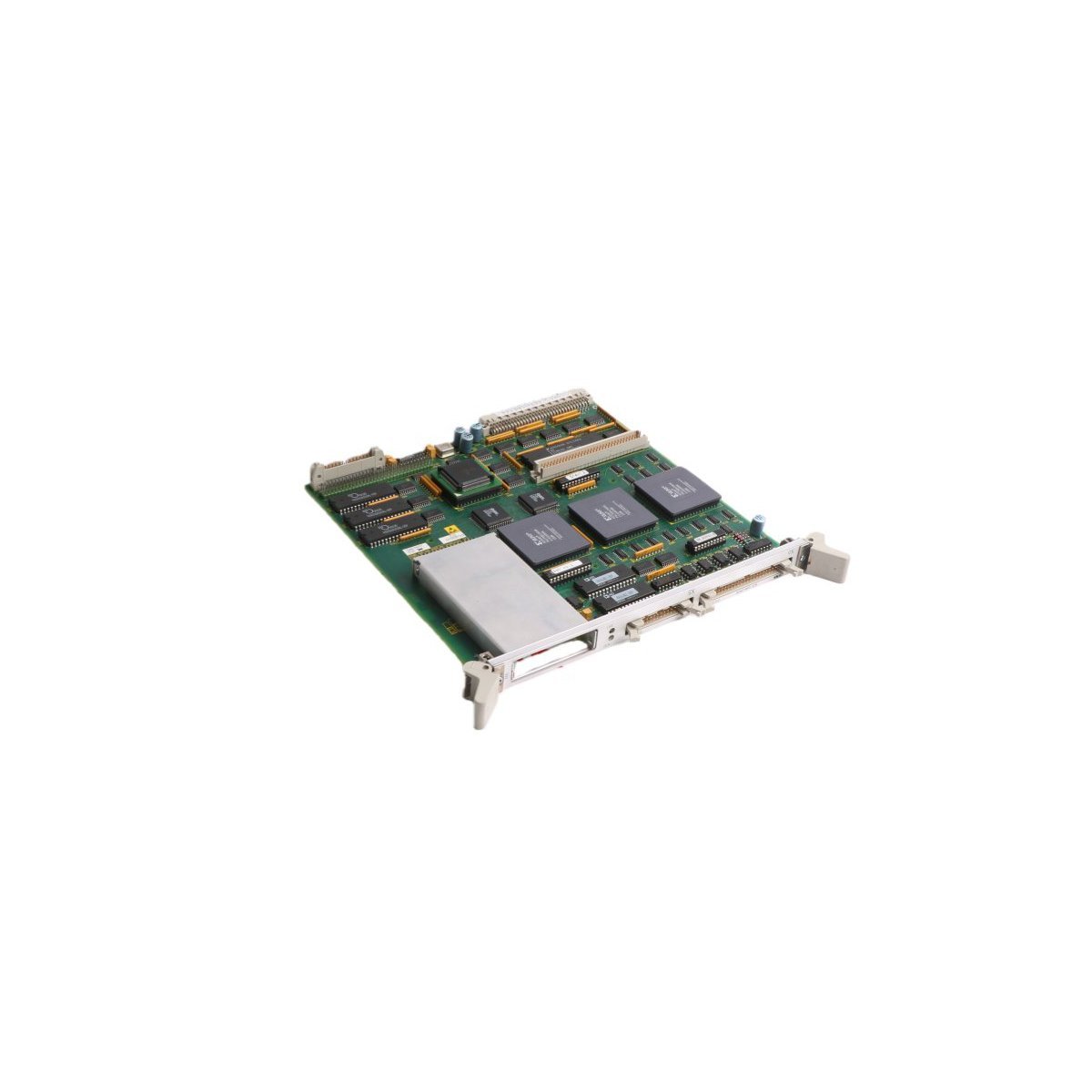

The Siemens 6DD1645-0AE0 operates as a high-performance EP3 signal processor for the SIMADYN D control system. This module delivers the intensive processing power necessary for sophisticated industrial automation tasks. It specifically manages high-speed control algorithms in large-scale drive systems and rolling mill applications. Furthermore, the hardware executes complex mathematical calculations with deterministic response times. This ensures absolute precision during rapid motion control and real-time system adjustments.

Technical Specifications

Modular Architecture and Expansion

A primary advantage of this signal processor is its flexible modular design. The front assembly provides three dedicated slots for technology cards labeled IS_1, IS_2, and IS_3. Consequently, engineers can customize the module’s functionality to meet specific technical requirements. These plug-in cards allow for various feedback signal processing and communication expansions. This architecture supports long-term system scalability as production needs evolve over time.

Industrial Durability and Signal Integrity

The 6DD1645-0AE0 features a robust build for survival in harsh manufacturing climates. It incorporates advanced thermal management to prevent overheating during continuous operation. Additionally, the internal circuitry provides excellent electromagnetic compatibility to resist factory noise. These protective measures ensure consistent signal integrity and processing accuracy. Therefore, the module effectively reduces unplanned downtime in critical continuous process applications.
