Description

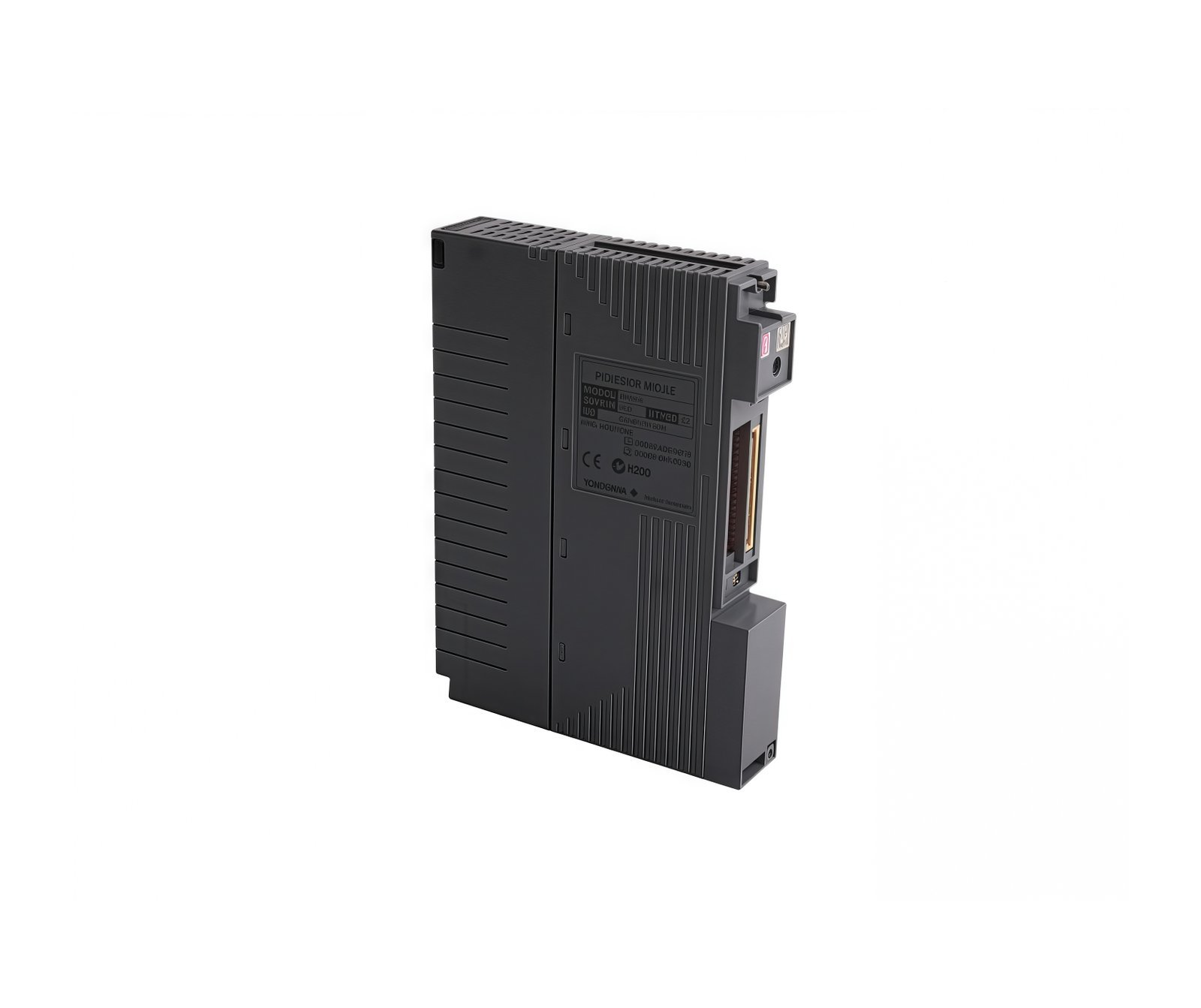

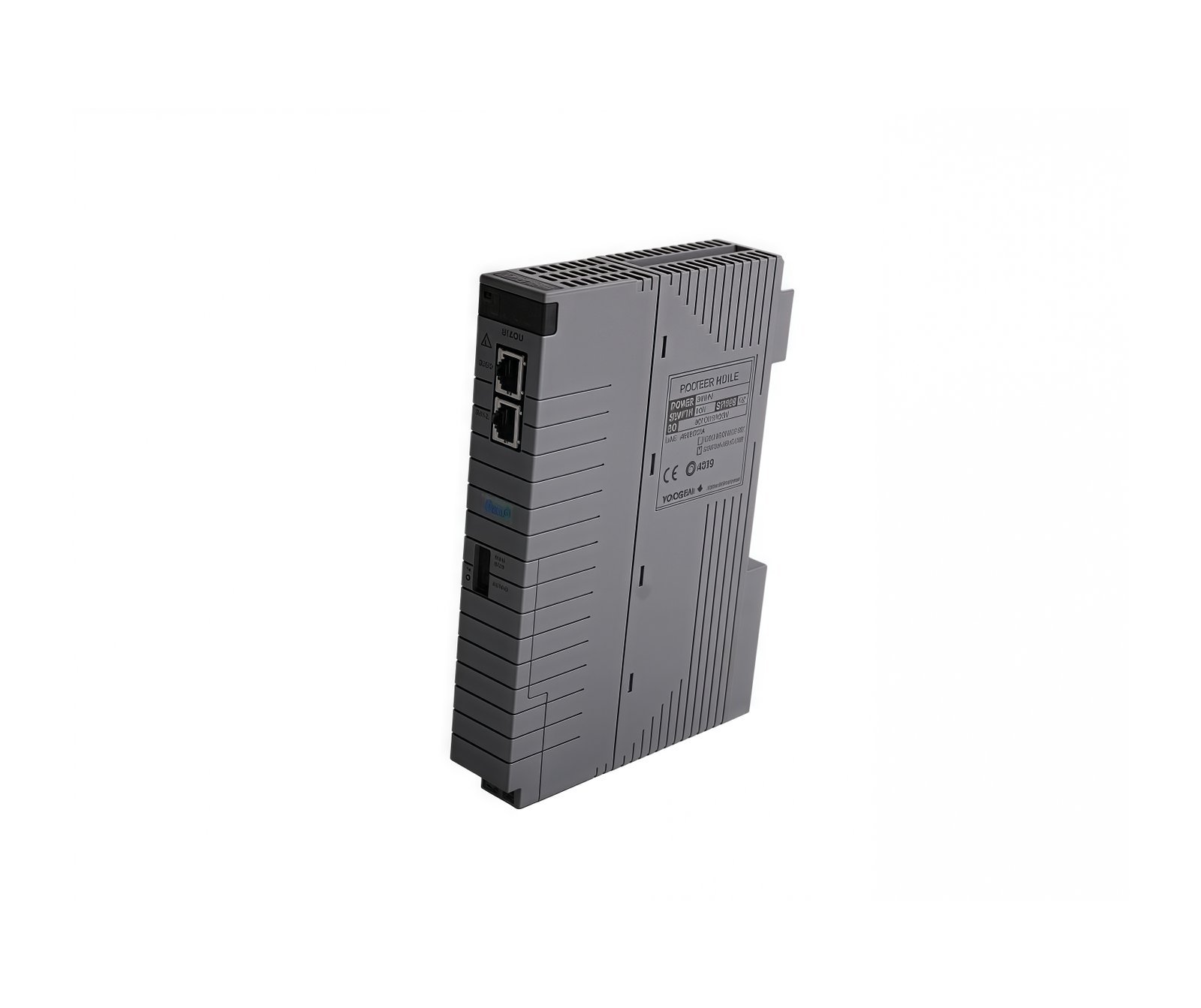

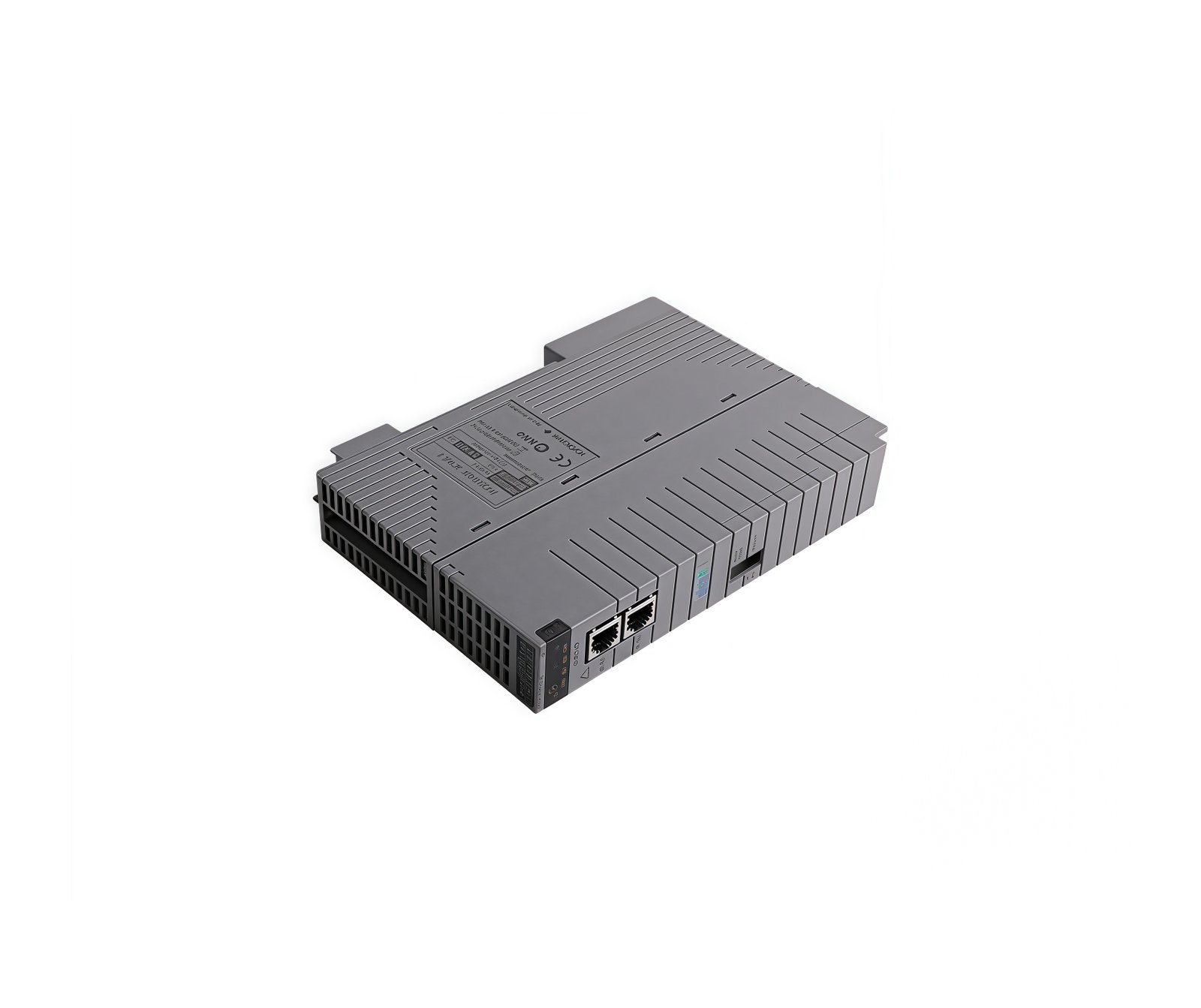

The Yokogawa CP451-50 serves as the primary computational engine for AFV300 and AFV400 field control stations. This processor module executes complex control logic with high efficiency at a 100 MHz clock speed. It facilitates high-speed data exchange across the FIO system architecture. Furthermore, the hardware provides the necessary stability for continuous industrial automation tasks. Its robust internal design ensures consistent performance in demanding distributed control system (DCS) environments.

Memory Capacity and Scalability

This CPU module incorporates a 128 MB memory capacity to handle extensive process data. It manages up to 128 I/O points for diverse field device integration. Additionally, the CP451-50 supports connectivity for up to 16 expansion modules. This scalability allows engineers to expand system capabilities as plant requirements grow. The module effectively coordinates communication between the controller and the field network. Consequently, it maintains precise control over large-scale industrial processes.

Hardware Integration and Environment

Yokogawa builds the CP451-50 for standard industrial areas without the need for explosion protection. It fits seamlessly into the Field Interface I/O (FIO) system rack. The module occupies a compact footprint while offering comprehensive diagnostic features. These diagnostics help technicians monitor the health of the processor in real time. Moreover, the unit utilizes a standard Ethernet router service for networking. This integration enhances the overall reliability of the AFV series control stations.

Technical Specifications
