Description

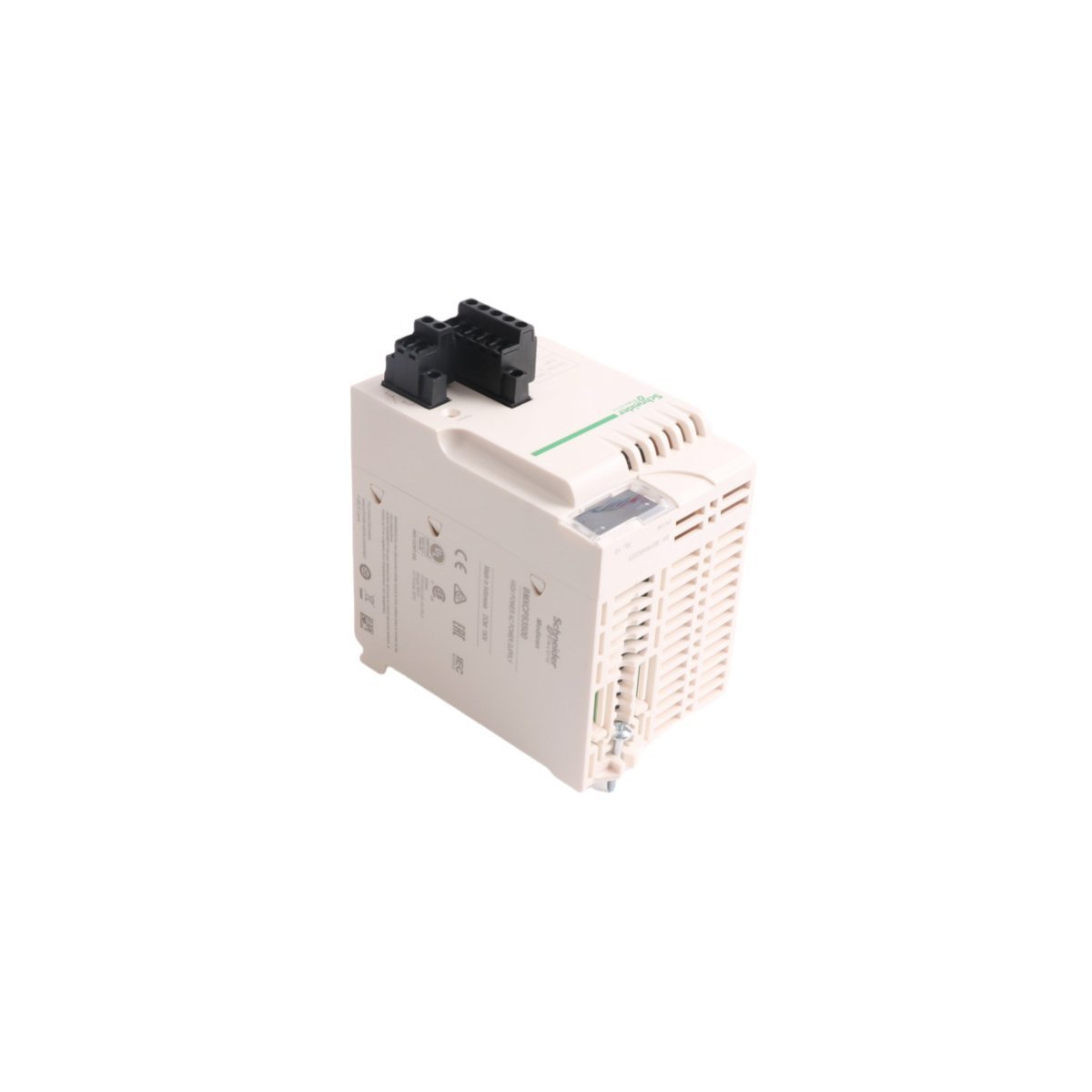

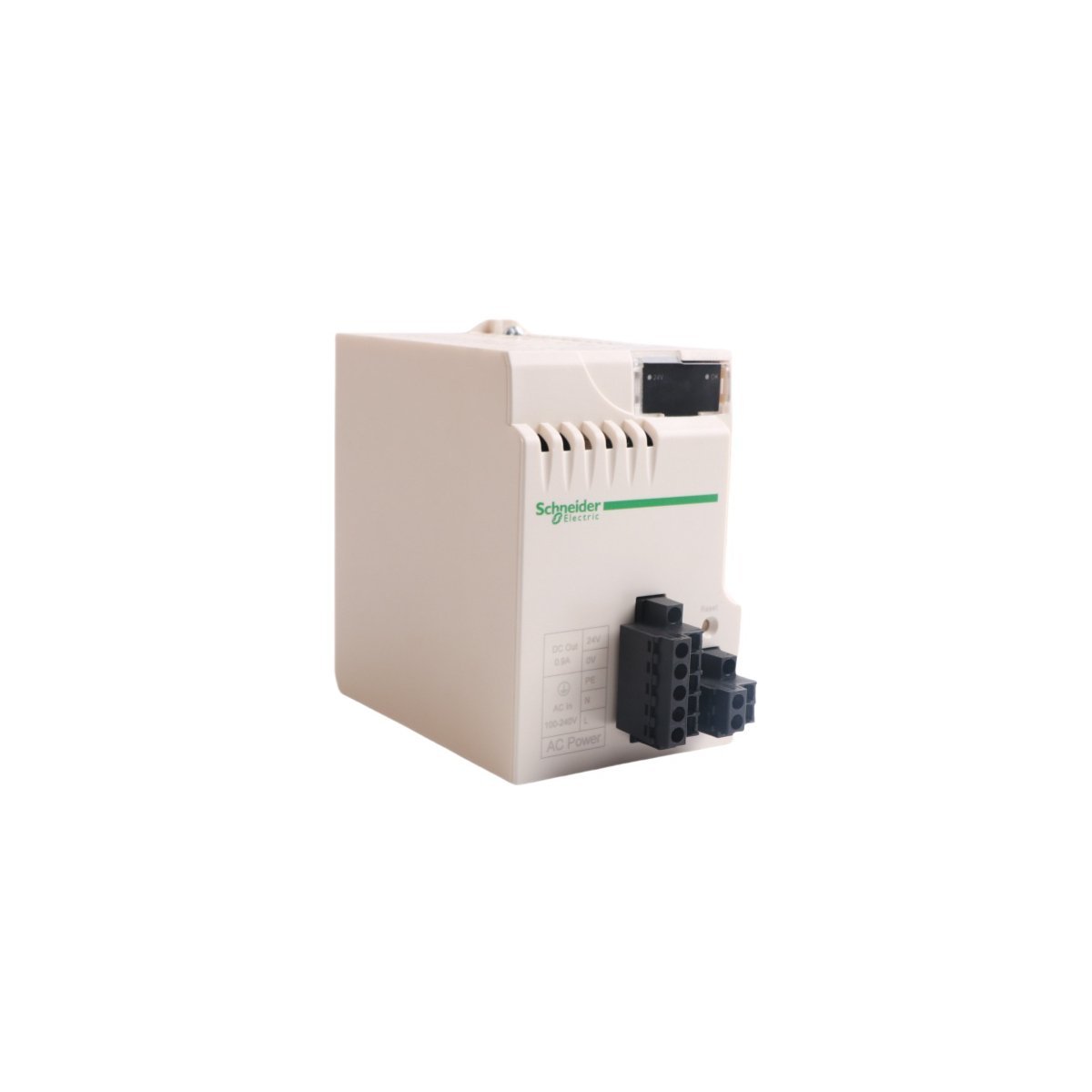

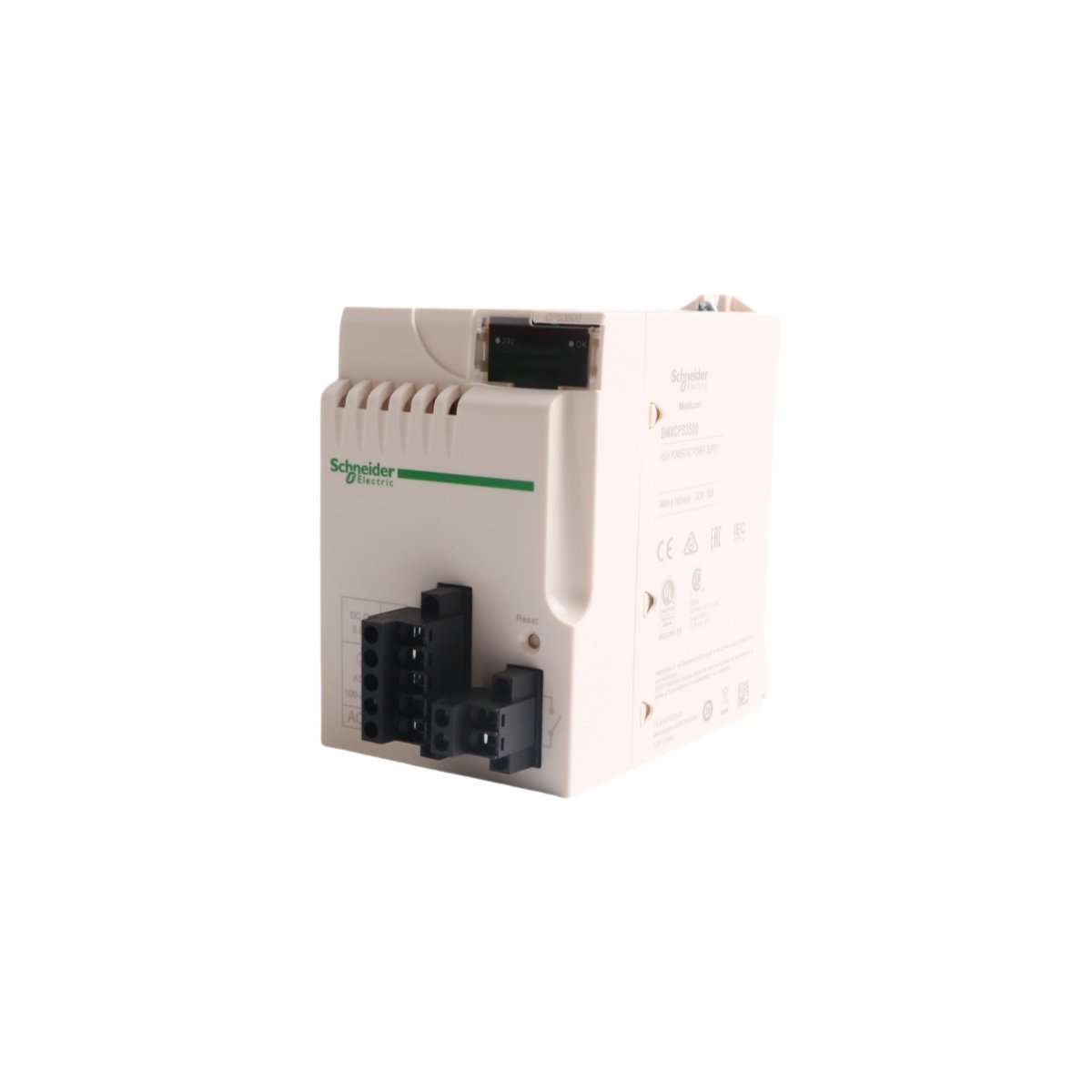

The Schneider Electric BMXCPS3500 serves as the primary energy source for Modicon X80 backplanes. This modular unit supports both M340 and M580 programmable automation controllers. It converts alternating current into stable direct current for internal components. The module powers both the core logic circuits and connected I/O hardware. Furthermore, its standardized design simplifies system architecture in complex industrial networks. Engineers rely on this module to maintain continuous operation in diverse process control environments.

Core Technical Specifications

• Brand: Schneider Electric
• Model Number: BMXCPS3500
• Product Type: AC Power Supply Module
• Input Voltage: 100V to 240V AC
• Total Secondary Power: 36 W
• Logic Output: 15 W at 3.3V DC
• I/O Sensor Power: 31.2 W at 24V DC
• Network Frequency: 50/60 Hz
• Power Dissipation: 8.5 W maximum
• Protection Rating: IP20
• Operating Temperature: 0°C to 60°C
• Relay Output: Integrated 2-pin alarm relay

Operational Reliability and Integration

This power supply module includes advanced protection against electrical surges and overloads. It features high resistance to extreme humidity and temperature fluctuations. The hardware provides a dedicated alarm relay for remote fault detection. This capability allows maintenance teams to react quickly to power interruptions. Additionally, the compact form factor saves valuable space within the PLC rack. The module connects easily via a 5-pin line supply connector. It also incorporates a protective earth terminal for enhanced electrical safety.

Industrial Applications and Compatibility

The BMXCPS3500 fits seamlessly into the universal Modicon X80 ecosystem. It supports various I/O configurations across multiple industrial sectors. Common applications include water treatment, food processing, and material handling. The module complies with EN 61131-2 standards for programmable controllers. Moreover, it carries CE, UL, and CSA certifications for global deployment. While it powers most X80 racks, it does not support BMEXBP..02 backplanes. This module represents a dependable foundation for any high-availability automation system.
