Description

Brief Product Description

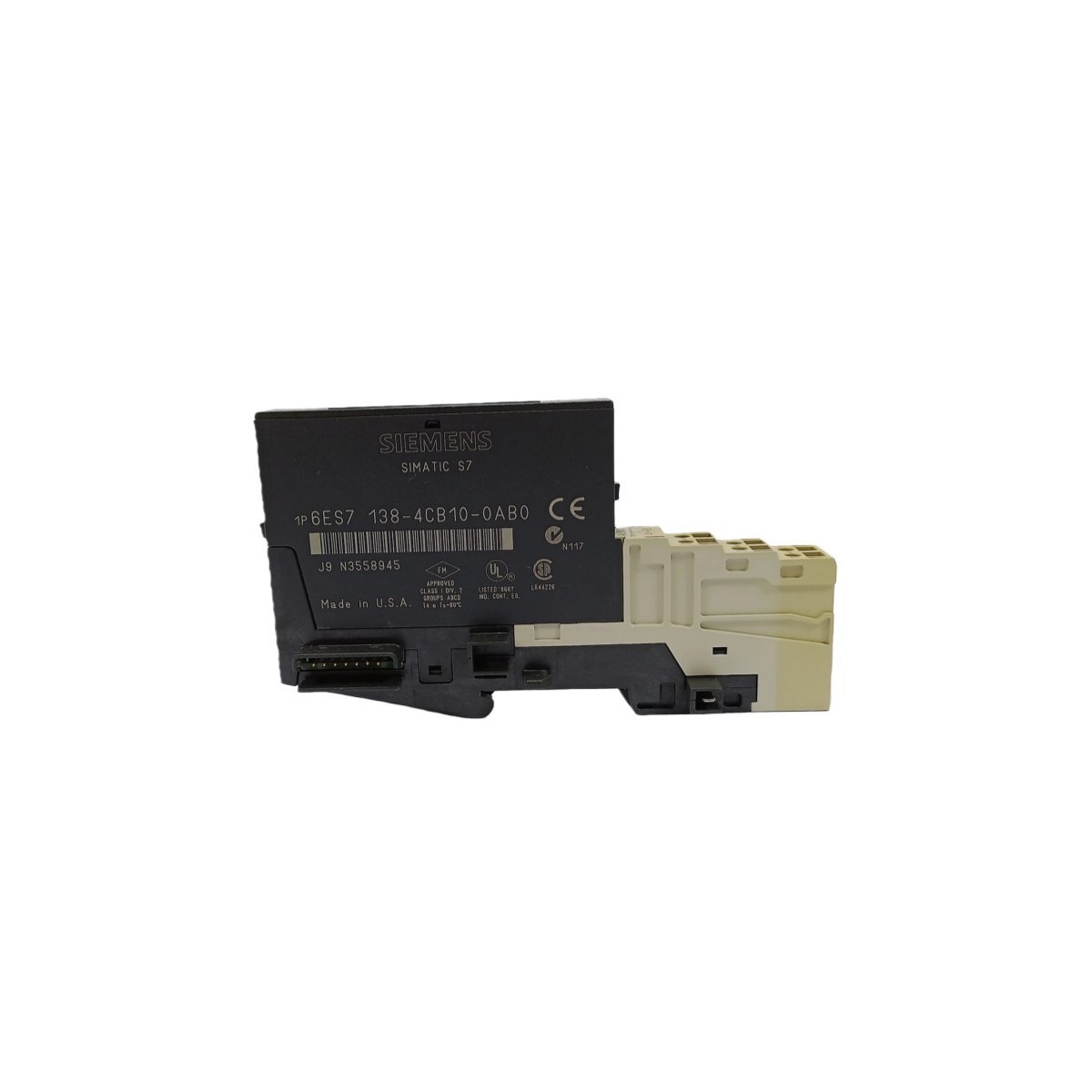

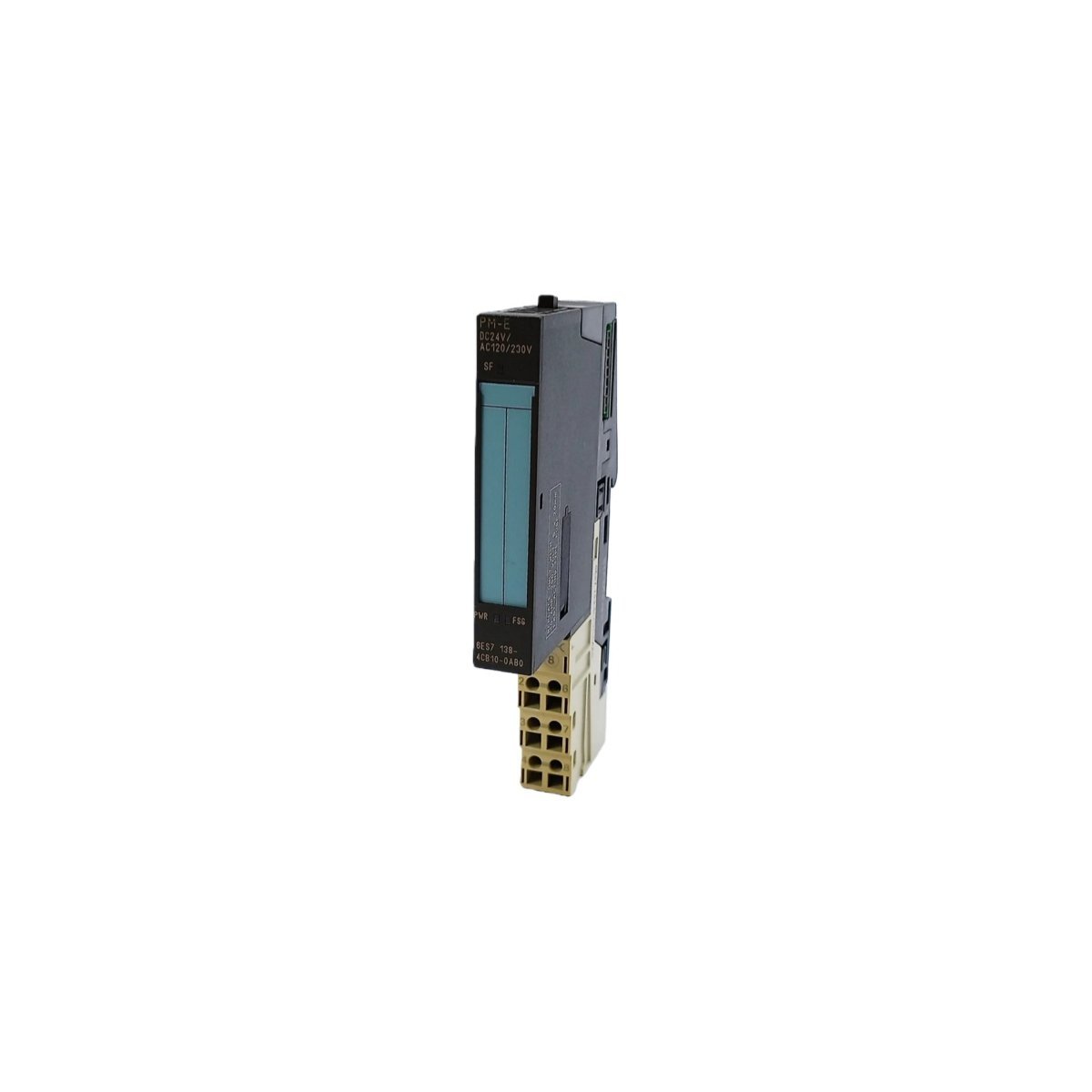

The Siemens 6ES7138-4CB10-0AB0 is a highly adaptable PM-E power module designed for the SIMATIC ET 200S distributed I/O system.² It manages and monitors the voltage supply for electronic modules, supporting a wide range of both AC and DC input voltages to ensure maximum station reliability.

Product Description

Versatile Power Distribution for ET 200S

The Siemens 6ES7138-4CB10-0AB0 serves as the primary power management interface for the SIMATIC ET 200S series. This PM-E module accepts various supply voltages, ranging from 24V to 48V DC and 24V to 230V AC, allowing it to integrate seamlessly into diverse global power grids.³ By providing a centralized point for power entry, the module effectively creates potential groups within the station, distributing necessary energy to downstream electronic modules while maintaining electrical isolation where required.

Integrated Protection and Maintenance Features

Reliability remains a core strength of the 6ES7138-4CB10-0AB0 hardware. Siemens engineers equipped this unit with a 10A current-carrying capacity, making it robust enough to power multiple high-demand I/O configurations. To safeguard the system against electrical faults, the module features an accessible, replaceable fuse that provides short-circuit protection. Furthermore, reverse polarity protection prevents damage during installation, while the module’s ability to operate in temperatures up to 60°C ensures consistent performance in high-density control cabinets.

Advanced Diagnostics and Monitoring

The module significantly reduces troubleshooting time through its proactive diagnostic capabilities. It continuously monitors the presence of load voltage and communicates the status back to the central PLC. If a voltage failure or a blown fuse occurs, the module triggers a diagnostic interrupt, enabling maintenance teams to identify and resolve power issues immediately. This constant oversight minimizes system downtime and protects sensitive automation components from unstable power conditions.
