Product Overview

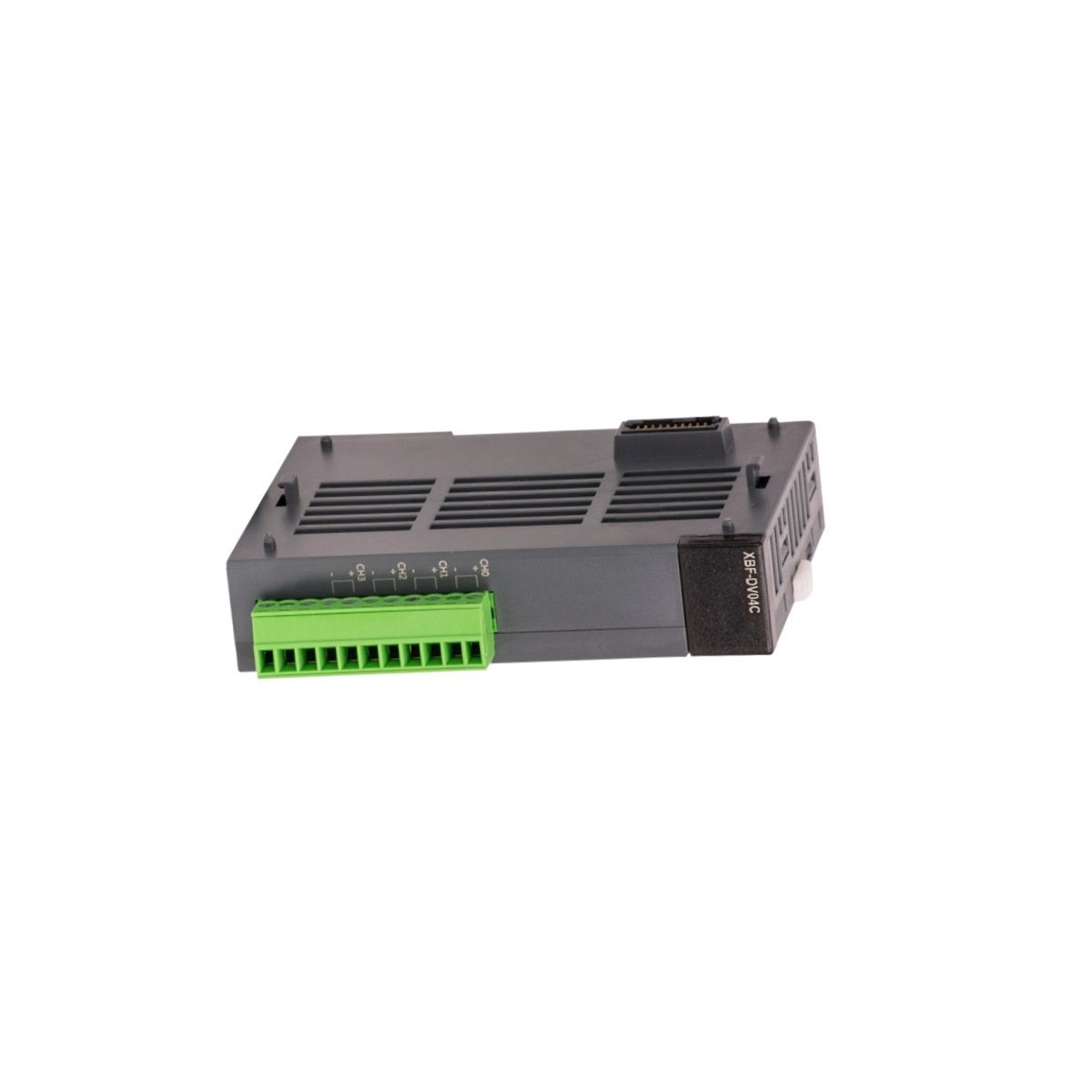

The Honeywell MLF-DV04C is a professional-grade 4-channel analog output module designed to provide accurate 0-10V DC voltage signals for industrial control systems. This hardware enables precise command over variable frequency drives, proportional valves, and other voltage-dependent field actuators.

High-Resolution Signal Processing and Accuracy

The MLF-DV04C delivers superior signal control through its 1/4000 resolution, which translates to a refined 2.5mV per increment. Because the module maintains an overall accuracy of ±0.5% or better, it ensures that field devices receive consistent and reliable instructions even in complex control loops. This high-precision output allows operators to fine-tune process variables with extreme granularity. Furthermore, the module supports versatile data formats, including unsigned integers (0 to 4000) and signed values (-2000 to 2000), allowing it to adapt to diverse software logic and mathematical modeling requirements.

Rapid Response and Industrial Reliability

To meet the demands of real-time automation, the MLF-DV04C features a high-speed conversion rate of 1.0ms per channel. This rapid processing ensures that changes in the control logic manifest almost instantly at the field level. The module operates on an external 24V DC power supply and includes integrated safeguards, such as a maximum absolute input rating of ±15V, to prevent damage from electrical surges. Additionally, the 11-point terminal block design streamlines the wiring process, providing a secure and vibration-resistant connection point for all four independent output channels.

System Integration and Scalability

As a critical component within the Honeywell DCS framework, the MLF-DV04C utilizes a fixed I/O point assignment of 64 points. This standardization simplifies system configuration and memory mapping during initial setup or facility expansion. The module’s compact 0.4kg build and standard industrial dimensions allow it to fit easily into existing cabinet architectures without requiring extensive modifications. By implementing the MLF-DV04C, system integrators achieve a robust and scalable solution for high-fidelity voltage signal generation in challenging electrical environments.
