Description

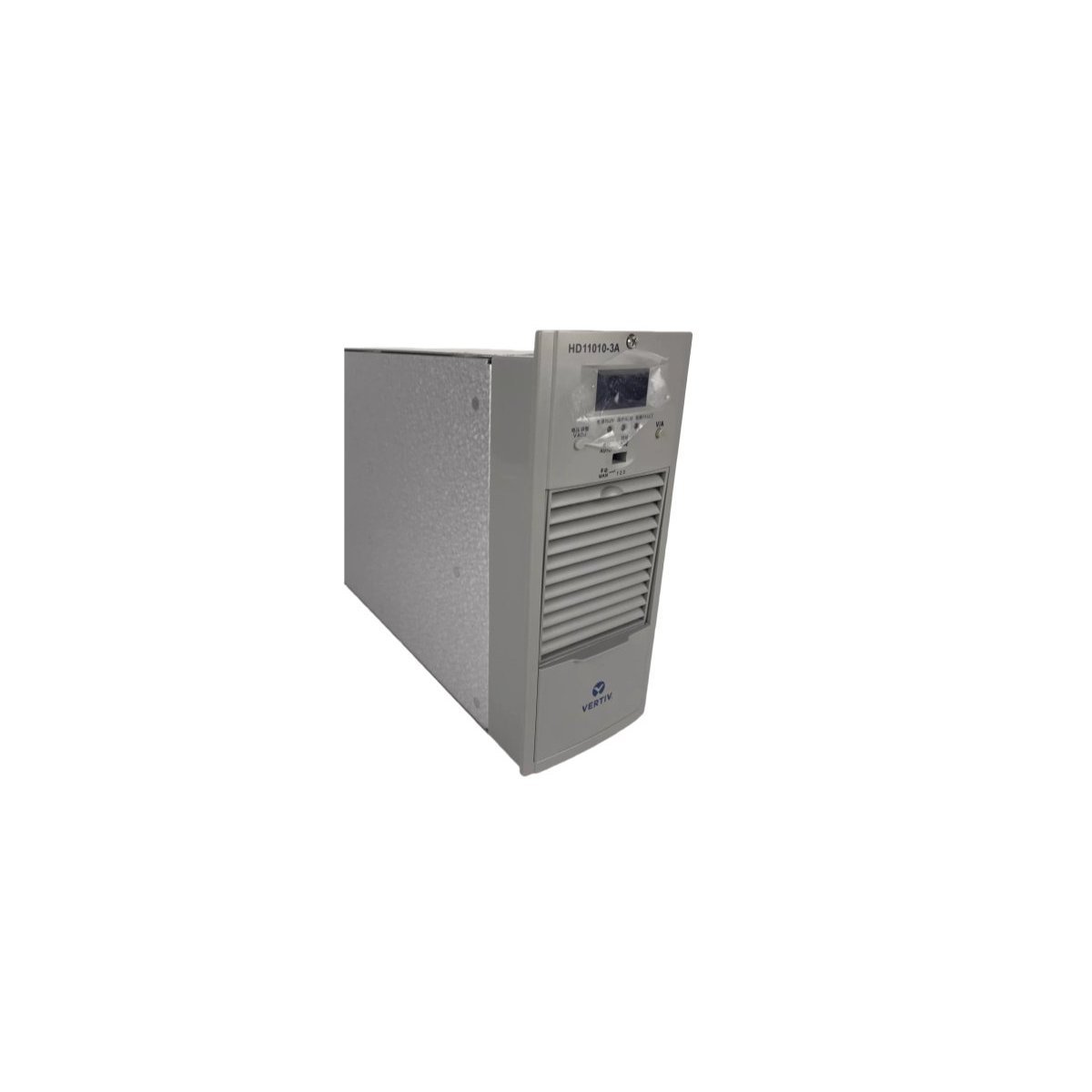

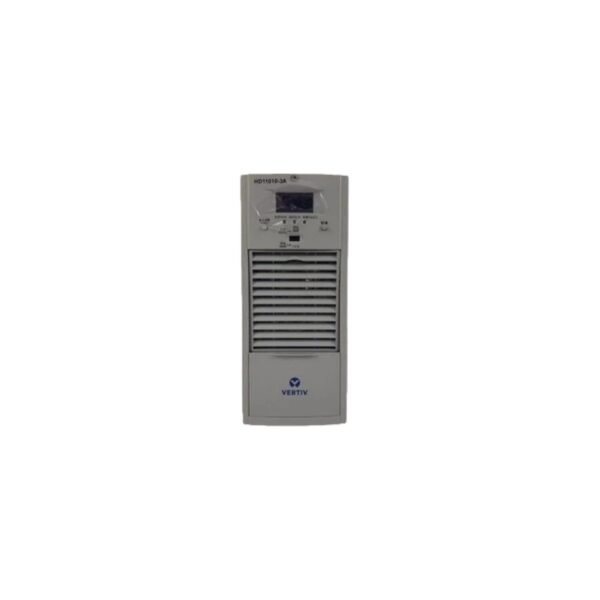

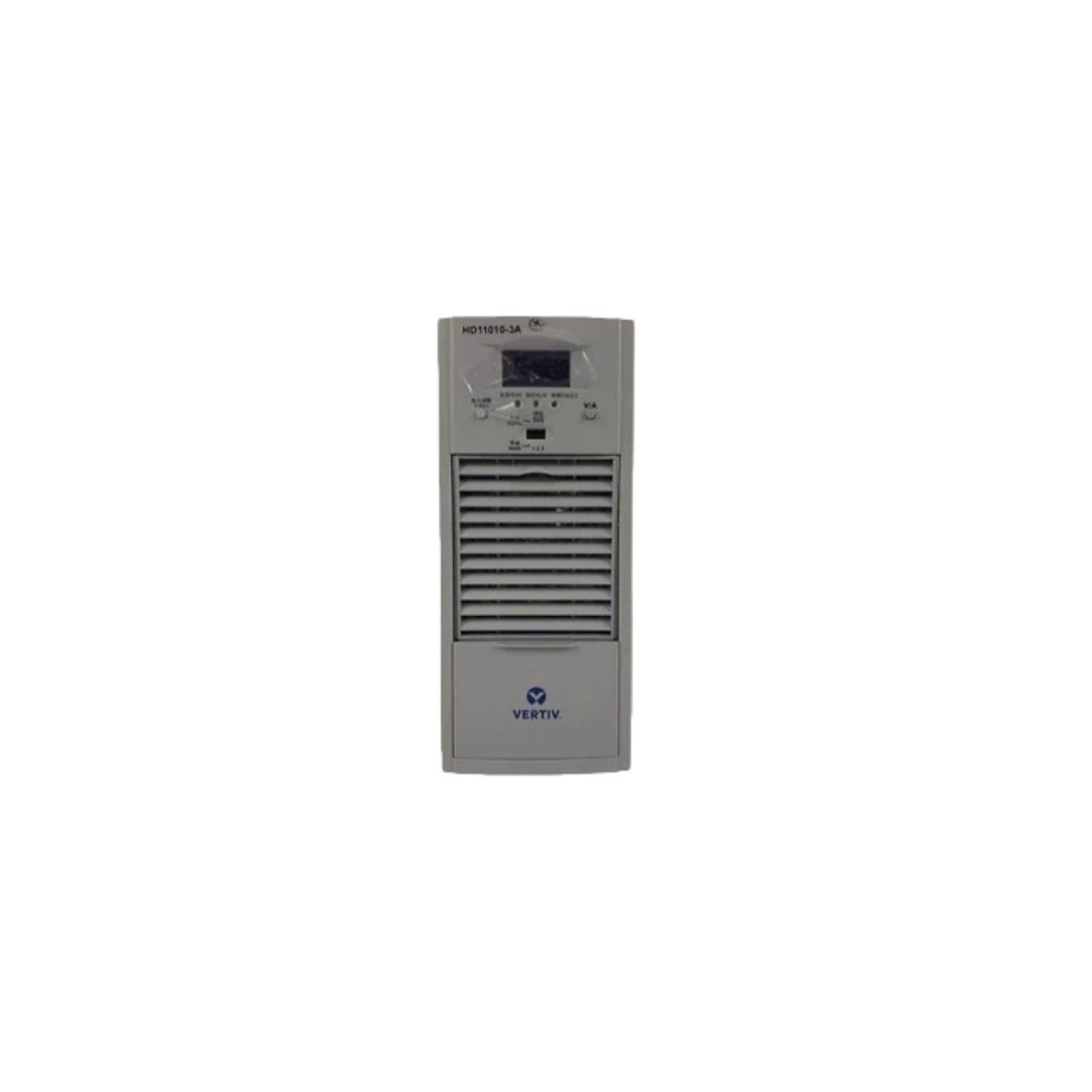

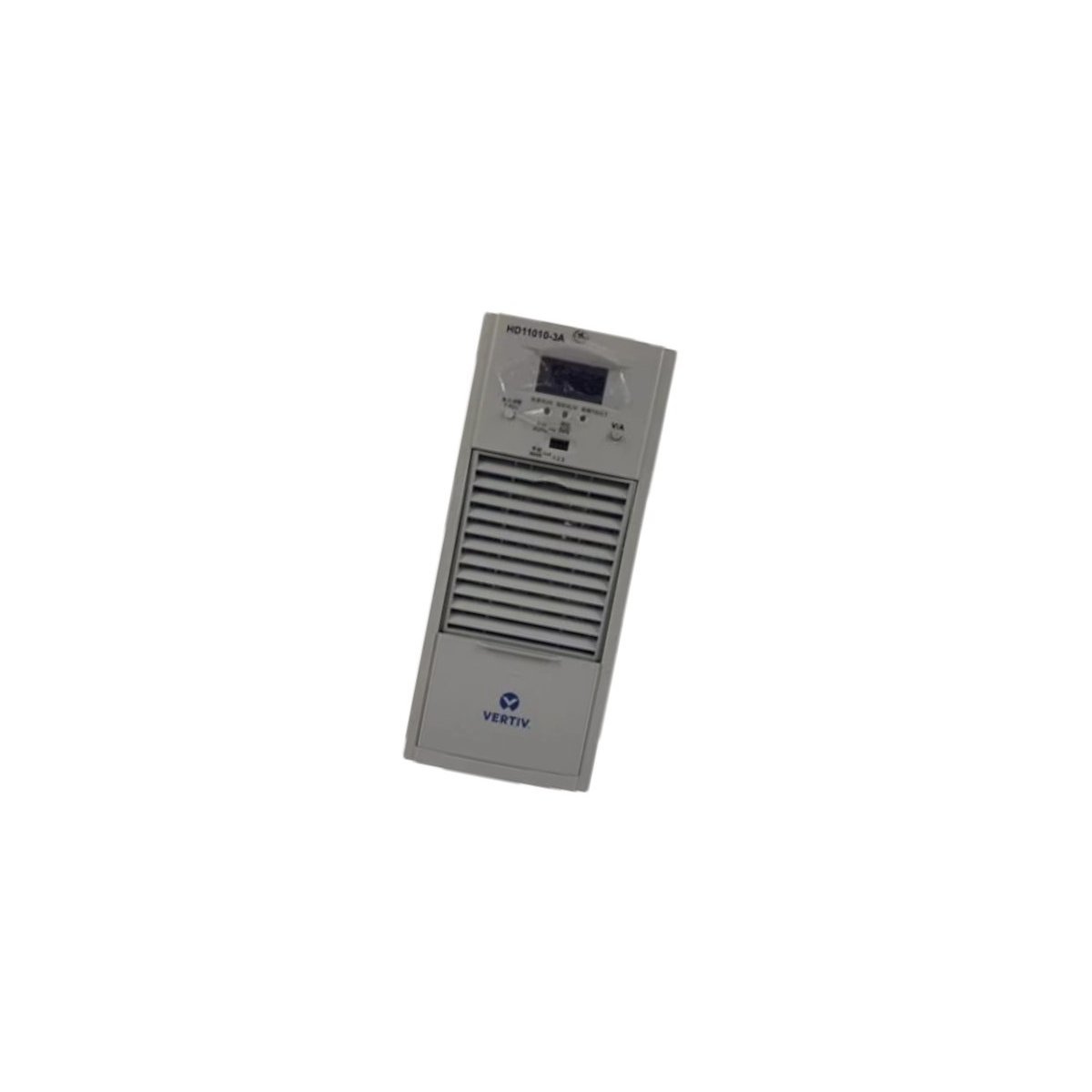

The Emerson HD11010-3A serves as a high-performance charging module for industrial DC power systems. This unit converts three-phase AC input into a stable 110V DC output. Furthermore, it provides a consistent 10A current for battery charging and system loads. Engineers specifically deploy this module in high-voltage substations and power distribution centers. Because it utilizes high-frequency switching technology, the device maintains exceptional voltage stability. This ensures the longevity of connected battery banks and sensitive control electronics.

This power module features an intelligent control interface for precise regulation. It effectively manages energy conversion while minimizing heat generation within the cabinet. Additionally, the compact design allows for easy integration into existing DC power panels. The module also includes built-in protection against overvoltage and short circuits. This proactive safety design prevents damage to the broader electrical infrastructure. Consequently, it remains a trusted component for critical power plants and 1000KV substations.

Technical Specifications and Capabilities

• Manufacturer: Emerson / Vertiv
• Model Number: HD11010-3A
• Equipment Type: High-Frequency Switching Rectifier
• Input Voltage: Three-Phase 380V – 400V AC
• Rated Output: 110V DC / 10A
• Conversion Efficiency: High-density switching mode design
• Module Weight: 6.0 kg
• Standard Dimensions: 413mm x 110mm x 257mm
• Protection Grade: Industrial-level circuit safety
• Application Environment: Electrical substations and distribution rooms

Operational Benefits and Maintenance

The HD11010-3A simplifies maintenance through its modular hardware architecture. Technicians can perform straightforward installations or replacements due to the ergonomic handle design. Moreover, the unit provides real-time feedback to monitoring modules for remote status tracking. This integration allows for predictive maintenance and faster troubleshooting. The module also operates reliably across wide temperature fluctuations in industrial settings.

This charging module excels in demanding environments where uptime is non-negotiable. It supports parallel configurations to increase total system capacity or provide redundancy. Therefore, facilities can scale their power systems as their electrical needs grow. The high-quality internal components ensure stable performance over a long service life. Organizations choose this Emerson solution to reduce operational risks in vital energy sectors. It delivers the precision and durability required for modern automation and control.

Primary Industrial Applications

The Emerson HD11010-3A rectifier supports various critical power functions. Typical applications include:

• Charging lead-acid and nickel-cadmium battery banks in substations
• Providing reliable DC control power for circuit breakers
• Supporting emergency lighting systems in power distribution rooms
• Powering monitoring and communication equipment in remote sites
• Maintaining stable voltage for protective relay systems
