Description

Product Overview

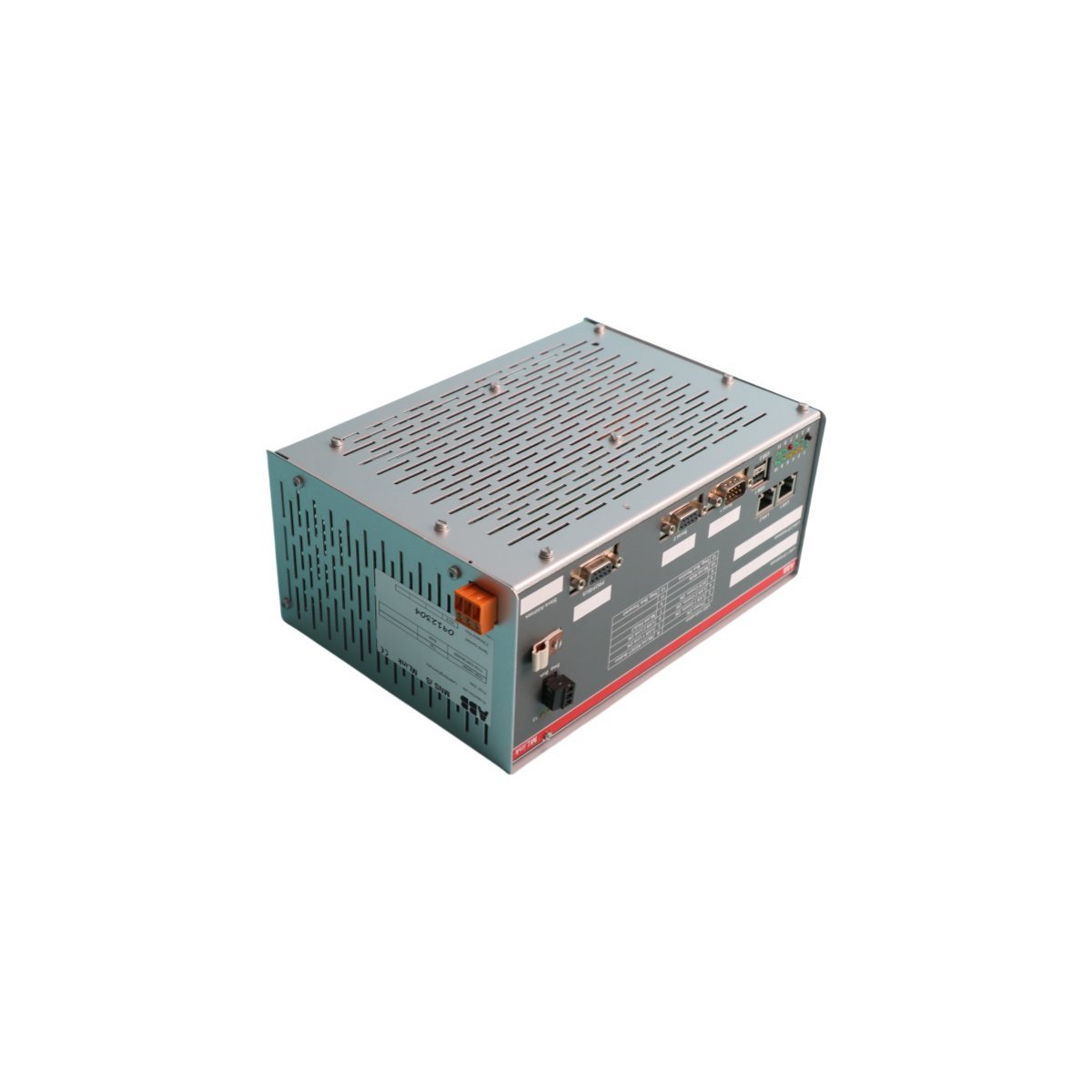

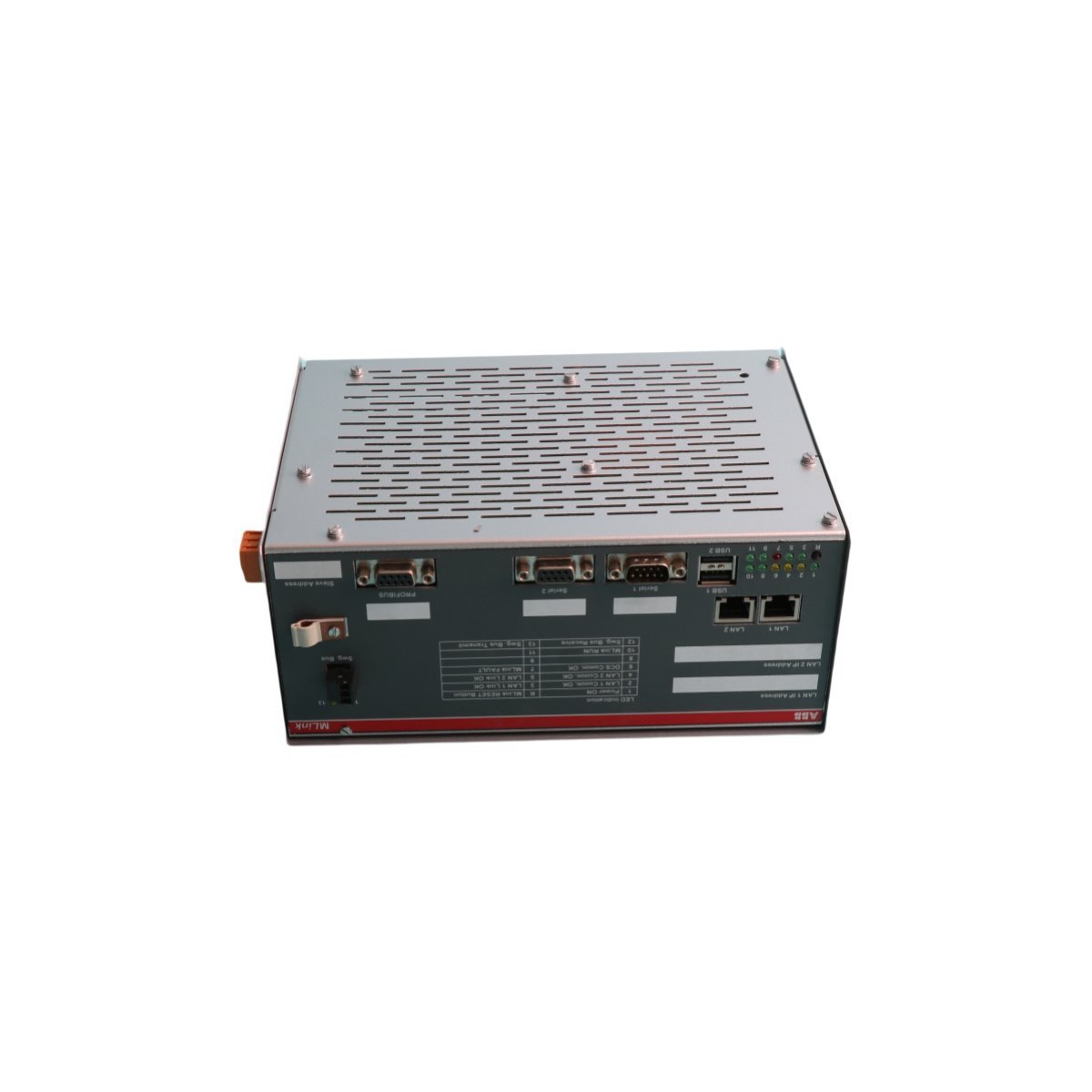

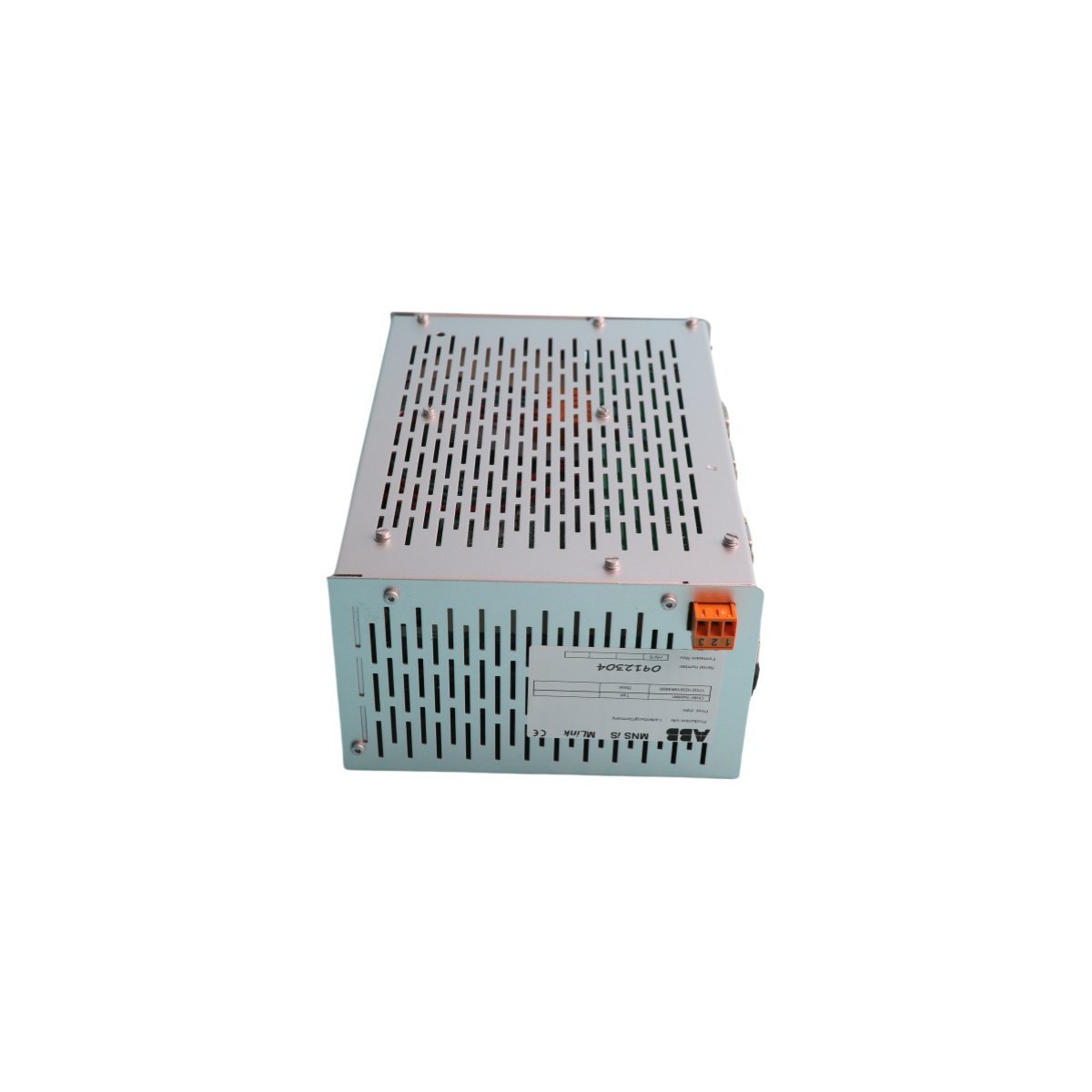

The ABB 1TGE102019R4800 is a multifunctional 24V DC interface module that integrates power distribution with high-speed network connectivity. It provides the essential communication bridge and stable voltage required for complex industrial automation and process control environments.

Dual-Purpose Power and Communication

The 1TGE102019R4800 acts as both a stabilized 24V DC power source and a high-performance communication hub for modern control architectures. By combining these two functions into a single DIN-rail mounted housing, the module significantly reduces the space required within electrical cabinets. Furthermore, the unit supports seamless data exchange through its integrated 10/100 Mbps RJ45 Ethernet port. This connectivity allows the module to interface effortlessly with higher-level DCS and PLC systems while simultaneously managing localized power needs.

Robust Protocol Support and Safety

To ensure maximum flexibility in diverse automation networks, the module natively supports multiple industrial protocols. Users can implement Modbus TCP/IP through the Ethernet interface or utilize the RS485 port for Modbus RTU serial communication. Because safety remains a priority in industrial settings, ABB has engineered this module with a 1500V AC isolation barrier. This high level of isolation effectively prevents ground loops and protects sensitive logic circuitry from electrical transients. Additionally, the module features built-in surge protection to maintain operational continuity during power fluctuations.

Environmental Resilience and Application

The 1TGE102019R4800 excels in demanding climates, operating reliably within a broad temperature range of -25°C to +70°C. This thermal tolerance makes it an ideal choice for unregulated industrial environments, such as remote power distribution sites or offshore platforms. Its Swedish-engineered design ensures longevity in motor drive applications, continuous process industries, and smart factory IIoT deployments. Consequently, many facilities choose this interface module to unify their field-side device management with their centralized control infrastructure.

Technical Characteristics
