Description

Product Overview

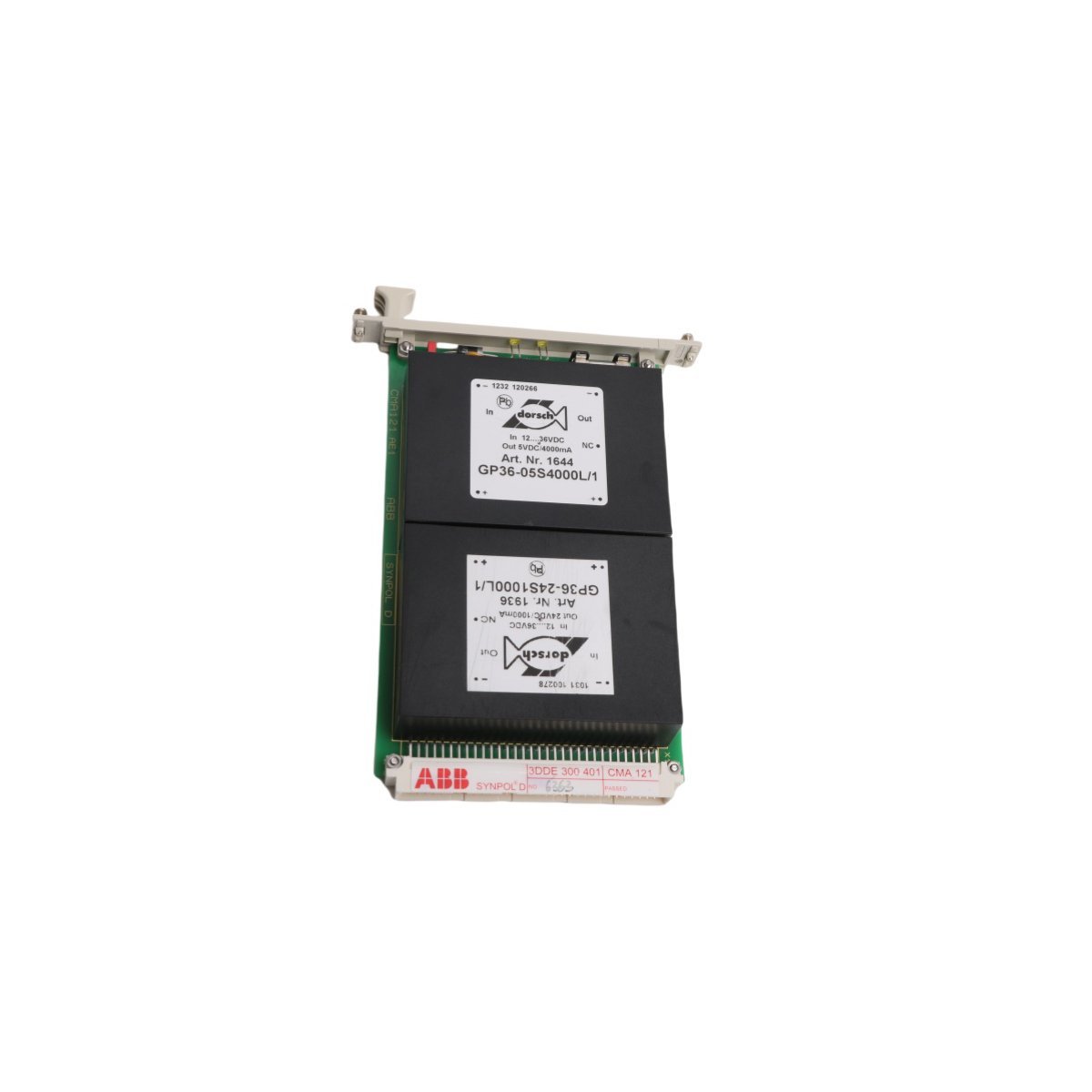

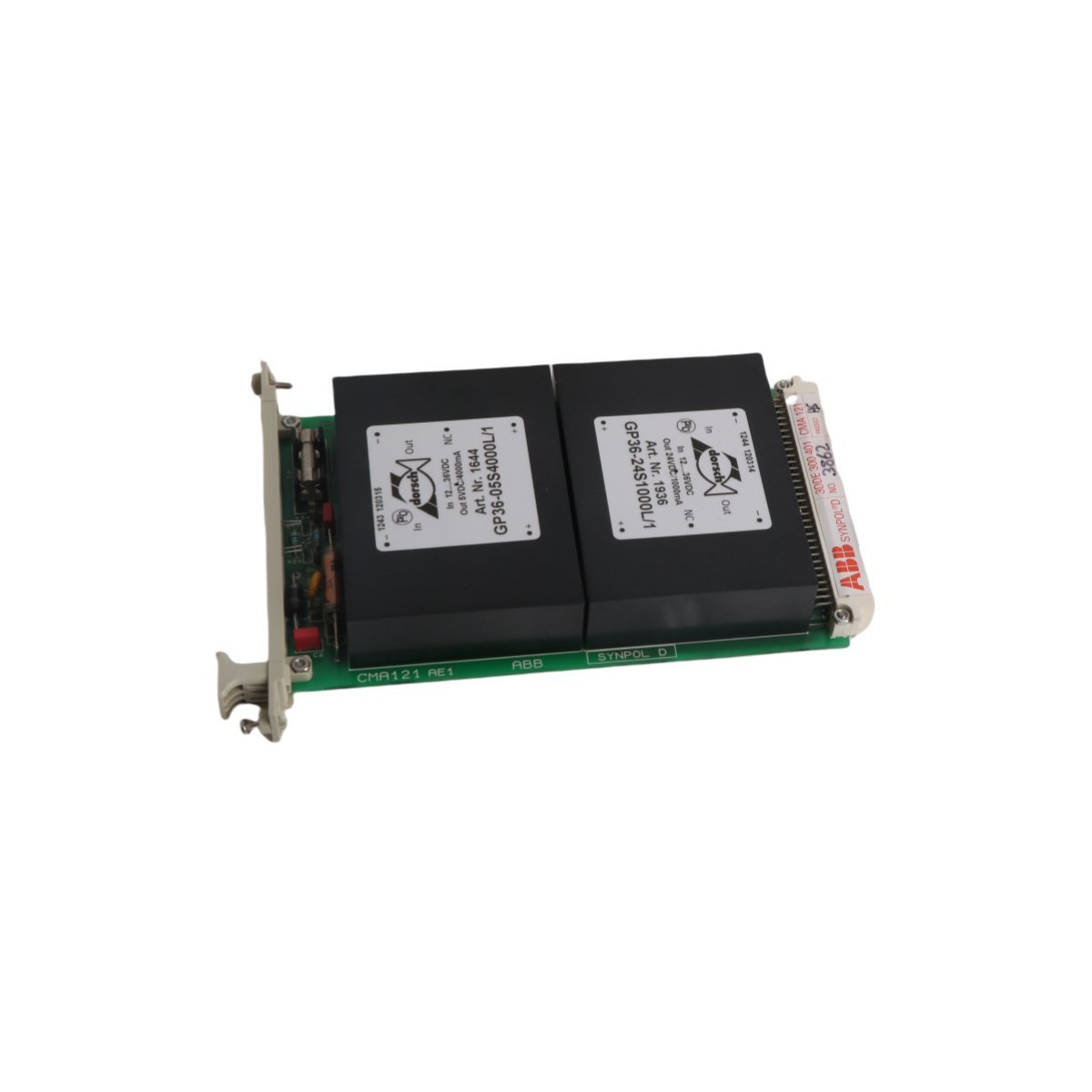

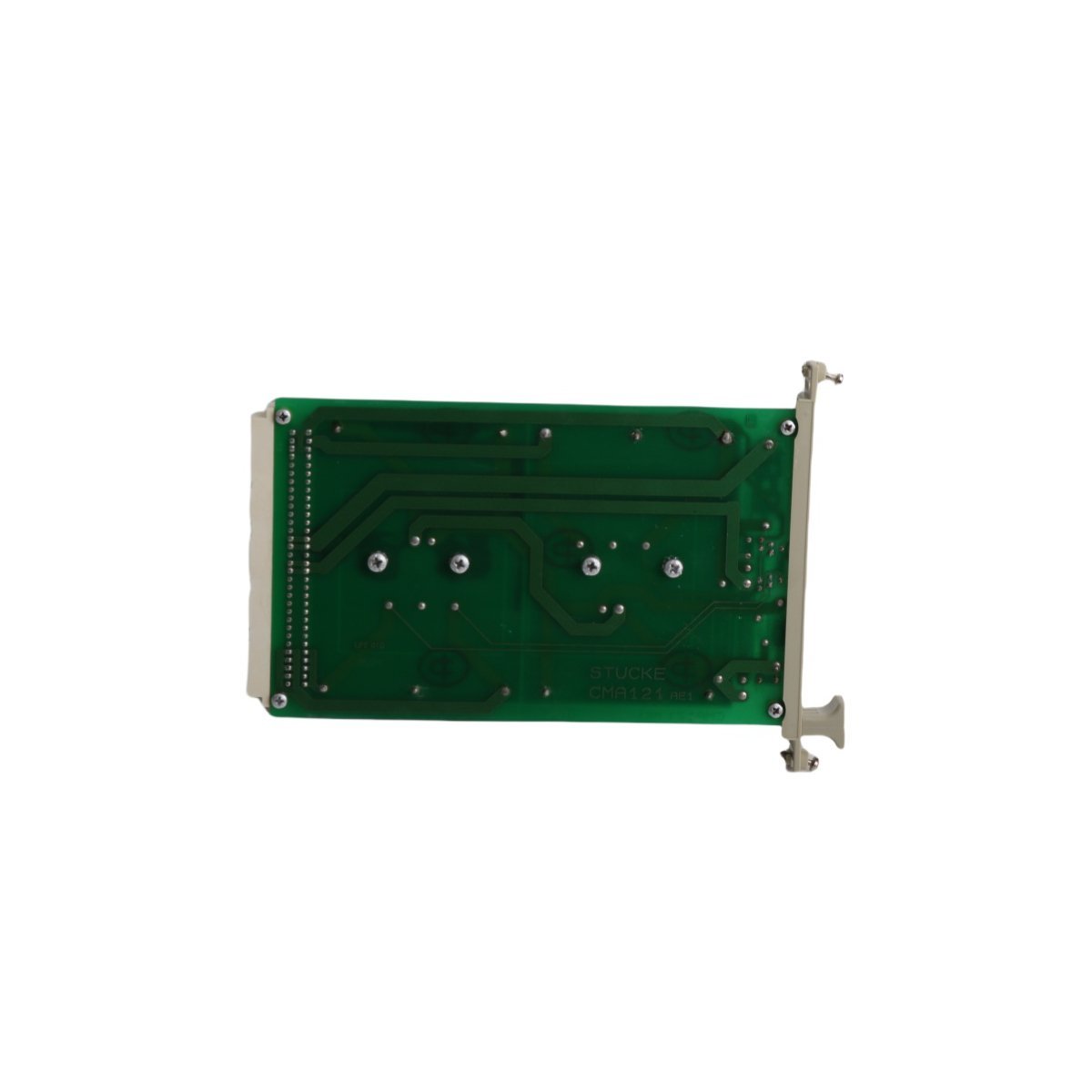

The ABB CMA121 (3DDE300401) is a precision DC/DC converter designed to provide stabilized 5V power to sensitive electronic components within industrial automation environments. This module effectively steps down standard 24V DC field power while providing essential galvanic isolation to protect control logic from electrical noise.

Precision Voltage Regulation

The CMA121 serves as a critical power conditioning interface for high-stakes automation systems. While primary field power often fluctuates, this module accepts a broad input range from 18V to 32V DC and converts it into a highly stable 5V DC output with a strict $\pm1\%$ tolerance. Because digital control circuits require clean energy to prevent logic errors, the module limits peak-to-peak ripple and noise to under 50mV. This level of precision ensures that processors and communication interfaces operate with maximum reliability, even in facilities with significant electromagnetic interference.

Advanced Circuit Protection and Isolation

Safety and system integrity represent the core design principles of the 3DDE300401 hardware. The module incorporates 500V DC input-to-output isolation, which prevents ground loop currents from damaging expensive DCS controllers or interfering with signal integrity. Furthermore, the unit manages thermal loads efficiently by maintaining an energy efficiency rating of over 85%. This high efficiency allows the module to deliver a continuous 20W (4A) output without requiring excessive cooling, making it a dependable choice for densely packed motor control centers and remote terminal units (RTUs).

Industrial Versatility and Integration

ABB specifically engineered the CMA121 for seamless integration into various Distributed Control System (DCS) architectures. Its compact dimensions allow for high-density installation in standardized control cabinets, optimizing precious rail space. The rugged construction, typical of Swedish engineering, enables the module to withstand the mechanical vibrations and thermal variations common in manufacturing and energy sector applications. Consequently, plant operators utilize this power supply module to ensure consistent performance in applications involving long cable runs or unstable primary power sources.

Technical Characteristics
