Description

Brief Product Description

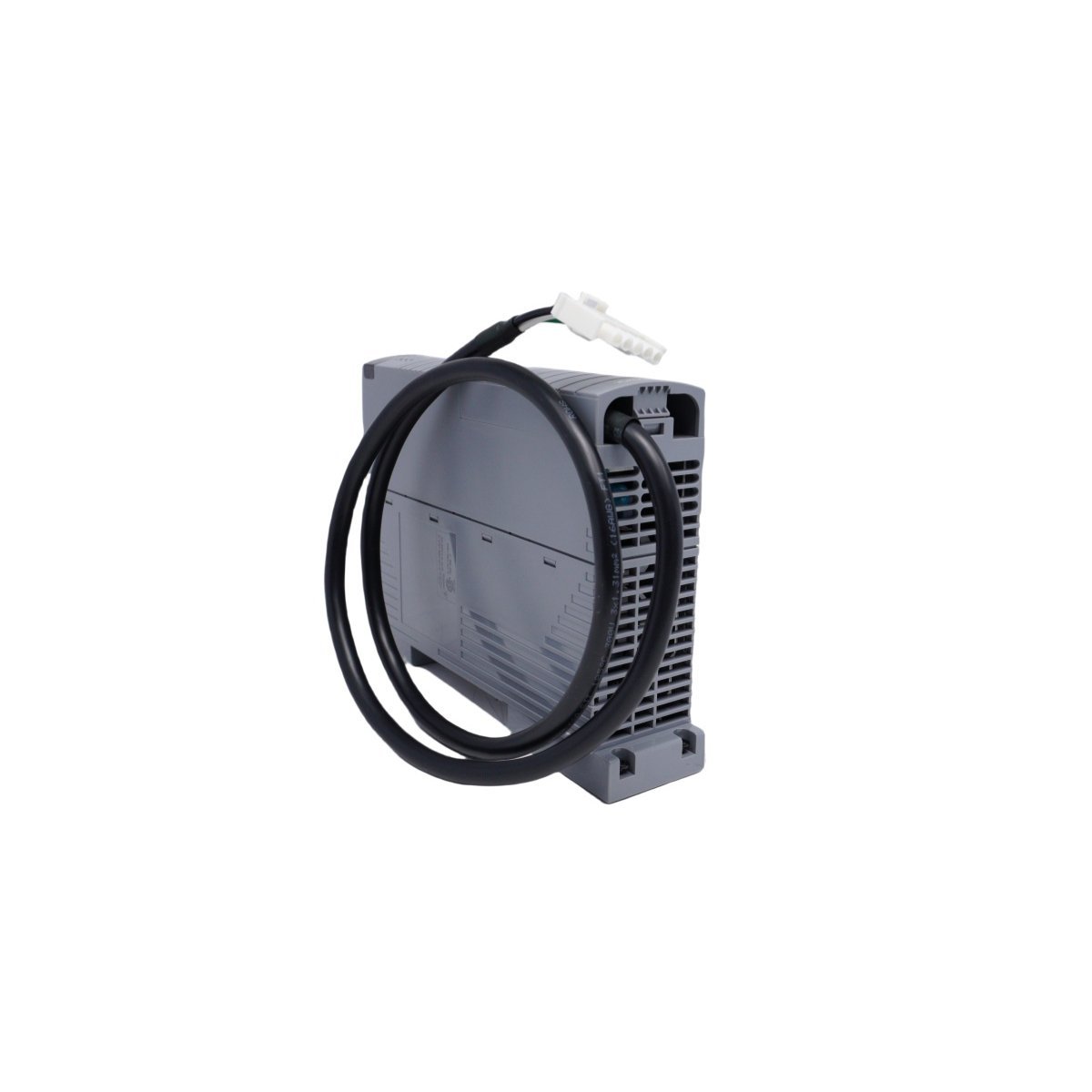

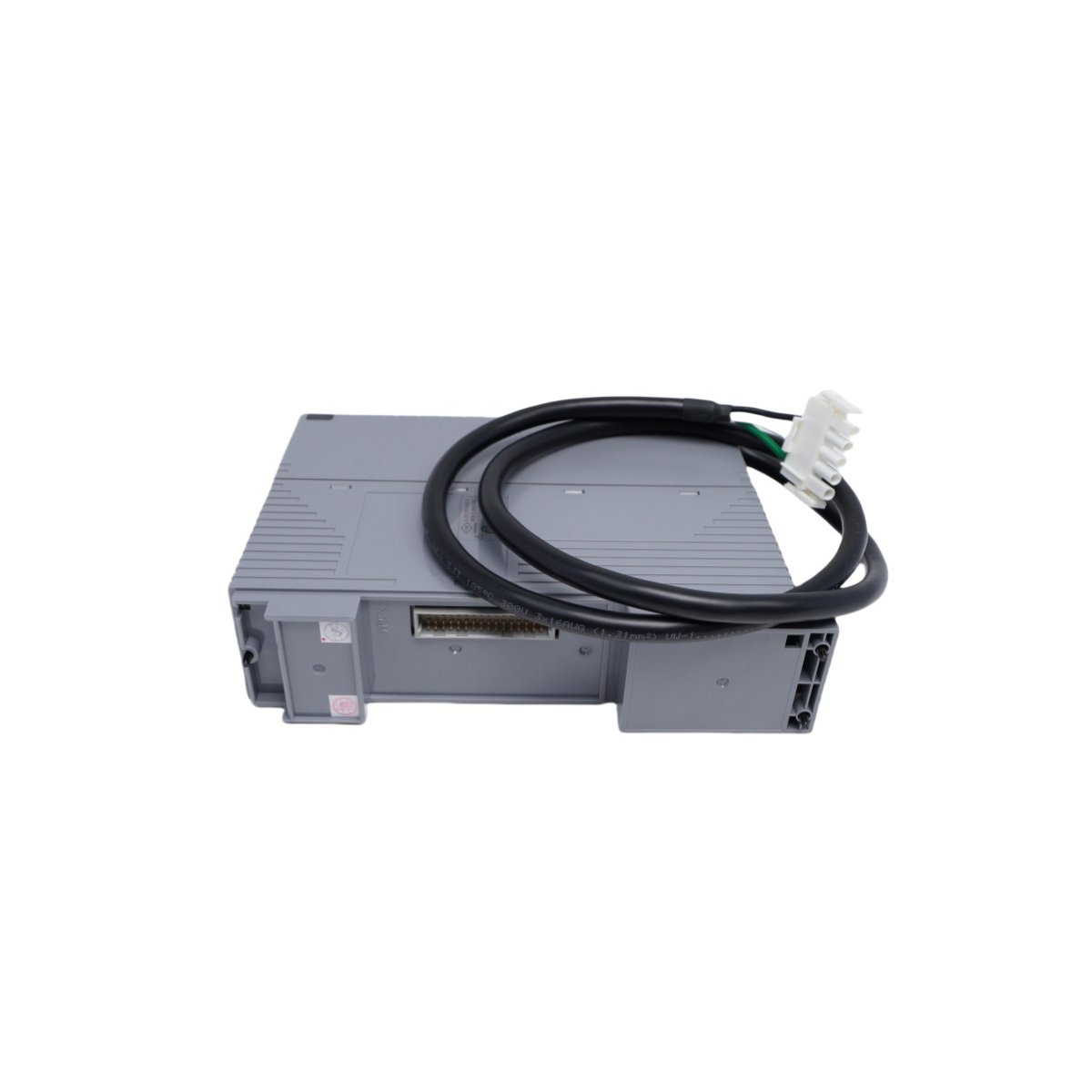

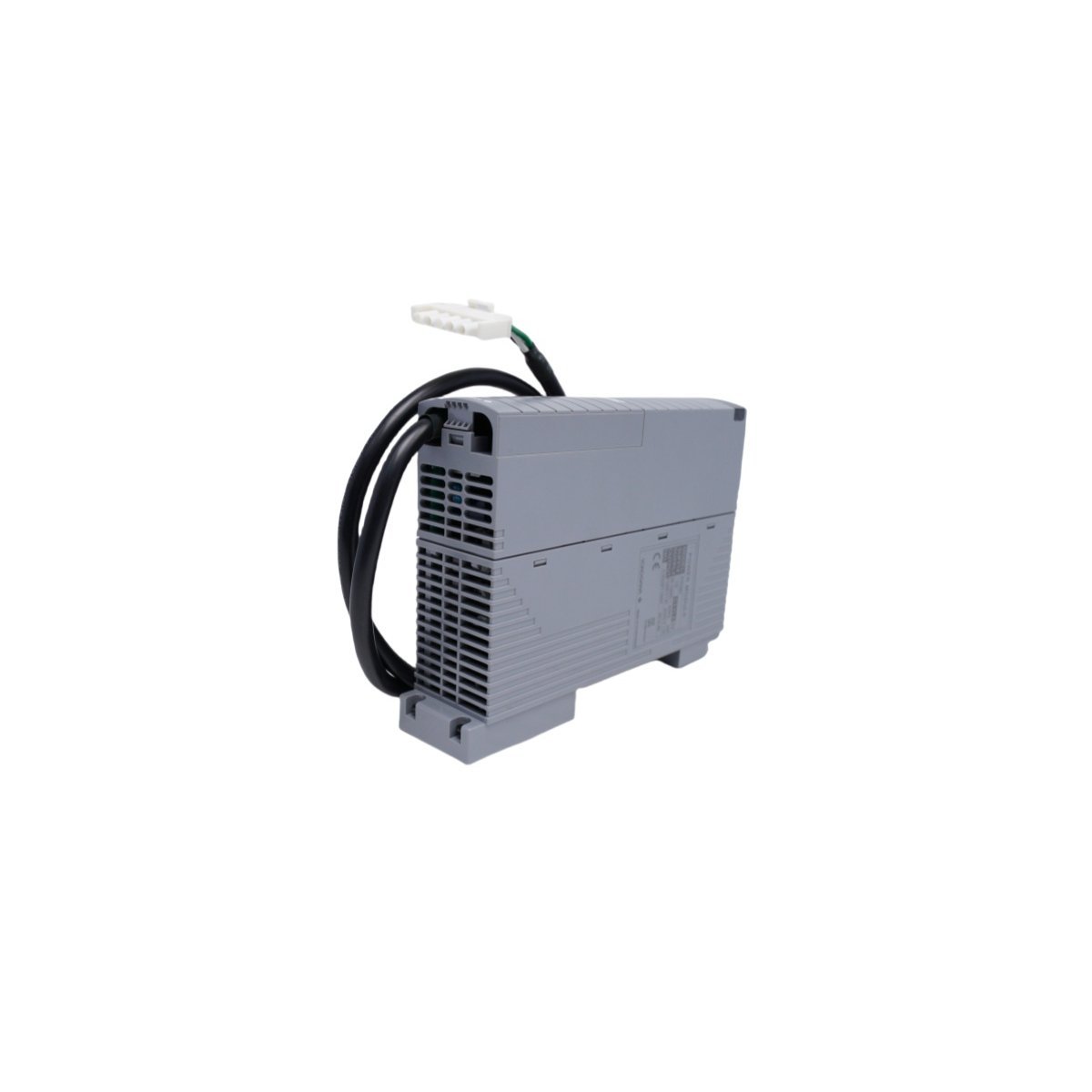

The Yokogawa PW481-50 S2 is a high-capacity power supply module designed to provide stable AC-to-DC conversion for Centum VP control stations. It features built-in protection and redundancy support to ensure continuous operation of critical distributed control system (DCS) hardware.

Stable Energy Distribution for Control Stations

The Yokogawa PW481-50 S2 serves as the primary energy backbone for Centum VP Field Control Stations (FCS). This module efficiently converts standard 100-120V AC input into the precise DC voltages required by the internal system backplane and processor cards. Because industrial processes demand zero downtime, the PW481-50 S2 utilizes high-grade filtering components to eliminate line noise and voltage ripples. Consequently, the module provides a “clean” energy source that prevents logic errors and hardware degradation in sensitive electronic components.

Integrated System Protection and Fault Tolerance

Yokogawa prioritizes system uptime by embedding sophisticated safety mechanisms within the PW481-50 S2 circuitry. The module actively monitors for over-voltage, over-current, and thermal irregularities, automatically triggering protective shutdowns if parameters exceed safe limits. Furthermore, the S2 variant supports redundant configurations. When two modules install in a dual-power setup, they balance the load and provide instantaneous failover should one unit lose input power. This parallel architecture ensures that the DCS remains fully operational during power maintenance or localized grid failures.

Optimized Maintenance and Thermal Management

Engineered for the harsh environments of power plants and chemical refineries, the PW481-50 S2 features a rugged mechanical design that facilitates natural convection cooling. Transitioning to this power module simplifies cabinet thermal management, as its high-efficiency conversion reduces waste heat. Additionally, the front panel includes clear LED status indicators that provide technicians with immediate visual confirmation of “Power OK” or fault conditions. This diagnostic transparency, combined with a hot-swappable form factor, allows for rapid replacement without interrupting the control process, thereby reducing the mean time to repair (MTTR).

Key Technical Characteristics

• Redundant Configuration Support: Enables dual-module setups for mission-critical reliability.
• Advanced Fault Protection: Includes integrated safeguards against short circuits and surges.
• Real-Time Diagnostics: Provides front-facing LED indicators for localized status monitoring.
• High Conversion Efficiency: Minimizes internal heat generation to extend module lifespan.
• Seamless DCS Integration: Designed specifically for Yokogawa Centum VP and CS 3000 racks.
• Robust Build Quality: Manufactured in Japan to meet stringent global industrial standards.

Technical Specifications
