Description

Brief Product Description

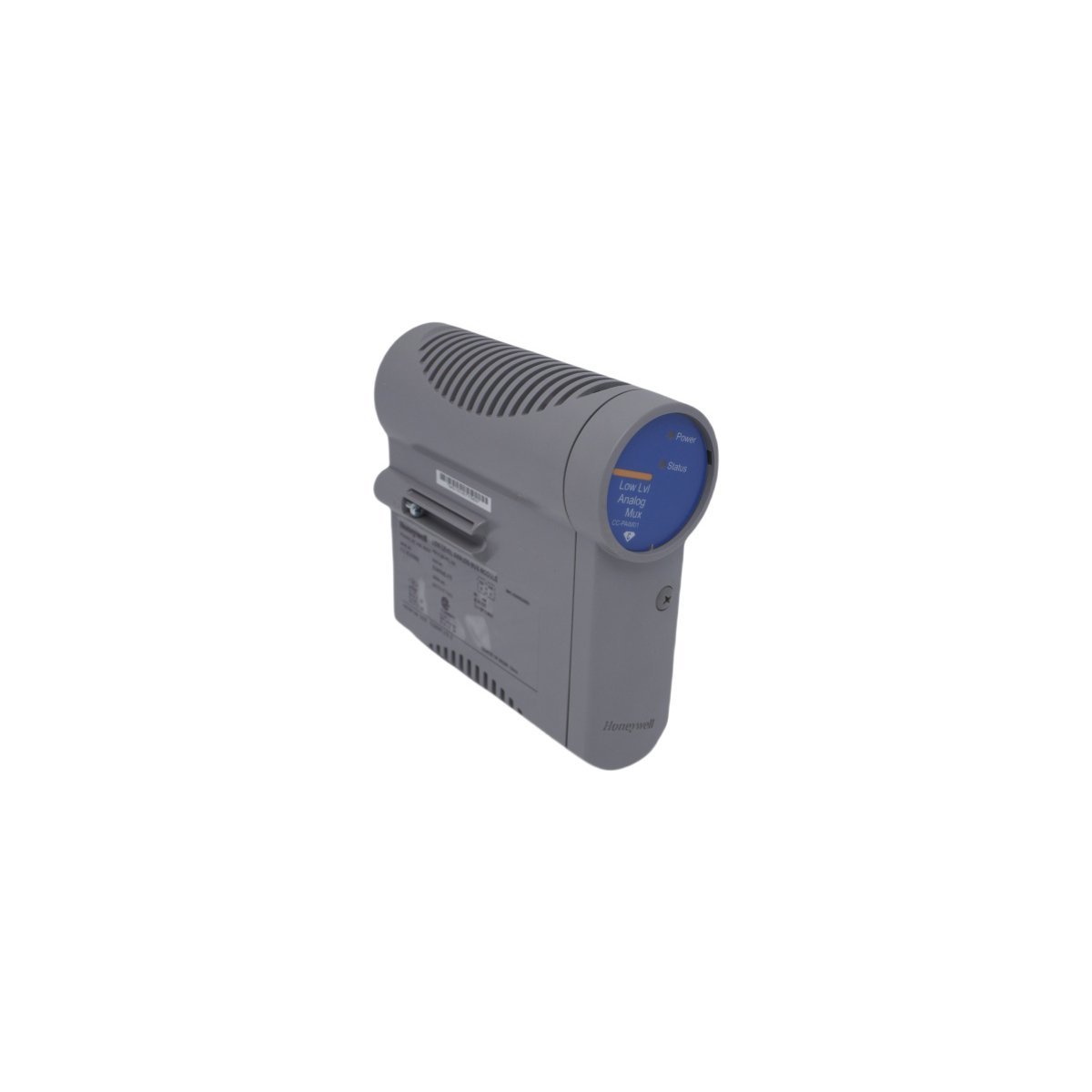

The Honeywell CC-PAIM01 (51405045-175) is a high-density Series C analog input module designed for the Experion Process Knowledge System (PKS). It provides high-resolution data acquisition for critical process variables, supporting precise monitoring of pressure, temperature, and flow sensors.

Precision Data Acquisition for Experion PKS

The Honeywell CC-PAIM01 51405045-175 serves as a core sensing interface within the Series C I/O architecture. This module converts high-level analog signals from field instrumentation into digital data that the Experion PKS controller can process. By utilizing a 24-bit Analog-to-Digital Converter (ADC), the module achieves exceptional measurement accuracy, typically within ±0.05% of the span. This precision allows plant operators to maintain tighter control over process loops, which significantly enhances product consistency in industries such as pharmaceutical manufacturing and chemical refining.

Robust Isolation and Field Reliability

Honeywell engineered the CC-PAIM01 to operate reliably in electrically noisy and physically demanding industrial environments. The module features 1500V of isolation between channels and ground, which effectively prevents ground loops and protects the system from high-voltage transients. Furthermore, its rugged design allows for continuous operation across a broad temperature range of -40°C to +70°C. Because the module supports HART protocol pass-through, maintenance teams can remotely access diagnostic data from smart field devices without disrupting the primary 4-20mA control signal. This capability simplifies device configuration and supports proactive asset management strategies.

Scalable Architecture and Maintenance Efficiency

The CC-PAIM01 module utilizes the distinctive Series C form factor, which features an angled header for easier field wiring and improved heat dissipation. Transitioning to this modular design enables “hot-swapping,” allowing technicians to replace modules without powering down the entire I/O rack. This feature is vital for continuous process industries where even minor downtime results in significant financial loss. Moreover, the integration of per-channel status LEDs provides immediate visual verification of module health, streamlining the troubleshooting process for on-site engineers.

Technical Characteristics

• High-Resolution Processing: Features a 24-bit ADC for ultra-precise process variable monitoring.
• Signal Protection: Provides 1500V galvanic isolation to ensure signal integrity in high-noise areas.
• Smart Device Communication: Fully supports HART 7 protocol for advanced field device diagnostics.
• Hot-Swap Capability: Enables module replacement during active operations to maximize system uptime.
• Extensive Environmental Tolerance: Rated for operation in extreme temperatures and non-condensing humidity.
• Series C Integration: Optimized for seamless mounting and communication within Honeywell Series C I/O assemblies.
