Description

Brief Product Description

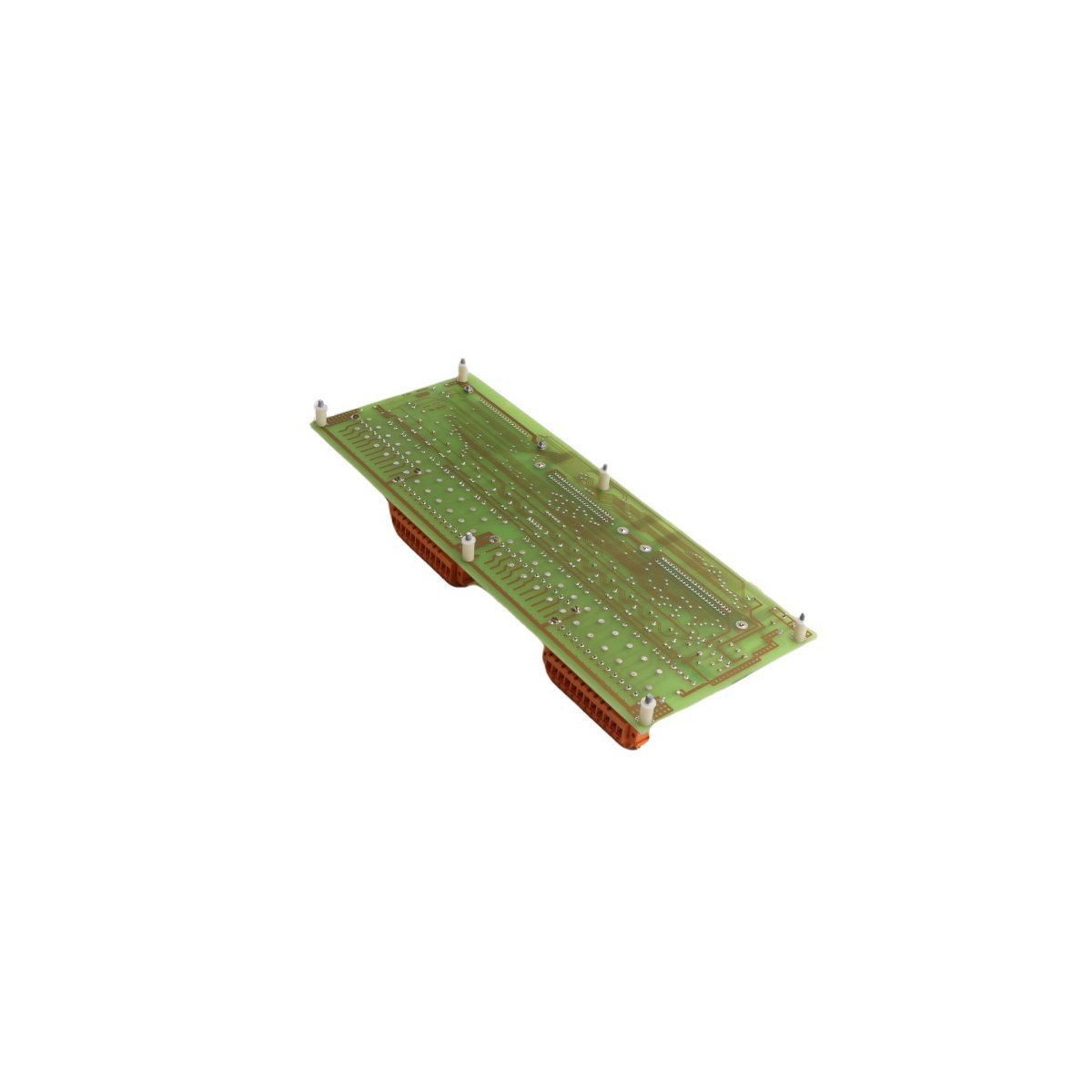

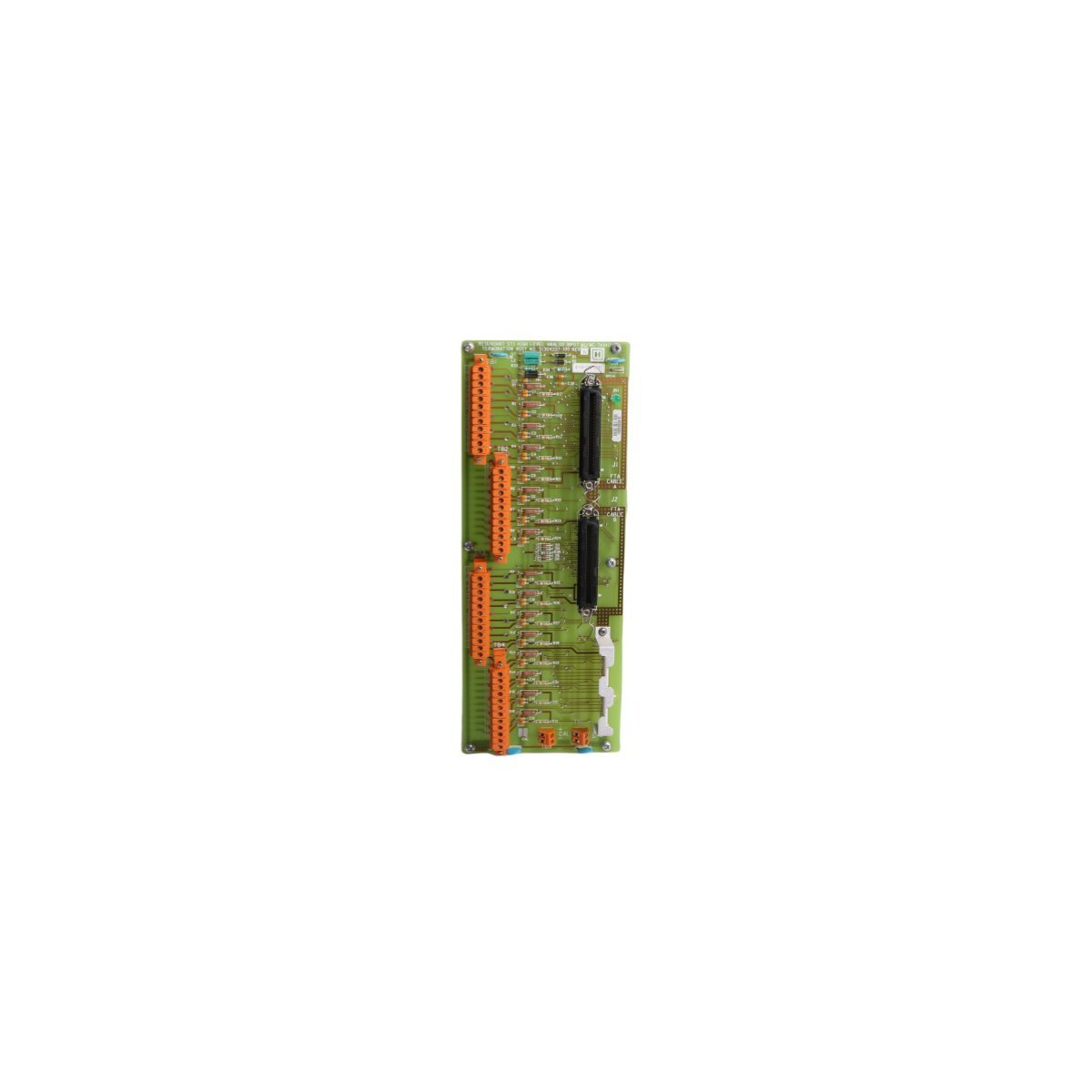

The Honeywell MU-TAIH12 (51304337-100) is a high-performance analog input Field Termination Assembly (FTA) designed for the TDC 3000 and Experion systems. It provides a secure interface for high-level analog signals, ensuring accurate data acquisition and signal conditioning for critical industrial control loops.

Advanced Signal Conditioning and Field Termination

The Honeywell MU-TAIH12 51304337-100 serves as a robust interface between field instrumentation and the Distributed Control System (DCS). This Field Termination Assembly (FTA) specifically handles high-level analog inputs, converting raw field signals into a format compatible with the system’s Input/Output Processor (IOP). By utilizing advanced conditioning circuitry, the board minimizes signal noise and ensures high-fidelity data transmission. Consequently, process controllers receive precise measurements from temperature transmitters, pressure sensors, and flow meters, which is fundamental for maintaining tight control over automated industrial sequences.

Rugged Engineering for Industrial Longevity

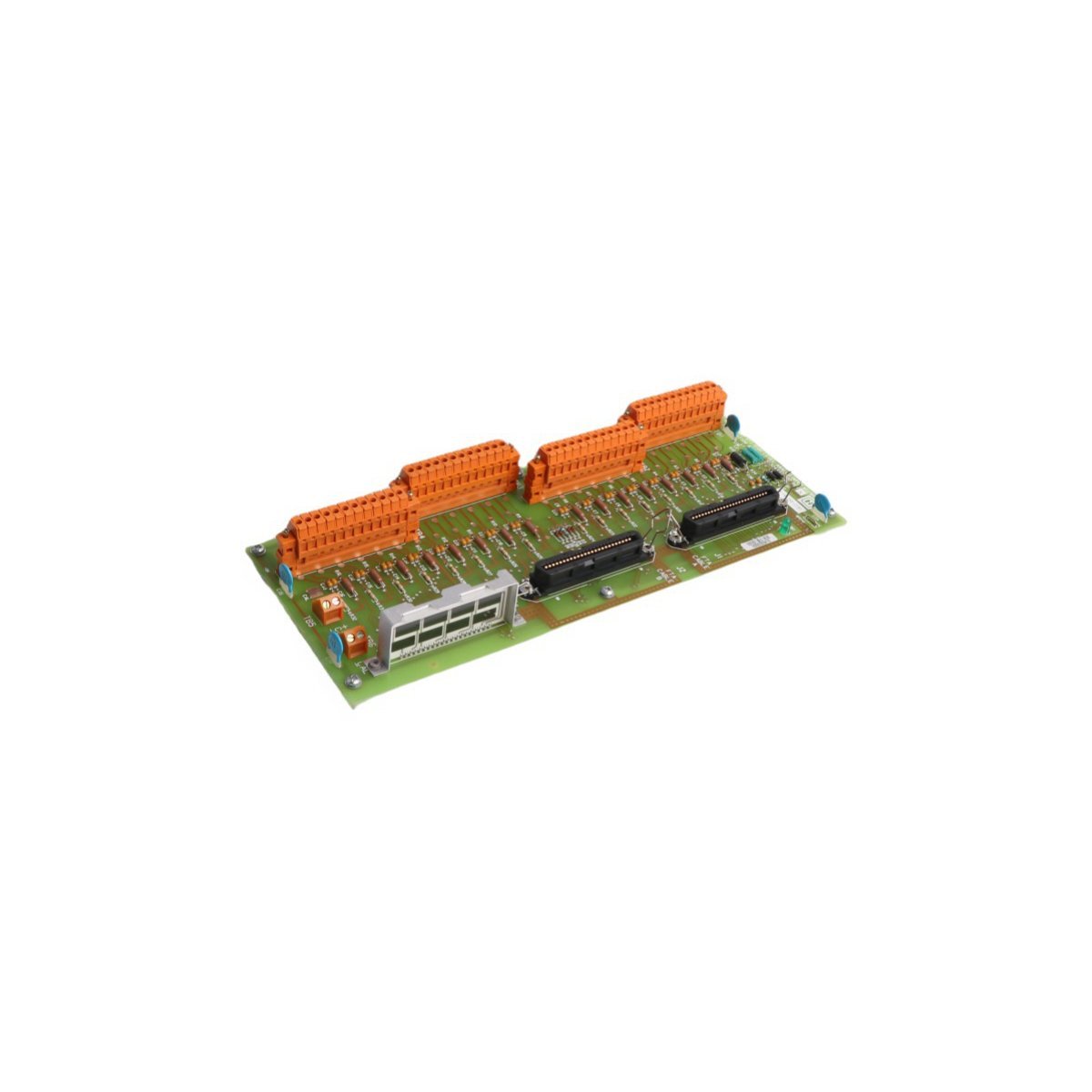

Honeywell designed the MU-TAIH12 to withstand the atmospheric and electrical stresses found in heavy manufacturing environments. The module features an IP54-rated protection class, which effectively shields the internal components from dust ingress and splashing water. This level of protection makes the board particularly suitable for deployment in non-climate-controlled marshaling cabinets. Furthermore, the physical layout includes four specialized 12-pin terminal blocks. These connectors facilitate organized wire management and allow technicians to perform maintenance or system expansions with minimal disruption to existing control loops.

Seamless Integration and Operational Reliability

As a core component of the Honeywell MU-T series, the 51304337-100 integrates flawlessly with existing TDC 3000 and Experion PKS architectures. The board’s design emphasizes high availability, ensuring that process data remains consistent even during fluctuations in the industrial power supply. Transitioning to this high-performance gateway module allows facilities to optimize their power management and signal accuracy simultaneously. Because it supports a wide range of high-level analog voltages, it provides the versatility needed for diverse applications in energy production, chemical refining, and automotive manufacturing.

Key Technical Characteristics

• High-Level Input Support: Optimized for standard high-level analog signals utilized in process automation.
• Environmental Resistance: IP54 protection rating ensures reliability in dusty or damp factory conditions.
• Expandable Connectivity: Equipped with four 12-pin terminal blocks for flexible field device interfacing.
• Enhanced Signal Integrity: Provides necessary conditioning to eliminate electromagnetic interference (EMI).
• Compact Form Factor: The 12 x 5 x 30.7 cm dimensions allow for high-density mounting in standard DCS cabinets.
• Broad Industry Application: Ideal for monitoring critical variables in power plants, refineries, and manufacturing lines.

Technical Specifications
