Description

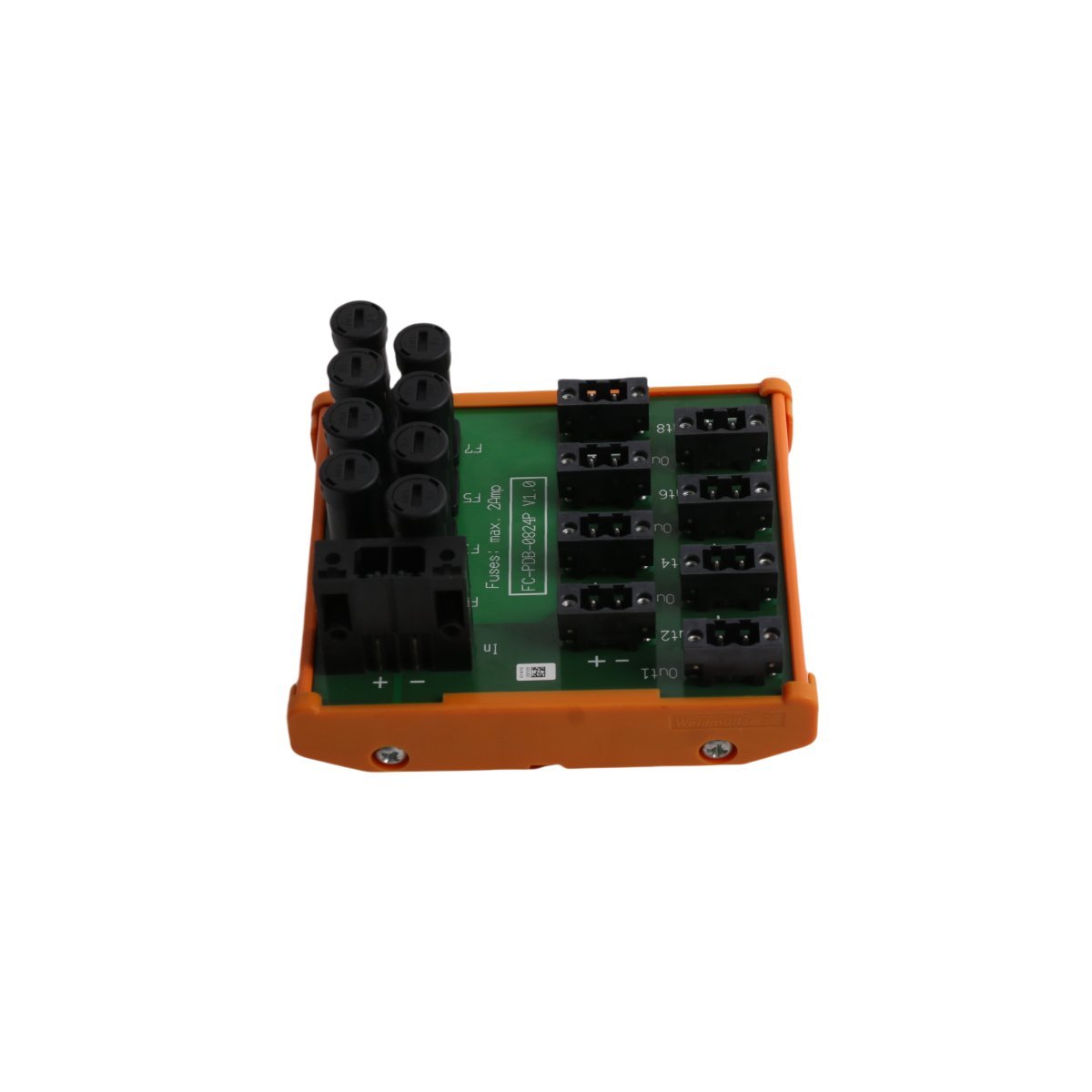

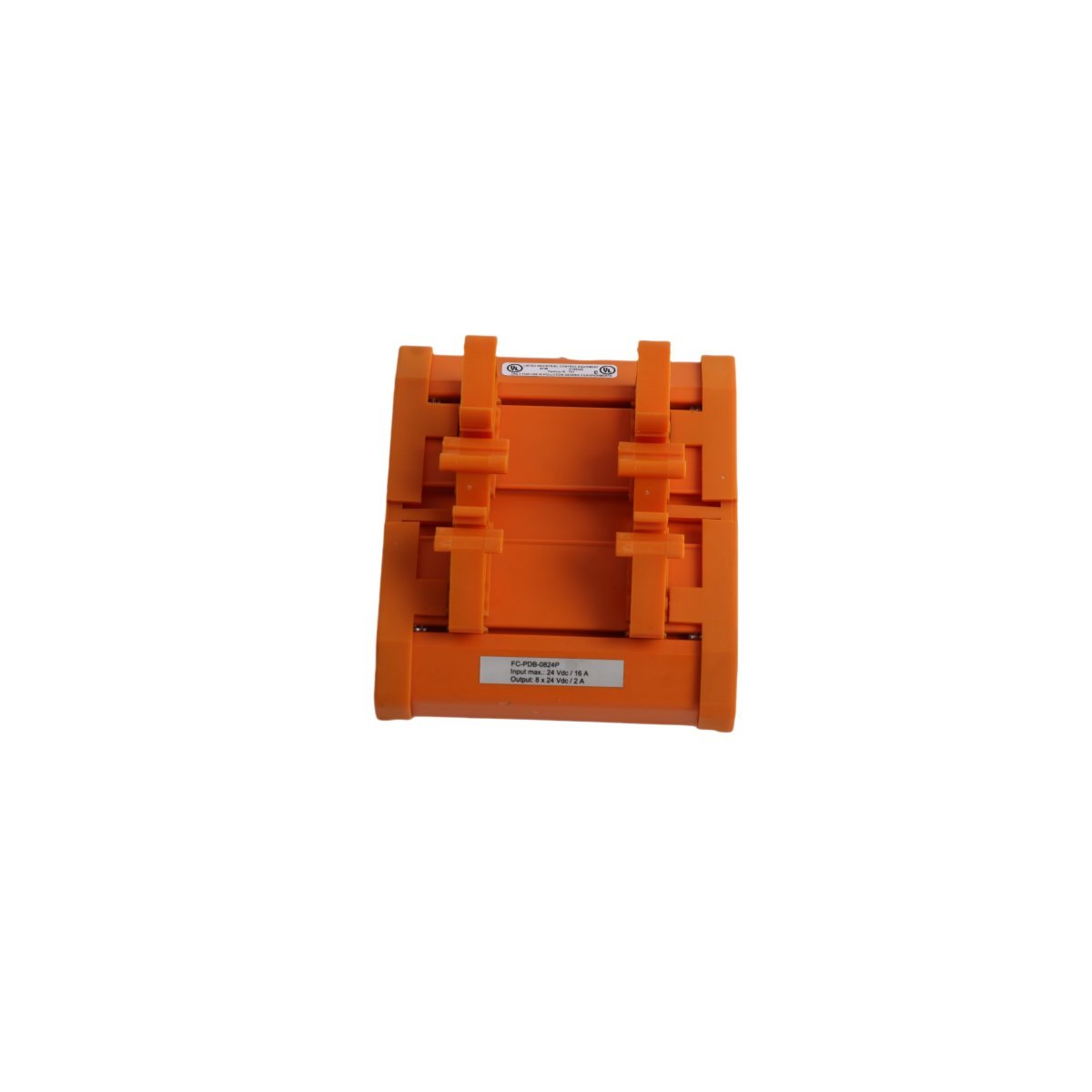

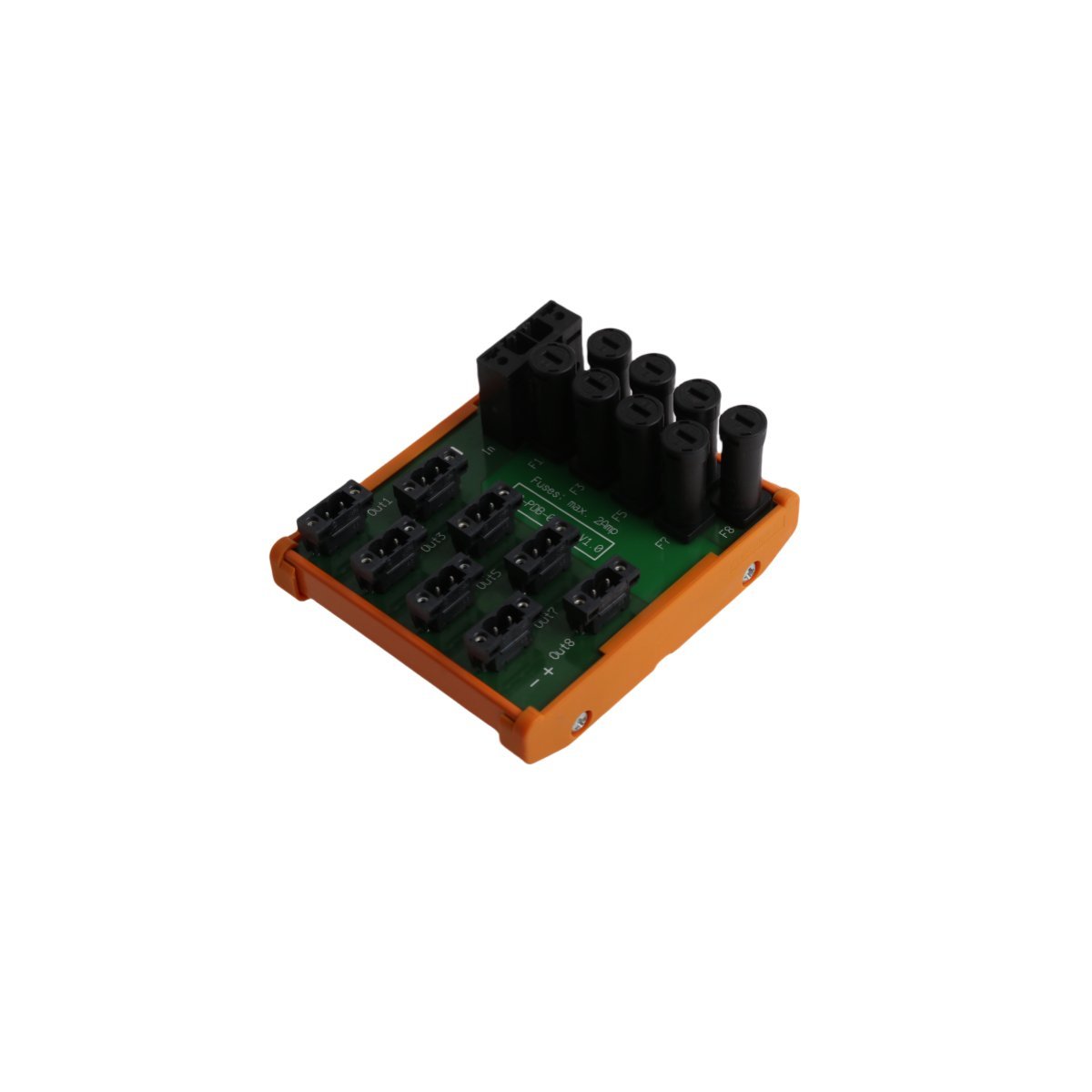

Configured for stable electrical distribution in DCS control architectures, the Honeywell FC-PDB-0824 (FC-PDB-0824 Power Distribution Board) provides direct physical power management and voltage regulation.

Hardware Specifications

DCS Process Control and Connectivity

The FC-PDB-0824 module functions within the DCS ecosystem to regulate auxiliary power inputs across connected I/O rails. During operational cycles, channel-to-channel isolation is maintained at the board level to prevent fault propagation across distribution branches. Furthermore, the module supports integration with standard 4-20 mA HART loop protocol environments by providing clean power rails that minimize noise injection into analog sensing circuits. Additionally, cold junction compensation (CJC) reference points are stabilized via the module’s thermal dissipation design, ensuring accuracy for temperature inputs processed by downstream cards. This electrical buffering ensures that transient surges are suppressed, thereby maintaining the operational integrity of the primary control bus.

Frequently Asked Questions

Q: Is the FC-PDB-0824 compatible with existing Series 8 or legacy I/O backplanes?

A: The board is designed for specific distribution footprints within the control cabinet; verification of the cabinet backplane layout and voltage ratings is necessary to ensure electrical and mechanical compatibility.

Q: What is the impact of current load fluctuations on the power distribution stability?

A: The board incorporates localized decoupling circuitry to handle standard operational current fluctuations; however, total current draw must remain within the manufacturer’s specified wattage limits to prevent thermal stress on the distribution bus.

Field Installation Guidelines

• The module is mounted onto a standard DIN-rail or dedicated chassis bracket, ensuring firm mechanical engagement to prevent loosening due to enclosure-level vibrations.
• Input and output power leads are connected to the terminal blocks, ensuring that wire cross-sections are matched to the rated current capacity of the board.
• Shielding for sensitive signal lines in proximity to power distribution must be maintained to prevent induced electromagnetic noise.
• All terminal screws are tightened to the specified torque rating to minimize contact resistance, which could otherwise lead to localized heating under full load conditions.
